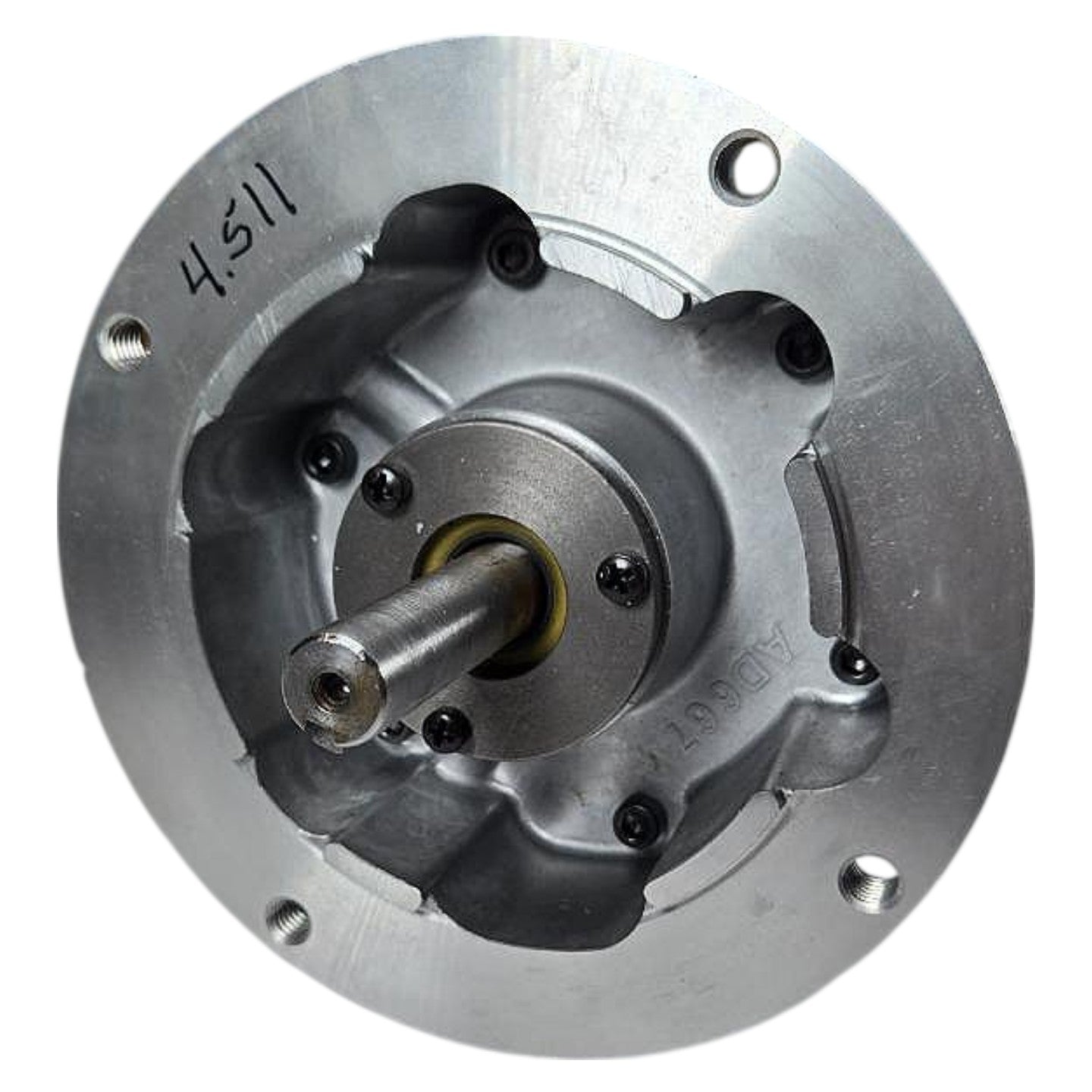

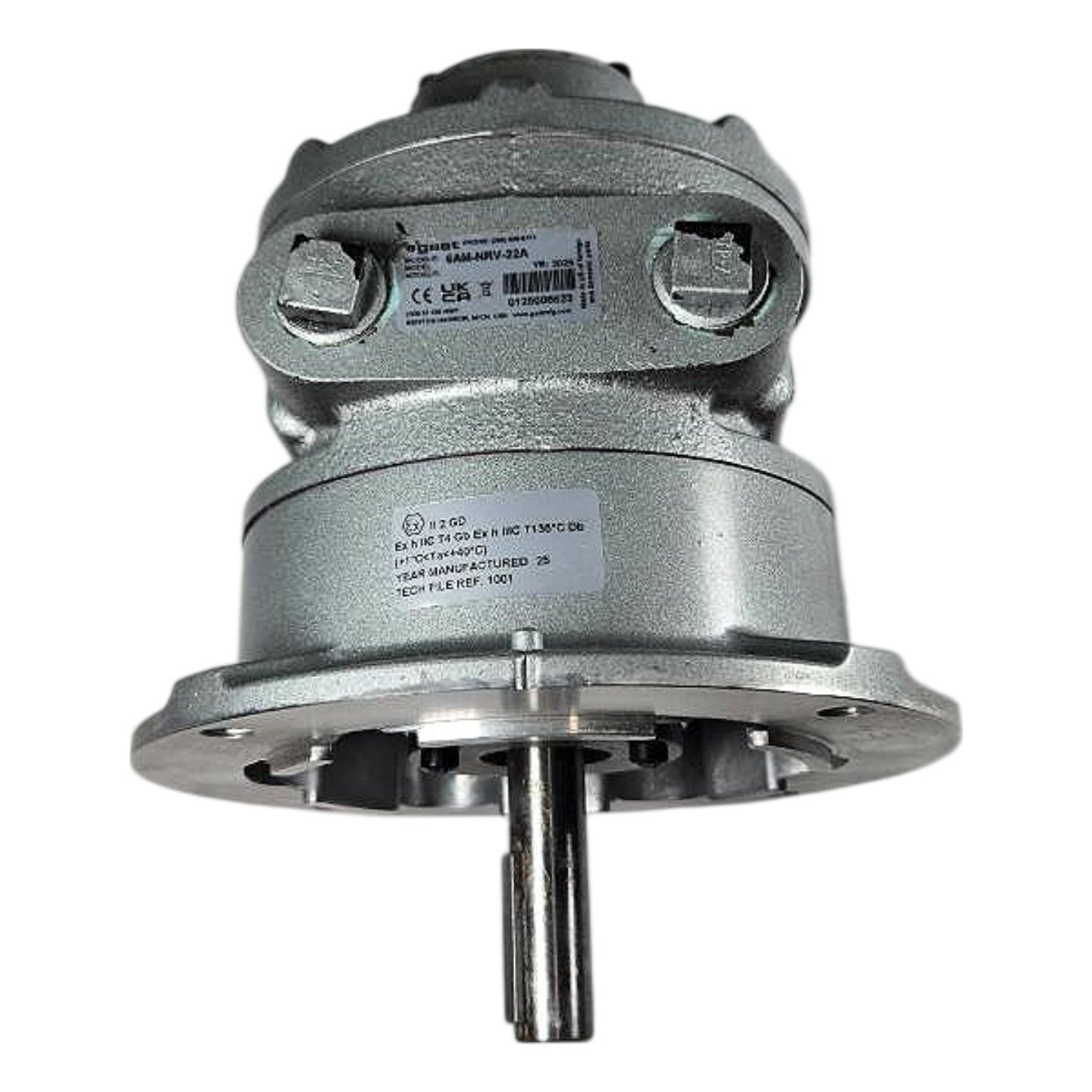

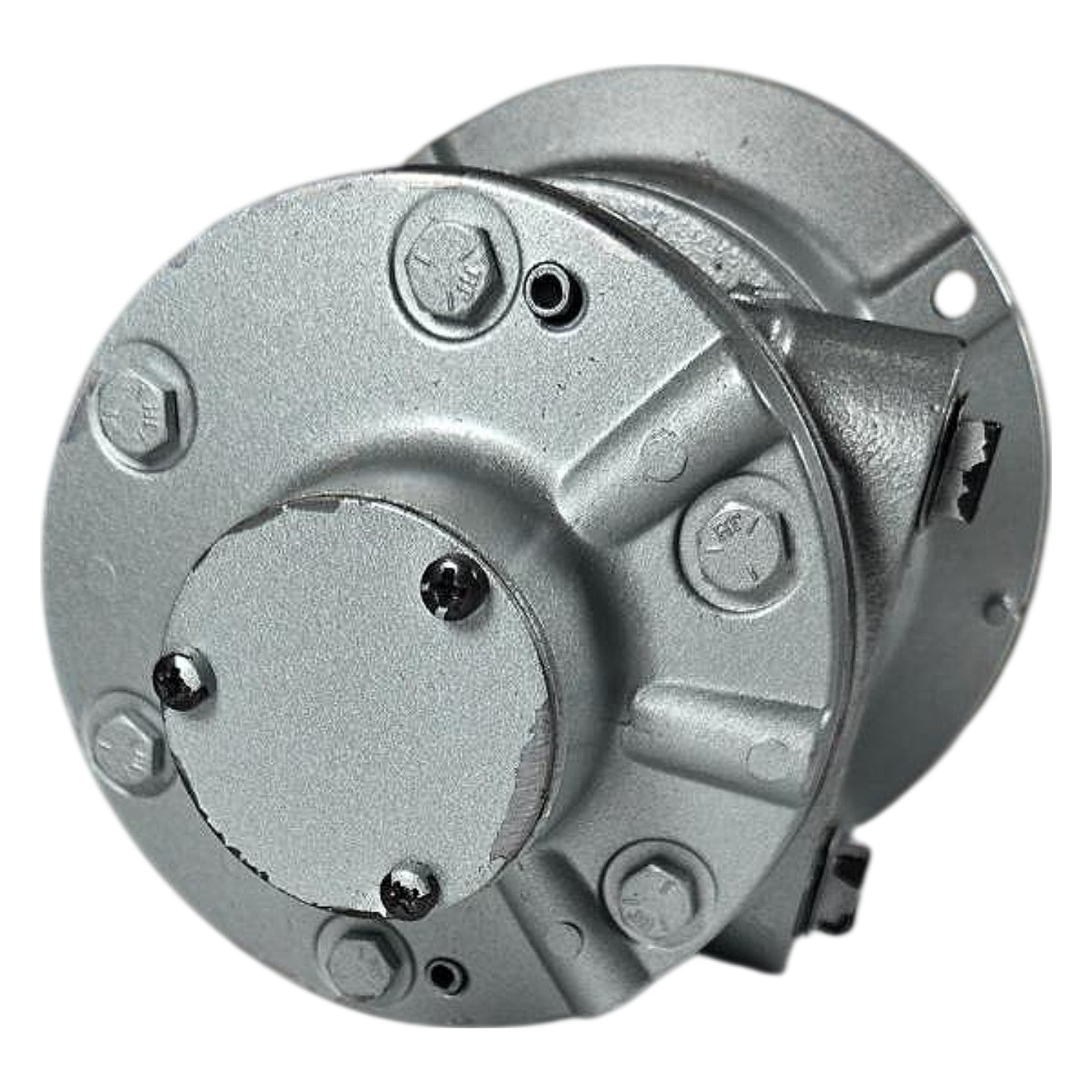

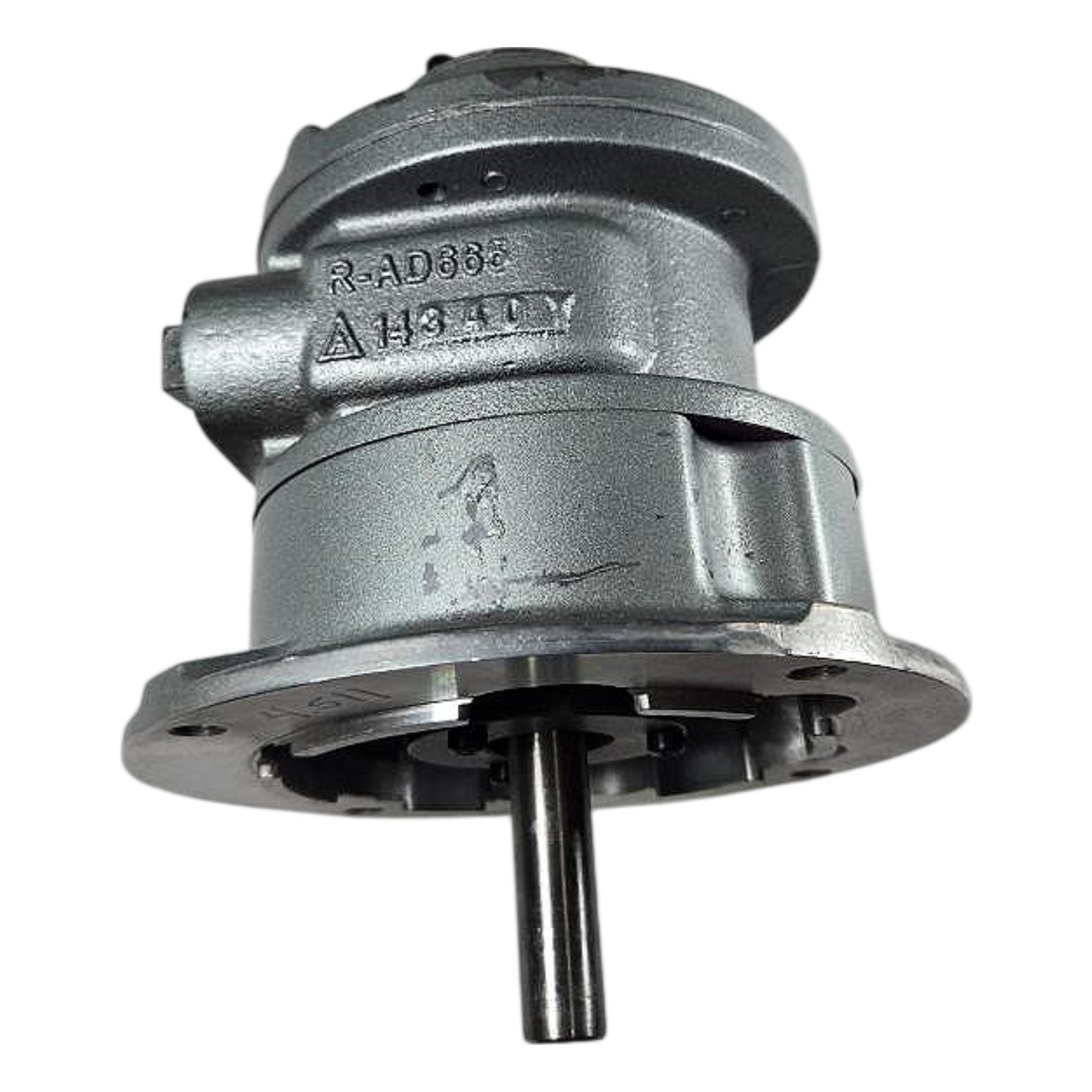

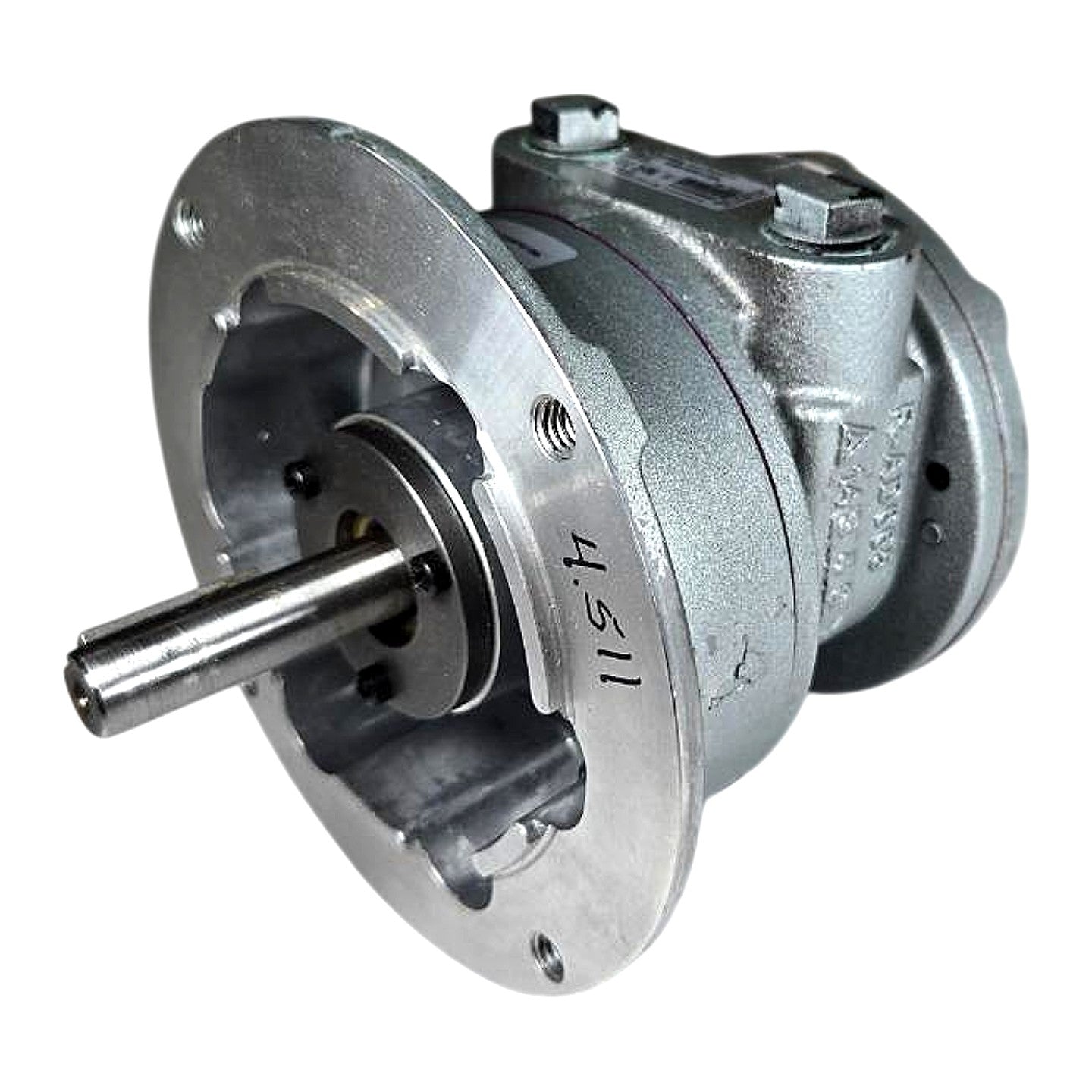

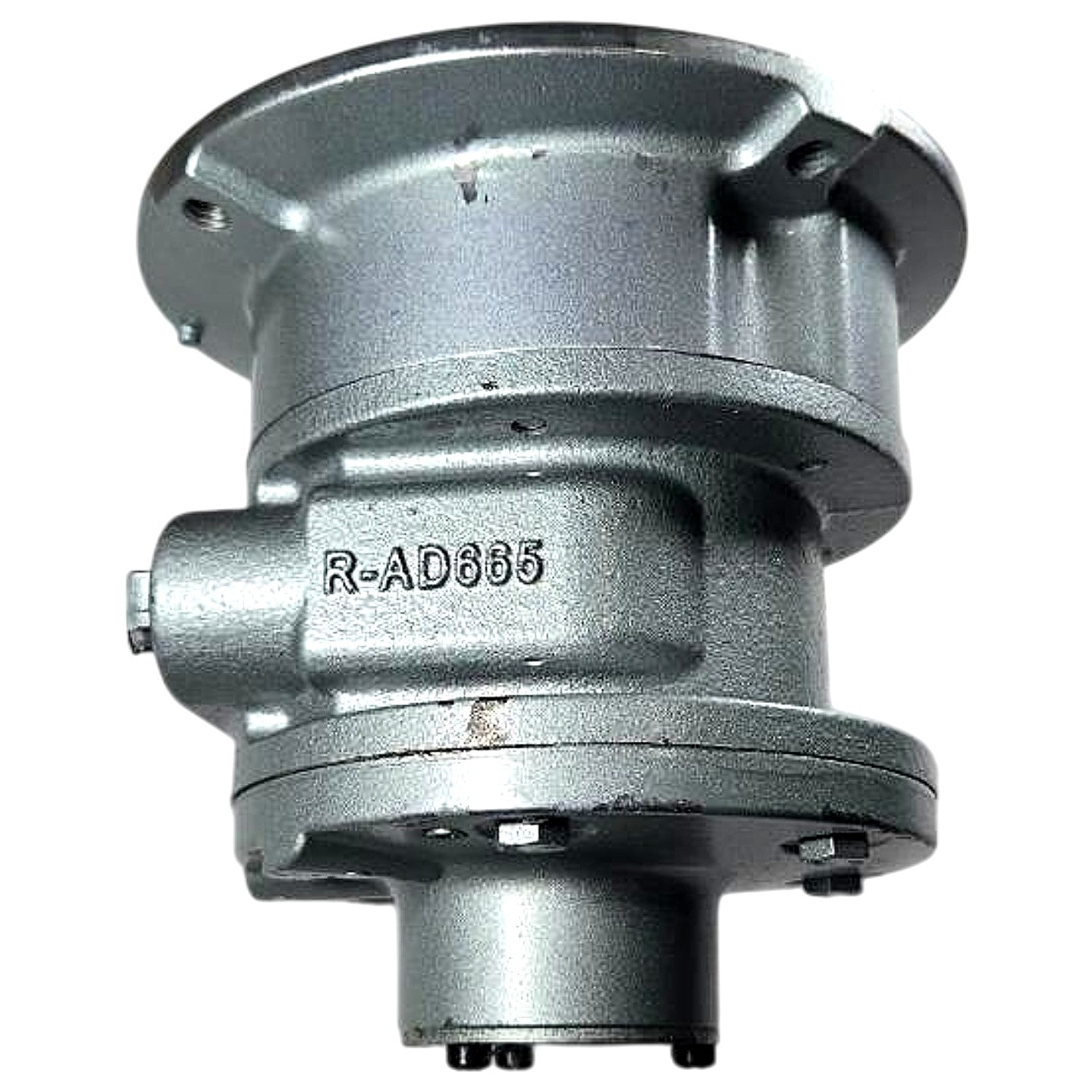

The Gast 6AM-NRV-22A is a new, industrial-grade reversible vane-type air motor rated at 4 HP, delivering 84 in-lb of stall torque at a free-speed of 3,000 RPM with an air consumption of 130 CFM at 90 PSI inlet pressure. The motor features a face-mount (flange) configuration with a 1/2 in NPT inlet/exhaust port and a square-keyed output shaft, allowing direct integration into machinery or gearbox assemblies without a separate adapter plate. It carries full ATEX/IECEx Zone 2 Gas and Zone 21 Dust hazardous-location certification (II 2 GD, Ex h IIC T4 Gb, Ex h IIIC T135°C Db) as read from the label, making it suitable for use in petrochemical, pharmaceutical, mining, and other explosive-atmosphere environments where electric motors are prohibited. The die-cast aluminum housing provides a lightweight, corrosion-resistant enclosure, and the unit is CE and UKCA marked per the labels visible in the photos. Year of manufacture is 2025 per the label; internal reference R-AD665 is visible on the housing.
Product Specifications
| Brand | Gast |
| Model / MPN | 6AM-NRV-22A |
| Motor Type | Vane Air Motor |
| Power Rating | 4 HP |
| Torque (Stall) | 84 in-lb |
| Free Speed (No Load) | 3,000 RPM |
| Air Consumption | 130 CFM @ 90 PSI |
| Inlet Pressure (Nominal) | 90 PSI |
| Port Size | 1/2 in NPT |
| Rotation | CW/CCW (Reversible) |
| Mounting Style | Face / Flange Mount |
| Output Shaft Style | Square Keyed |
| Housing Material | Die-Cast Aluminum |
| ATEX / IECEx Category | II 2 GD |
| Gas Ignition Protection | Ex h IIC T4 Gb |
| Dust Ignition Protection | Ex h IIIC T135°C Db |
| Ambient Temp Range | -1°C to +40°C |
| Certifications | CE, UKCA, ATEX, IECEx |
| Internal Reference | R-AD665 |
| Year Manufactured | 2025 |
| Condition | New |
