Gates G20400-1216 12GS-16FLC 3/4in Hose 1in Code 61 Flange Fitting
Regular price
$62.51
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

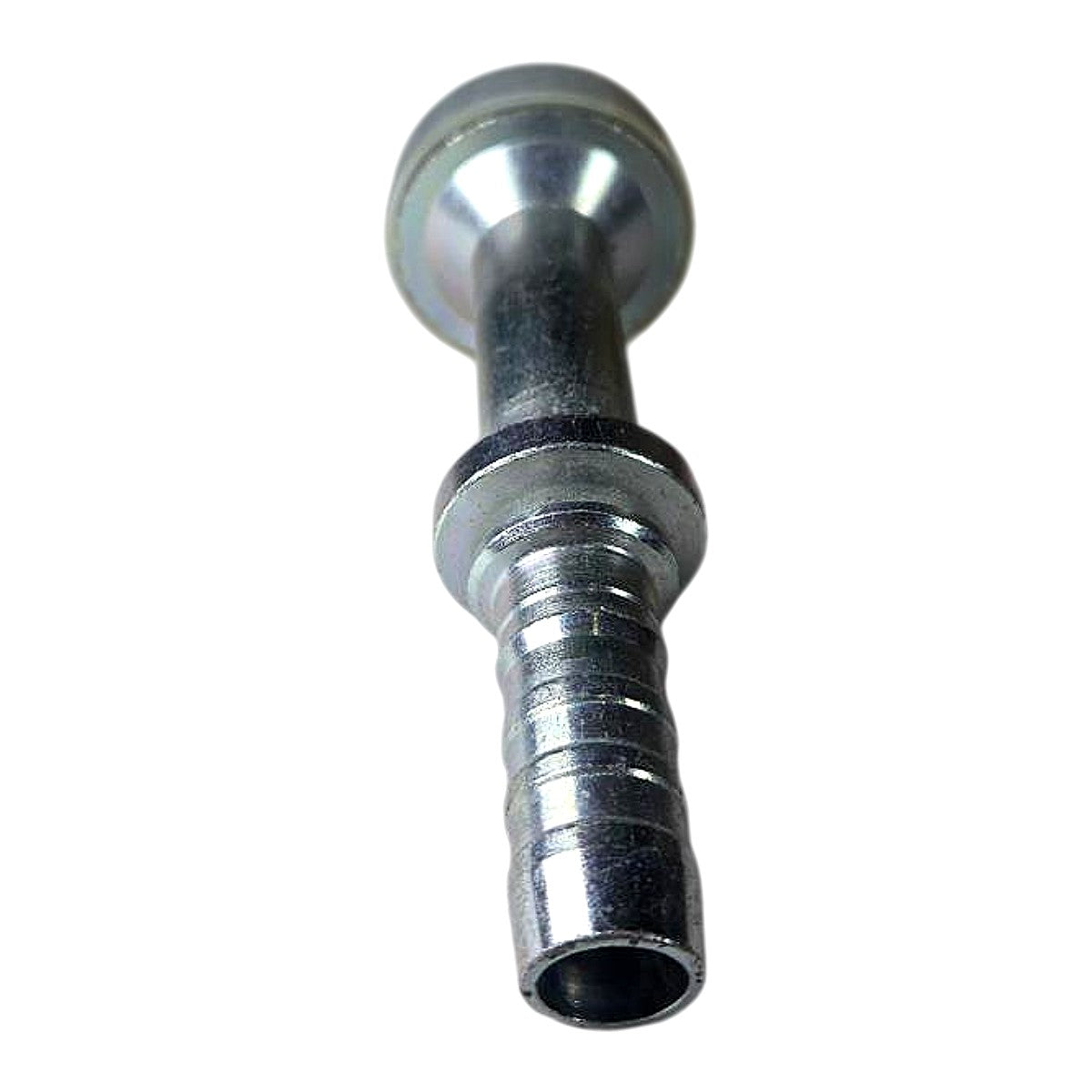

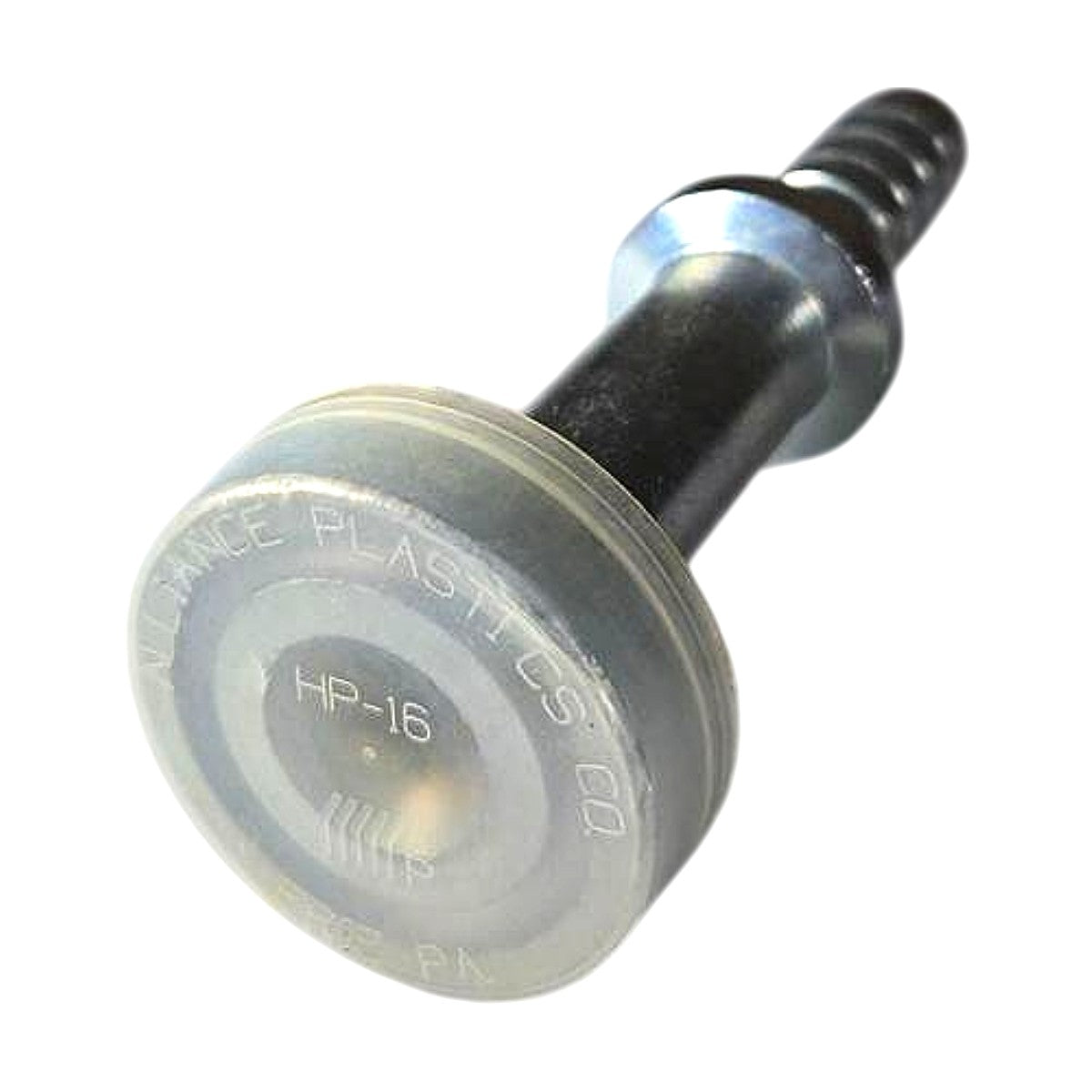

This Gates G20400-1216 (marked 12GS-16FLC) is a new, straight SAE Code 61 flange hydraulic hose fitting for -12 (3/4 in) hose, made in the USA. The part designation indicates a 12GS hose-end stem for Gates GS-series spiral-wire hose, with a size -16 (1 in) FLC (Code 61) flange head. The plated steel body has a barbed, ringed stem that is crimped onto the hose, and the flange head is shown with a clear plastic protective cap. It is used for connecting hydraulic hose assemblies to flange ports on pumps, valves, and cylinders. A matching Gates-approved hose and crimp specification should be confirmed before assembly.
Product Specifications
| Brand | Gates |
| Manufacturer Part Number | G20400-1216 |
| Part Description | 12GS-16FLC |
| Fitting Type | Crimp-On Hose End, Flange |
| Flange Type | SAE Code 61 (FLC) |
| Flange Size | -16 (1 in) |
| Hose Size | -12 (3/4 in) |
| Hose Series Compatibility | GS (Gates spiral-wire hose) |
| Fitting Angle | Straight (0 deg) |
| Material | Steel |
| Finish | Zinc Plated |
| Country of Origin | USA |
| Included | Clear plastic flange cap |
