Gates G20725-1020 10GS-20FDHORX45 45° Female DIN Swivel Hose Fitting
Regular price
$25.48
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

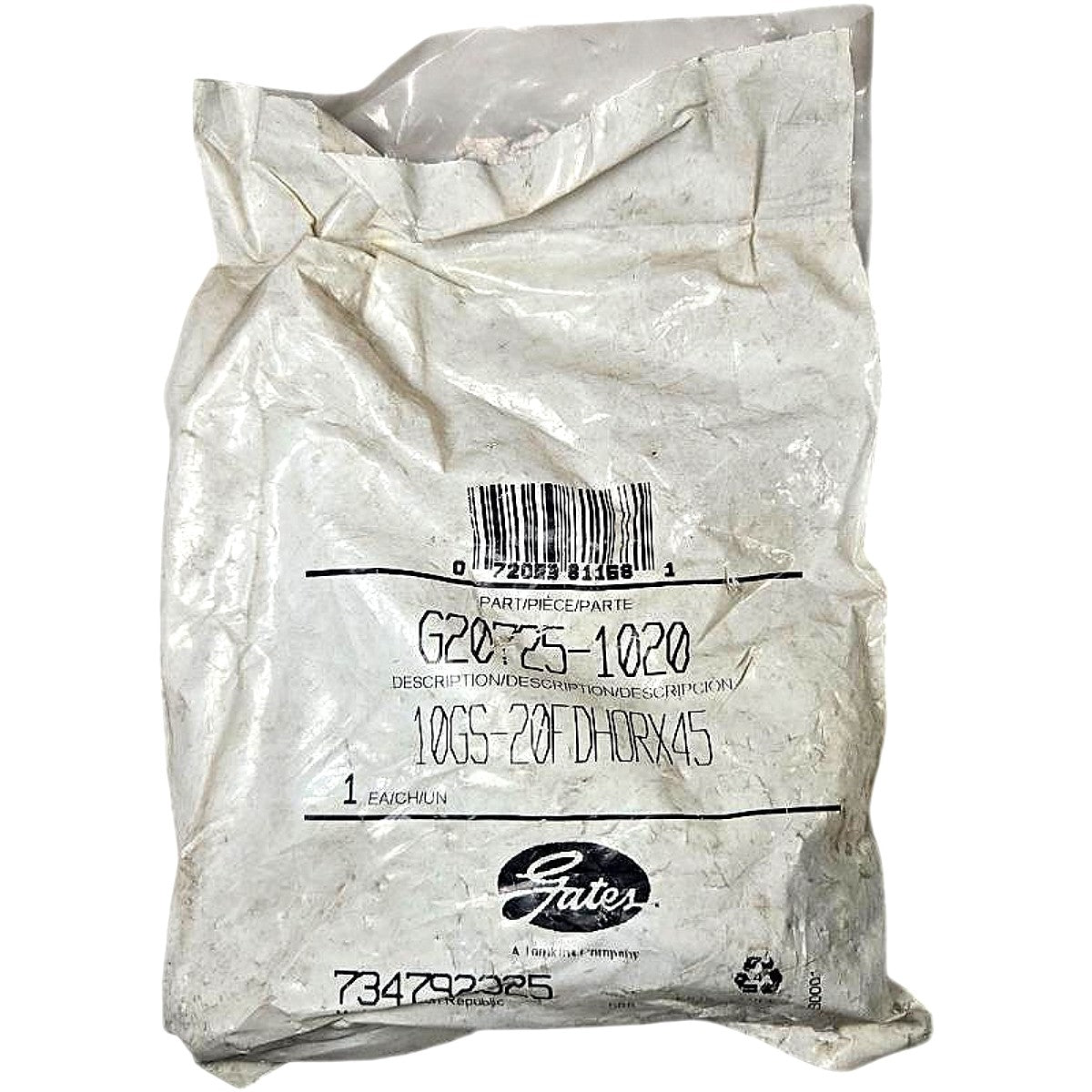

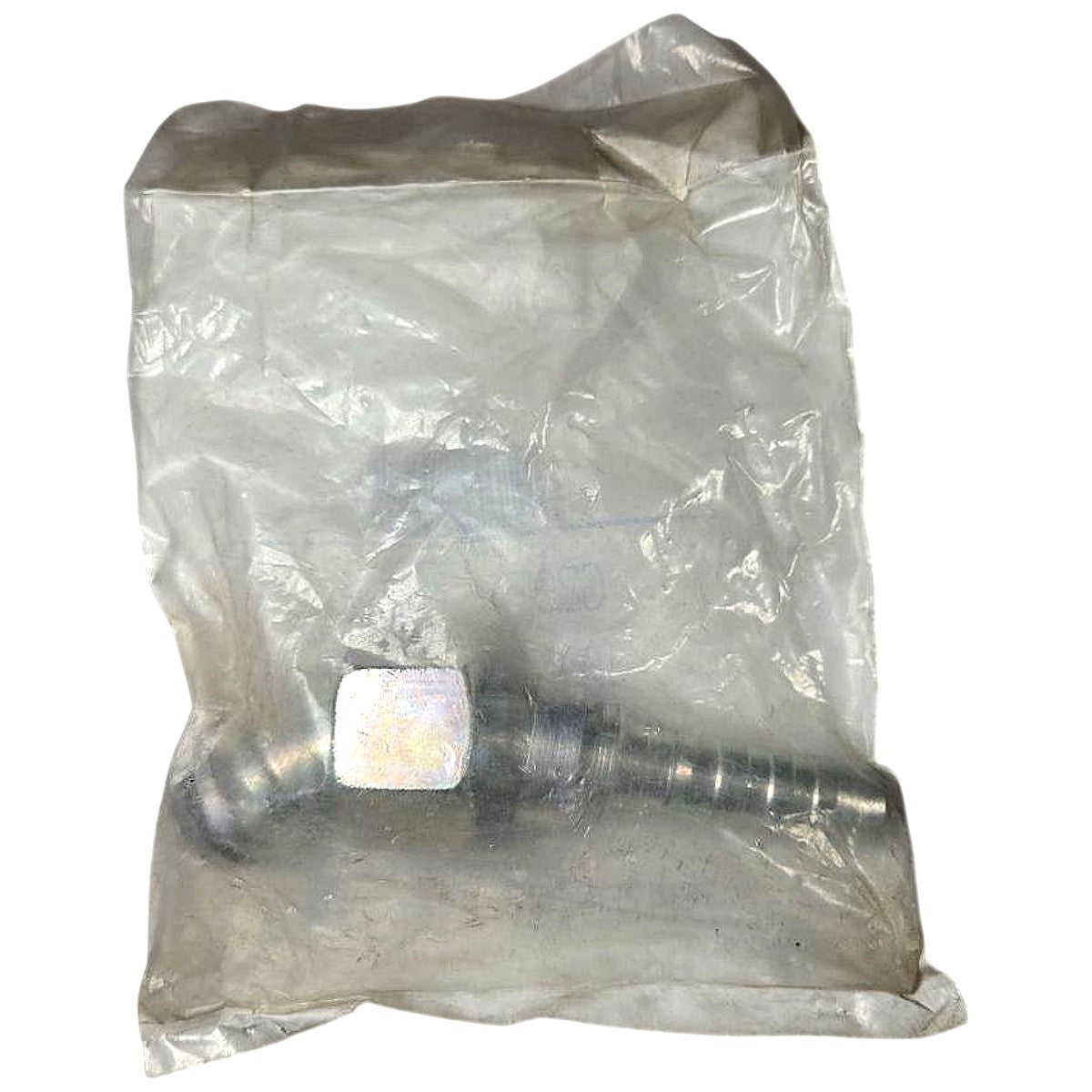

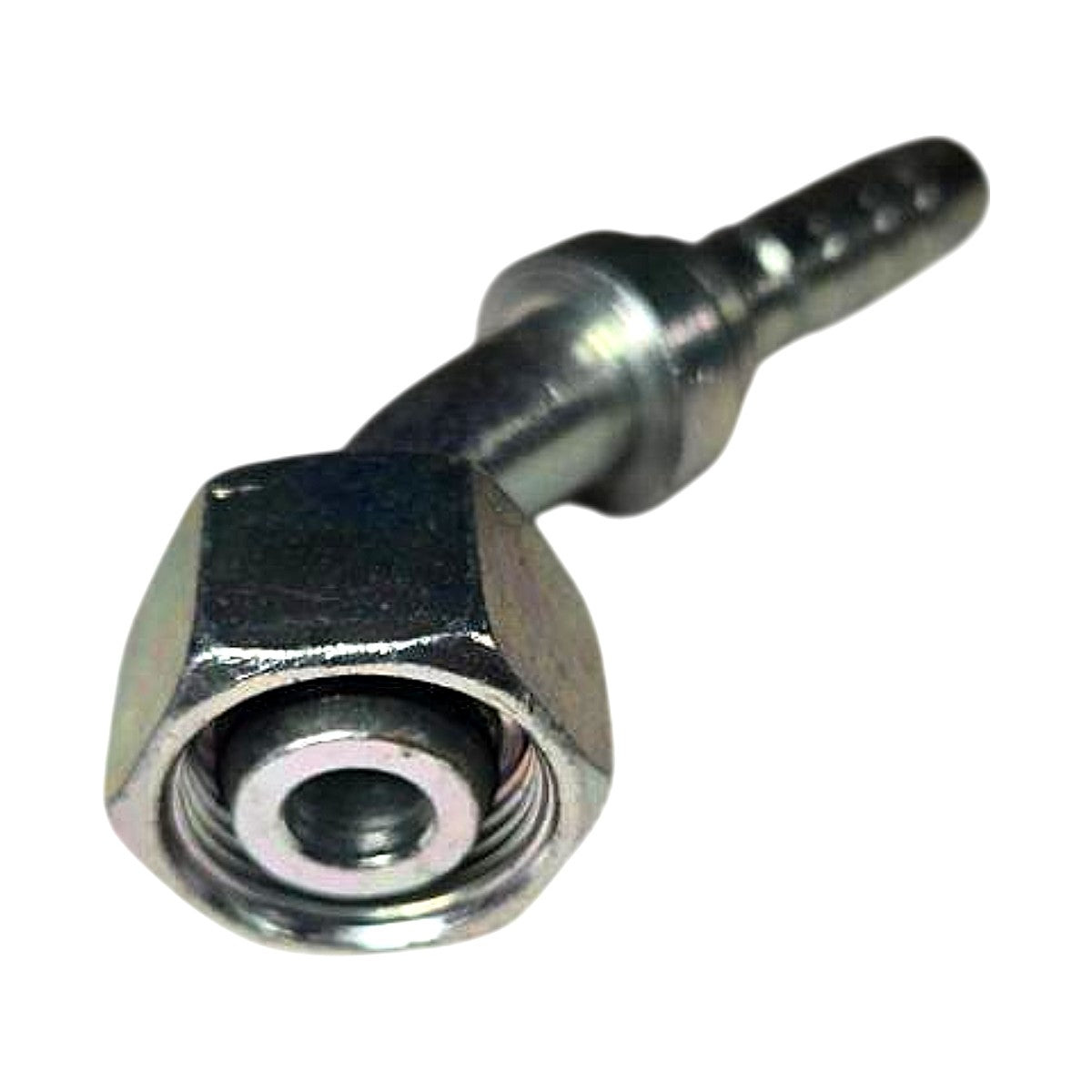

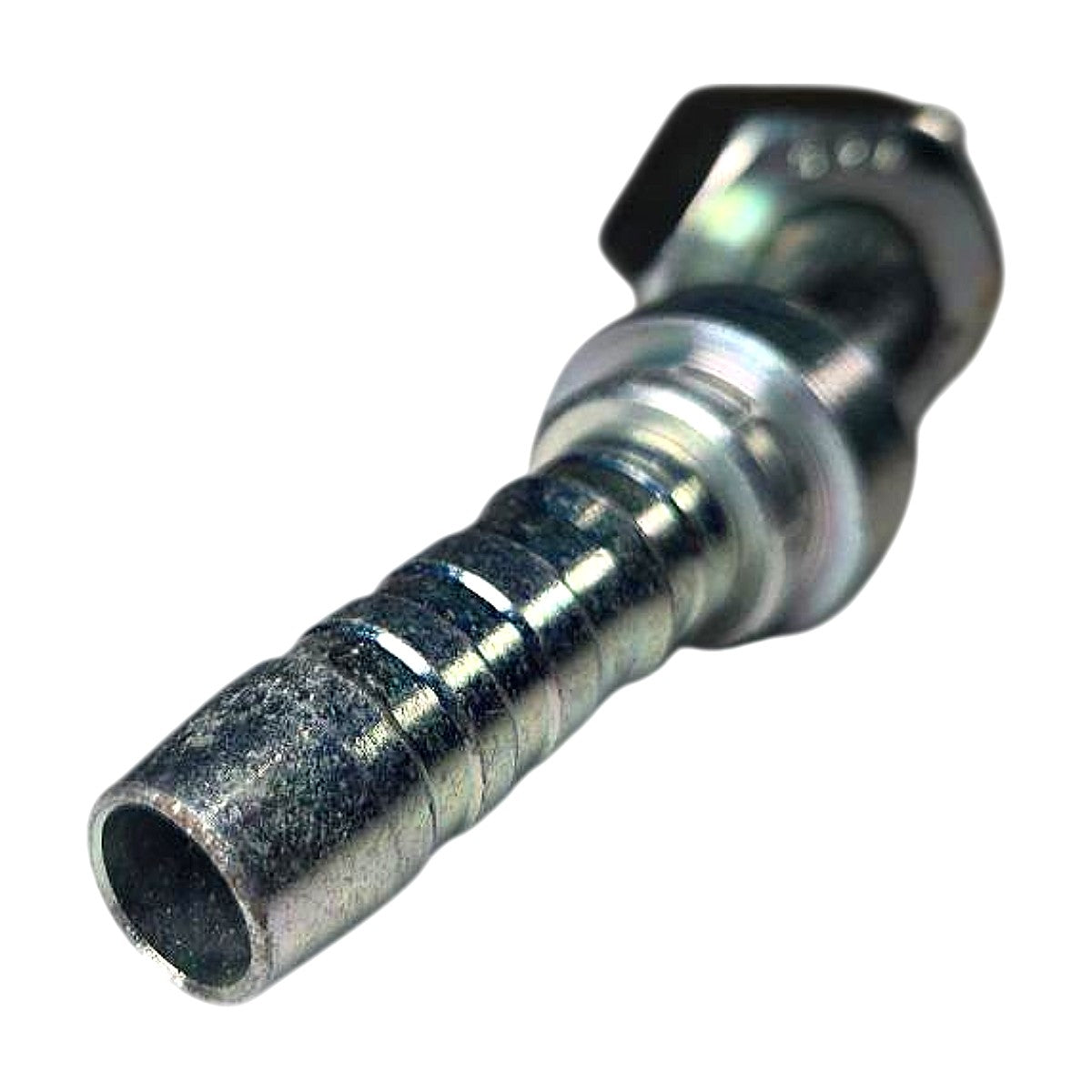

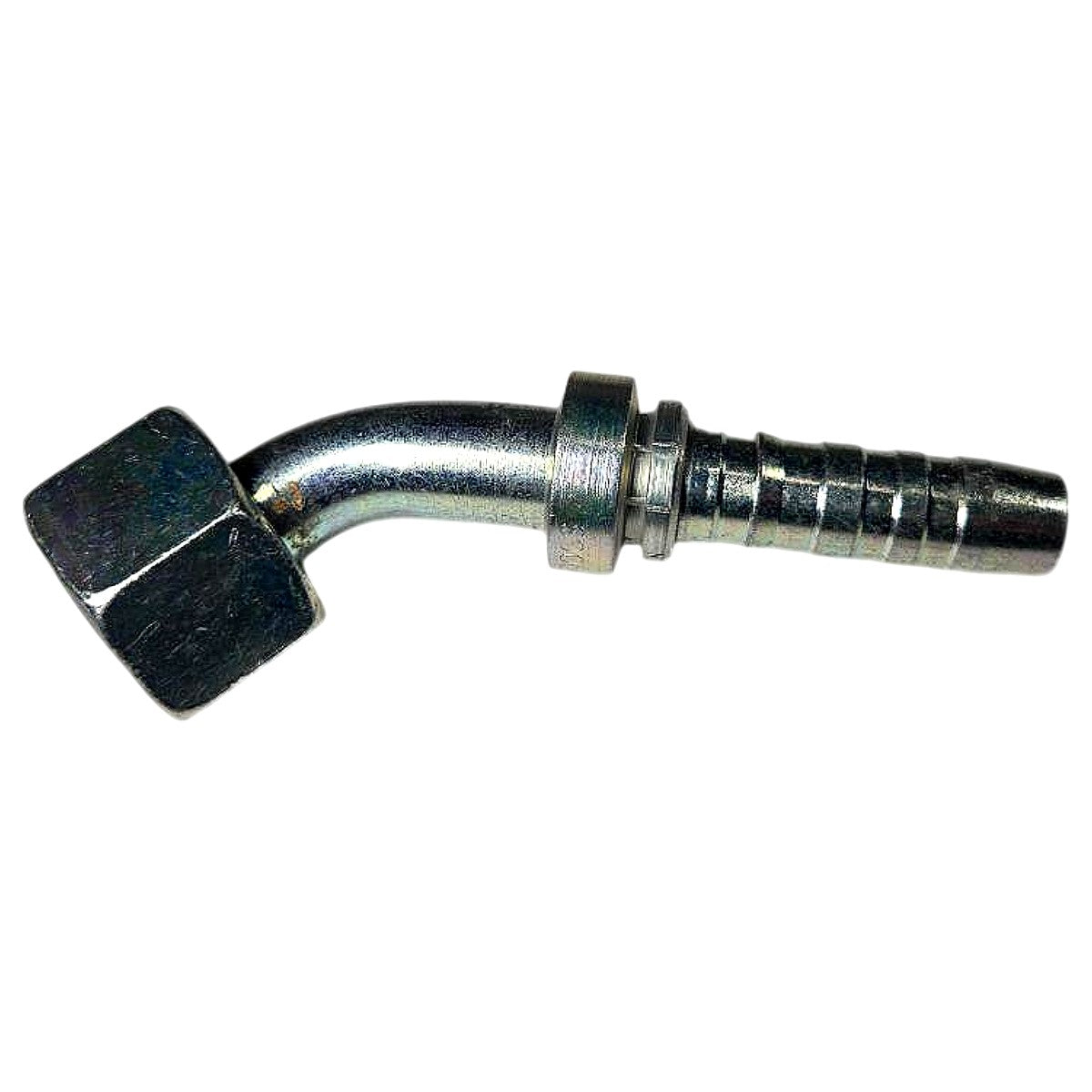

This Gates G20725-1020 (10GS-20FDHORX45) is a crimp-style hydraulic hose fitting with a 45 degree elbow body, a female swivel nut with DIN heavy-series 24 degree cone and O-ring sealing, and a barbed hose stem for a -10 (5/8 in) hose. The steel body and nut have a zinc-plated finish, and the swivel nut lets the fitting be assembled to the mating male port without twisting the hose. The part is permanently crimped to the hose with a Gates crimper and is intended for Gates GS-series hose assemblies at the -10 hose size. The item is new, unused, and supplied in its original sealed bag.
Product Specifications
| Brand | Gates |
| Manufacturer Part Number | G20725-1020 |
| Description Code | 10GS-20FDHORX45 |
| Fitting Angle | 45° |
| Fitting Shape | Elbow |
| End Connection Type | Female DIN Swivel, 24° Cone w/ O-Ring |
| DIN Series | Heavy (S) |
| Hose Size | -10 (5/8 in) |
| Hose Attachment | Crimp, Barbed Stem |
| Material | Steel |
| Finish | Zinc Plated |
| UPC | 072053811681 |
