Gates G20830-2020 20GS-20FBSPORX 1-1/4 in Female BSPP Hydraulic Hose Coupling
Regular price
$70.82
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

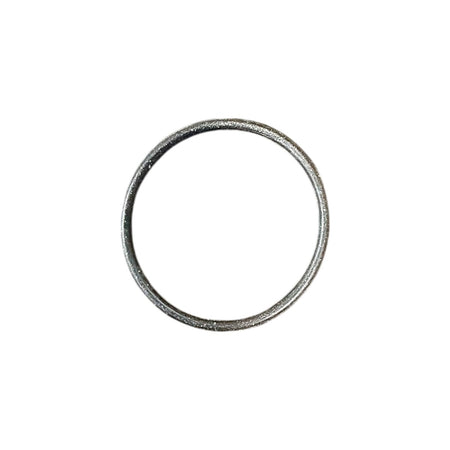

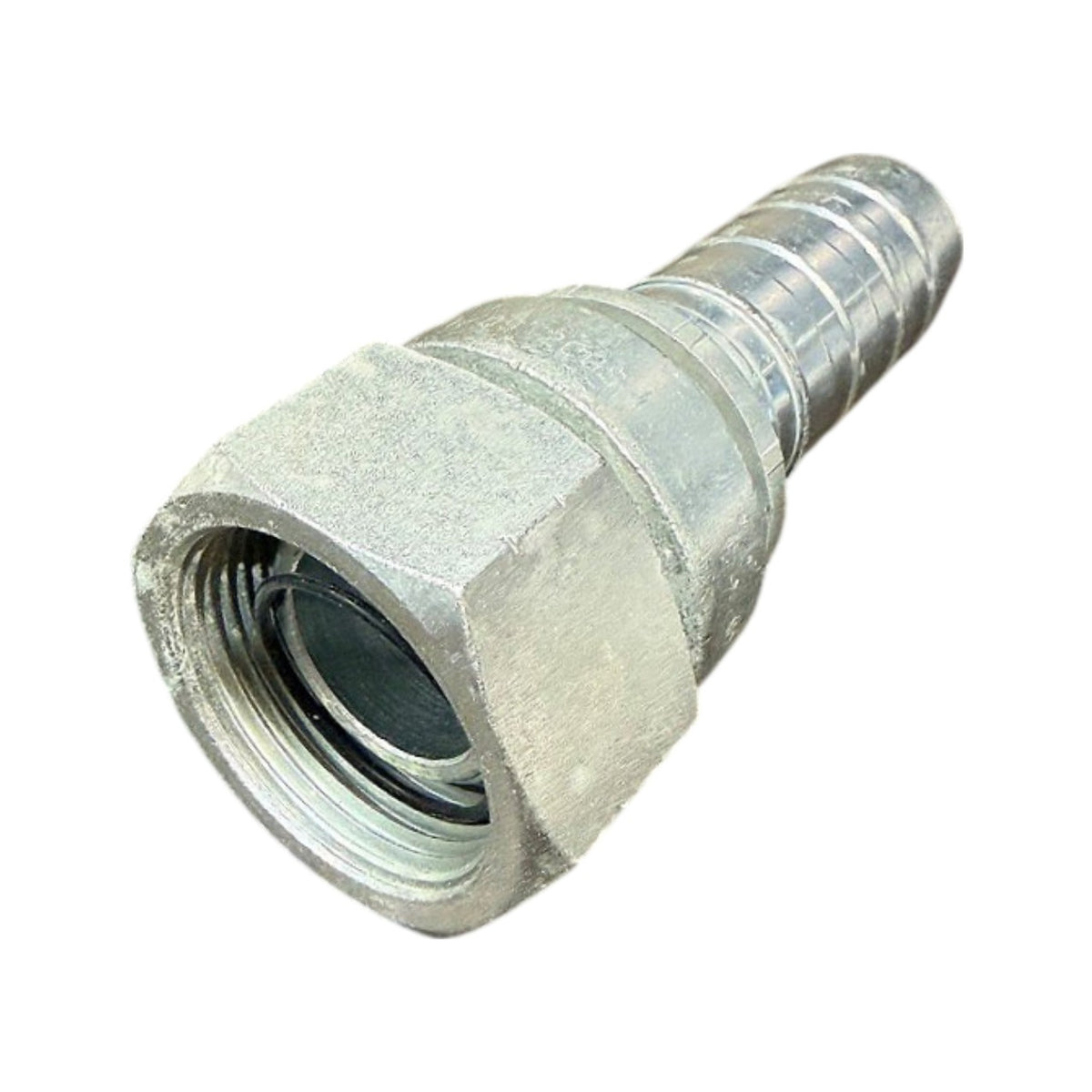

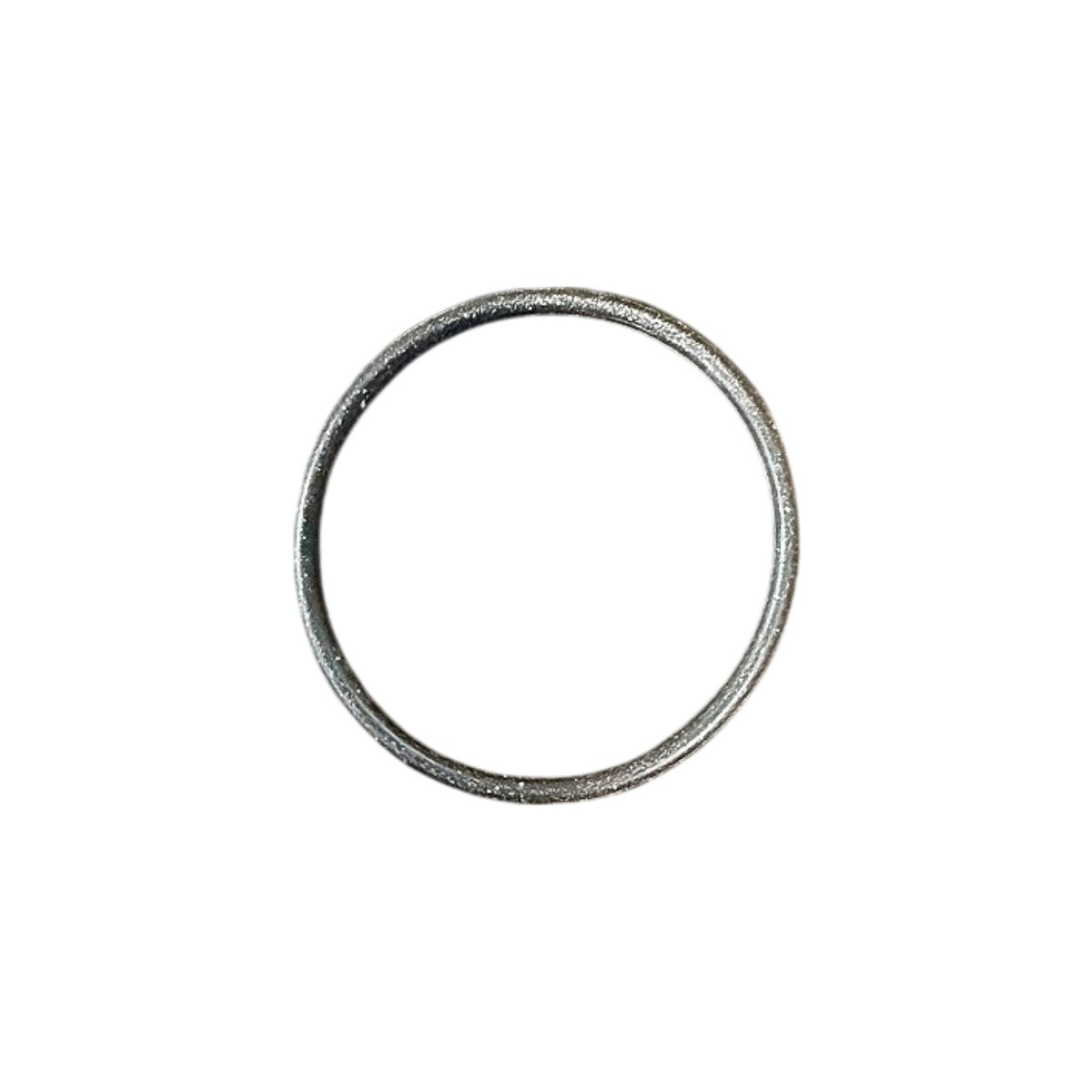

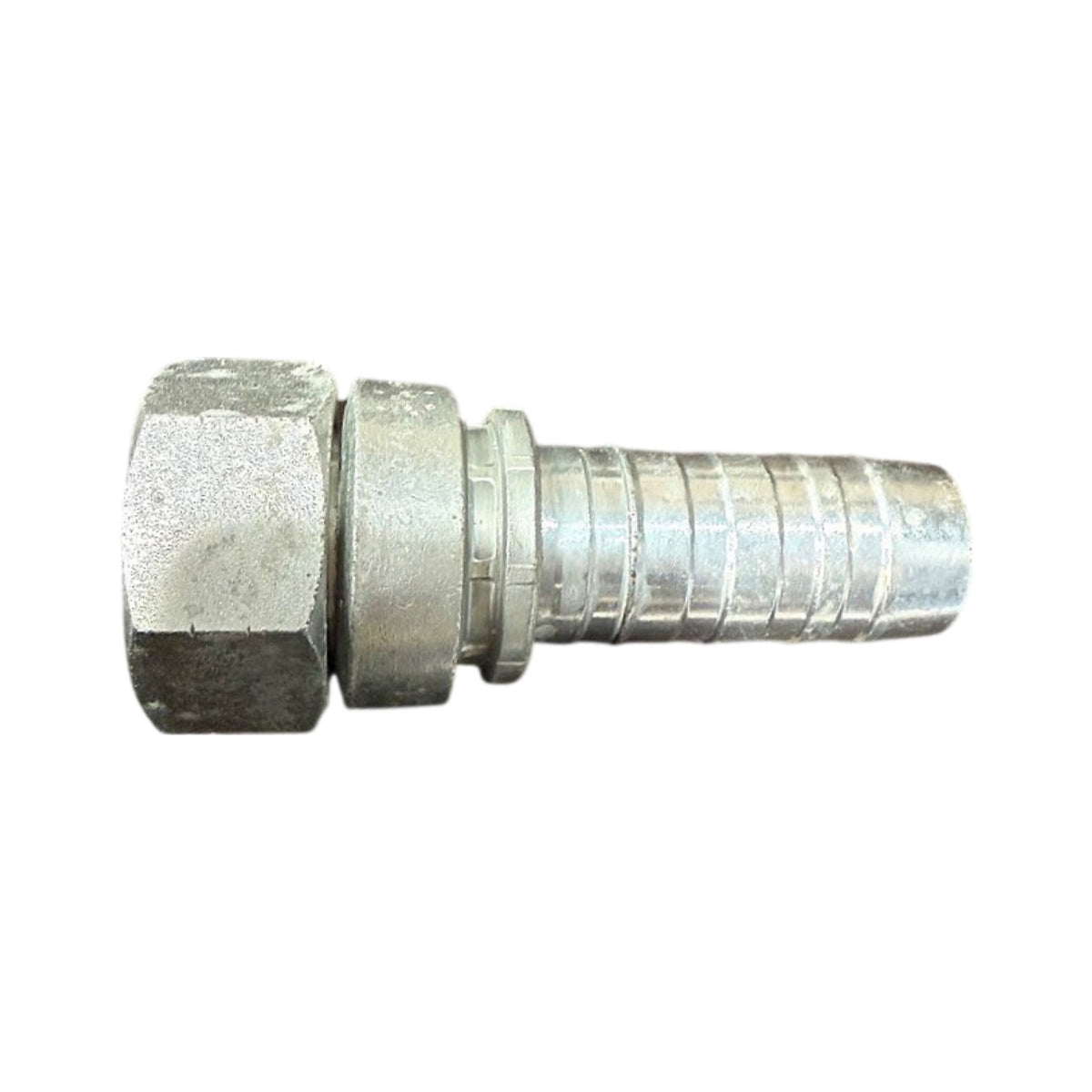

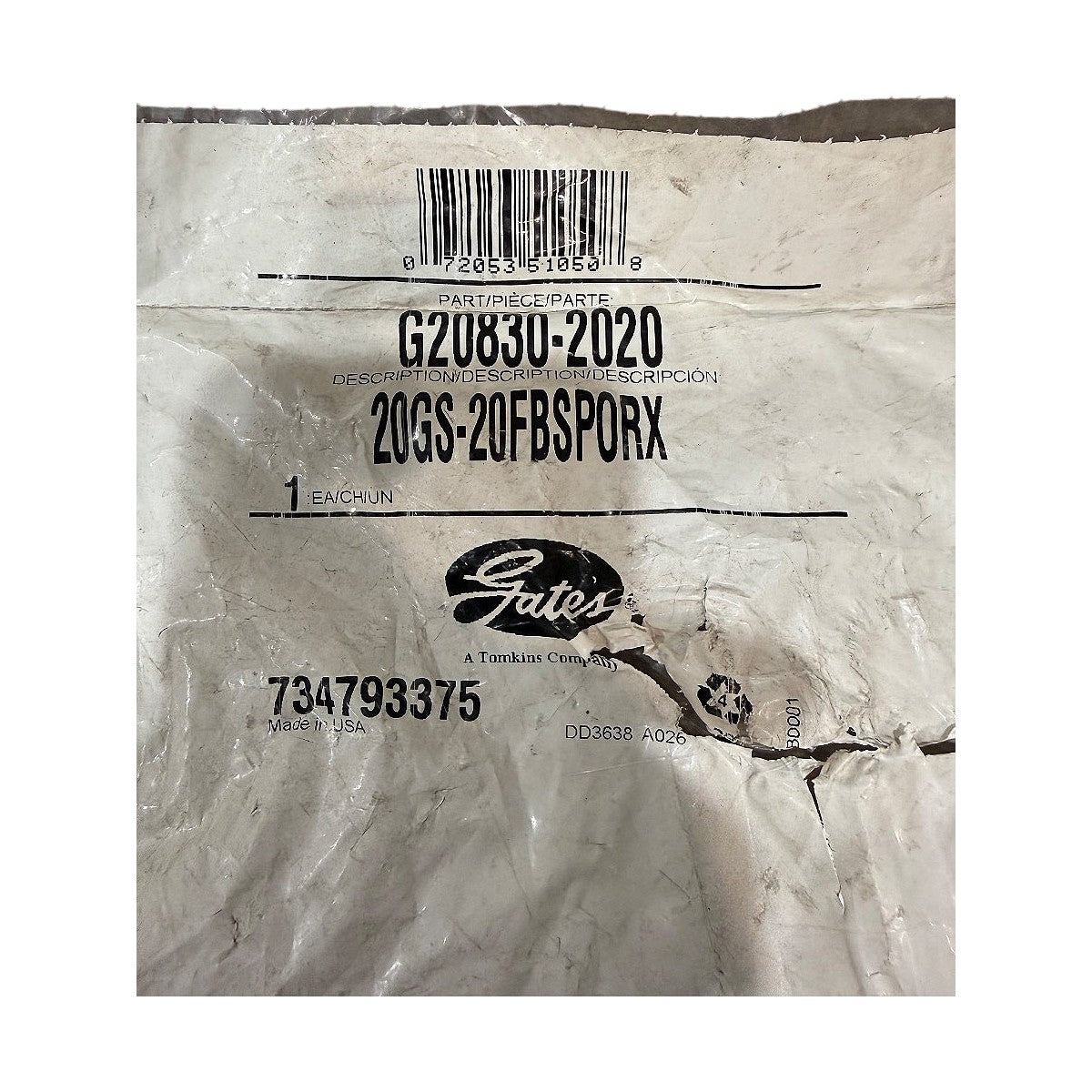

This Gates G20830-2020 (description code 20GS-20FBSPORX) is a permanent crimp-style hydraulic hose coupling with a female BSPP swivel nut and a serrated hose stem. The code decodes to a GS-series stem for -20 hose (1-1/4 in ID) paired with a -20 female British Standard Pipe Parallel swivel end (G 1-1/4) with an O-ring sealing face. The hex swivel nut and stem are plated steel, and a loose O-ring is included with the fitting. It connects a -20 hose assembly to a mating male BSPP port in hydraulic equipment and is made in the USA. This unit is new, supplied in the original Gates bag.
Product Specifications
| Brand | Gates |
| Manufacturer Part Number | G20830-2020 |
| Description Code | 20GS-20FBSPORX |
| UPC | 072053510508 |
| Hose Size | -20 (1-1/4 in ID) |
| Thread Size | G 1-1/4 BSPP (-20) |
| End Connection Type | Female BSPP Swivel |
| Thread Standard | BSPP (British Standard Pipe Parallel) |
| Seal Type | O-Ring Face Seal |
| Fitting Style | Straight |
| Hose End Type | Serrated Barbed Stem, Crimp |
| Series | GS |
| Material | Steel |
| Finish | Zinc Plated |
| Nut Style | Hex Swivel Nut |
| Included Items | Coupling w/ O-Ring |
| Country of Origin | USA |
