GF Gage 55332571 9/16-18 UNF-2A GO Thread Ring Gage
Regular price
$53.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

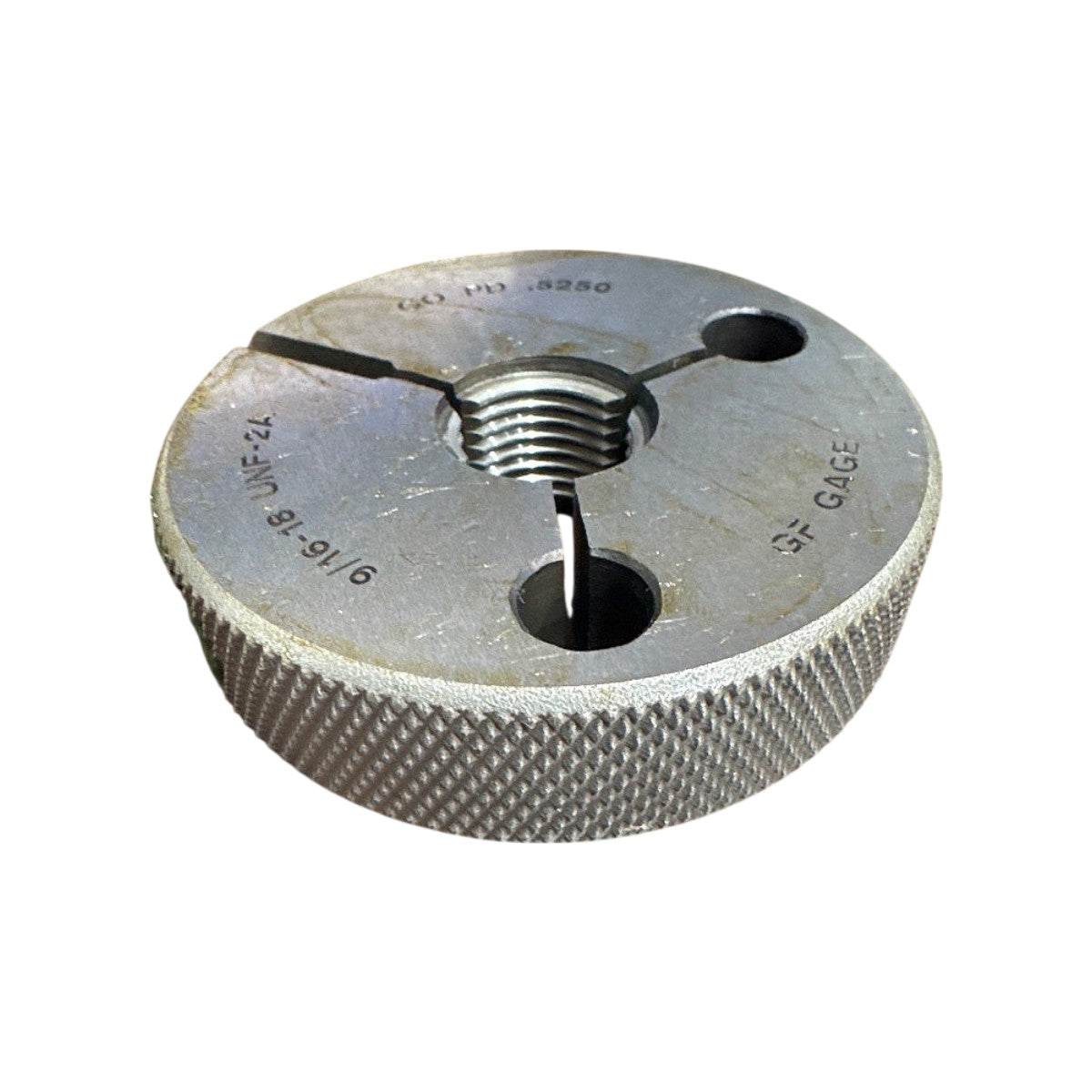

This GF Gage 9/16-18 UNF-2A GO thread ring gage is used to check external 9/16 in, 18 TPI Unified Fine threads to Class 2A tolerance. The face is etched GO PD .5250, so it verifies the pitch diameter limit of the thread under inspection. It is a split, adjustable-style ring with two holes through the face, and a knurled outer diameter for hand gaging. It is made in the USA and is sold new. The box label shows number 55332571 and a 9/16-18 UNF 2A set plug description, so confirm the set plug is not required before purchase.
Product Specifications
| Brand | GF Gage |
| Thread Size | 9/16-18 UNF |
| Thread Class | 2A |
| Thread Series | UNF (Unified National Fine) |
| Threads Per Inch | 18 TPI |
| Gage Type | GO Thread Ring Gage |
| Pitch Diameter | 0.5250 in |
| Nominal Diameter | 9/16 in (0.5625 in) |
| Thread Type | External (checks male threads) |
| Outer Surface | Knurled |
| Style | Split Adjustable Ring |
| Catalog Number | 55332571 |
| Alternate Part Number | G303832 |
| Country of Origin | USA |
