GF Gage W0086562BNK #2-56 UNC 2B 0.0772 PD No Go Thread Plug Gage
Regular price
$43.23
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

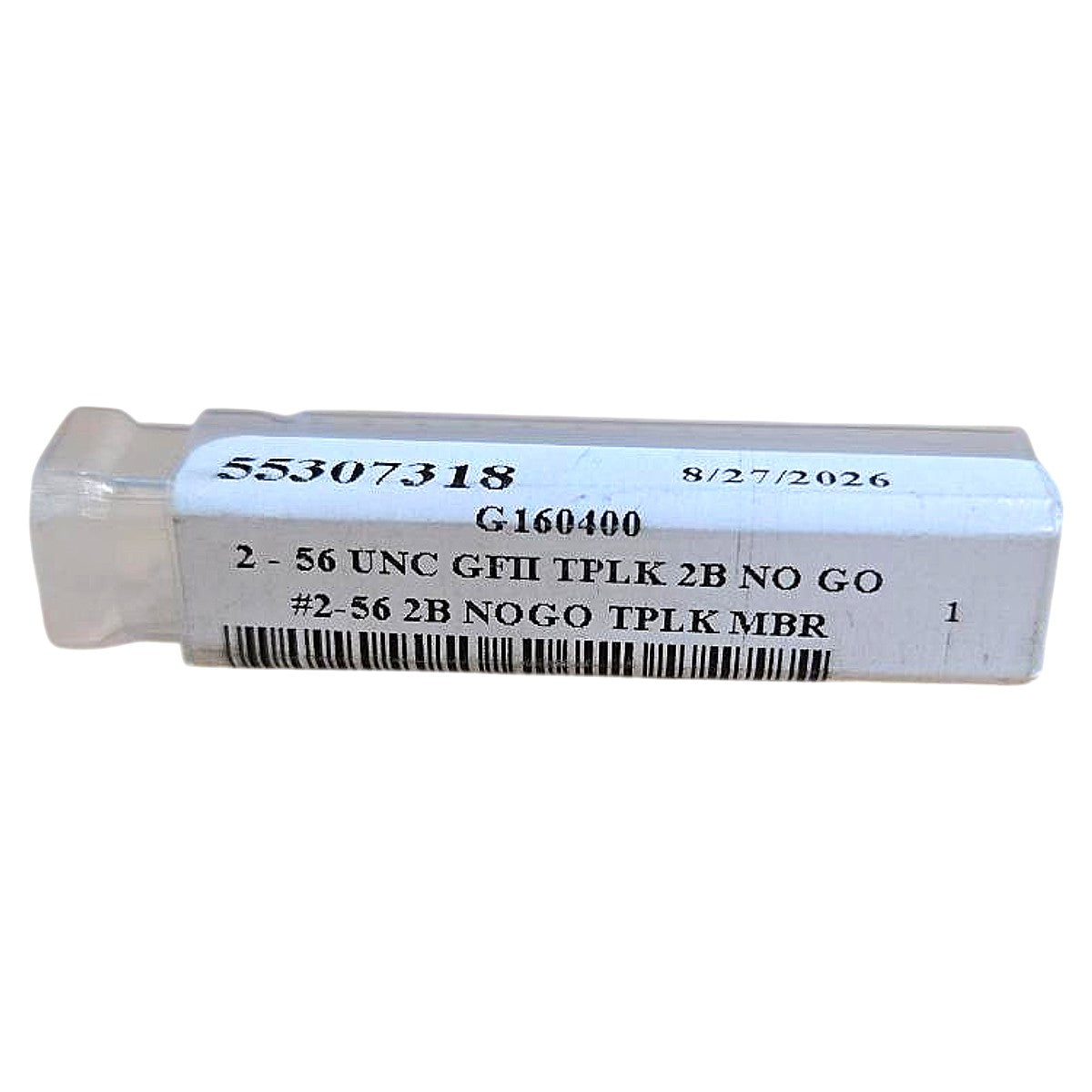

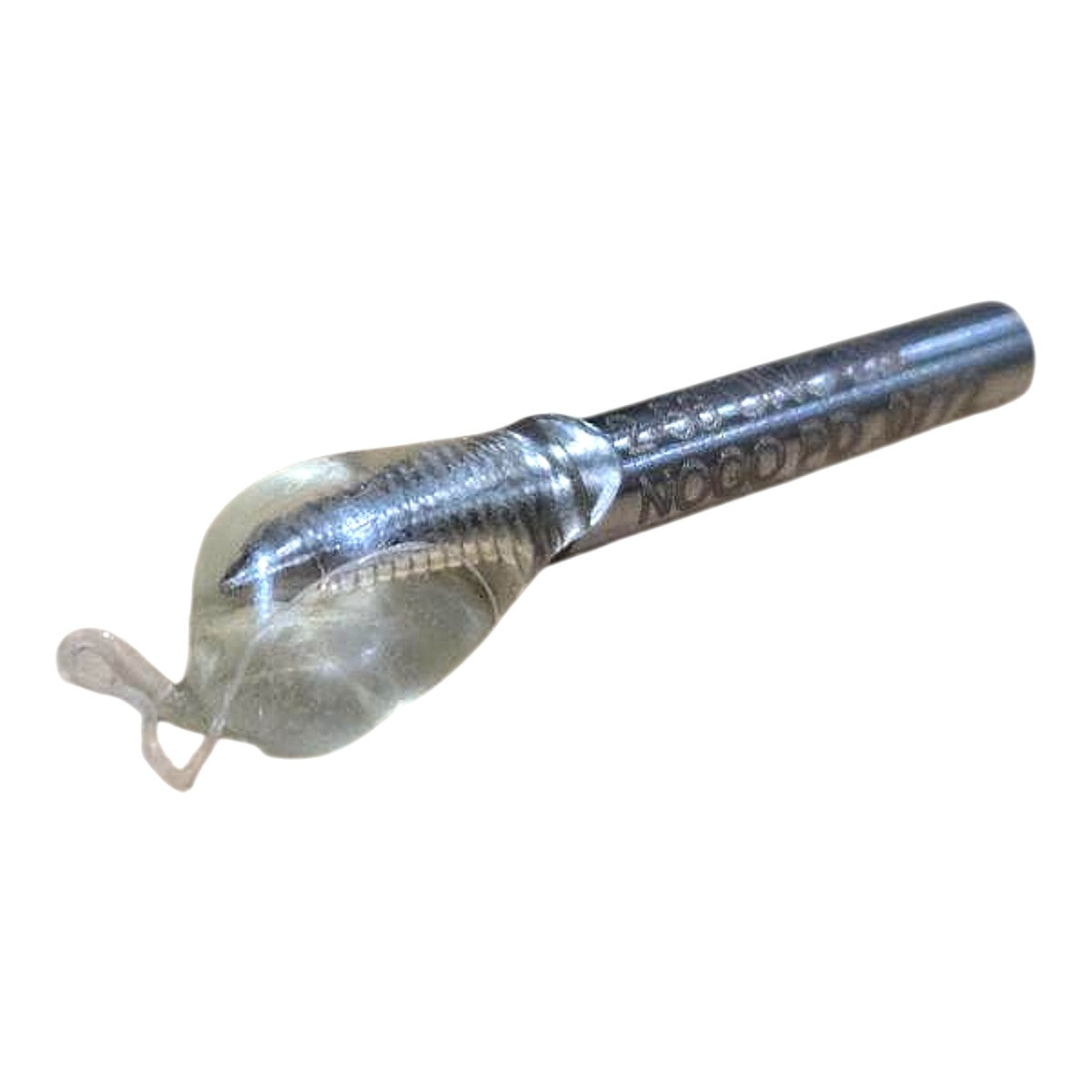

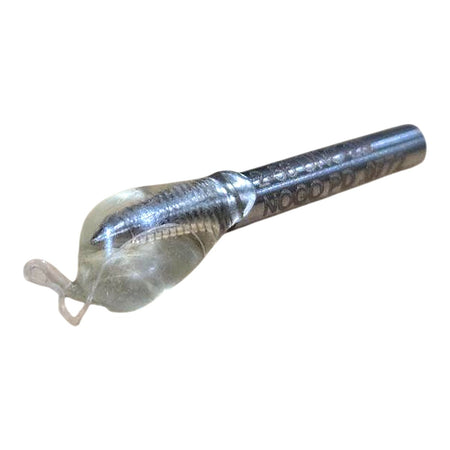

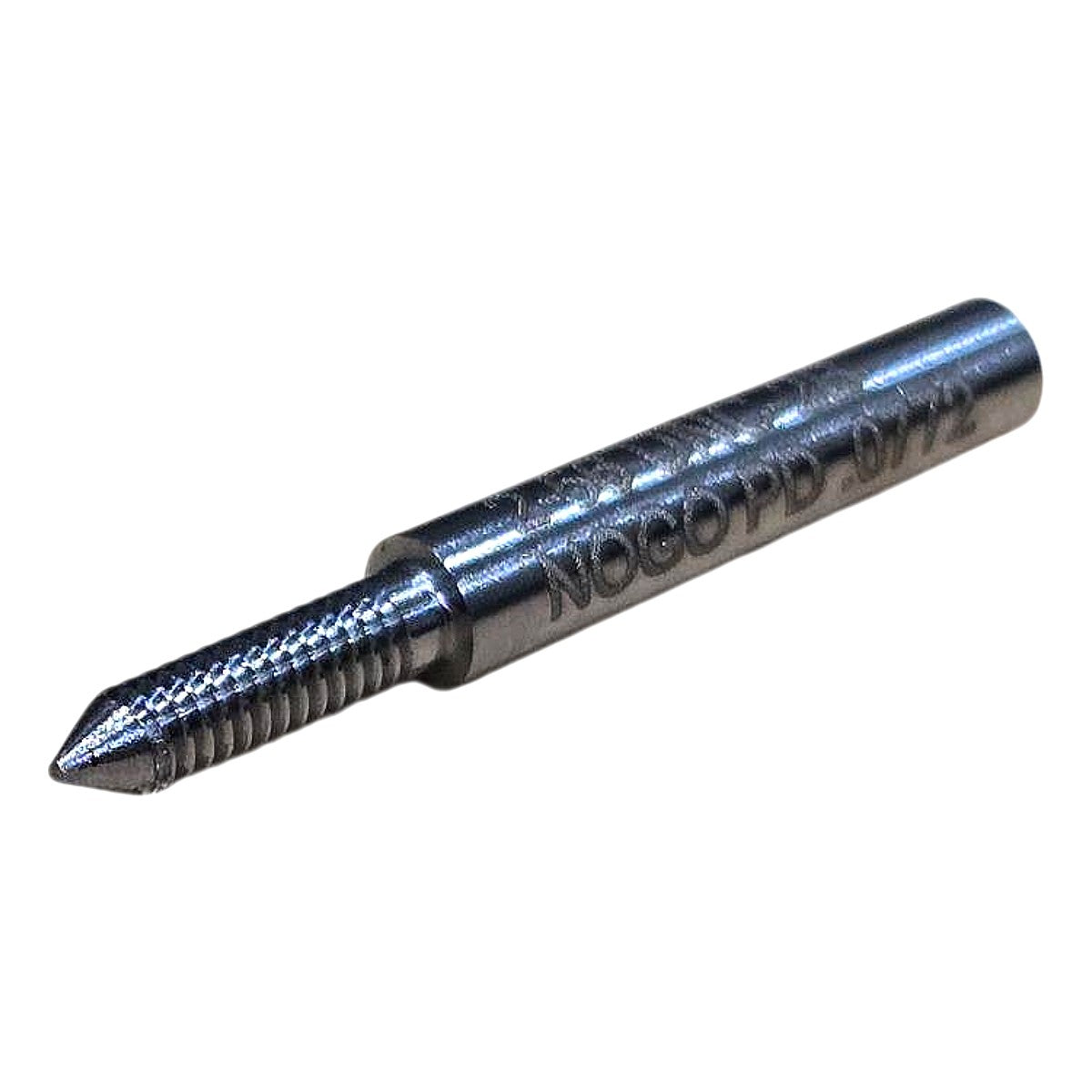

This GF Gage W0086562BNK (item 55307318, catalog G160400) is a single-end thread plug gage for inspecting #2-56 UNC internal threads to Class 2B tolerance. It is the No Go member of a Go/No Go set, marked NOGO PD-.0772 for a 0.0772 in No Go pitch diameter, and is used to check that the pitch diameter of a tapped hole does not exceed the maximum limit. The gage has a tri-lok (TPLK) design with a threaded gaging member pressed onto a cylindrical handle, and the threaded member is a GFII series (GF II) gage. The unit is new and supplied in its original sealed tube.
Product Specifications
| Brand | GF Gage |
| MPN | W0086562BNK |
| Item Number | 55307318 |
| Catalog Number | G160400 |
| Thread Size | #2-56 UNC |
| Thread Class | 2B |
| Gage Type | Thread Plug Gage |
| Gage End | Single End |
| Go/No Go | No Go |
| No Go Pitch Diameter | 0.0772 in |
| Thread Series | UNC (Coarse) |
| Threads Per Inch | 56 |
| Thread Type | Internal Thread Gage |
| Design | Tri-Lok (TPLK) |
| Series | GFII |
| Handle Type | Cylindrical Handle |
