GF Gage W0190242BS 10-24 UNF-2B GO/NO GO Taperlock Thread Plug Gage
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

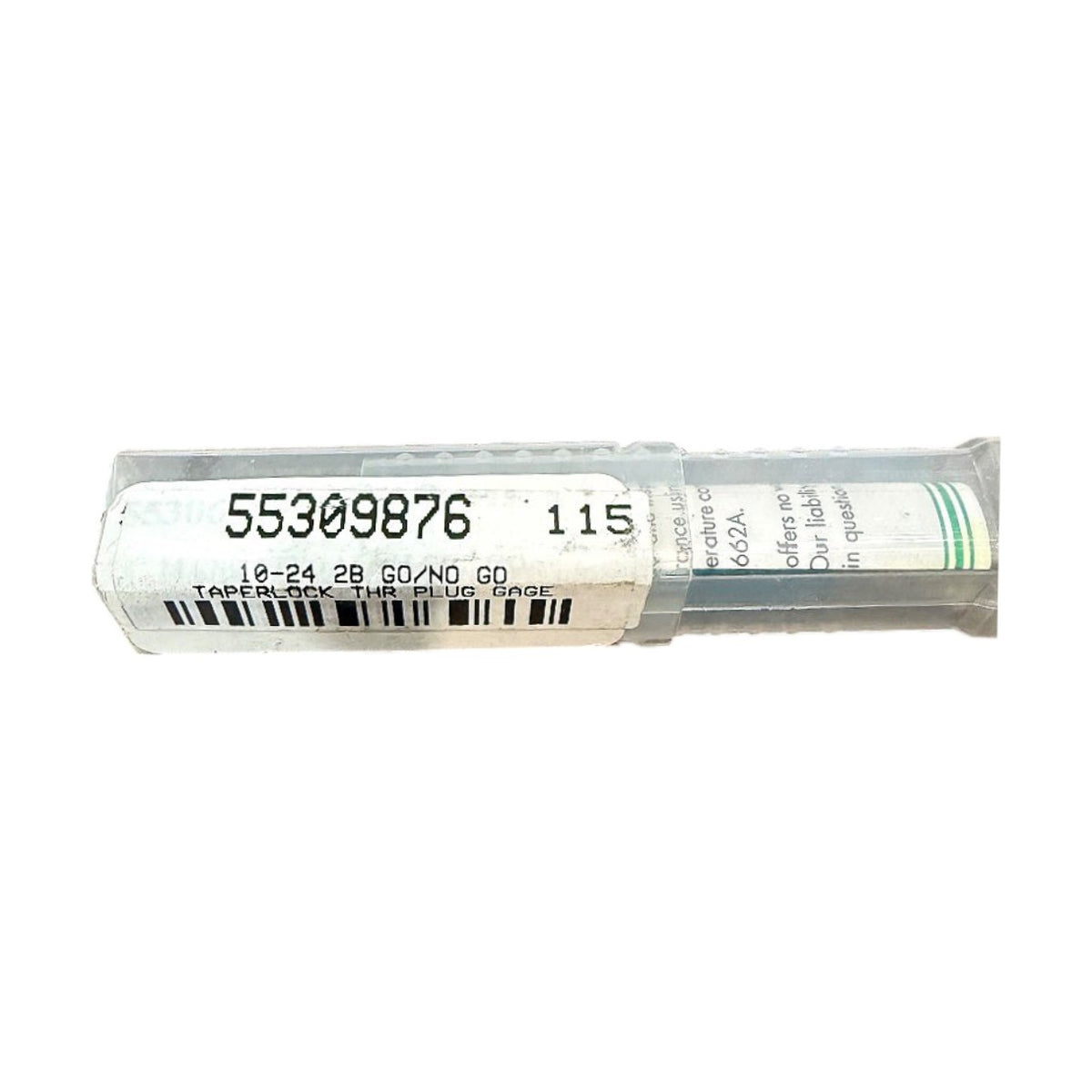

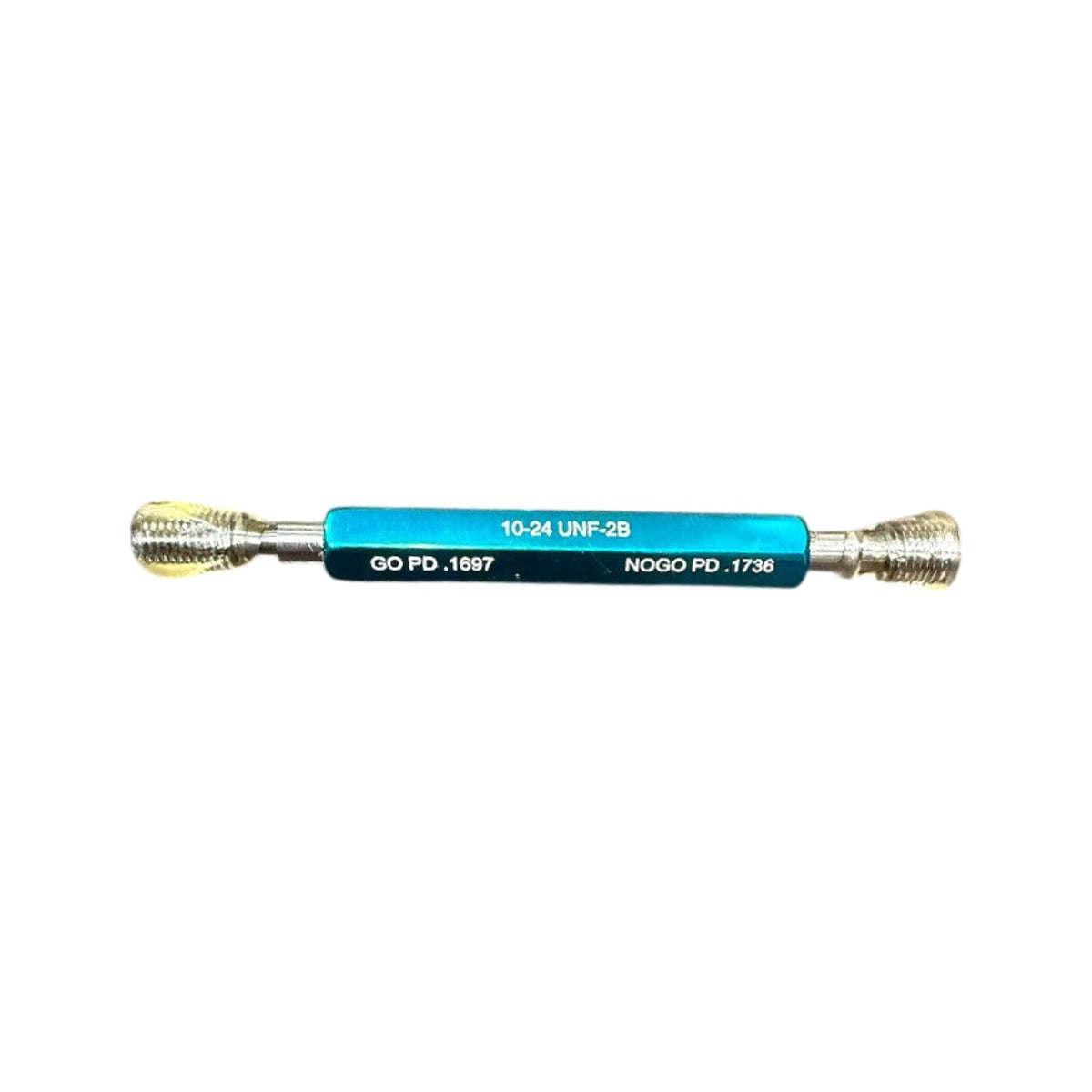

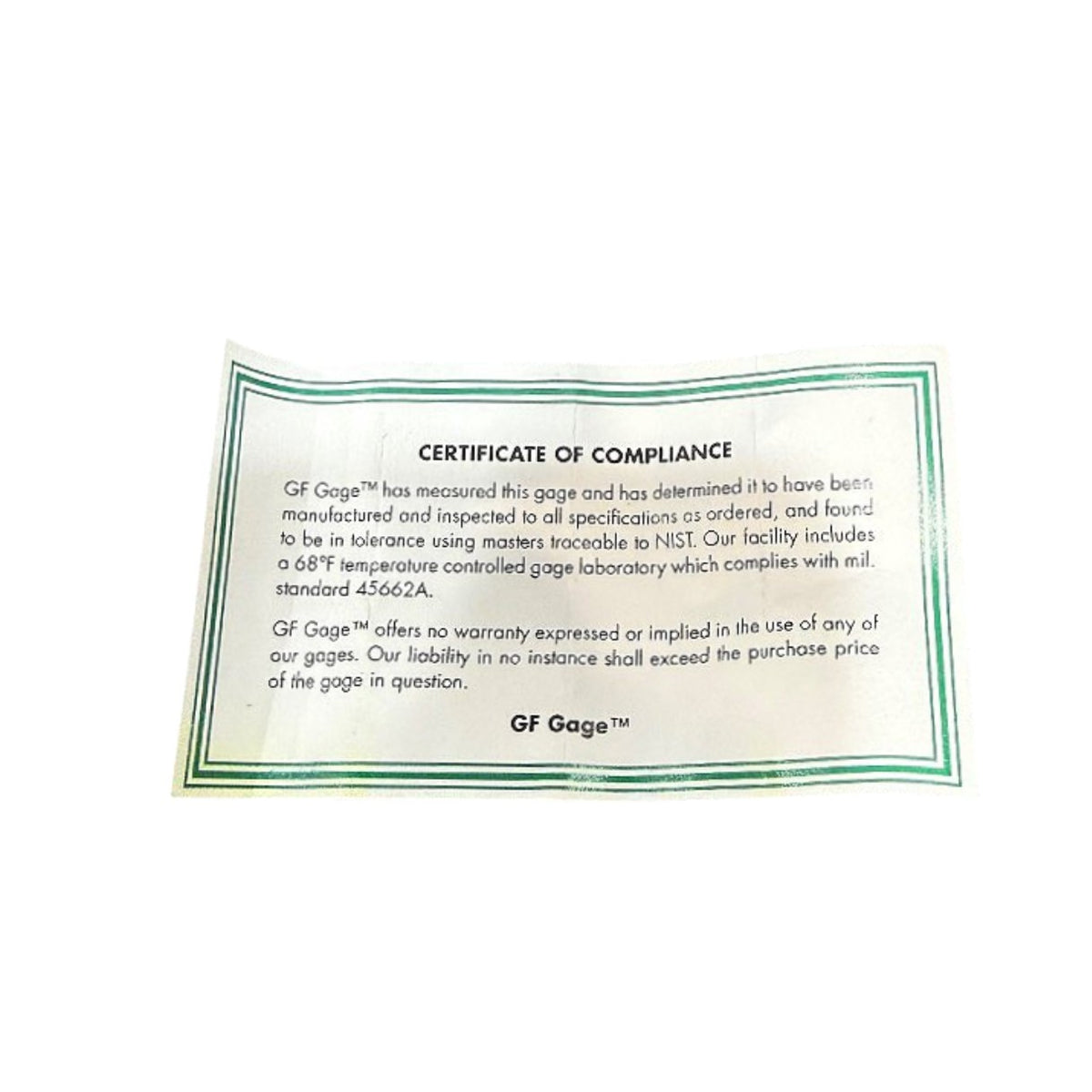

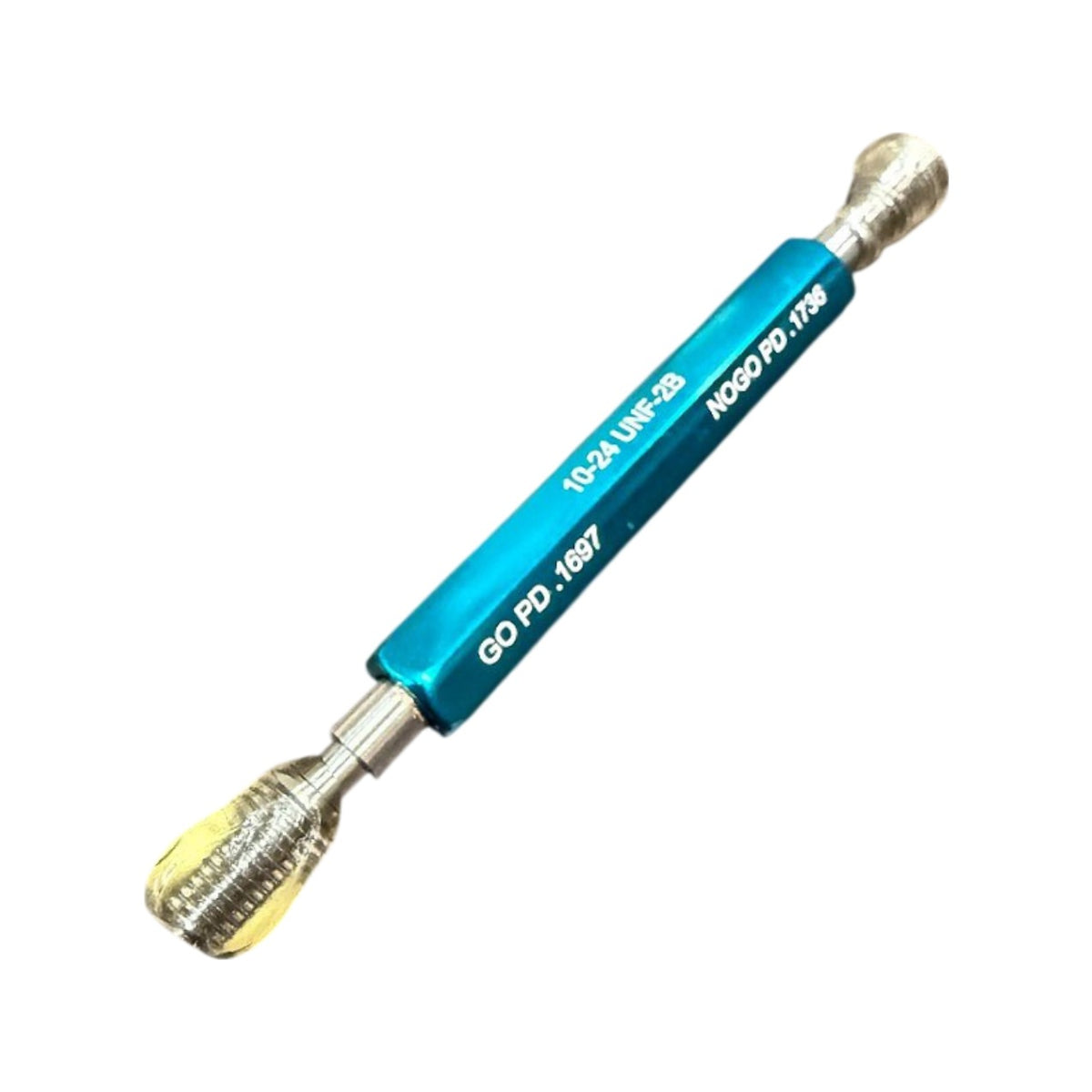

This GF Gage W0190242BS is a double-end Taperlock thread plug gage for inspecting internal 10-24 UNF-2B threads, with a GO member (pitch diameter .1697) on one end and a NOGO member (pitch diameter .1736) on the other. The gaging members are mounted on a blue hexagonal handle that is marked with the thread size and the GO and NOGO pitch diameters. It is supplied with a GF Gage Certificate of Compliance stating that the gage was measured and found in tolerance using masters traceable to NIST, and it ships in a clear protective tube labeled with item number 55309876. This gage is in new condition and is used to check 2B class fit of internal 10-24 UNF threads in tapped holes.
Product Specifications
| Brand | GF Gage |
| MPN | W0190242BS |
| Item Number | 55309876 |
| Gage Type | Taperlock Thread Plug Gage, GO/NO GO |
| Thread Size | 10-24 |
| Thread Series | UNF |
| Thread Class | 2B |
| Thread Type | Internal |
| Thread Pitch | 24 TPI |
| GO Pitch Diameter | .1697 in |
| NOGO Pitch Diameter | .1736 in |
| Configuration | Double End |
| Handle Style | Hex, Blue |
| Handle Color | Blue |
| Thread Direction | Right Hand |
| Certification | Certificate of Compliance, NIST traceable |
| Calibration Standard | Mil-Std-45662A lab |
| Included | Certificate of Compliance |
