Gibraltar 76784560 6in D1-3 Semi-Steel Lathe Chuck Adapter Back Plate

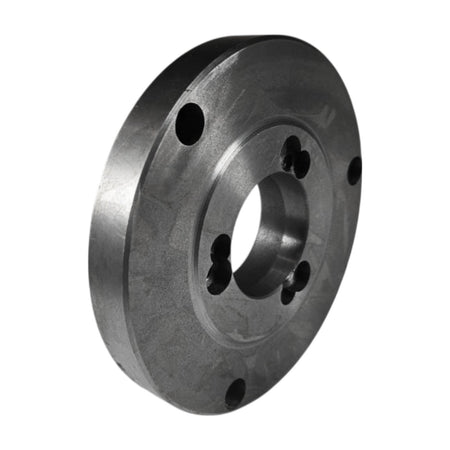

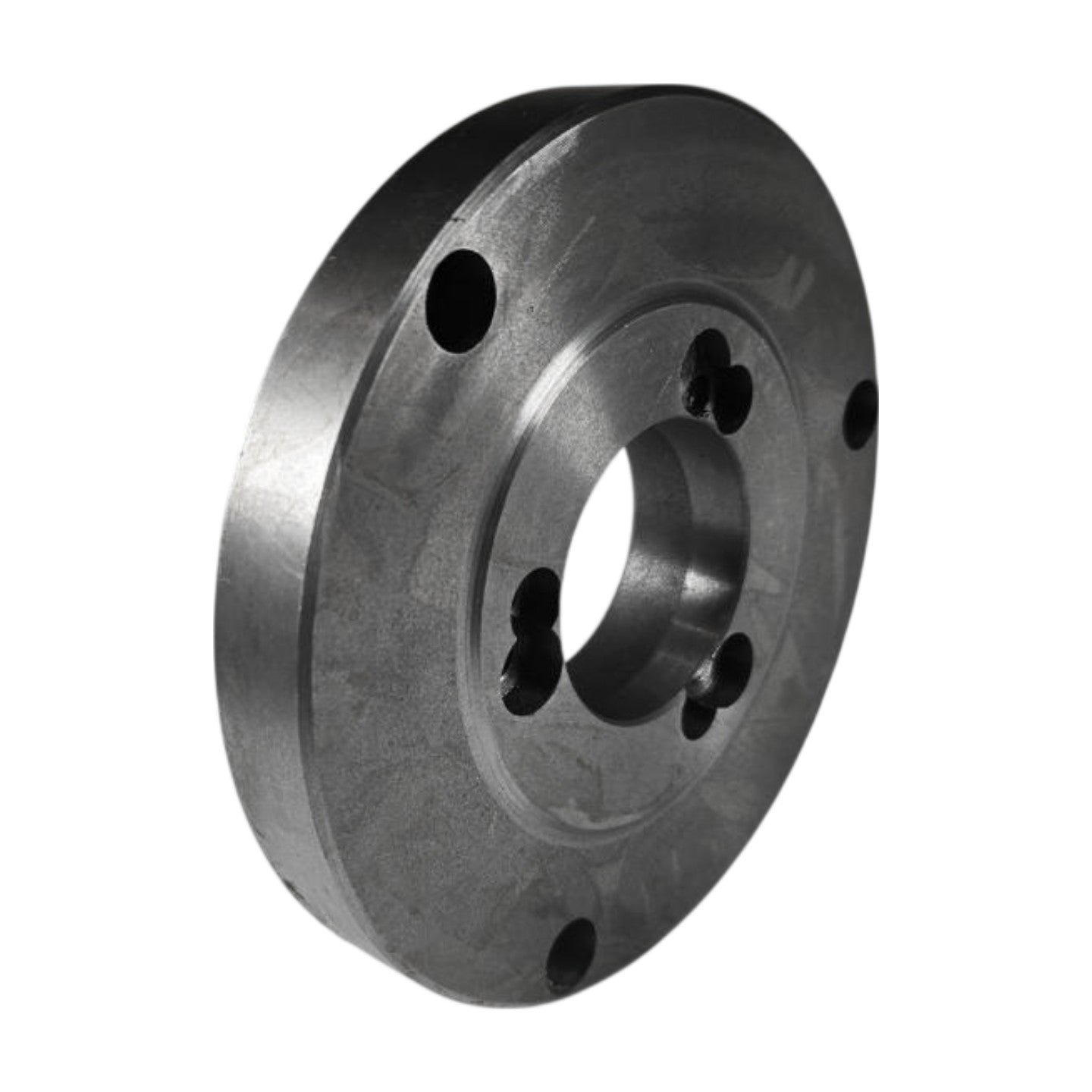

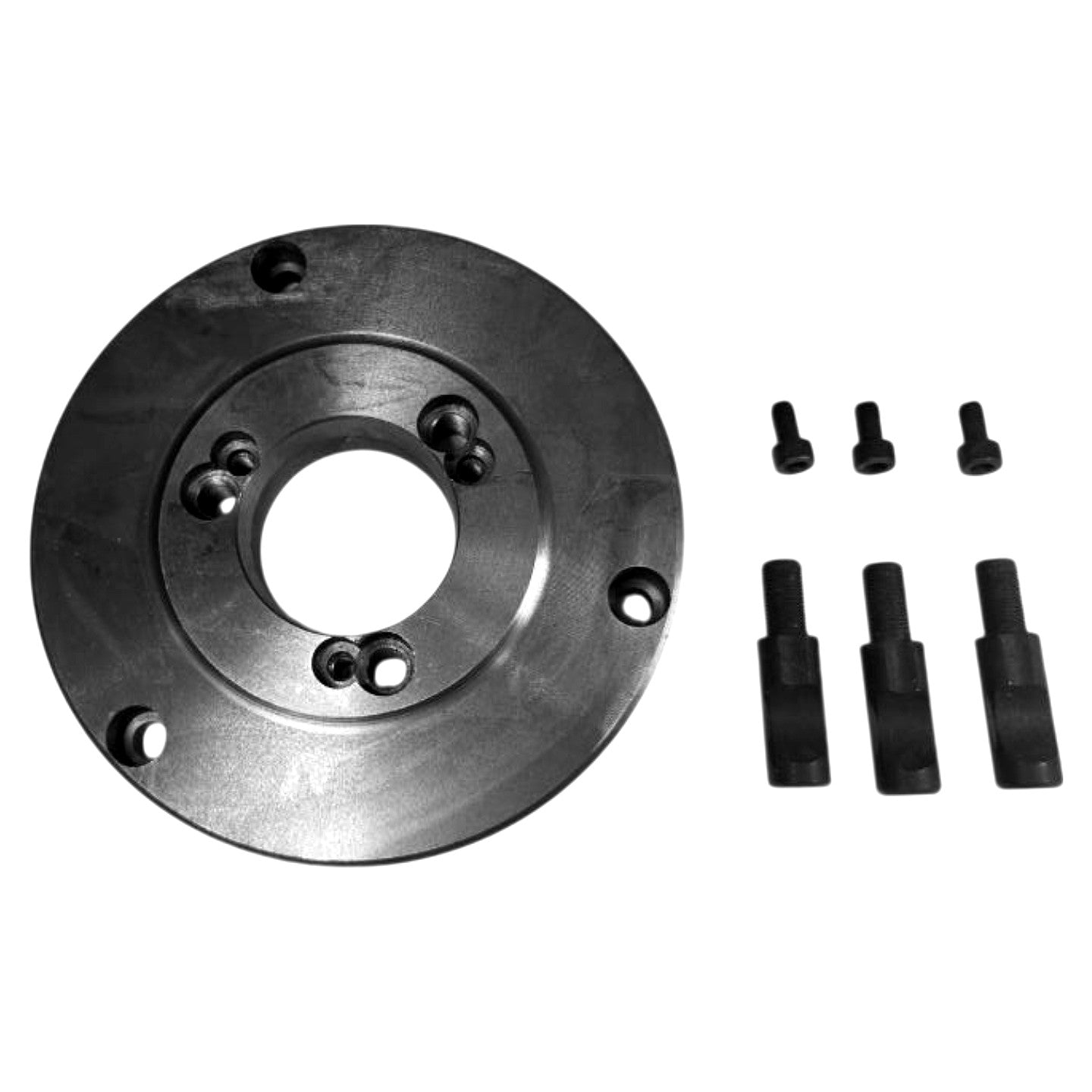

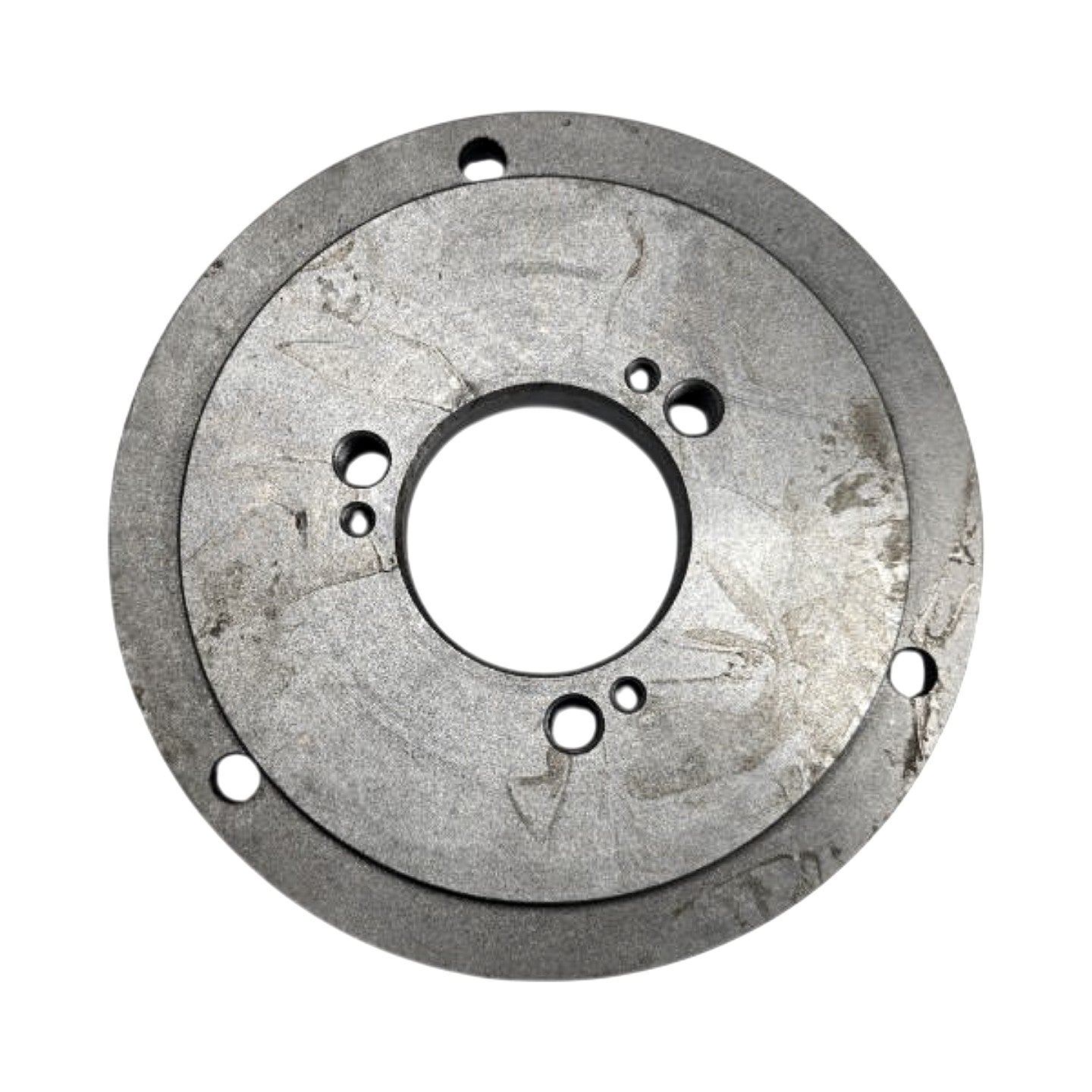

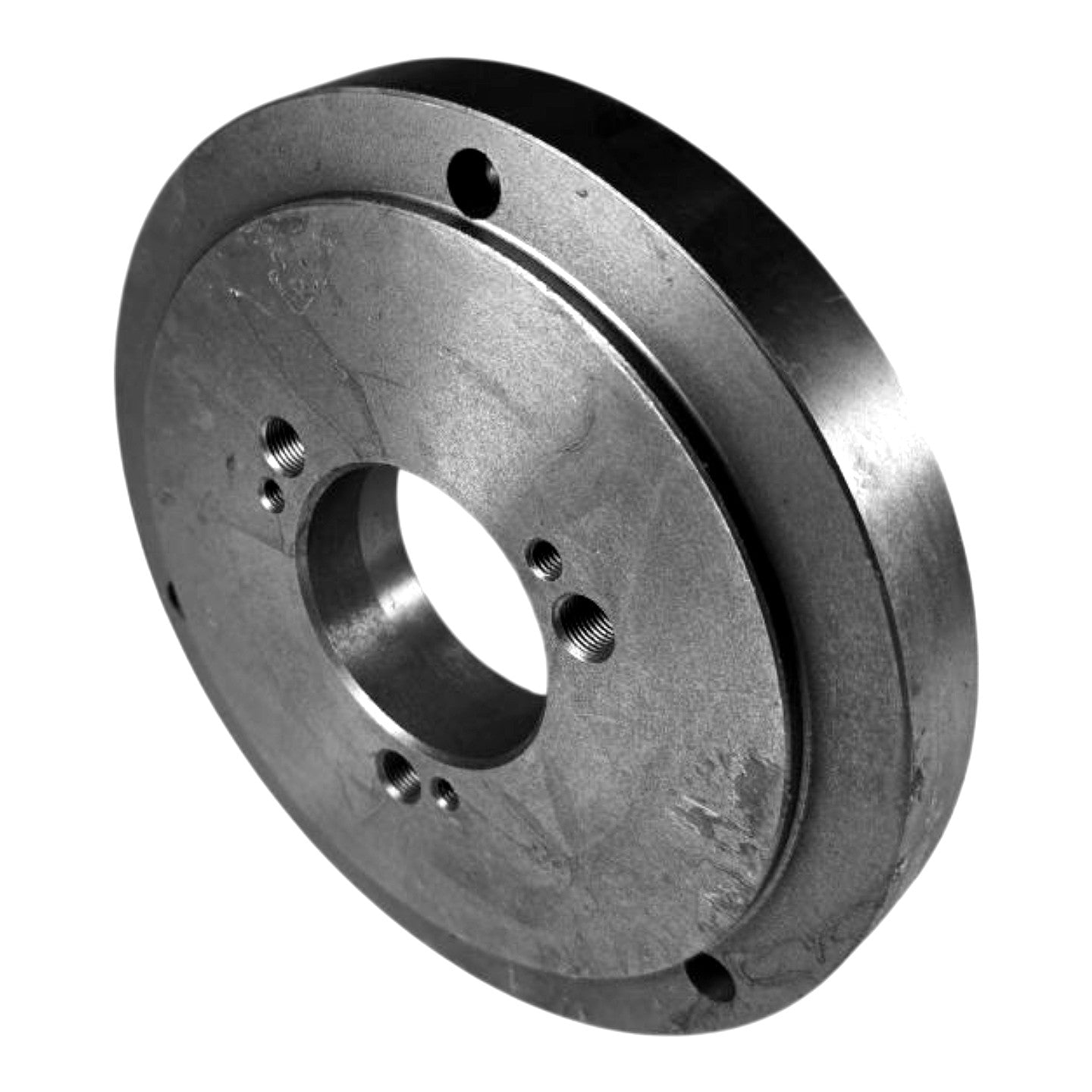

The Gibraltar Products 76784560 (FL11 160/D3) is a new 6-inch semi-steel lathe chuck adapter back plate designed to mount a 6" chuck onto a D1-3 (D3) camlock spindle nose. The plate is machined from semi-steel (high-strength cast iron/steel alloy) with a precision-ground front register and rear camlock pin bore pattern conforming to the ANSI/ASME B5.9 D1-3 camlock standard; three camlock stud pins, three socket-head cap screws, and three threaded chuck-mount studs are included as confirmed visible in the photos. The rear face features a piloted register that seats directly on the D1-3 spindle nose, and the front face presents a concentric bore and ring of threaded holes to accept the chuck body, enabling mounting of a 6" 3-jaw or 4-jaw chuck onto any lathe with a D1-3 spindle. Box label confirms net weight 6.2 lb, gross weight 6.6 lb, and packaged dimensions of 7" × 7" × 2"; the product is manufactured in China and sold new in original Gibraltar Products packaging.

Product Specifications
