Global CNC 86-04 #4B MT4 to Straight Shank 5-3/4in OAL Morse Taper Sleeve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

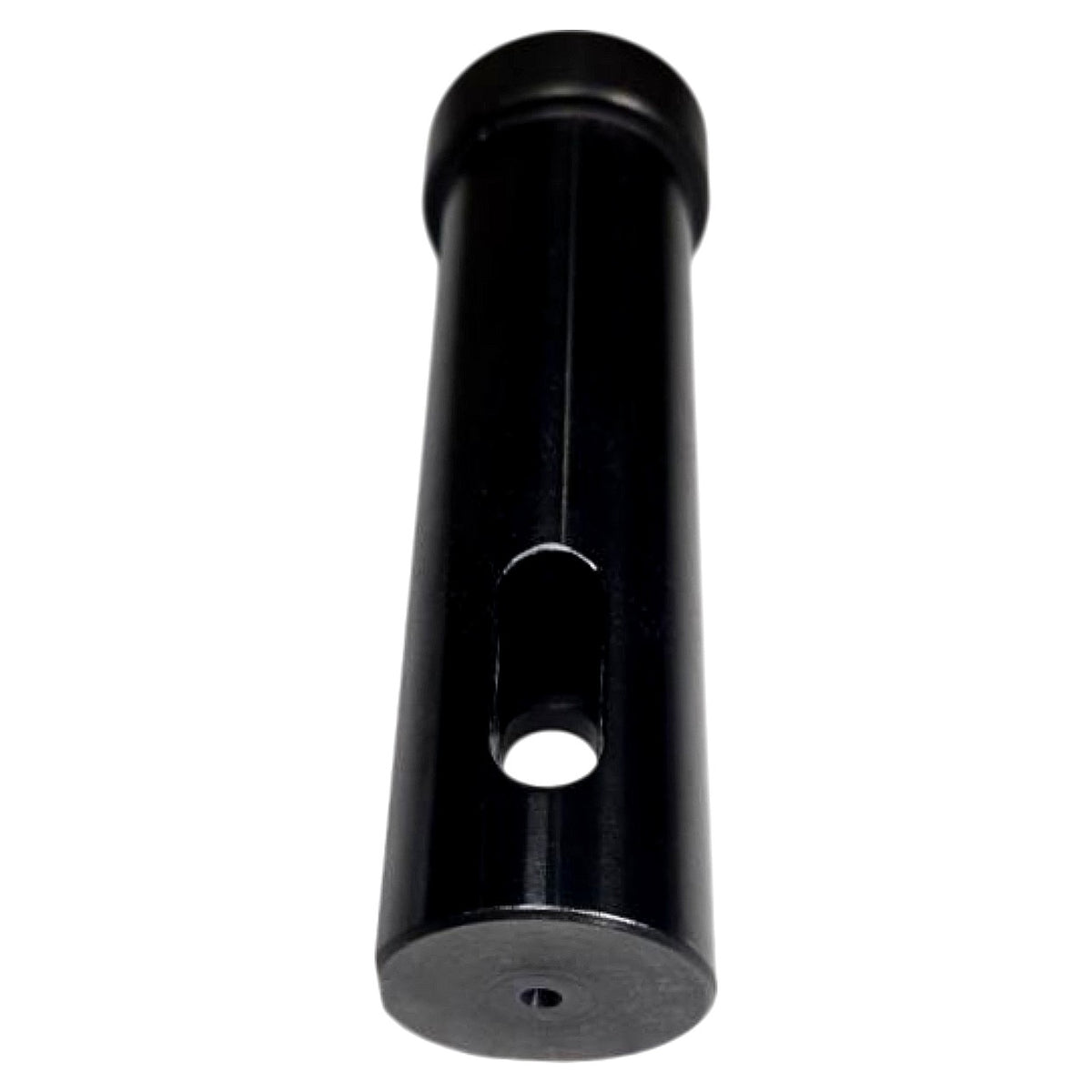

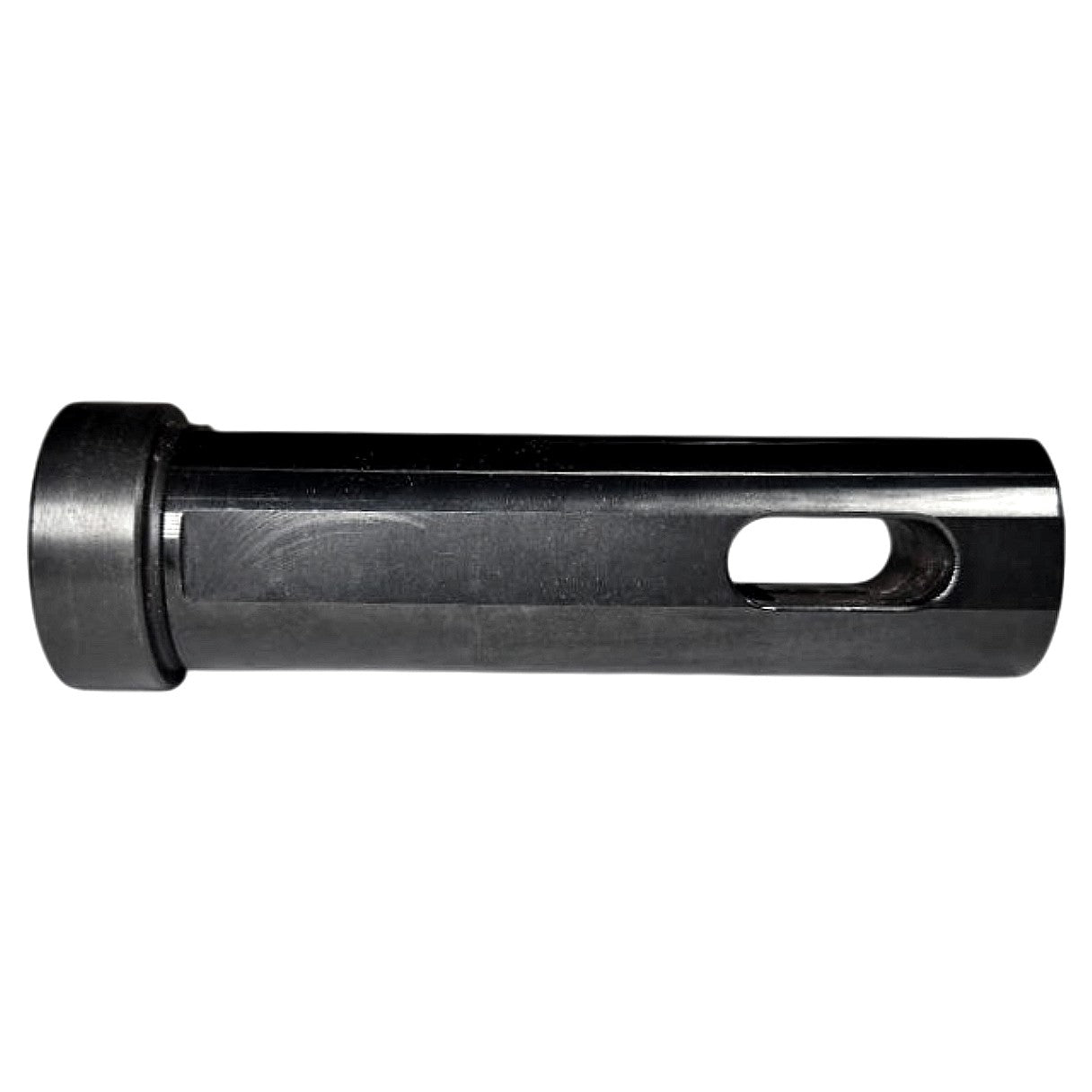

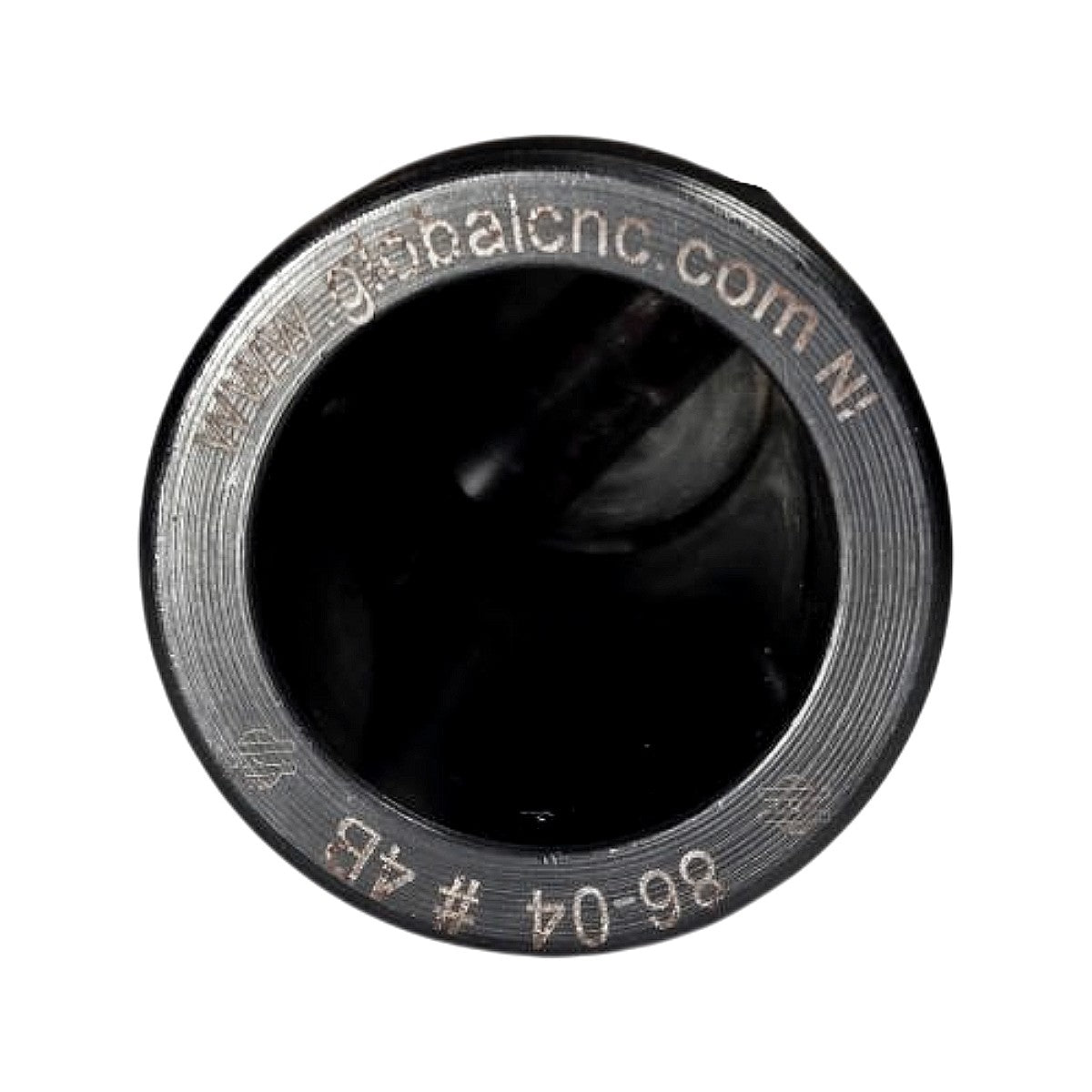

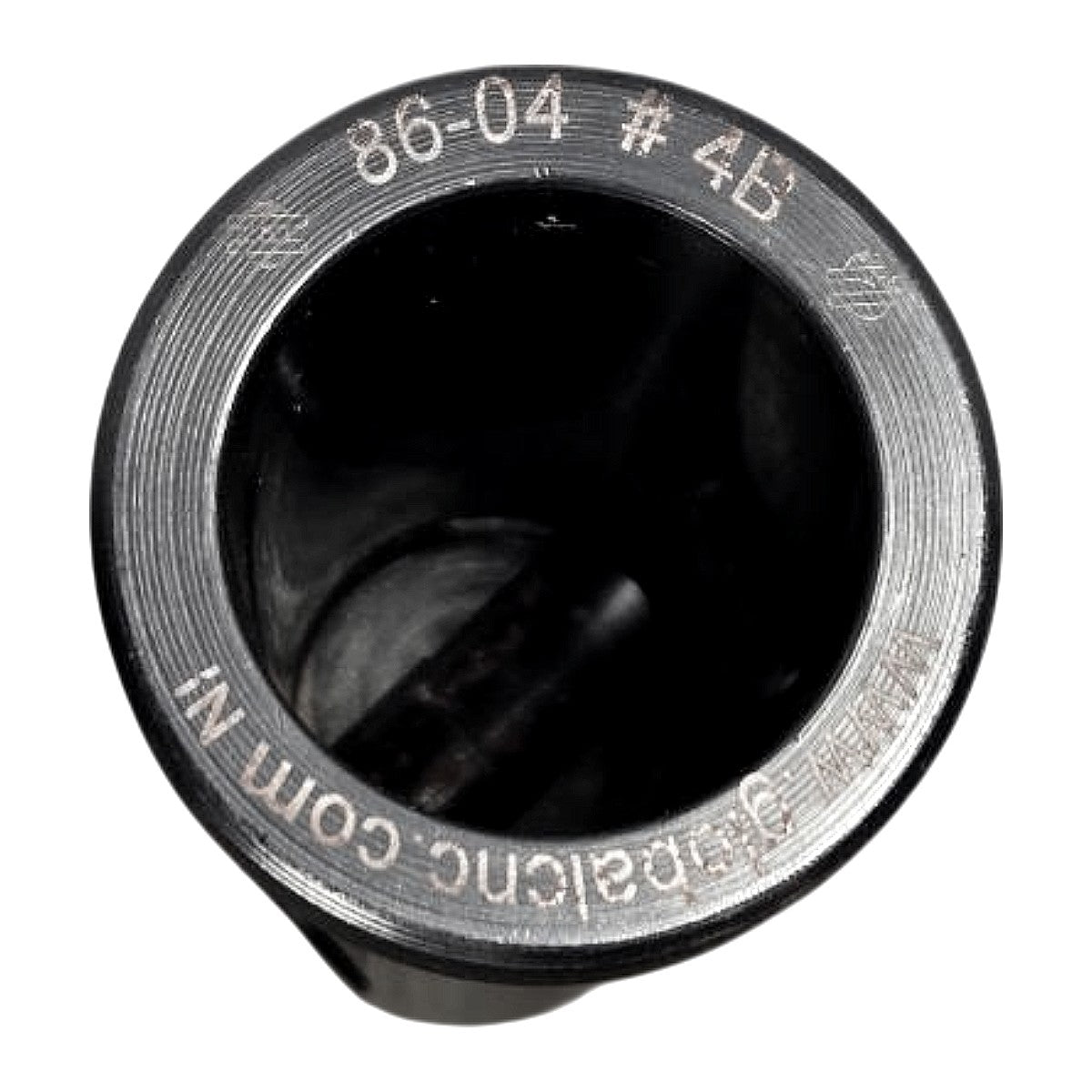

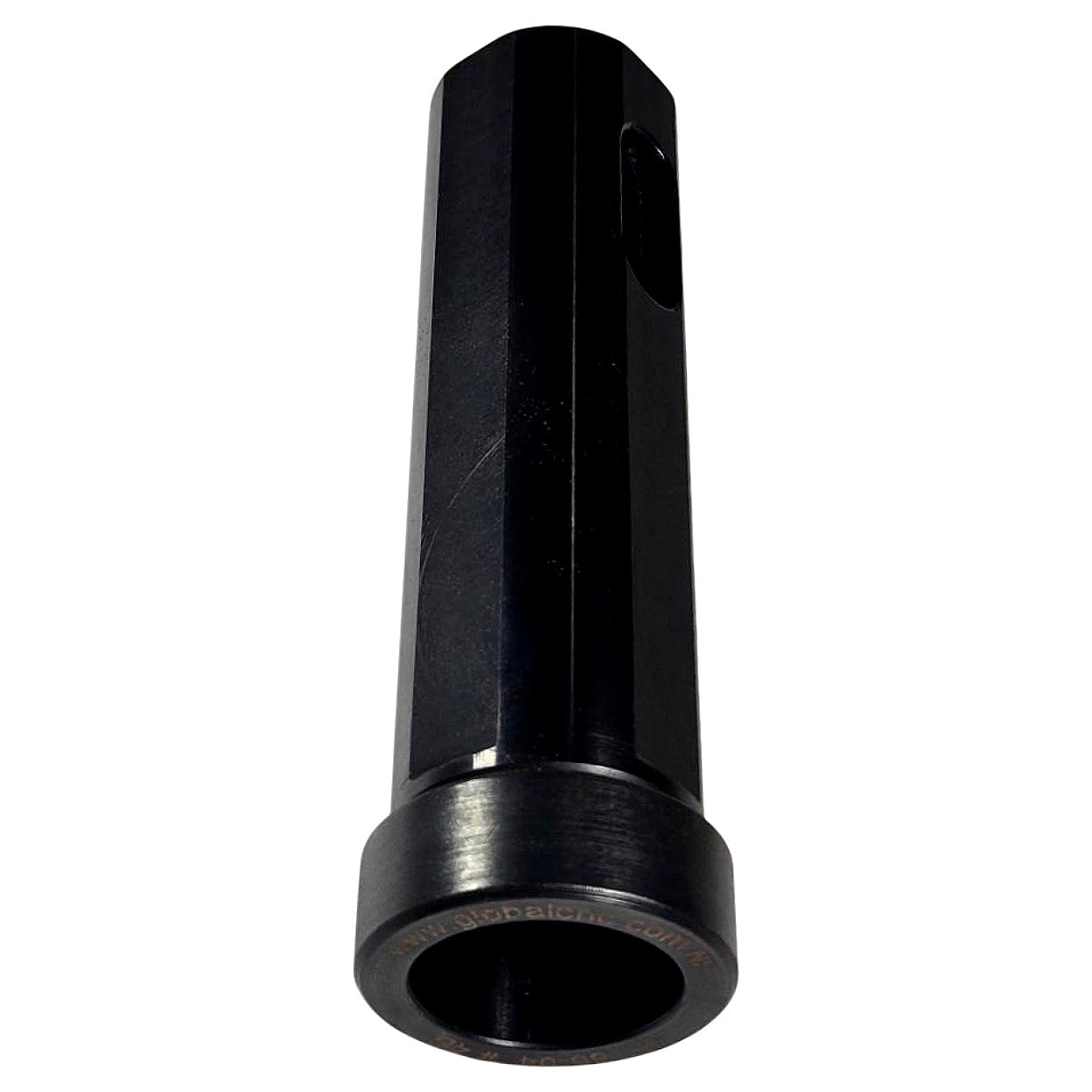

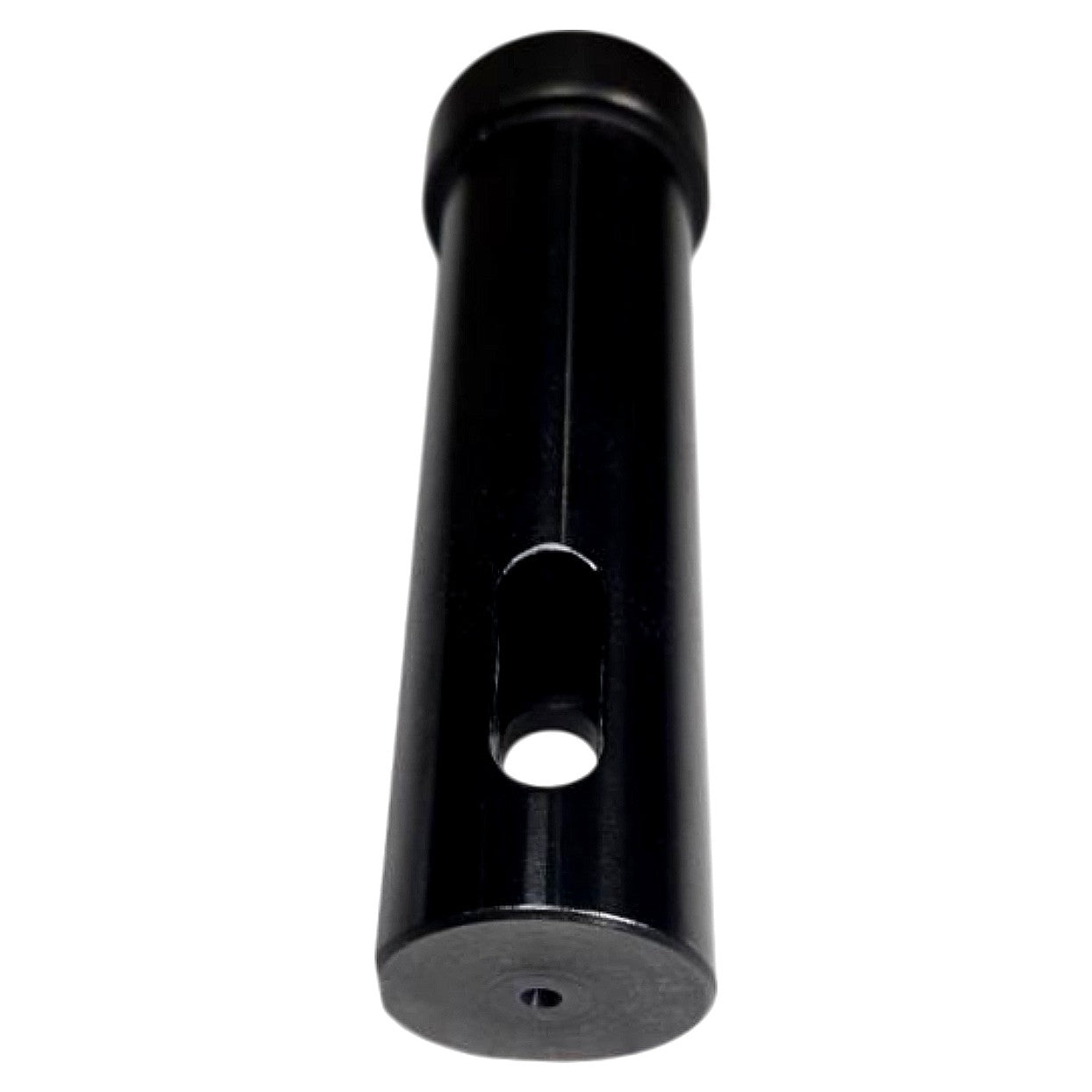

The Global CNC 86-04 #4B is a Morse Taper No. 4 inside-taper adapter sleeve that converts an MT4 spindle socket to accept a straight-shank toolholder or cutting tool, with a 5-3/4 in. (146 mm) overall length. Manufactured from alloy steel that is hardened and ground throughout, this sleeve provides the dimensional accuracy and surface finish required for repeatable tool alignment in lathe tailstocks, drill press quills, and milling machine spindles equipped with an MT4 bore. The external straight shank and flanged collar are clearly visible in the photos, and the internal MT4 taper bore features a drive tang slot for positive rotational engagement; a through-hole in the shank allows use of a drift punch for tool ejection. The part is branded and distributed by Global CNC (globalcnc.com) and is offered here new — other condition, suitable for production or toolroom use where a surplus or overstock unit is acceptable.
Product Specifications
| Part Number | 86-04 #4B |
| Brand | Global CNC |
| Inside Taper | Morse Taper #4 (MT4) |
| Taper Type | Inside Morse Taper (socket) |
| Overall Length (OAL) | 5-3/4 in (146 mm) |
| Material | Alloy Steel |
| Treatment | Hardened & Ground Throughout |
| Finish | Black oxide |
| Drive Feature | Tang slot for MT4 drive tang |
| Ejection Feature | Drift punch through-hole in shank |
| Flange | Yes — integral collar at base |
| Condition | New — other |
