Global CNC 86-13C 1" Type C 1.5 OD Rotary Tool Holder Bushing
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

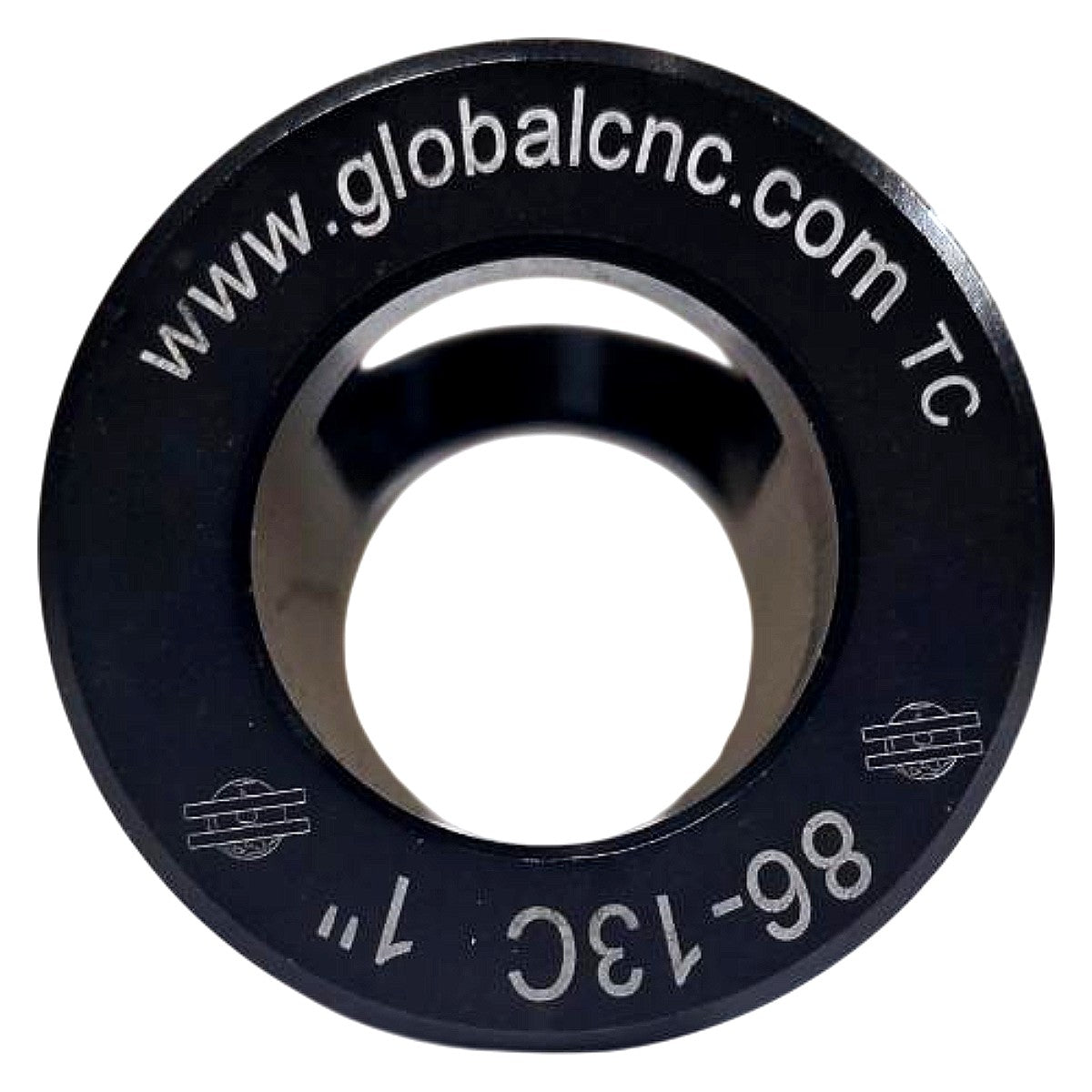

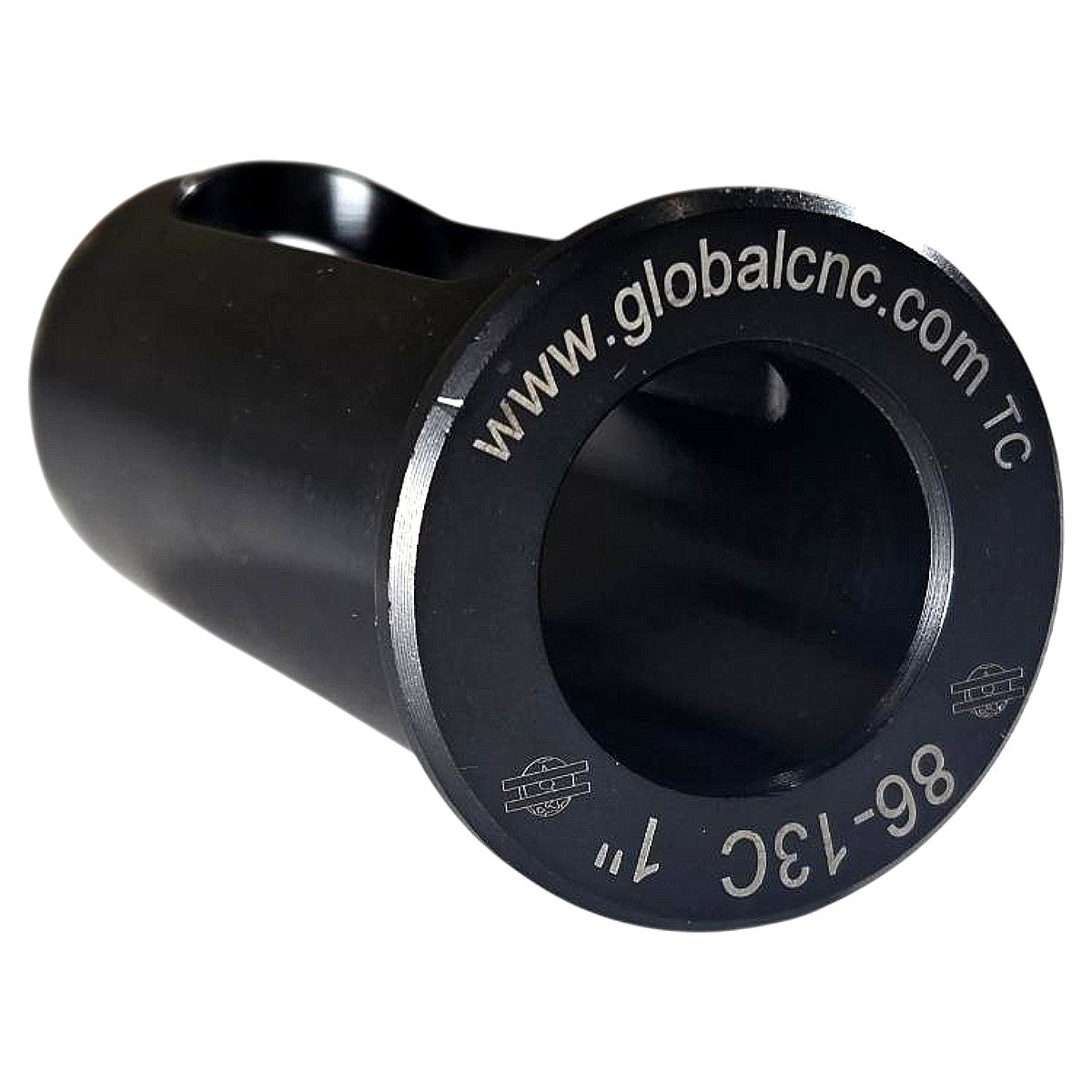

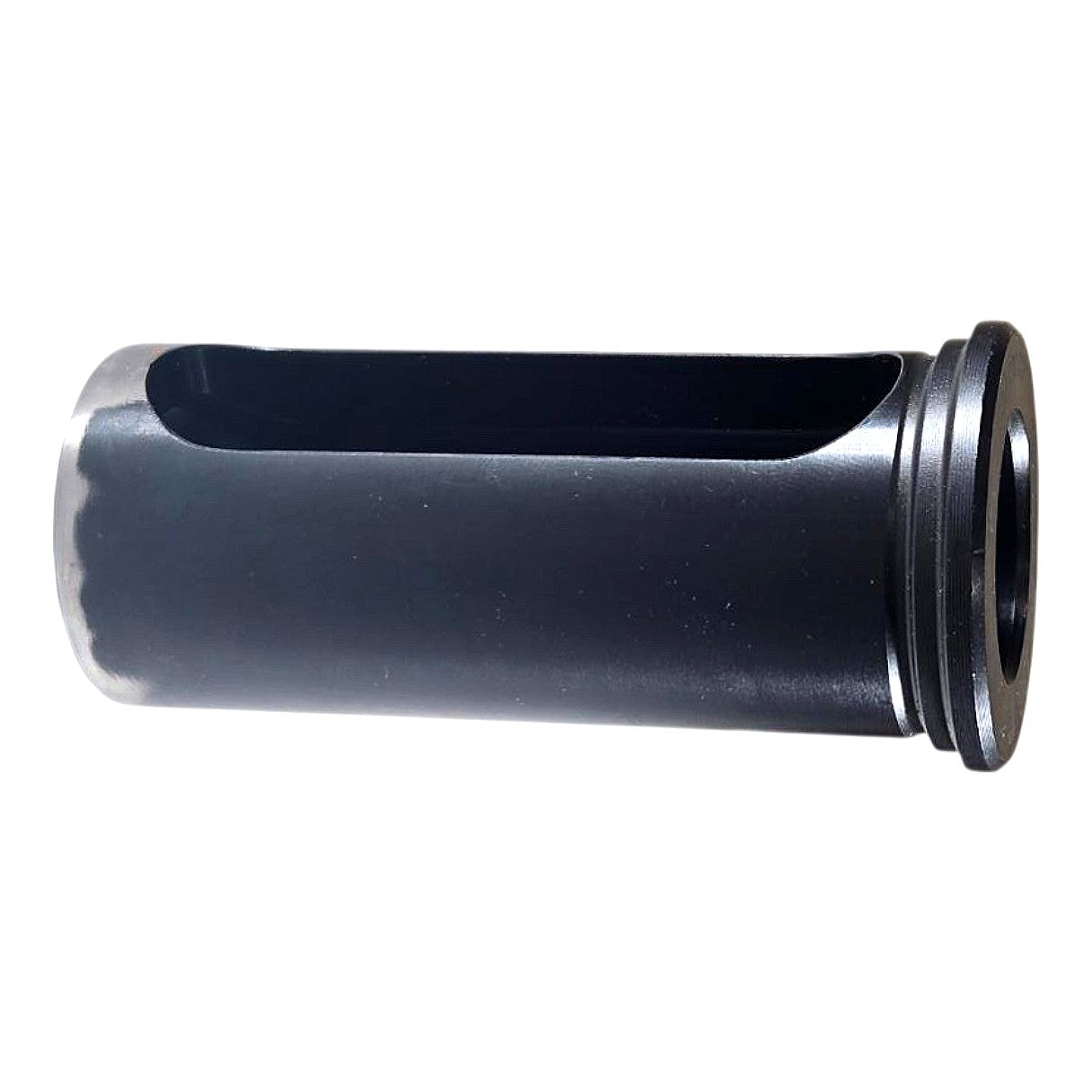

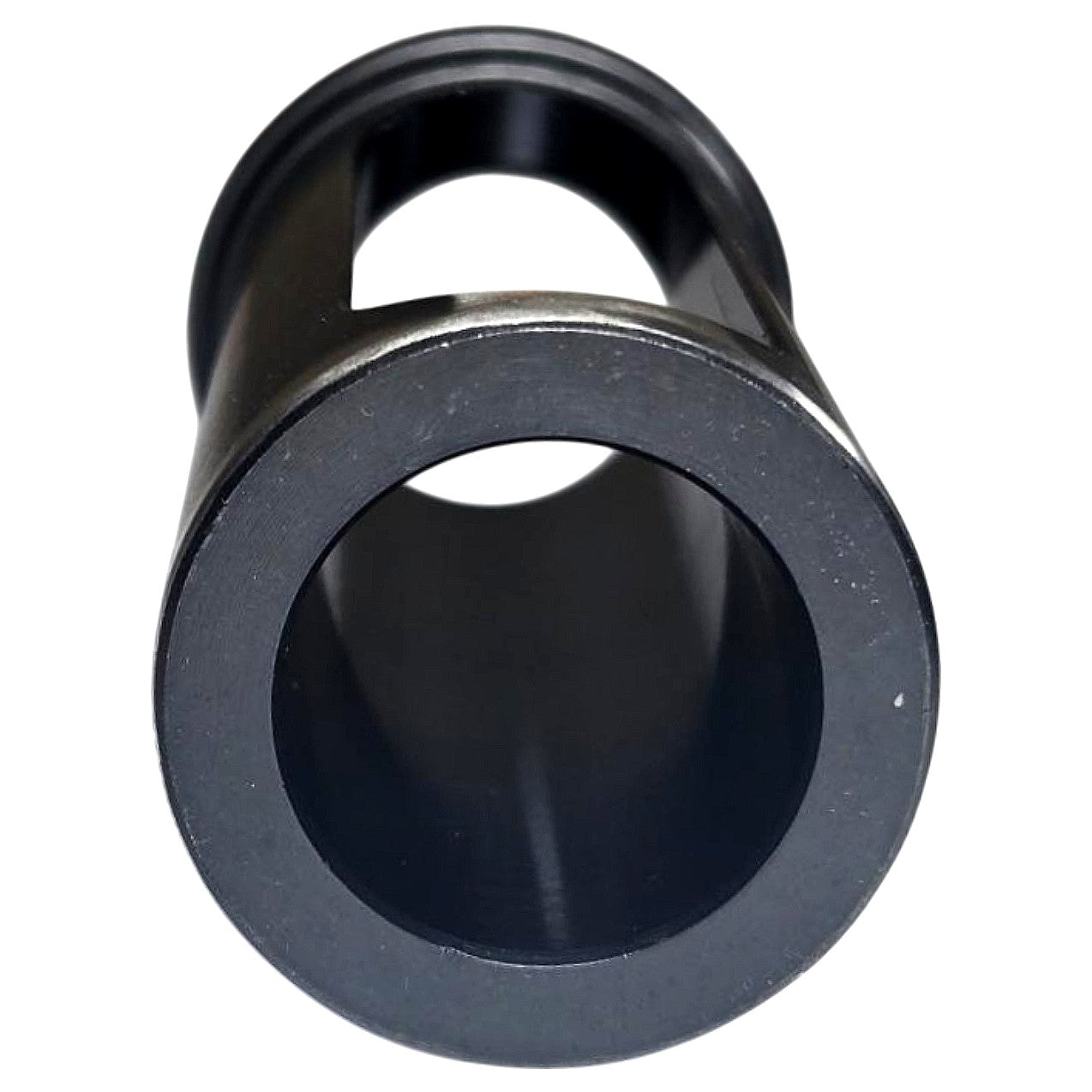

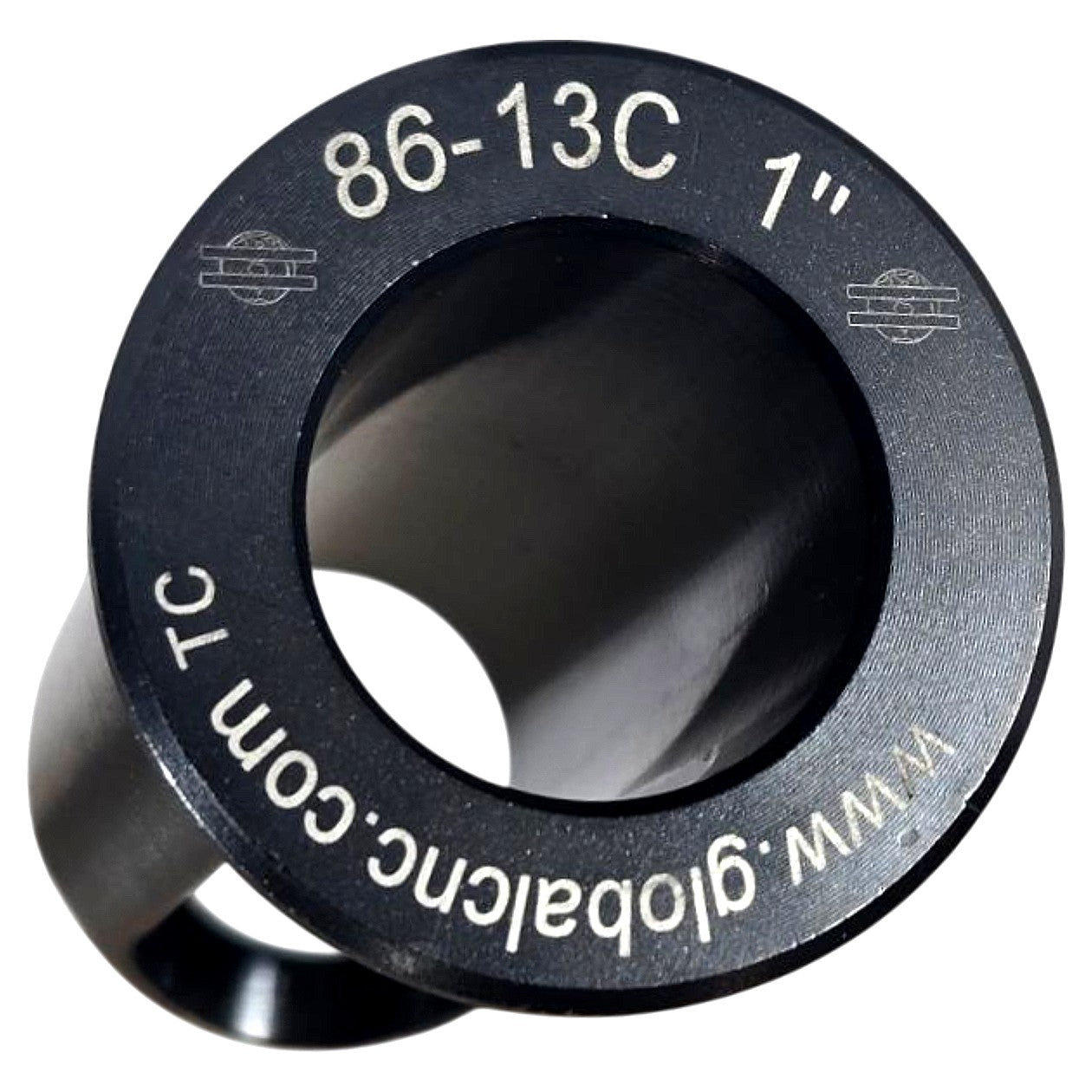

The Global CNC Industries 86-13C is a new Type C style rotary tool holder bushing with a 1.000 in (1") bore ID and 1.500 in OD, as confirmed on the product label (8613C 1.000, 1.500 OD X 1.000 ID) and laser-engraved on the flange face. The bushing features a 3-3/8 in overall length under the head with a 3 in open slot length machined along the body, allowing through-tool coolant or bar stock clearance; the large flanged collar provides positive axial stop positioning in the turret or gang tooling block. Manufactured with a black oxide (oxide) surface treatment for corrosion resistance, the body is precision-bored to accept 1" shank tooling and is designed for use in CNC lathe live or fixed rotary toolholder systems that accept the C-style bushing form factor, mating with standard 86-series toolholder bodies from Global CNC Industries.
Product Specifications
| Brand | Global CNC Industries |
| MPN | 86-13C |

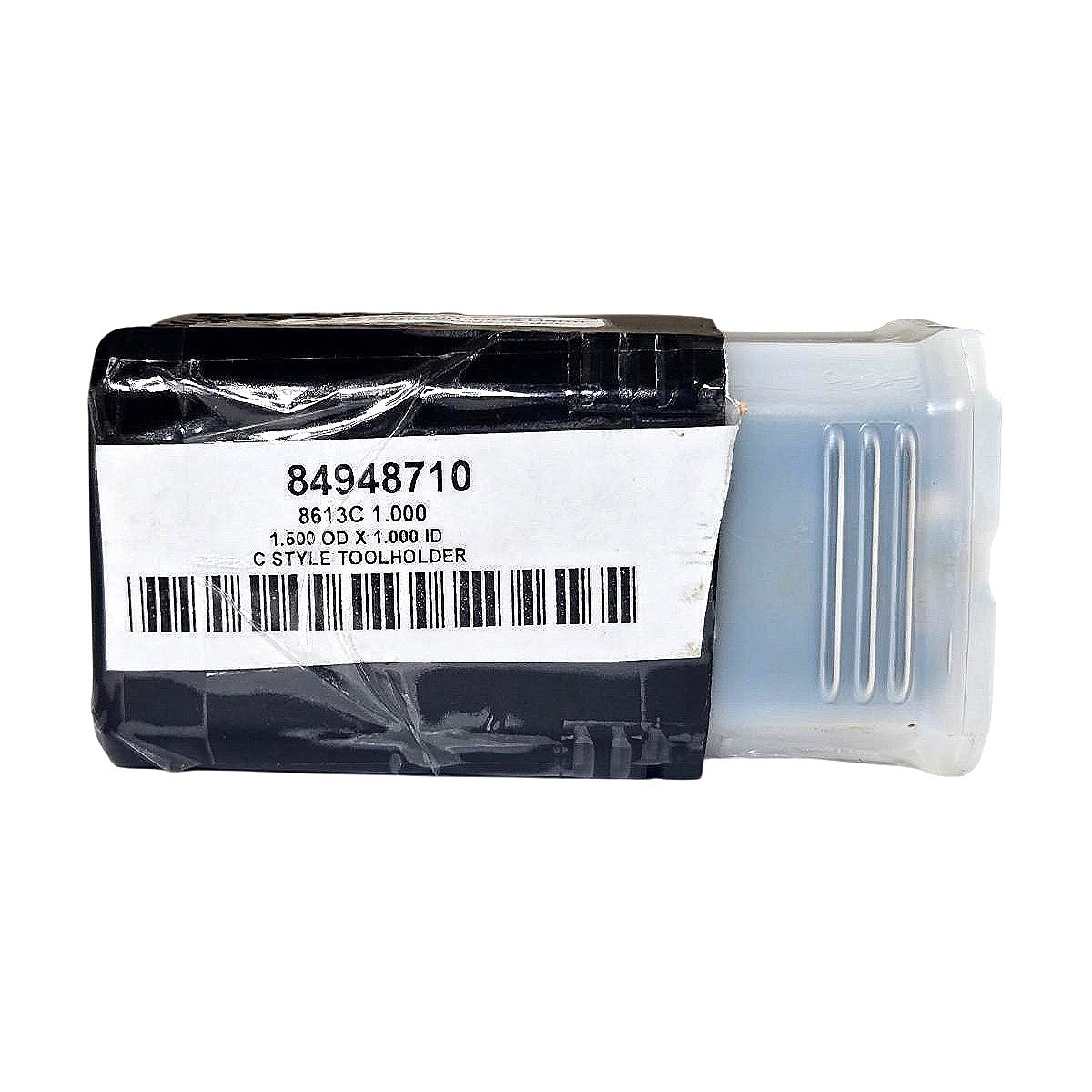

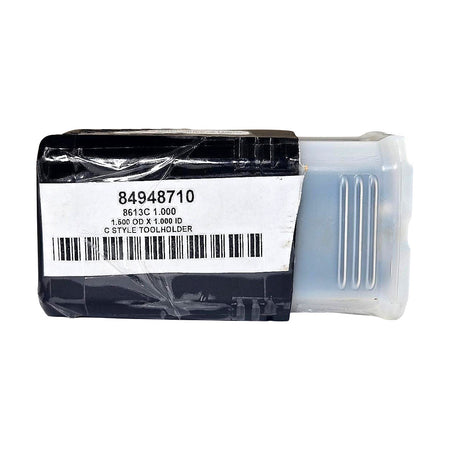

| Part Number (Label) | 8613C 1.000 / 84948710 |
| Style / Type | Type C (C Style Toolholder Bushing) |
| Bore ID | 1.000 in |
| OD | 1.500 in |
| Length Under Head | 3-3/8 in (3.375 in) |
| Slot Length | 3 in |
| Surface Treatment | Black Oxide |
| Compatible Series | 86-Series Global CNC Rotary Toolholders |
| Condition | New |
