Goulds 4SD52K4FA 7.5HP 460V 3Ph 4in Submersible Sewage Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

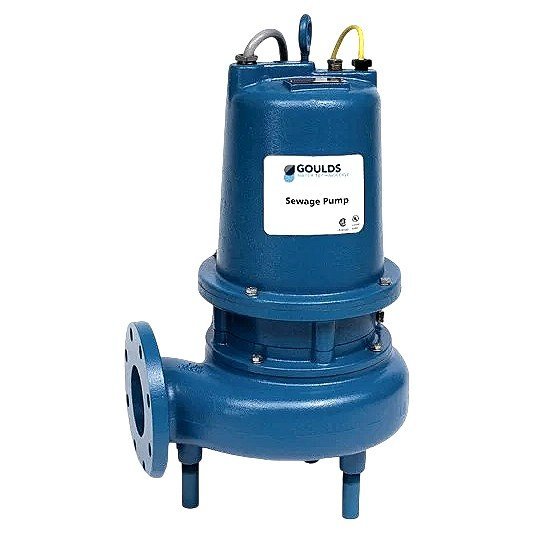

The Goulds Water Technology (a Xylem brand) 4SD52K4FA is a new, heavy-duty 4-inch non-clog submersible sewage pump rated at 7.5 HP, designed for municipal and industrial wastewater handling applications. The part number decodes as follows: "4SD" = 4-inch submersible sewage (non-clog) series; "52" = impeller diameter designation (5.2-inch impeller); "K4" = 7.5 HP motor frame/size code; "FA" = flanged discharge with automatic (rail) guide system. The pump operates on 3-phase, 60 Hz, 460V power at 1,725 RPM, drawing 11.5A full-load current, and delivers up to 620 GPM with a maximum head of 60 feet, as confirmed by the factory label and Goulds published performance data for this model. Construction features a cast iron volute casing and motor housing for corrosion resistance in sewage environments, with a flanged 4-inch discharge outlet compatible with standard submersible guide-rail systems used in wet-well installations. The box label confirms country of origin as USA (Seneca Falls, NY) and a factory-recorded shipping weight of 235 lbs.
Product Specifications
| Brand | Goulds Water Technology (Xylem) |
| Model / MPN | 4SD52K4FA |
| Pump Series | 4SD Non-Clog Submersible Sewage |
| Horsepower | 7.5 HP |
| Voltage | 460V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Full Load Amps | 11.5A |
| Motor Speed | 1725 RPM |
| Max Flow Rate | 620 GPM |
| Max Head | 60 ft |
| Discharge Size | 4 in flanged |
| Discharge Configuration | Flanged (FA = Flanged Auto guide rail) |
| Impeller Diameter | 7.68 in |
| Casing Material | Cast Iron |
| Pump Type | Non-Clog Submersible Sewage |
| Country of Origin | USA (Seneca Falls, NY) |
| Shipping Weight | 235 lbs |
| Condition | New |
| Manufacturer | Goulds Water Technology / Xylem Inc. |
