Goulds 69937E CF8M 316 SS End Suction Centrifugal Pump Casing

Brand	Goulds
MPN	69937E

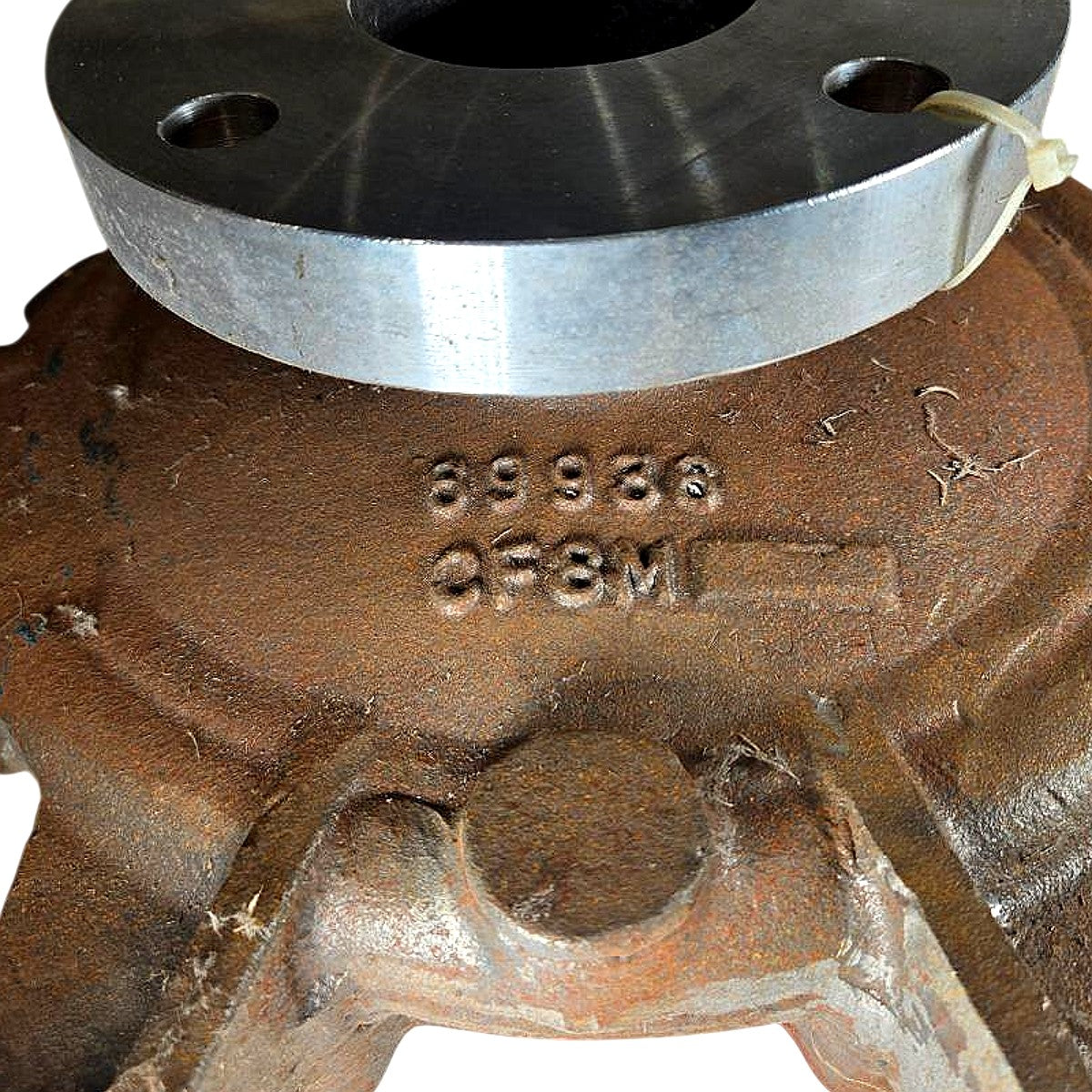

Casting Number (Photo)	69936 / 69937E
Material Grade	CF8M (Cast 316 Stainless Steel)
Material Designation	ASTM A743 Grade CF8M
Component Type	Pump Casing / Volute Body
Pump Style	End Suction, Frame-Mounted
Discharge Orientation	Top Discharge (Flanged)
Mounting Style	Foot-Mounted (Base Feet Integral)
Seal Chamber	Mechanical Seal Seat Installed

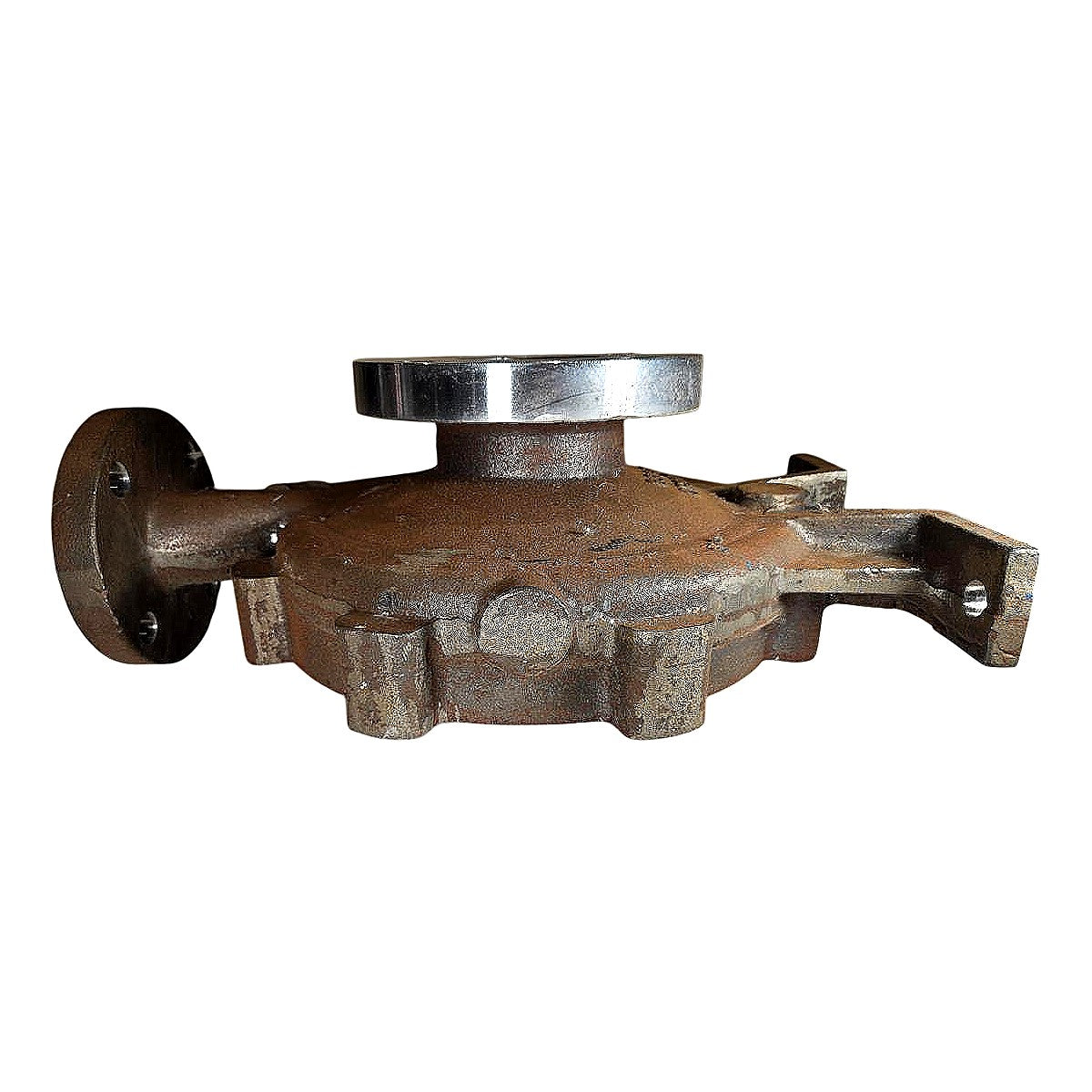

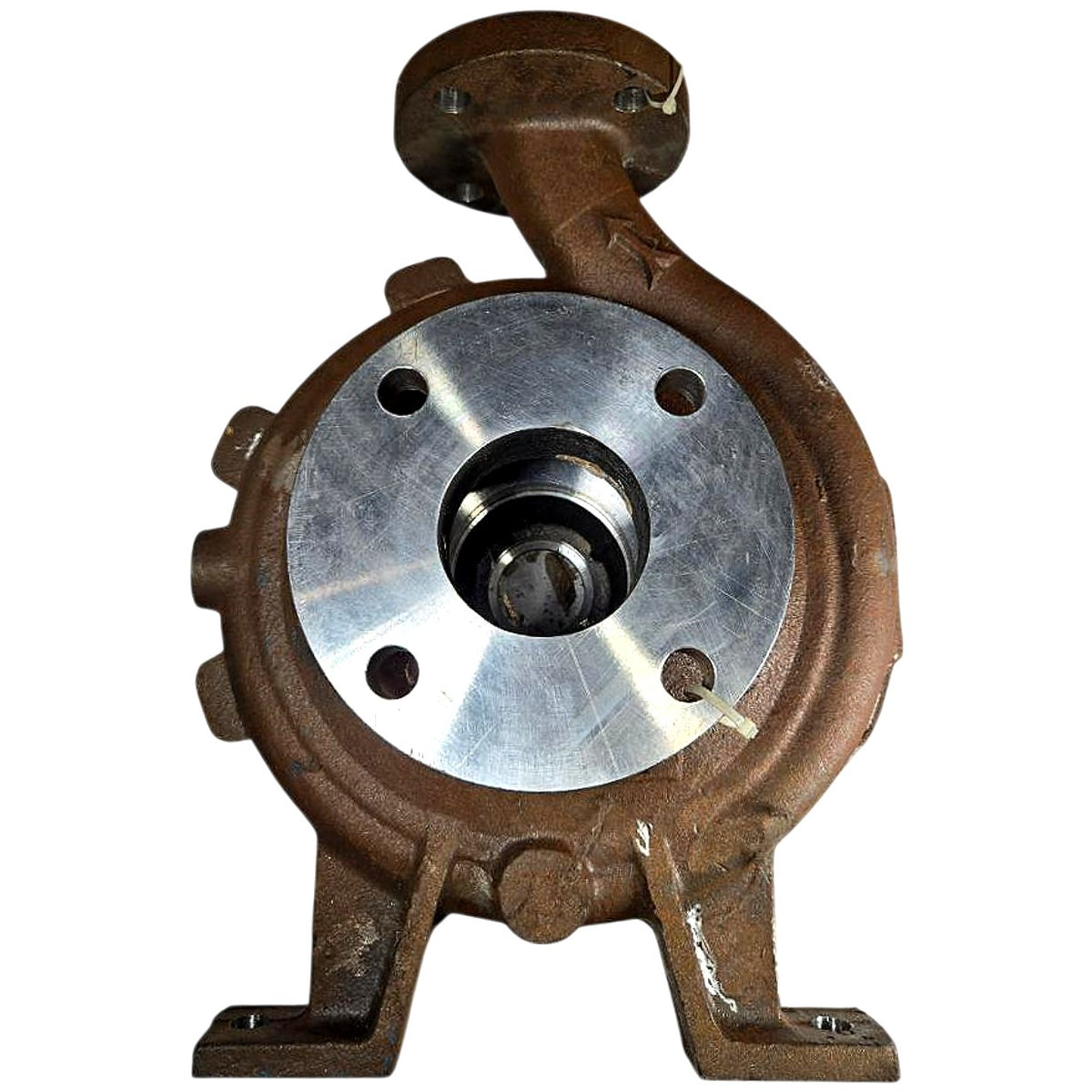

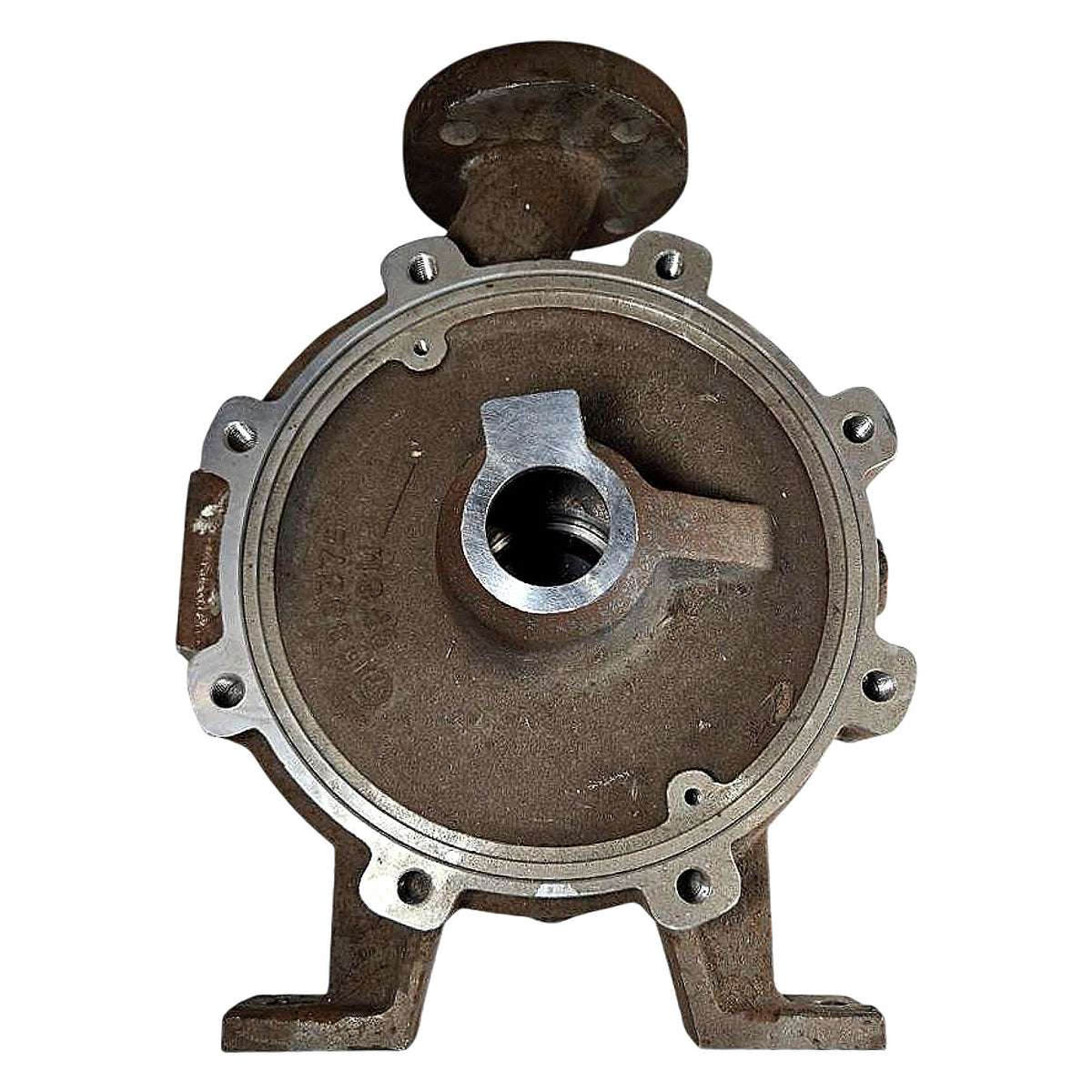

This is a new Goulds Pumps replacement pump casing (volute/casing body), part number 69937E, cast in CF8M grade stainless steel — the cast equivalent of wrought 316 stainless steel — as confirmed by the "CF8M" casting mark visible on the unit. CF8M offers excellent corrosion resistance to a wide range of chemicals, mild acids, and seawater, making it the standard material specification for demanding process fluid, chemical, and marine pump applications. The casing features an integral foot-mounted base (frame-mounted design), a top-discharge flanged outlet, a precision-machined rear bearing frame face, and a machined seal chamber bore with a mechanical seal seat already installed. This casting is compatible with Goulds ANSI end-suction centrifugal pump lines (such as the 3196 or similar process pump series) and is sold as a new, unmounted casing — impeller, shaft, bearings, and mechanical seal are not included.

Product Specifications
Brand	Goulds
MPN	69937E
Casting Number (Photo)	69936 / 69937E
Material Grade	CF8M (Cast 316 Stainless Steel)
Material Designation	ASTM A743 Grade CF8M
Component Type	Pump Casing / Volute Body
Pump Style	End Suction, Frame-Mounted
Discharge Orientation	Top Discharge (Flanged)
Mounting Style	Foot-Mounted (Base Feet Integral)
Seal Chamber	Mechanical Seal Seat Installed
