Goulds F1626SDLALX102 3196S STX 2x3-6 Ductile Iron Liquid End Assembly

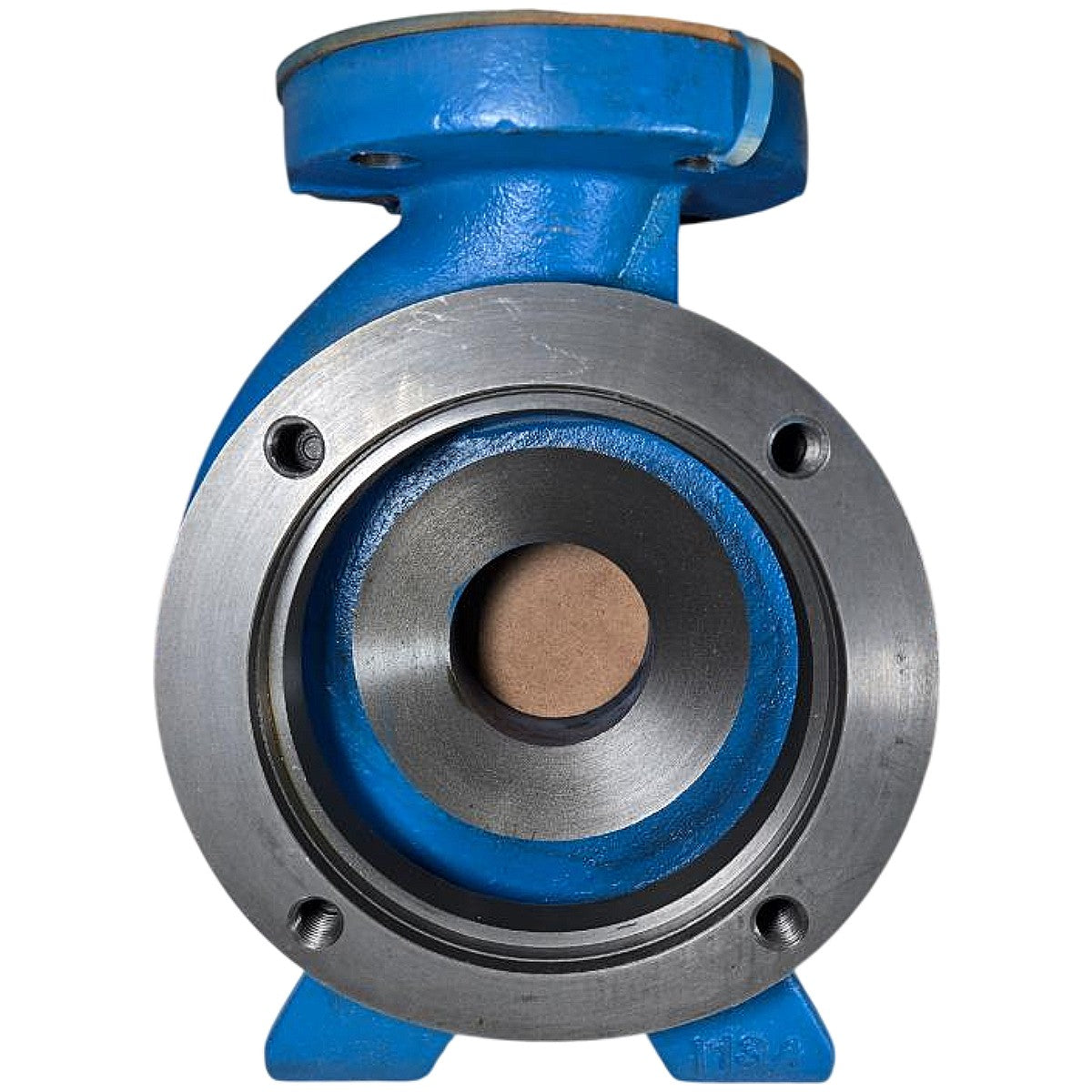

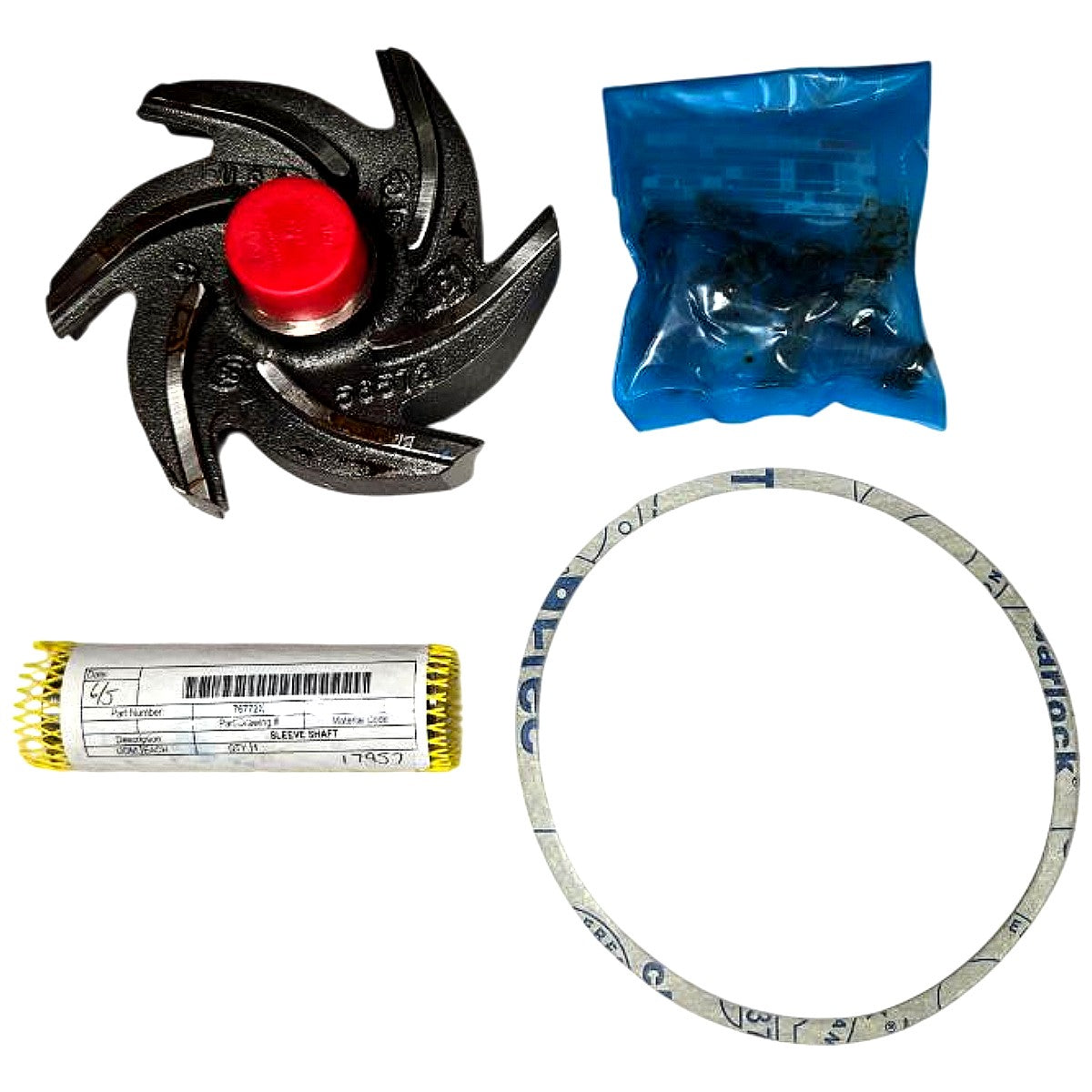

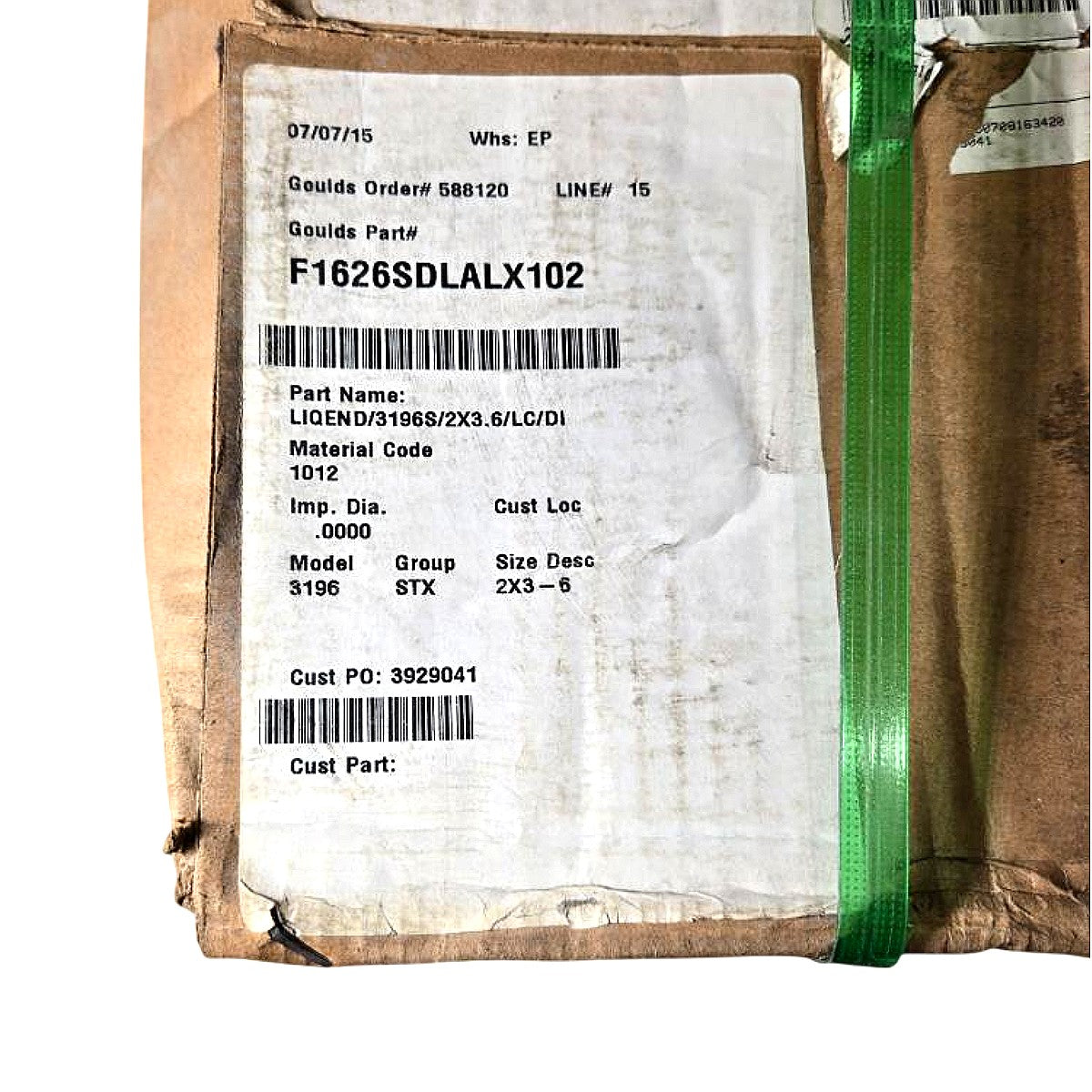

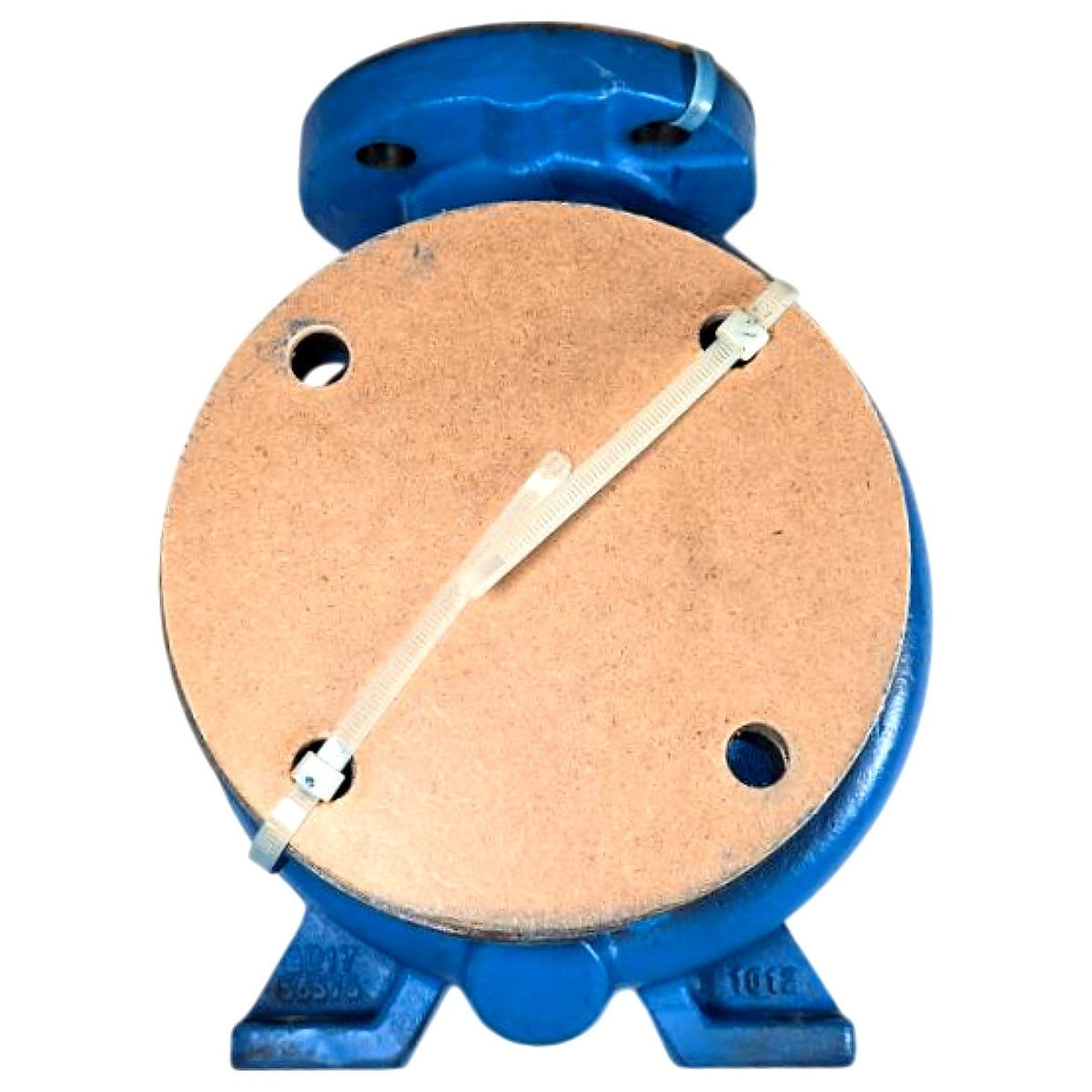

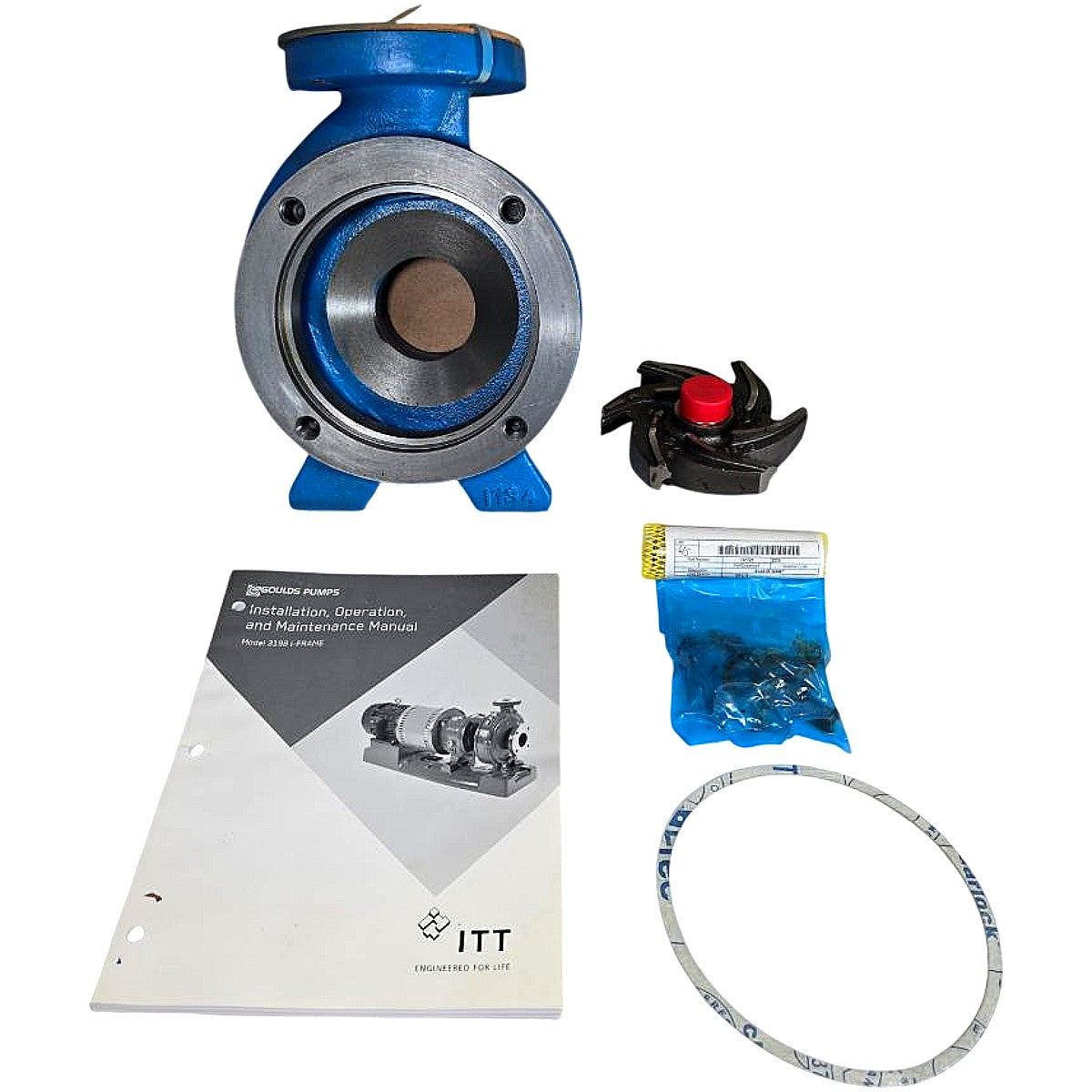

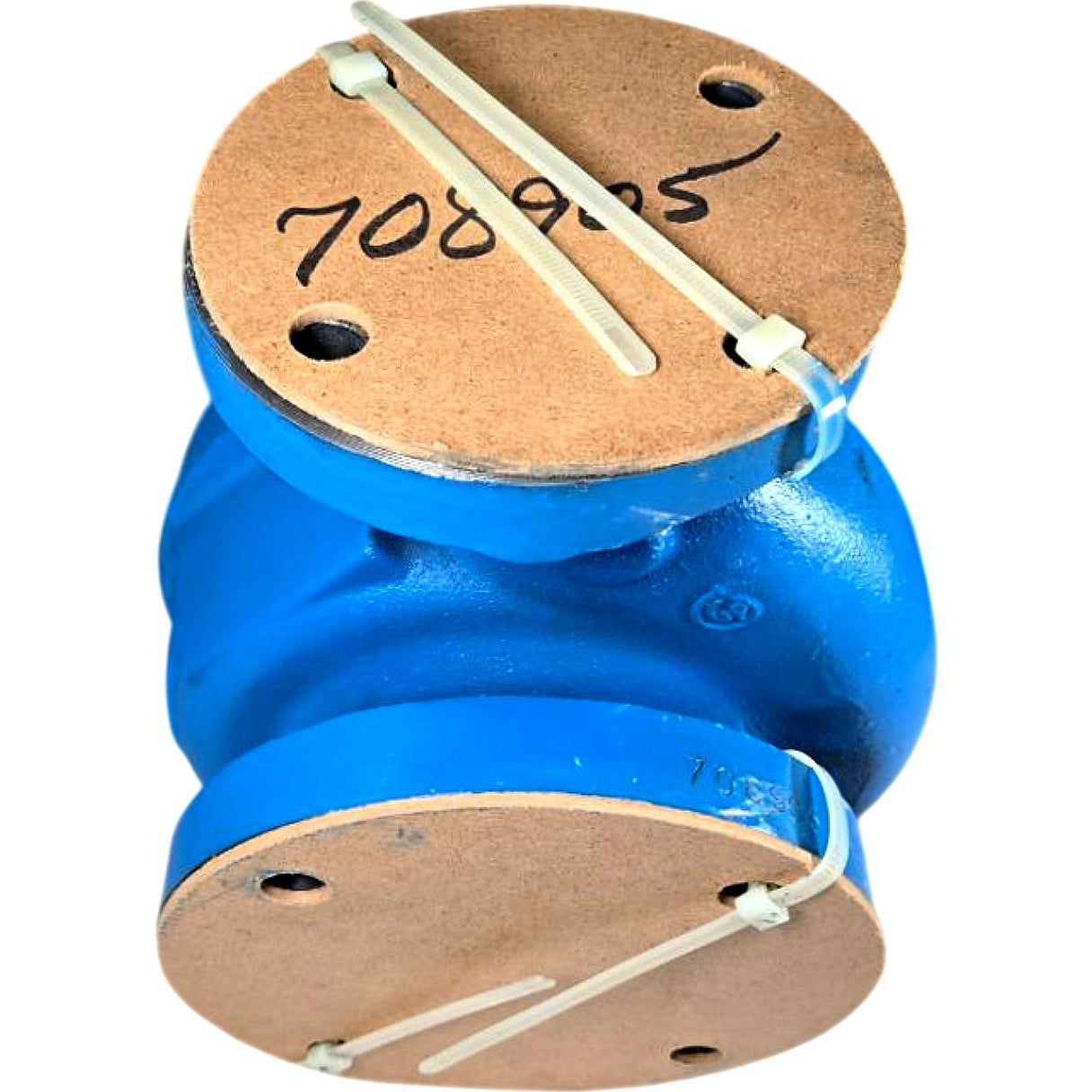

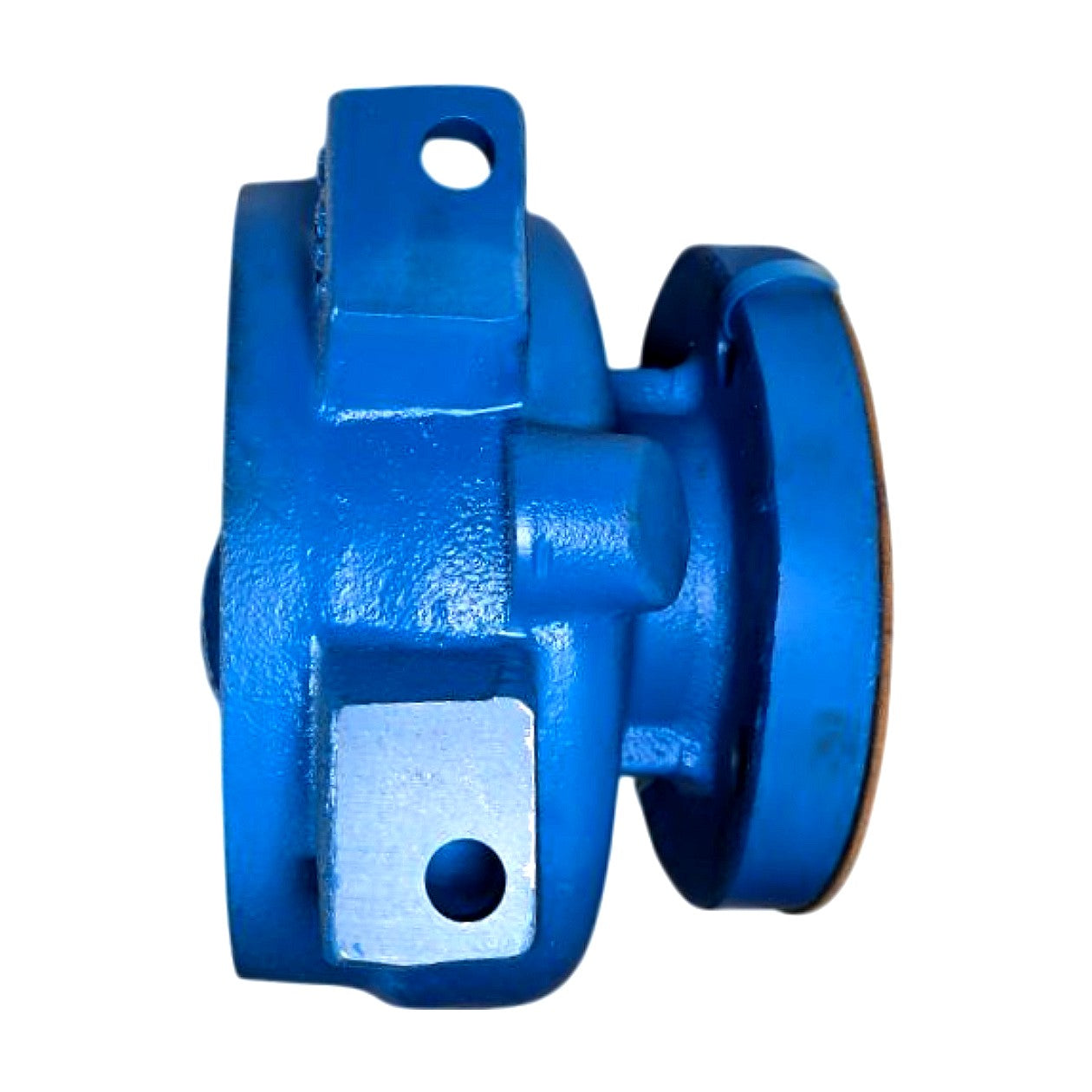

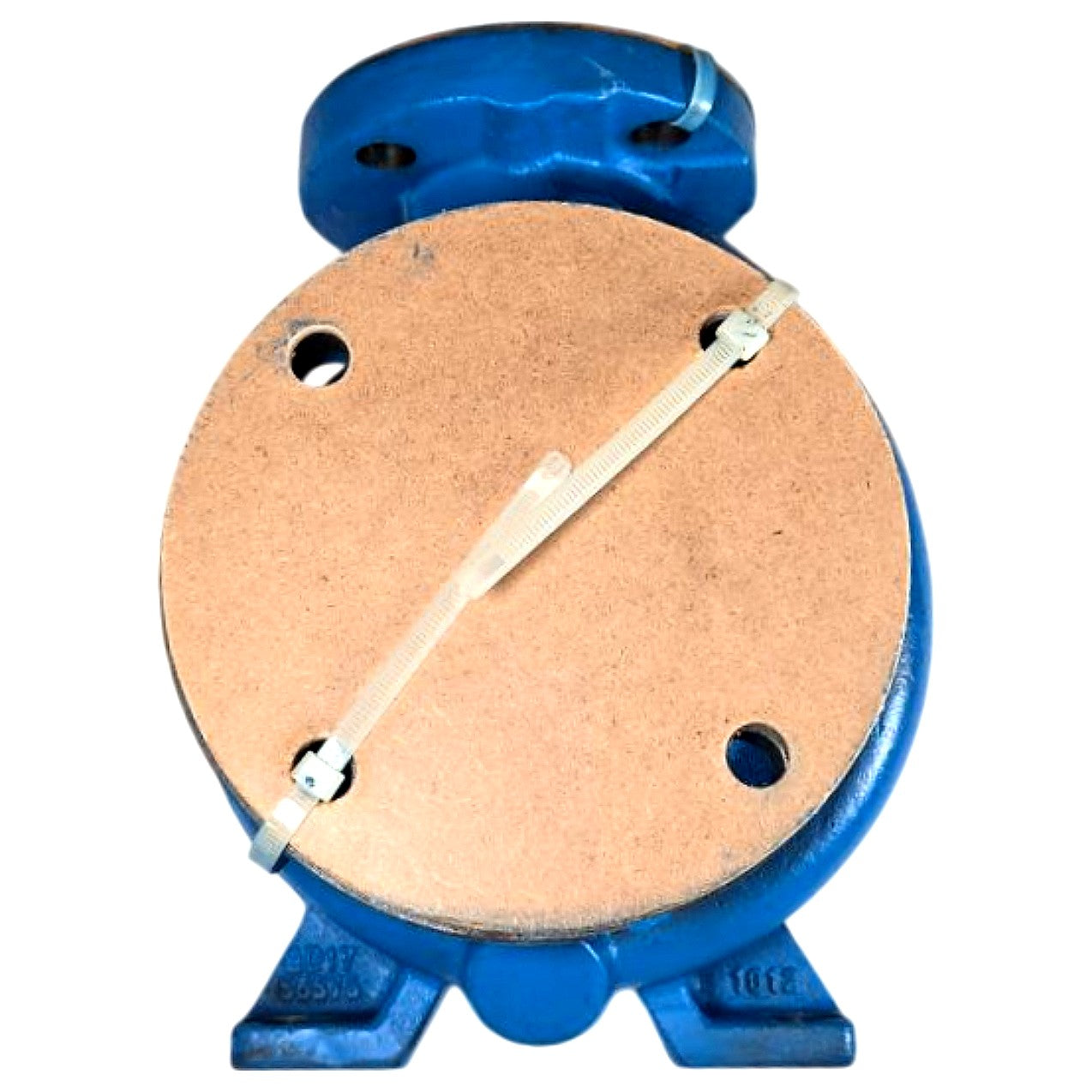

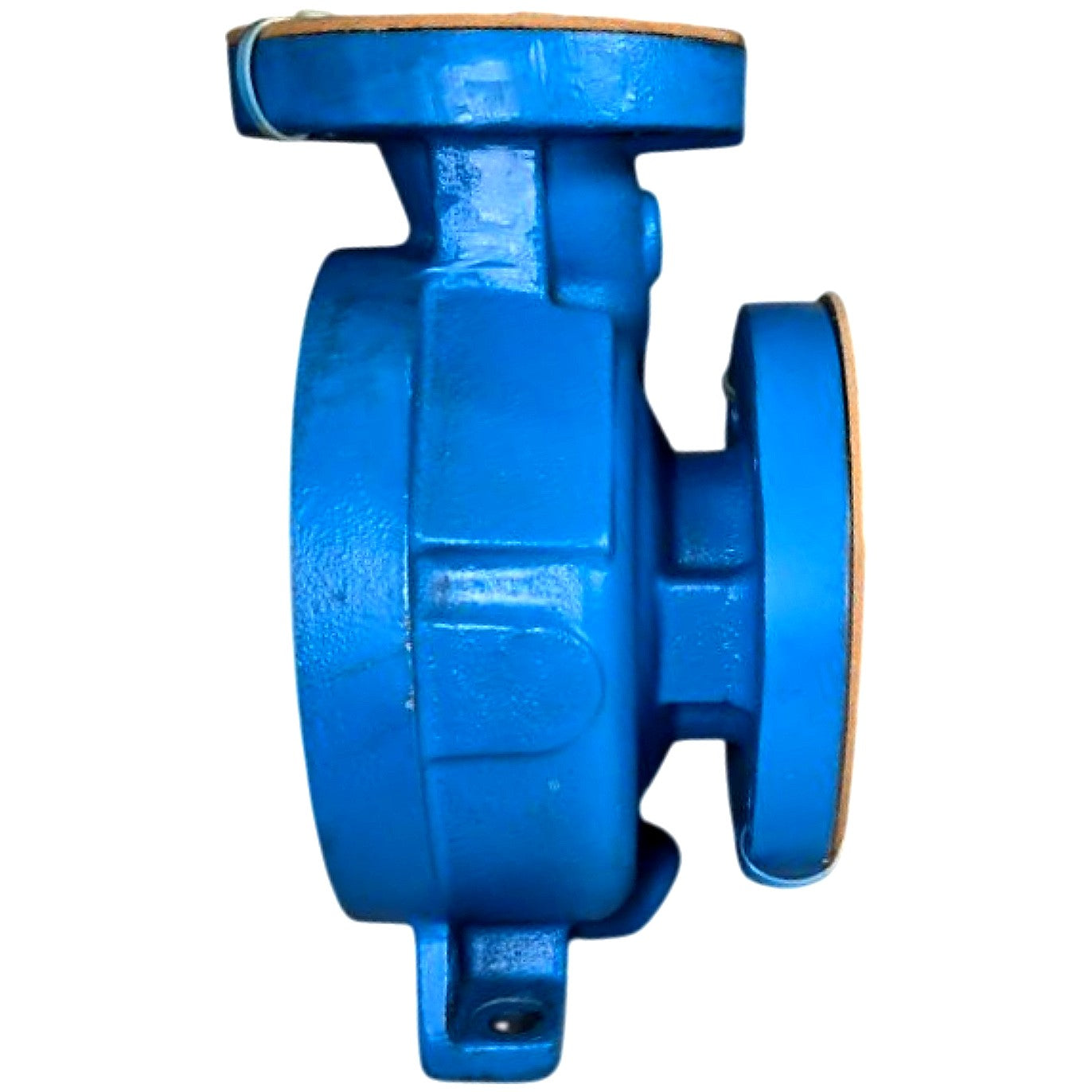

This is a new ITT Goulds Pumps F1626SDLALX102 Liquid End Assembly for the Model 3196S i-FRAME ANSI centrifugal pump, size 2x3-6, STX bearing frame group, with a Large Seal Chamber (LC) configuration. The liquid end is constructed entirely of Material Code 1012 Ductile Iron (ASTM A536), covering the volute casing, impeller, and all wetted components, making it well-suited for general industrial process fluid services where corrosion resistance of cast iron is adequate. The kit includes the ductile iron volute casing (flanged 3-in suction / 2-in discharge, 6-in max impeller diameter), a 5-vane ductile iron enclosed impeller with red plastic bore protector cap, a Garlock spiral-wound casing gasket, a sleeve shaft (P/N 767721), and a hardware/fastener bag — all confirmed by the shipping label (Part Name: LIQEND/3196S/2X3.6/LC/DI, Model 3196, Group STX, Size Desc 2x3-6, Mat. Code 1012) and the included ITT Goulds Model 3196 i-FRAME Installation, Operation, and Maintenance manual. The 3196S i-FRAME platform is an ANSI B73.1-compliant back-pull-out pump design with integrated bearing isolators and iFrame power end compatibility, commonly deployed in chemical processing, water treatment, power generation, and general industrial fluid transfer applications.

Product Specifications
