Goulds F1658SSLALX102 3196S 1-1/2x3-8 D316SS Centrifugal Pump Liquid End

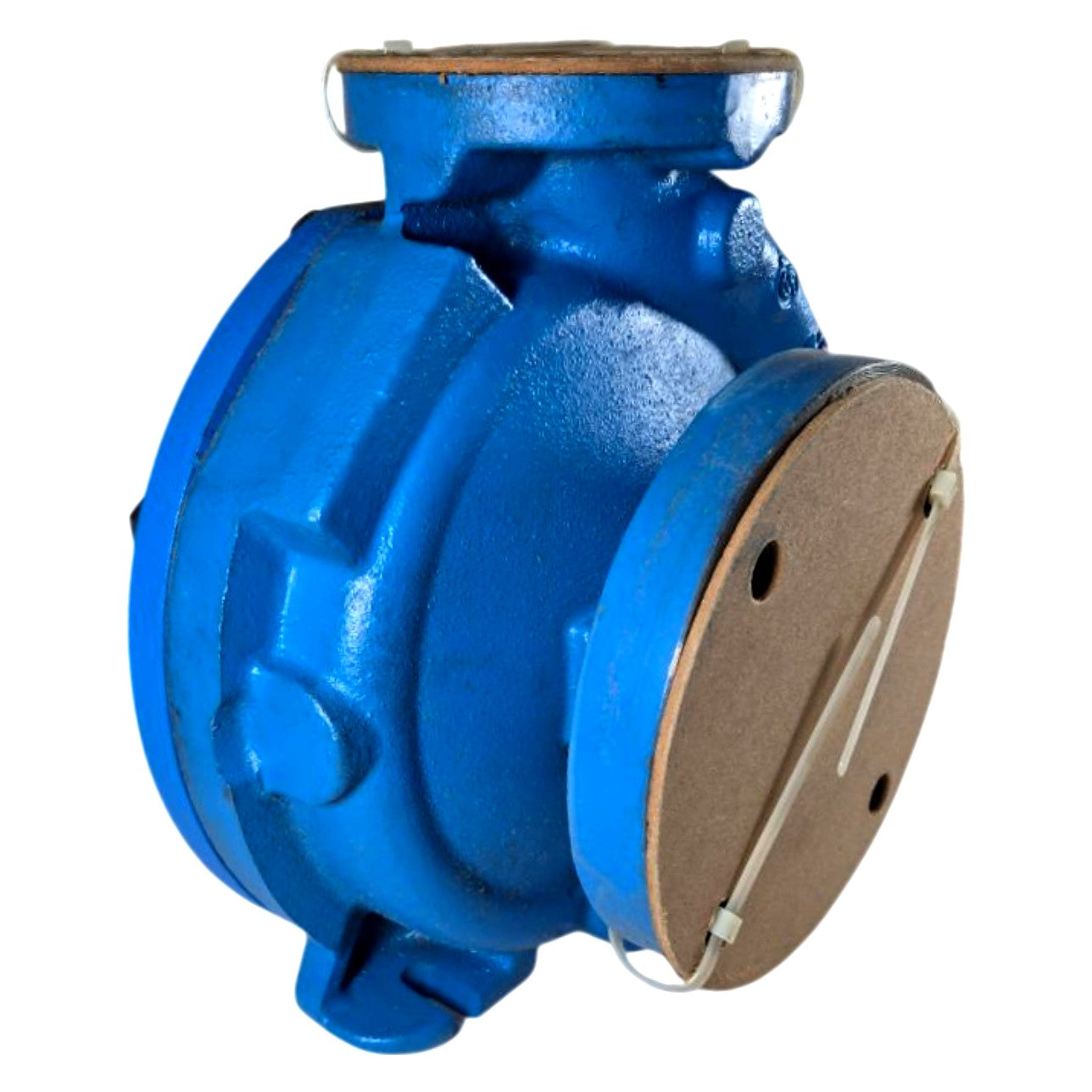

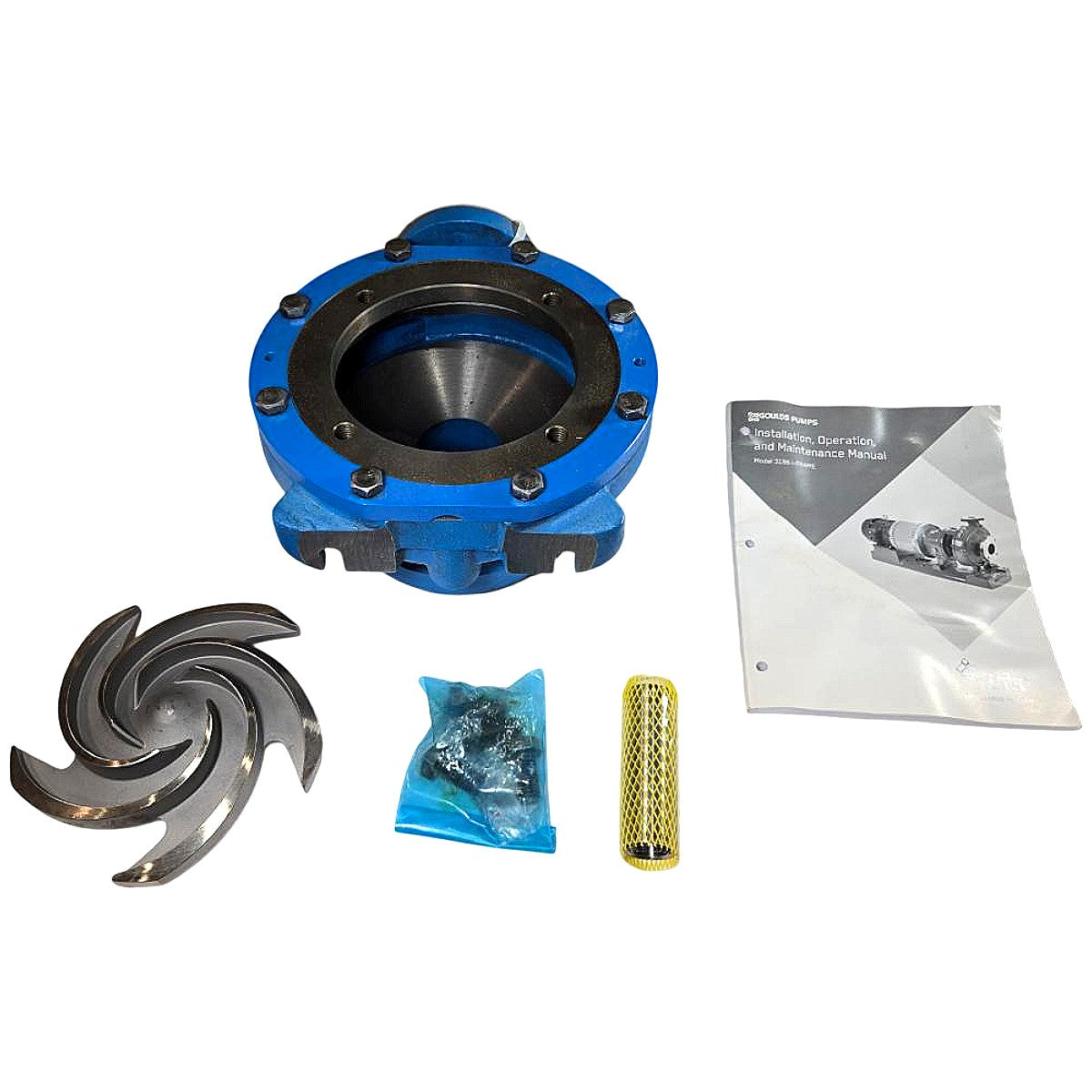

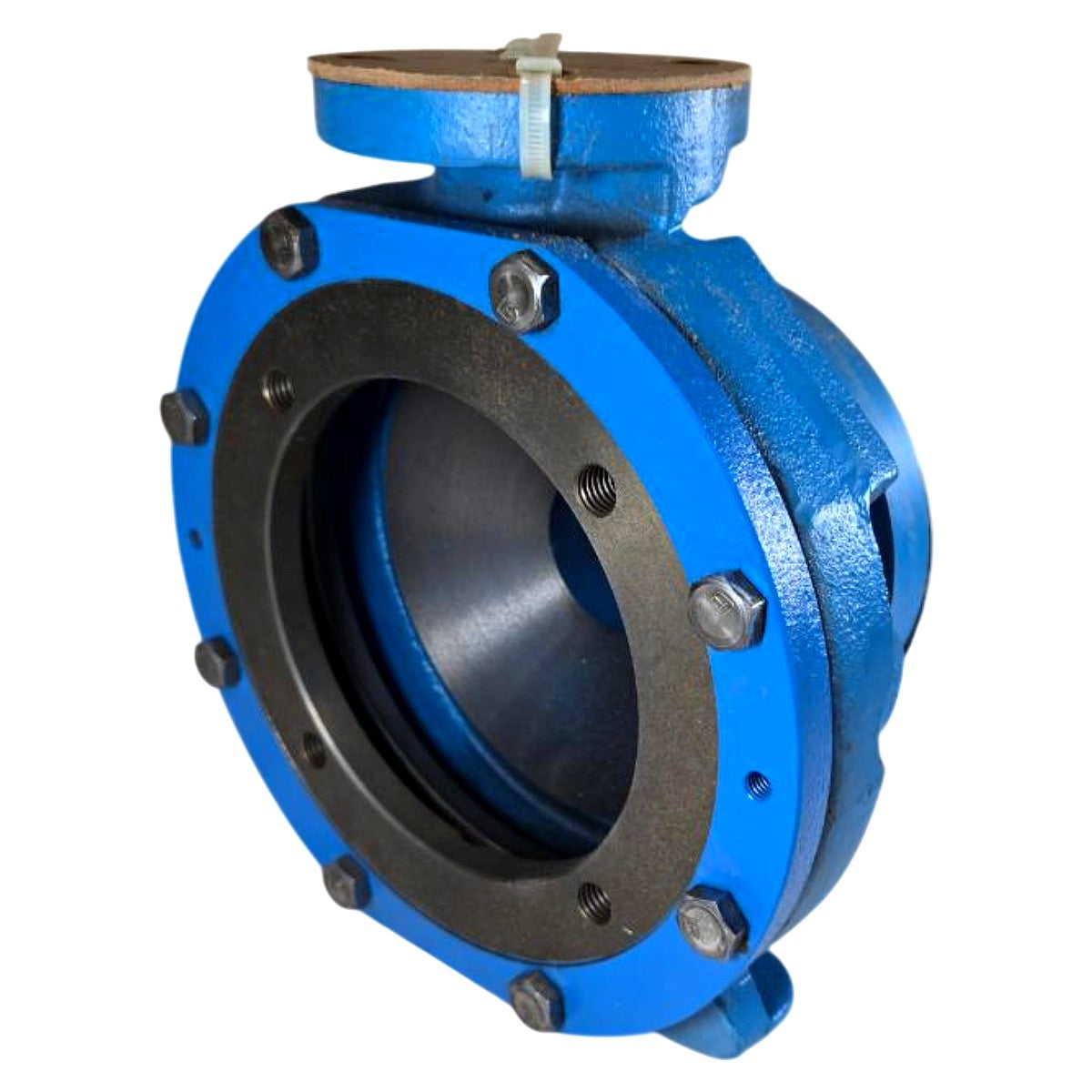

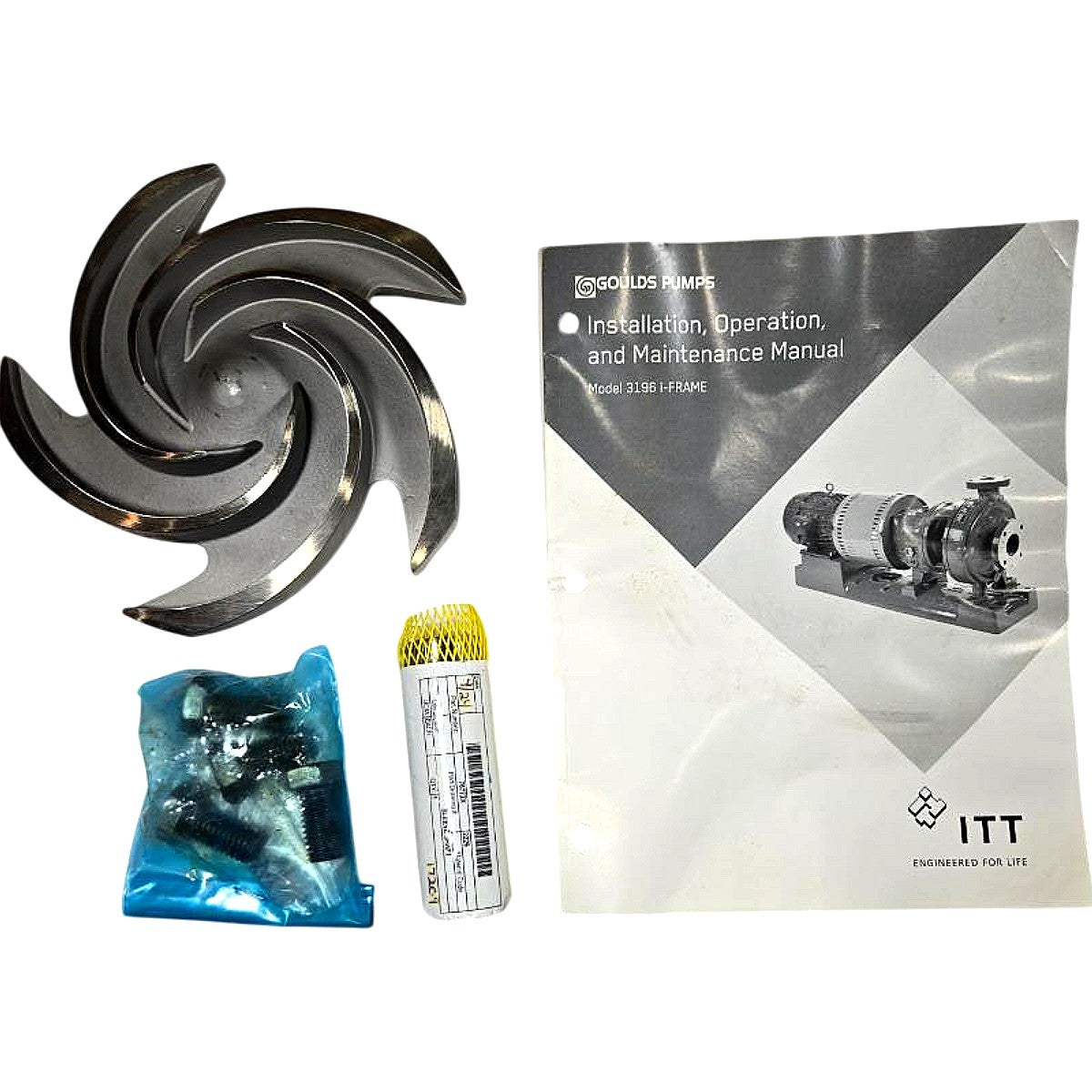

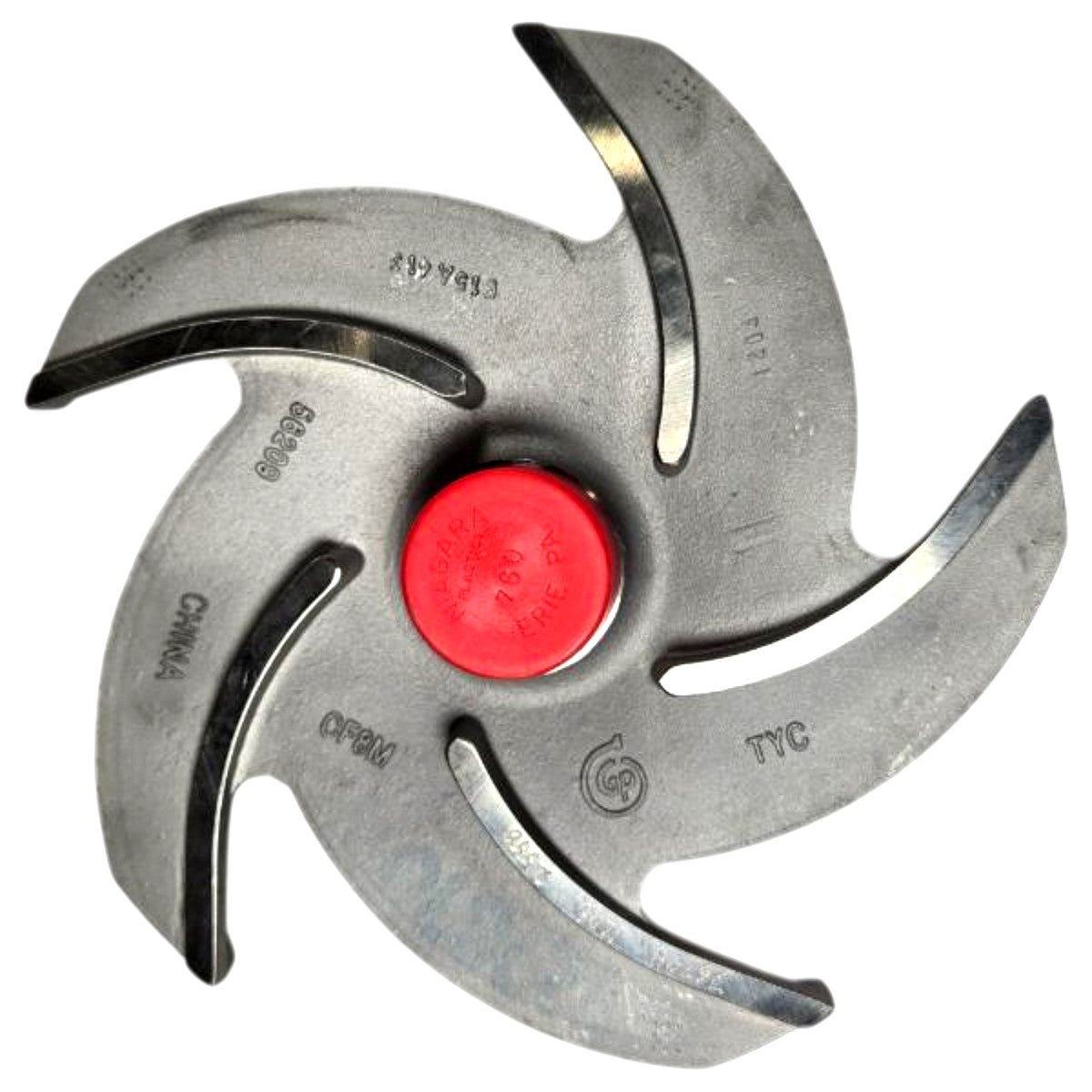

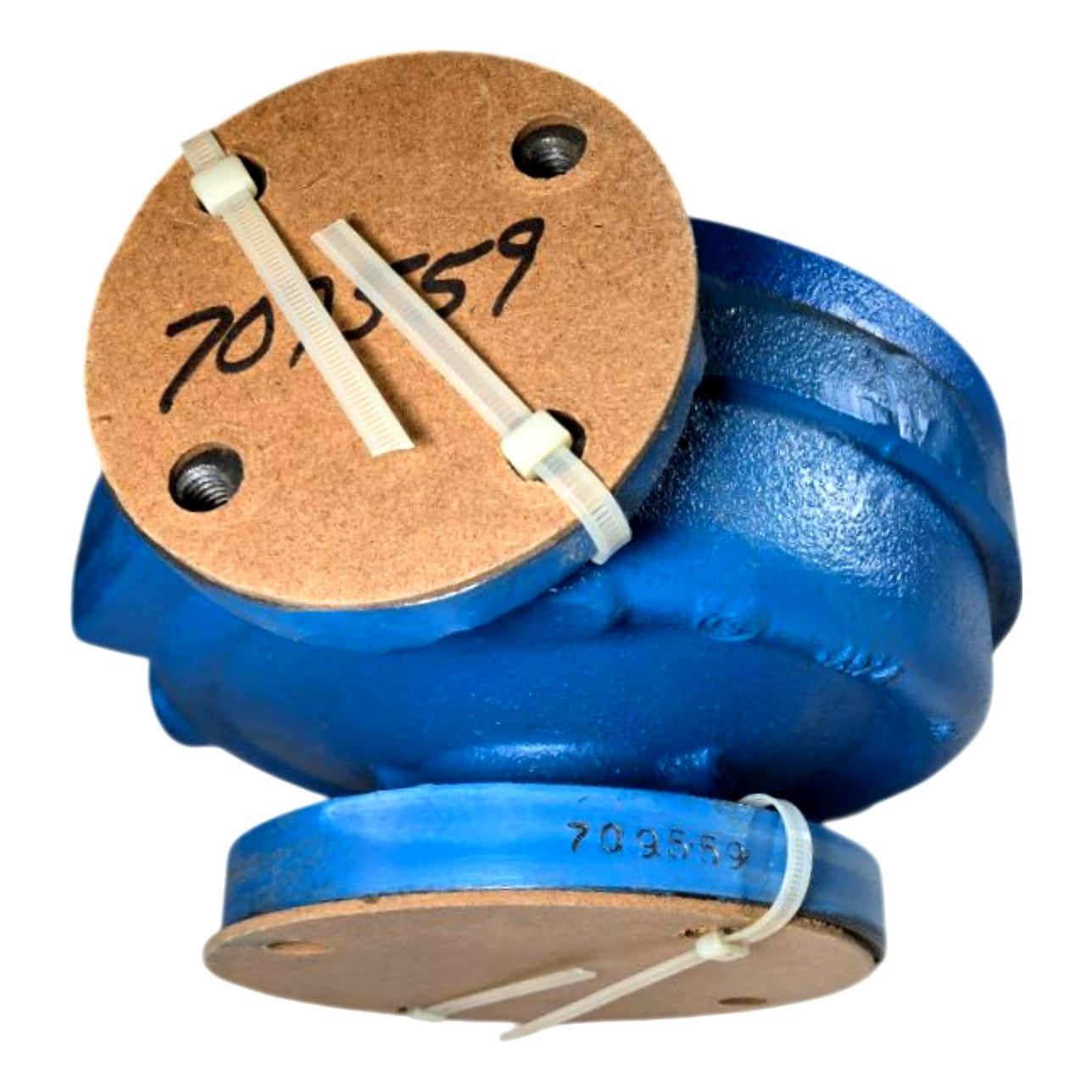

This is a new ITT Goulds Pumps F1658SSLALX102 liquid end assembly for the Model 3196S i-FRAME ANSI centrifugal pump, size 1-1/2 x 3-8 (1.5" discharge x 3" suction x 8" max impeller diameter), Material Code 9104 — which designates a 316 stainless steel (D316) wetted construction with a cast iron (LC) casing, consistent with the part name "LIQEND/3196S/1.5X3.8/LC/D316" on the box label. The kit includes the blue-painted cast iron casing (volute), a 316SS open impeller with 5 vanes, a hardware pack (bolts/studs), a mechanical seal component (yellow mesh tube), and the official Goulds 3196 i-FRAME Installation, Operation, and Maintenance manual. The Goulds 3196S is an ANSI B73.1 horizontal end-suction centrifugal pump widely used in chemical processing, petrochemical, water treatment, and general industrial services; the STX frame group designates the small frame bearing assembly. The casing flanges are protected by cardboard shipping covers (serial/tag number 703559 visible) and the assembly is new-old-stock shipped in the original ITT Goulds factory carton dated 09/25/15.
