Goulds GT15 1-1/2 HP 115/230V Cast Iron Self-Priming Centrifugal Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

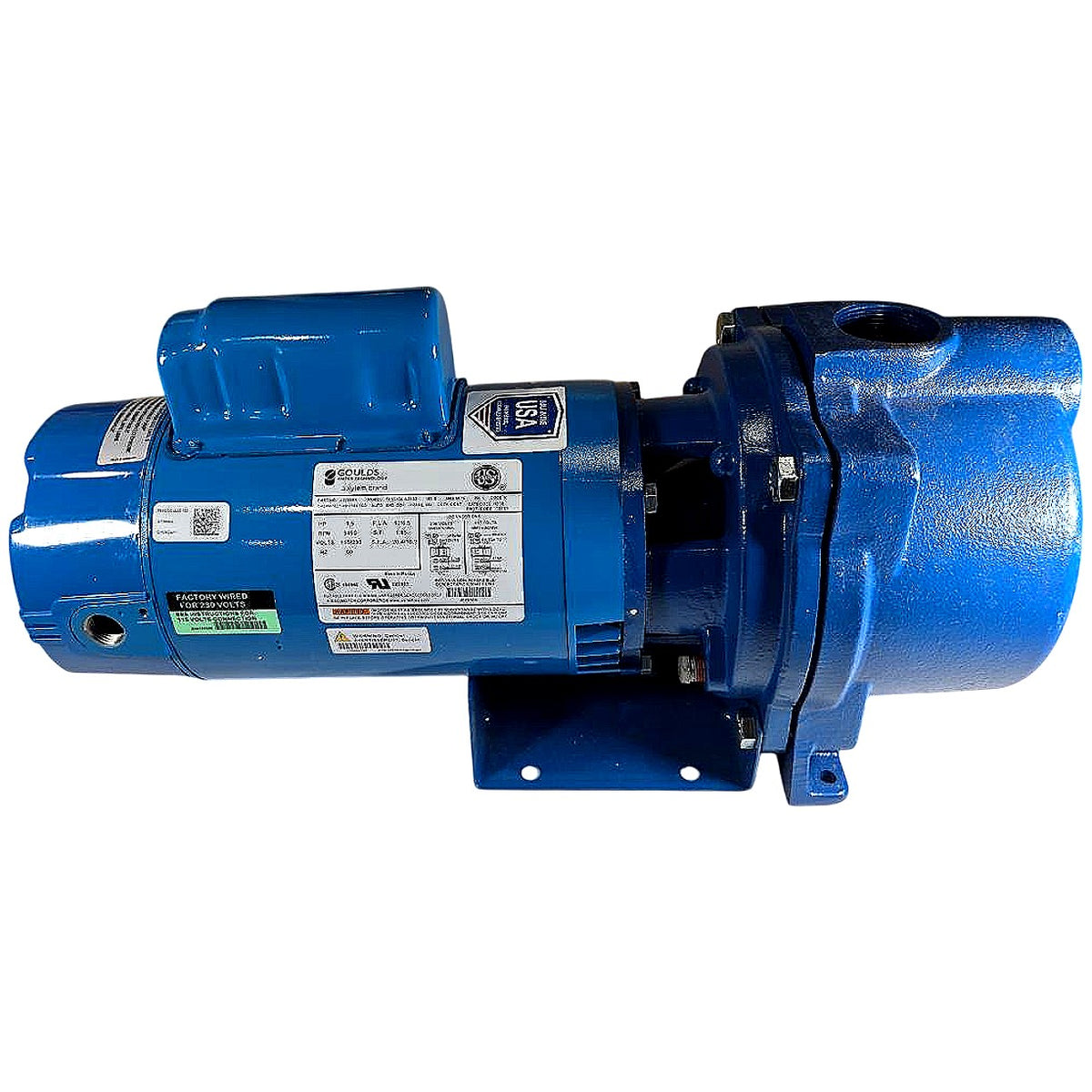

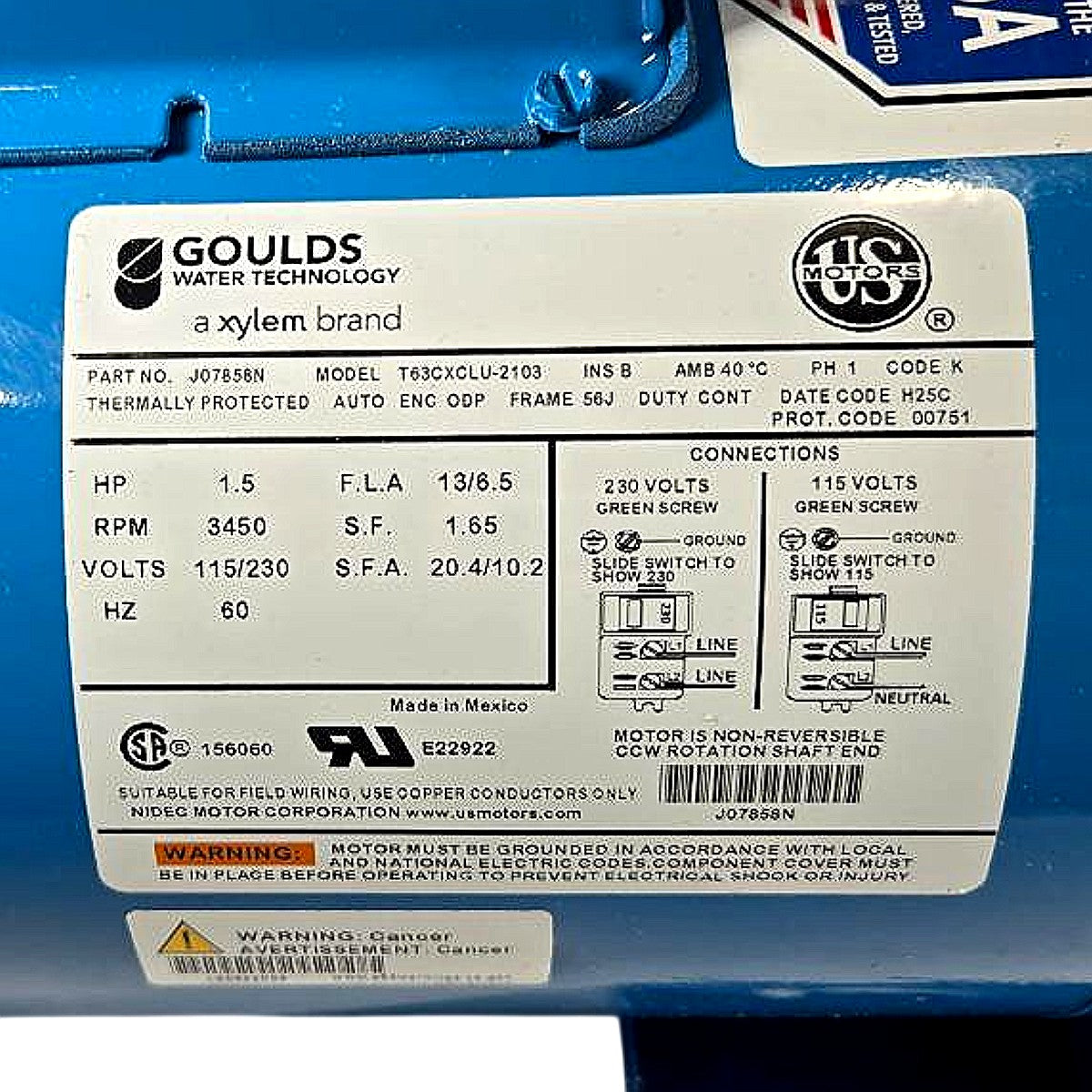

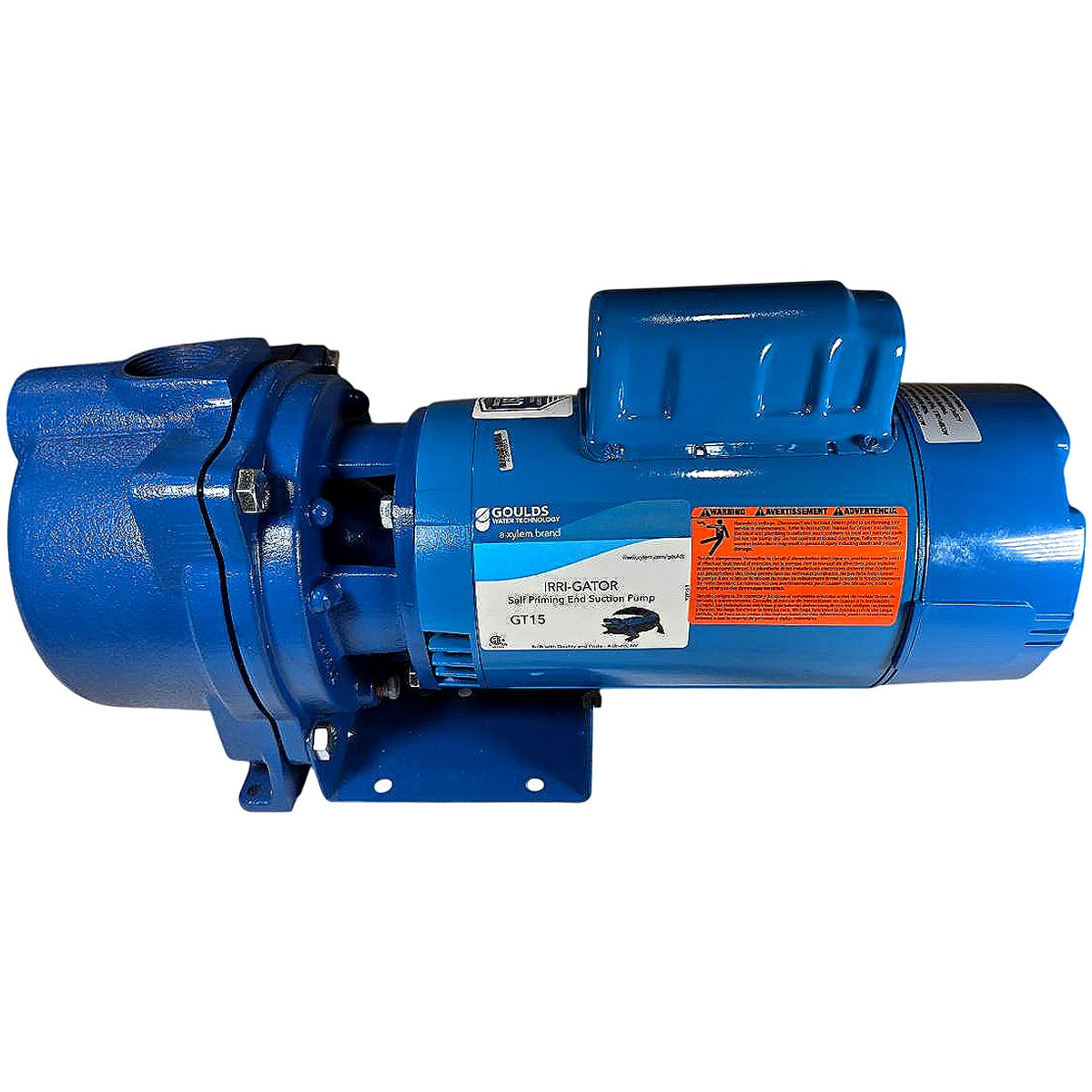

The Goulds Water Technology GT15 is a new GT IRRI-GATOR self-priming end-suction centrifugal pump rated at 1.5 HP, designed for irrigation, water transfer, and general industrial fluid-handling applications. The pump features a cast iron volute and impeller housing, mated to a US Motors (Nidec) ODP (open drip-proof) single-phase motor, Part No. J07858N, Model T63CXCLU-2103, NEMA 56J frame, running at 3,450 RPM on 115/230V AC, 60 Hz with field-selectable voltage via a slide switch — factory wired for 230V. Motor full-load amperage is 13A at 115V / 6.5A at 230V, service factor 1.65, S.F.A. 20.4/10.2A, insulation Class B, ambient rating 40°C, thermally protected with automatic reset, and UL/CSA listed. Both suction and discharge connections are 1-1/2 in NPT; the pump is self-priming and mounts on an integrated cast iron base plate with four bolt-down pads, suitable for surface installation in agricultural, landscape irrigation, and light industrial water-supply systems. Grainger catalog number 1N439 (Goulds model 01-27-26); shipped in original OEM packaging with Xylem/Goulds instruction manual included.
Product Specifications
| Brand | Goulds Water Technology (Xylem) |
| Model | GT15 |
| Part Number (Pump) | J07858N |
| Motor Model | T63CXCLU-2103 |
| Grainger Catalog No. | 1N439 |
| Pump Type | Self-Priming End Suction Centrifugal |
| Horsepower | 1.5 HP |
| Phase | Single Phase (1 PH) |
| Voltage | 115/230V AC (field selectable) |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Full Load Amps (FLA) | 13A @ 115V / 6.5A @ 230V |
| Service Factor | 1.65 |
| S.F. Amps (SFA) | 20.4A @ 115V / 10.2A @ 230V |
| Motor Enclosure | ODP (Open Drip-Proof) |
| NEMA Frame | 56J |
| Insulation Class | Class B |
| Ambient Temperature Rating | 40°C |
| Thermal Protection | Automatic Reset |
| Suction Port Size | 1-1/2 in NPT |
| Discharge Port Size | 1-1/2 in NPT |
| Volute / Housing Material | Cast Iron |
| Motor Rotation | CCW (Counter-Clockwise), shaft end |
| Motor Manufacturer | US Motors (Nidec) |
| Certifications | UL Listed (E22922), CSA (156060) |
| Country of Origin | USA (assembled & tested) |
| Condition | New |
| Shipping Weight (Box Label) | 59 lbs |
