Goulds WS5034D4 5HP 460V 1725RPM Submersible Sewage Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

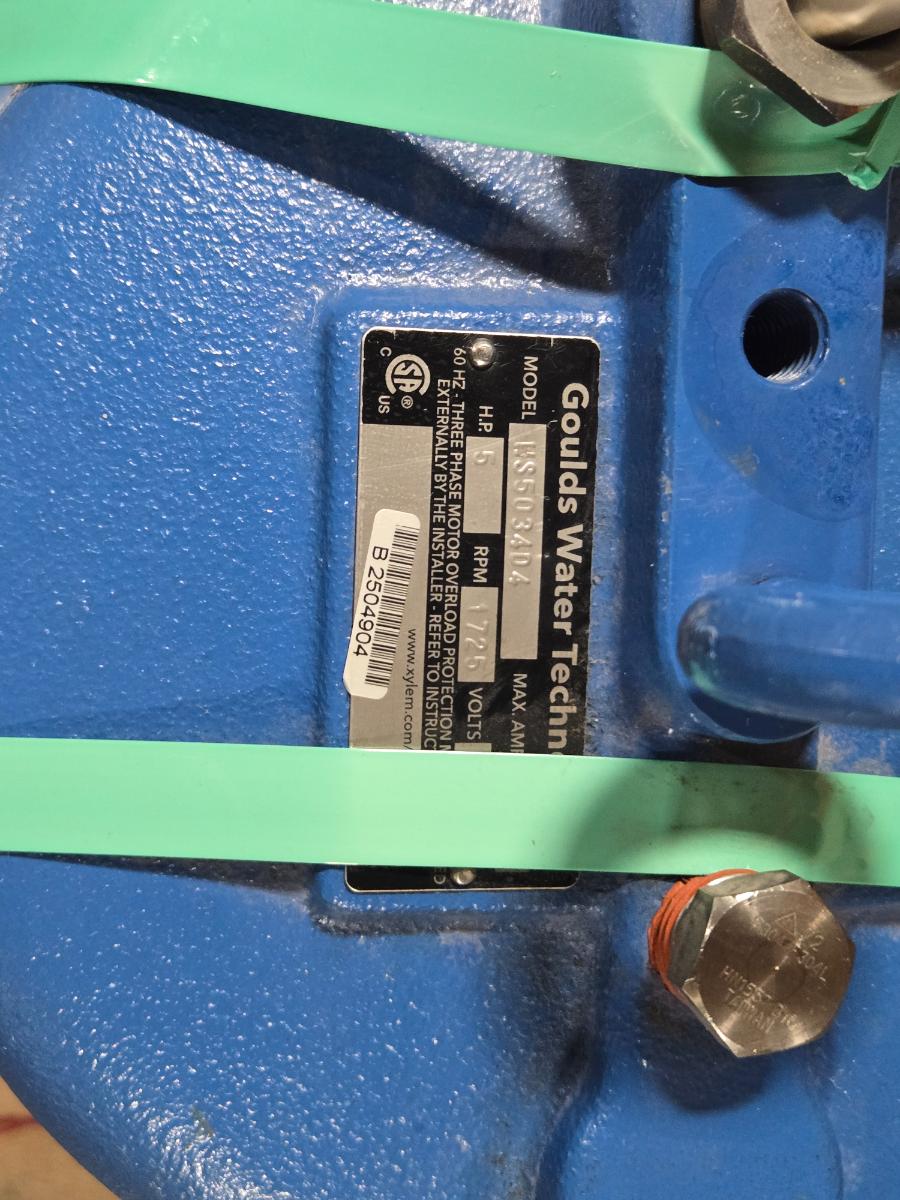

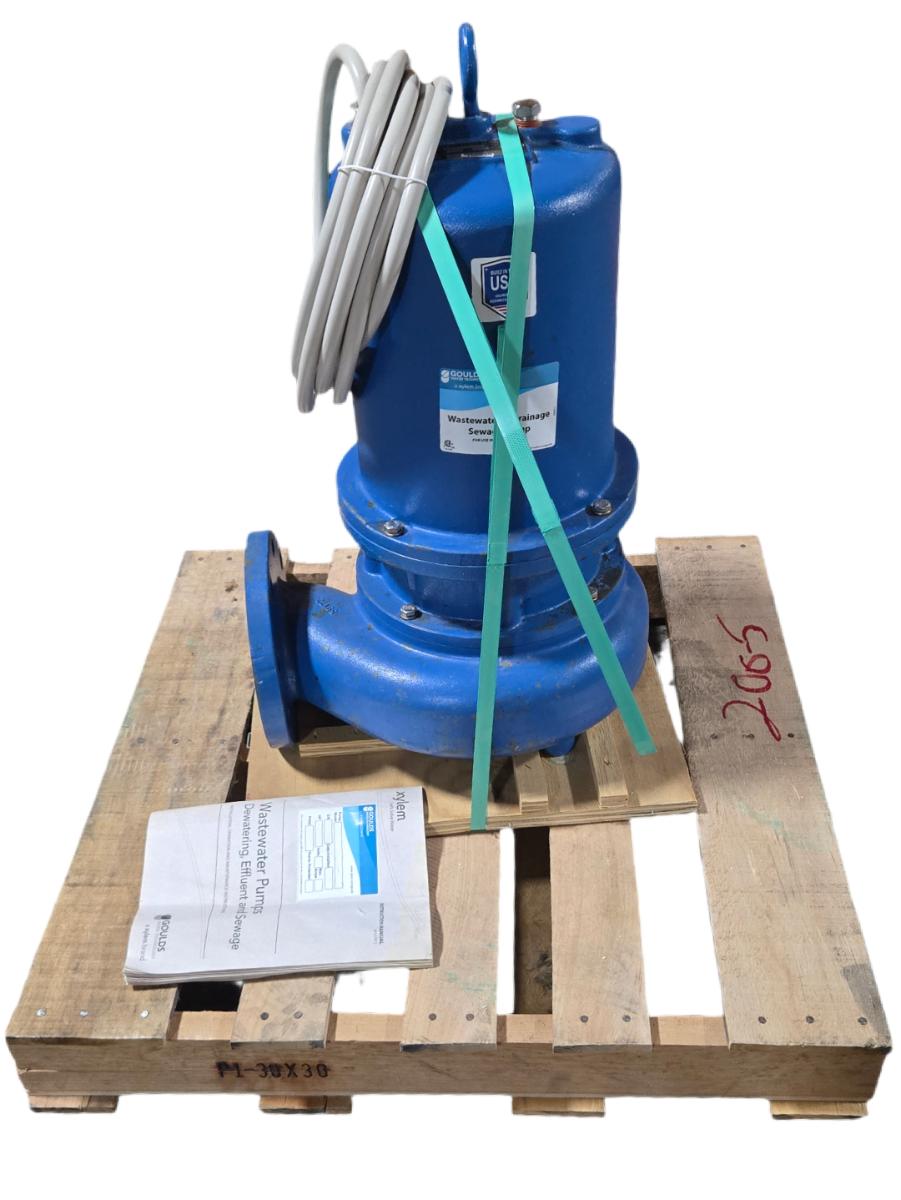

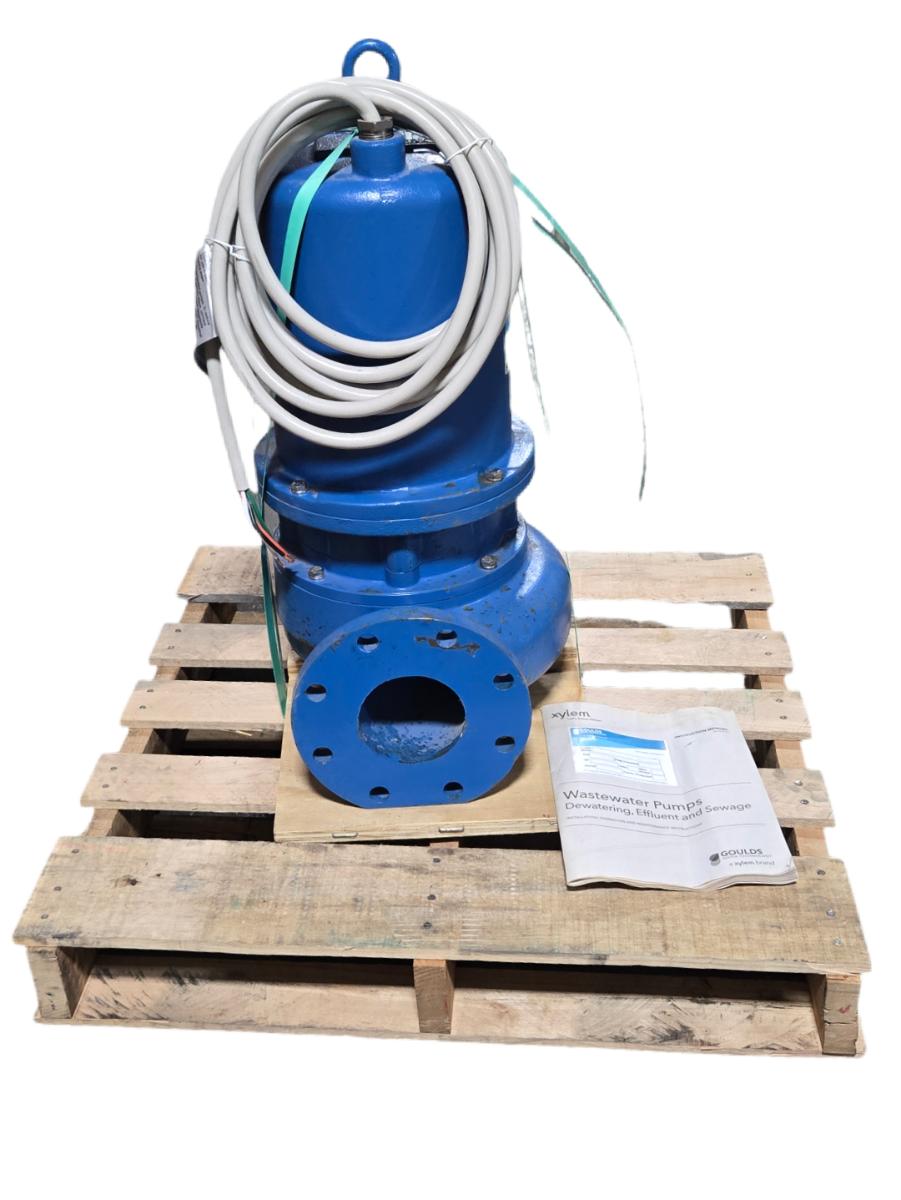

This is a new Goulds Water Technology (Xylem) WS5034D4 submersible sewage pump, part of the WS/WSG series designed for municipal and industrial wastewater, sewage, drainage, and effluent applications. The pump is driven by a 5 HP, 60 Hz, three-phase motor operating at 460V and 1725 RPM, housed in a cast iron casing finished in Goulds blue epoxy paint, with a flanged discharge outlet visible in the photos. The nameplate confirms model WS5034D4, HP 5, RPM 1725, and three-phase 60 Hz operation; the motor lacks internal overload protection and requires external overload protection provided by the installer per the nameplate notation. The power cable is a 4-conductor (black, red, green, white) submersible-rated lead wire, consistent with a 3-phase motor with ground, and the pump ships with the original Xylem/Goulds Wastewater Pumps installation and operation manual. This unit is suited for wet-well submersible installation in municipal lift stations, industrial process sumps, and construction dewatering where solids-handling capability and flanged connection are required.
Product Specifications
| Brand | Goulds Water Technology (Xylem) |
| Model Number | WS5034D4 |
| Horsepower | 5 HP |
| Motor Speed | 1725 RPM |
| Voltage | 460V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Discharge Size | 4 in (flanged) |
| Discharge Connection | Flanged |
| Motor Overload Protection | External (installer-supplied) |
| Power Cable Conductors | 4-conductor (Black, Red, Green, White) |
| Pump Series | WS / WSG Submersible Sewage |
| Casing Material | Cast Iron |
| Pump Type | Submersible Sewage / Wastewater |
| Listing Condition | New |
| Includes | Pump with power cable and Goulds/Xylem installation manual |
| Listed By | UL (cUL mark visible on nameplate) |
| Country of Origin | USA (Built in USA label visible) |
