Goulds WS7532D4 7.5HP 230V 3-Phase Submersible Sewage Ejector Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

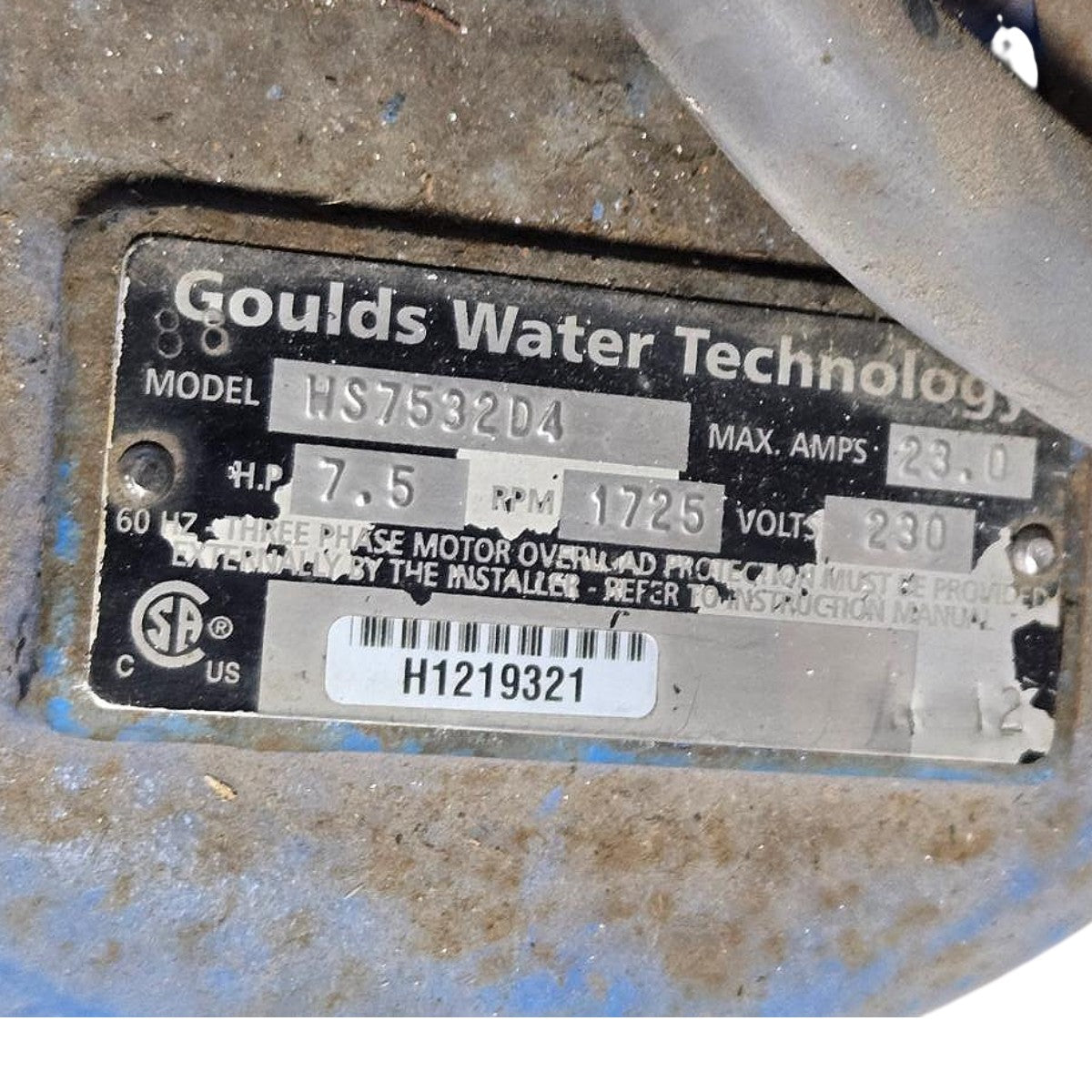

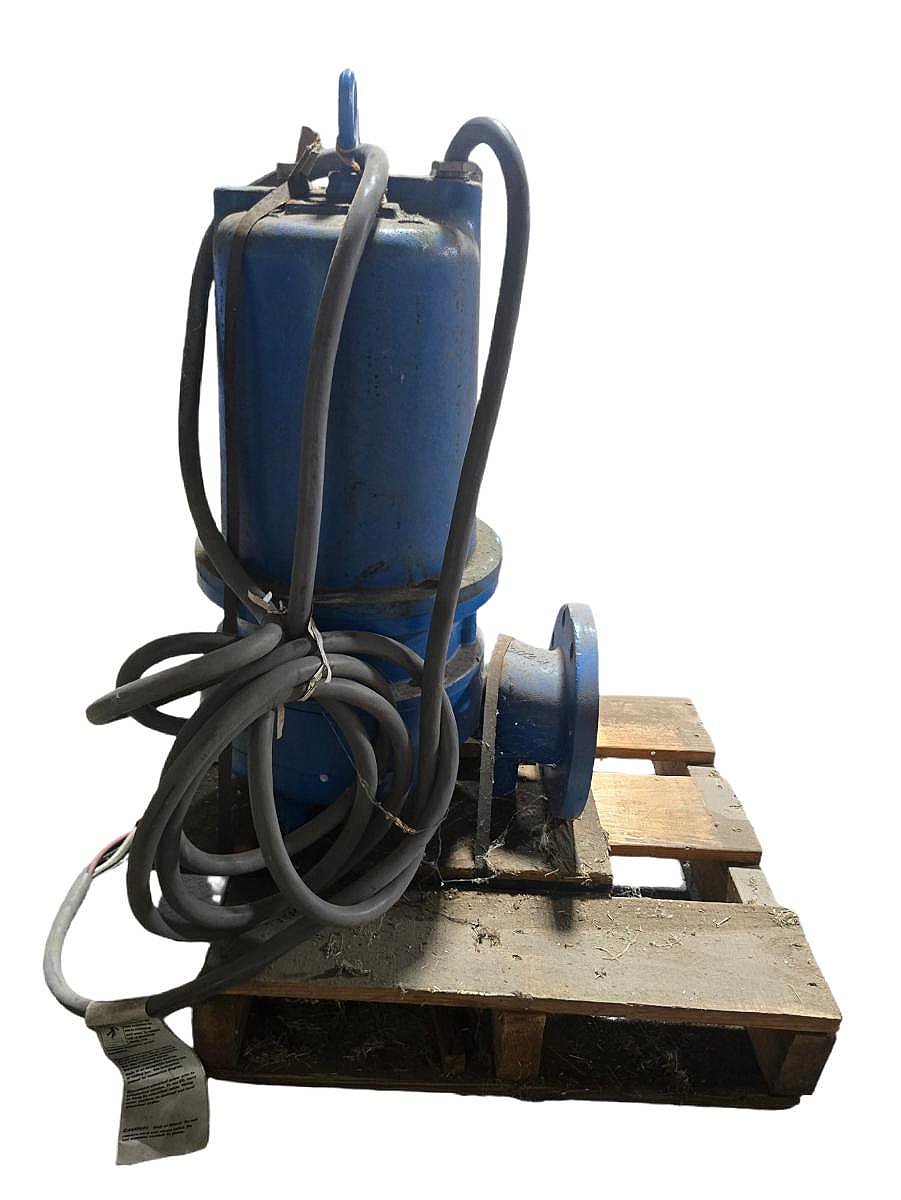

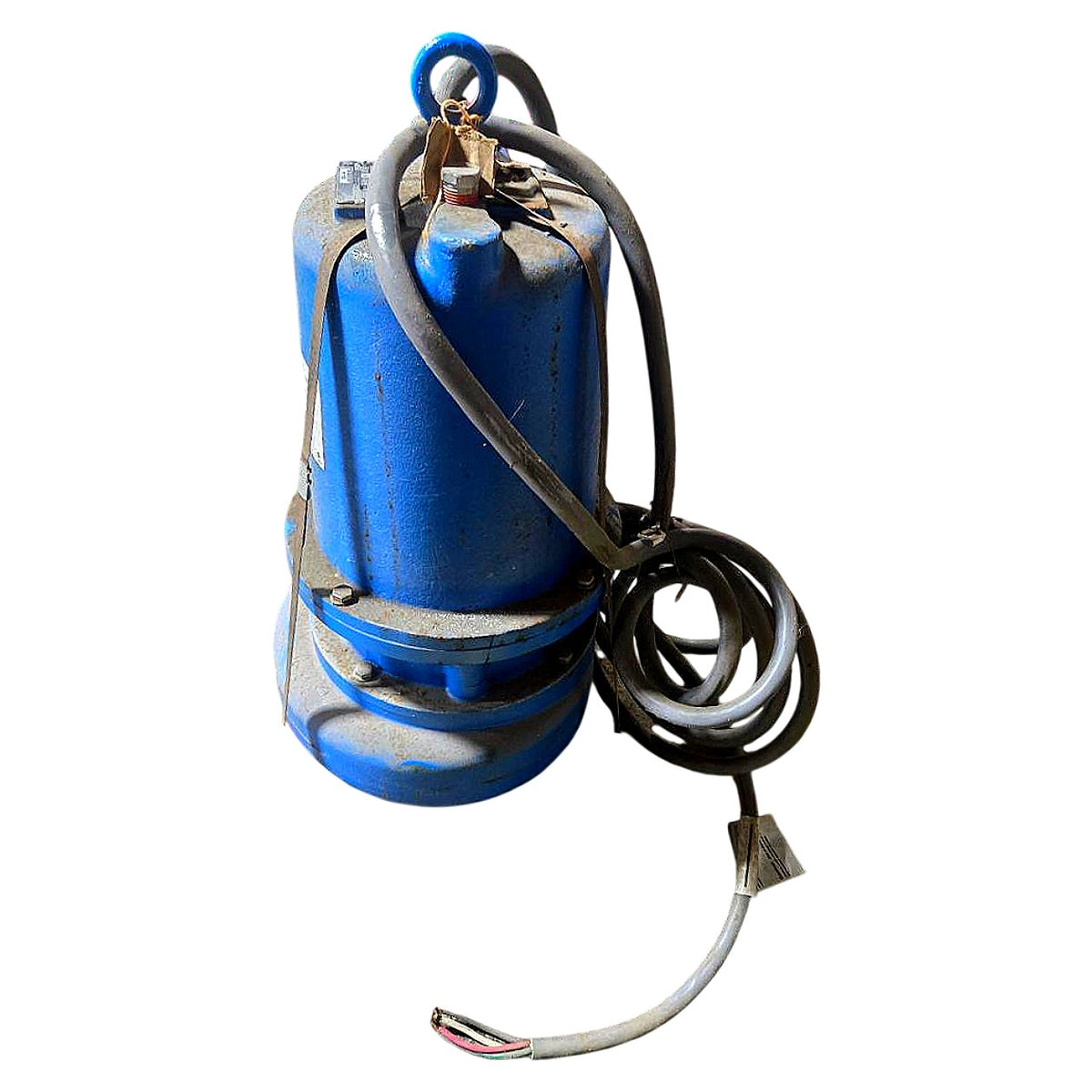

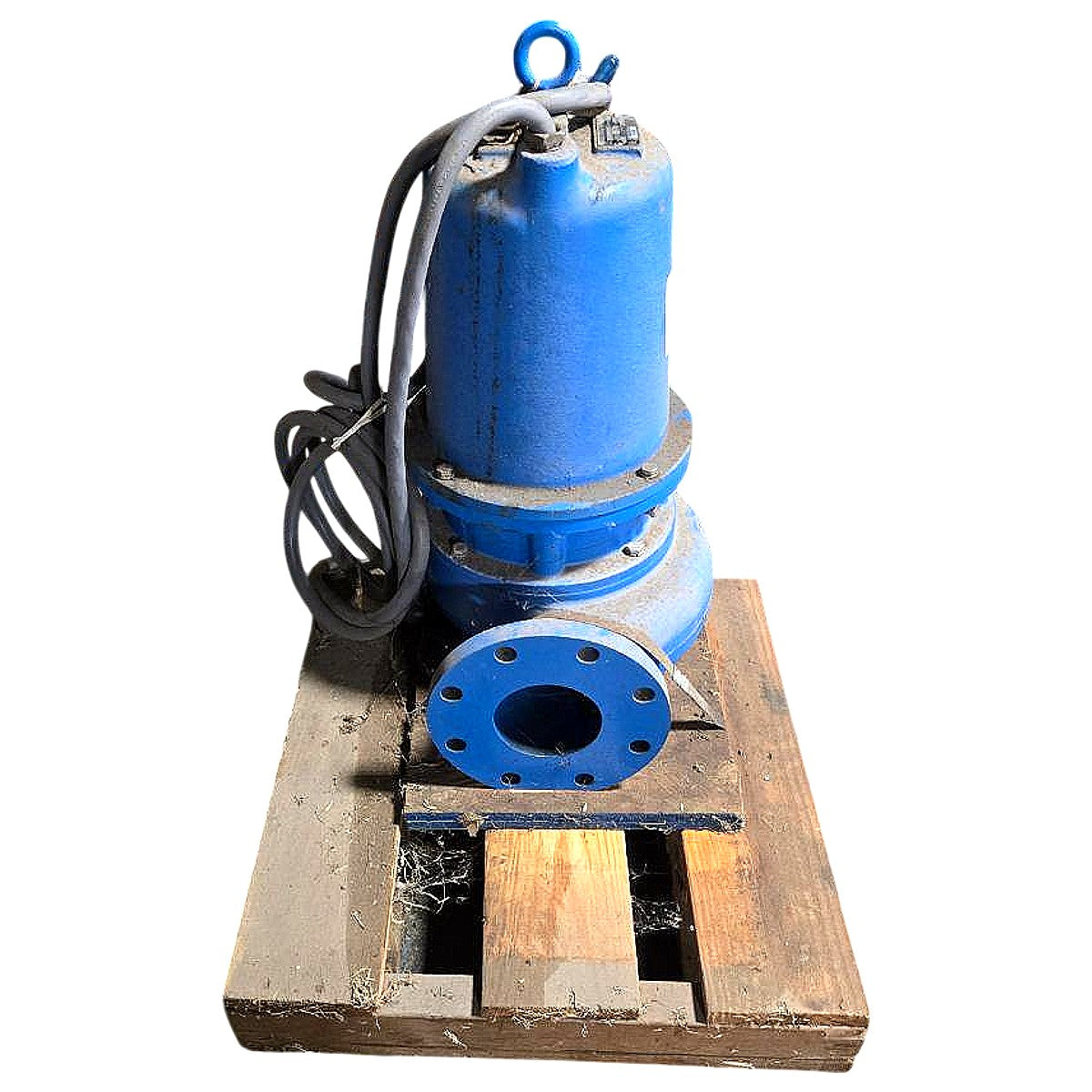

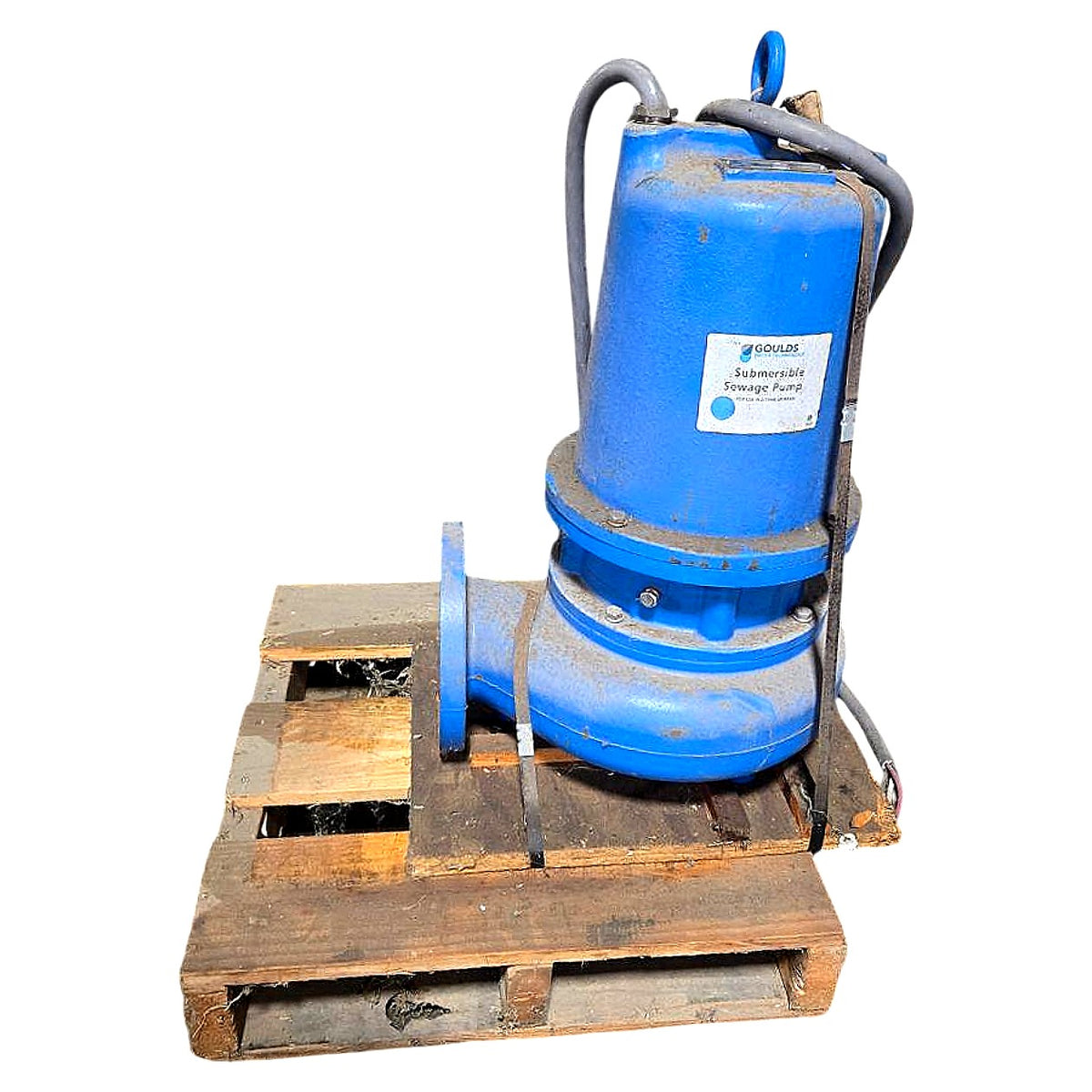

The Goulds Water Technology WS7532D4 is a heavy-duty submersible sewage ejector pump from the WS Series, designed for municipal and industrial wastewater handling, lift stations, and high-volume sewage ejection applications. The nameplate-confirmed specifications include a 7.5 HP motor rated at 1,725 RPM, 230V, 60 Hz, three-phase power, with a maximum current draw of 23.0 amps; CSA/cUL certified for use in the US and Canada. Per the Goulds WS Series model code: "WS" = Submersible Sewage pump, "75" = 7.5 HP, "32" = 3-inch discharge, "D" = dual-seal configuration with oil-lubricated mechanical seals, and "4" = 4-pole motor (1,725 RPM); the cast iron volute and motor housing provide corrosion resistance suitable for raw sewage service. This unit is offered in new — other condition, showing cosmetic wear and field storage marks consistent with surplus or uninstalled stock; the flanged horizontal discharge outlet (visible in photos) and integral lifting bail facilitate wet-well installation on a guide-rail system. Buyers should verify that motor overload protection is installed externally per Goulds installation requirements before commissioning.
Product Specifications
| Brand | Goulds Water Technology |
| Model Number | WS7532D4 |
| Horsepower | 7.5 HP |
| Motor Speed | 1725 RPM |
| Voltage | 230V |
| Frequency | 60 Hz |
| Phase | 3-Phase |
| Max Amps | 23.0 A |
| Motor Poles | 4-pole |
| Discharge Size | 3 in |
| Seal Type | Dual mechanical seal, oil-lubricated |
| Housing Material | Cast iron |
| Discharge Orientation | Horizontal flanged |
| Pump Type | Submersible sewage ejector |
| Certifications | CSA, cUL (C/US) |
| Series | WS Series |
| Serial Number | H1219321 |
