Greenfield 381342 5/16-18 NC GH3 LH HSS Spiral Point Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

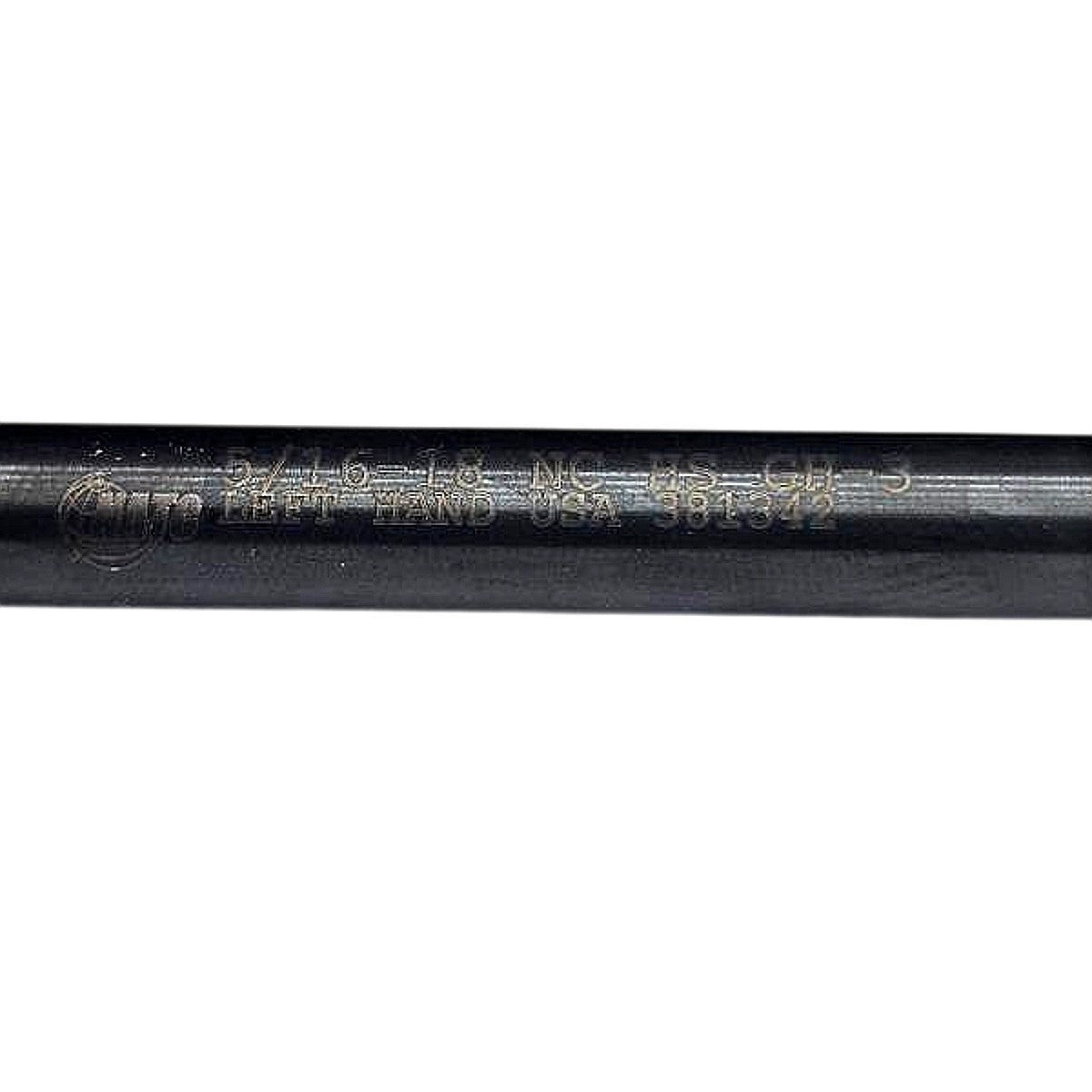

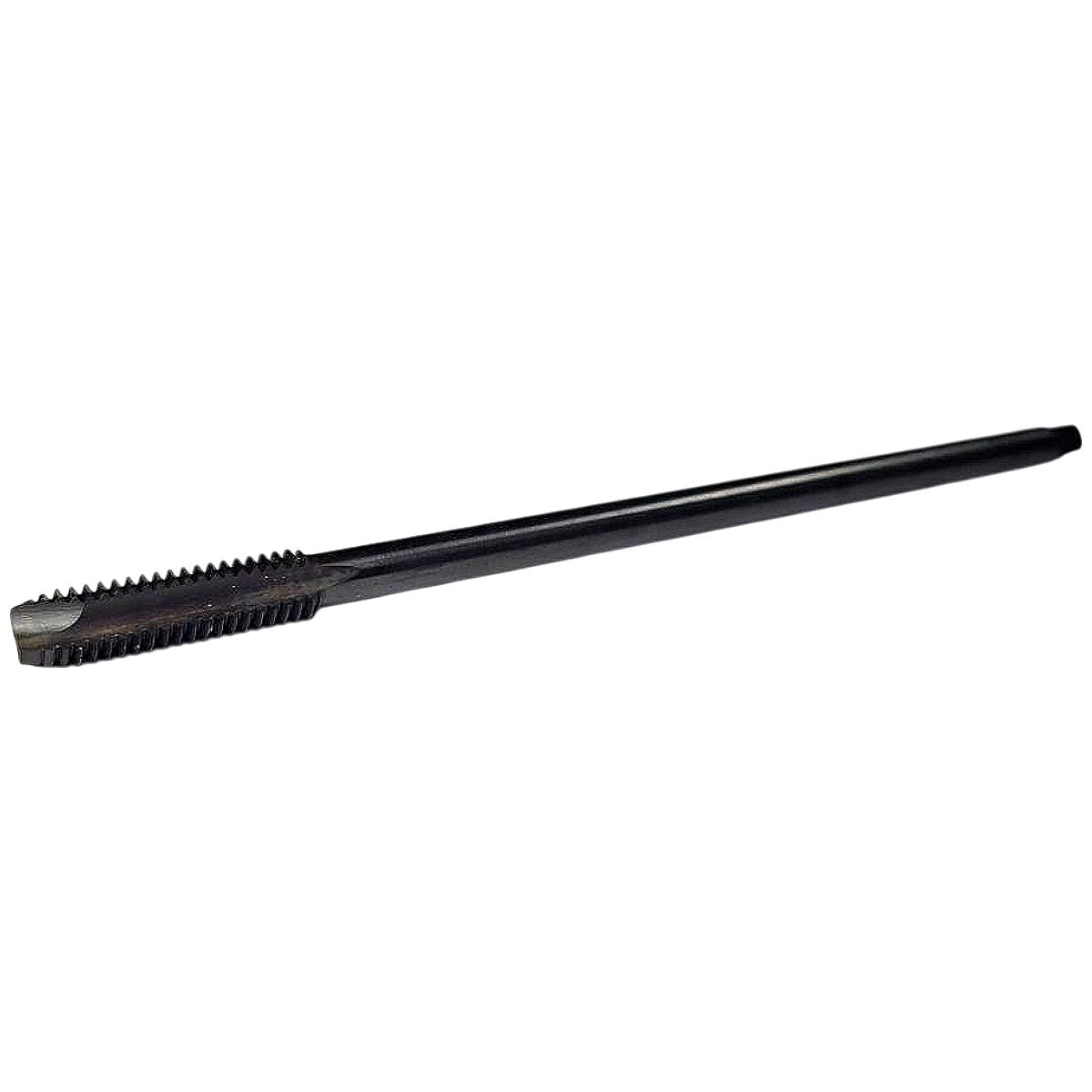

This is a new Greenfield Industries 381342 left-hand spiral point (gun) tap in 5/16-18 UNC (NC), manufactured from high-speed steel (HSS) with a black oxide finish for corrosion resistance and improved lubricity. The GH3 tolerance designates a ground thread with a +0.0005 to +0.0015 in. pitch diameter oversize range, making it suitable for threading through-holes in mild steel, aluminum, brass, and similar materials where chips are pushed ahead of the tap rather than backed out. The 2-flute (2FC) design and left-hand cut are intended for reverse-rotation tapping operations, left-hand threaded fastener applications, or use on CNC machines with left-hand spindle rotation; the 6H3 designation further confirms Class 6H tolerance to ISO metric/ANSI standards for the thread form. This tap accepts a standard square-drive tap wrench or machine holder with a 6 in. overall length shank appropriate for extension holders, and it is made in the USA as stamped on the shank.
Product Specifications
| Brand | Greenfield Industries |
| MPN | 381342 |
| Thread Size | 5/16-18 |
| Thread Standard | UNC (NC) |
| Hand of Cut | Left Hand (LH) |
| Material | High-Speed Steel (HSS) |
| Finish / Coating | Black Oxide |
| Tap Style | Spiral Point (Gun Tap) |
| Number of Flutes | 2 |
| Ground Thread Tolerance | GH3 (+0.0005 to +0.0015 in over basic PD) |
| Thread Class | 6H |
| Country of Origin | USA |
| Condition | New |
| Shank Type | Square Drive |
| Tap Series / Code | CH (Chip Hog / Spiral Point) |
