Guhring 1037-15.000 15.0mm H7 K10 Carbide Machine Reamer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

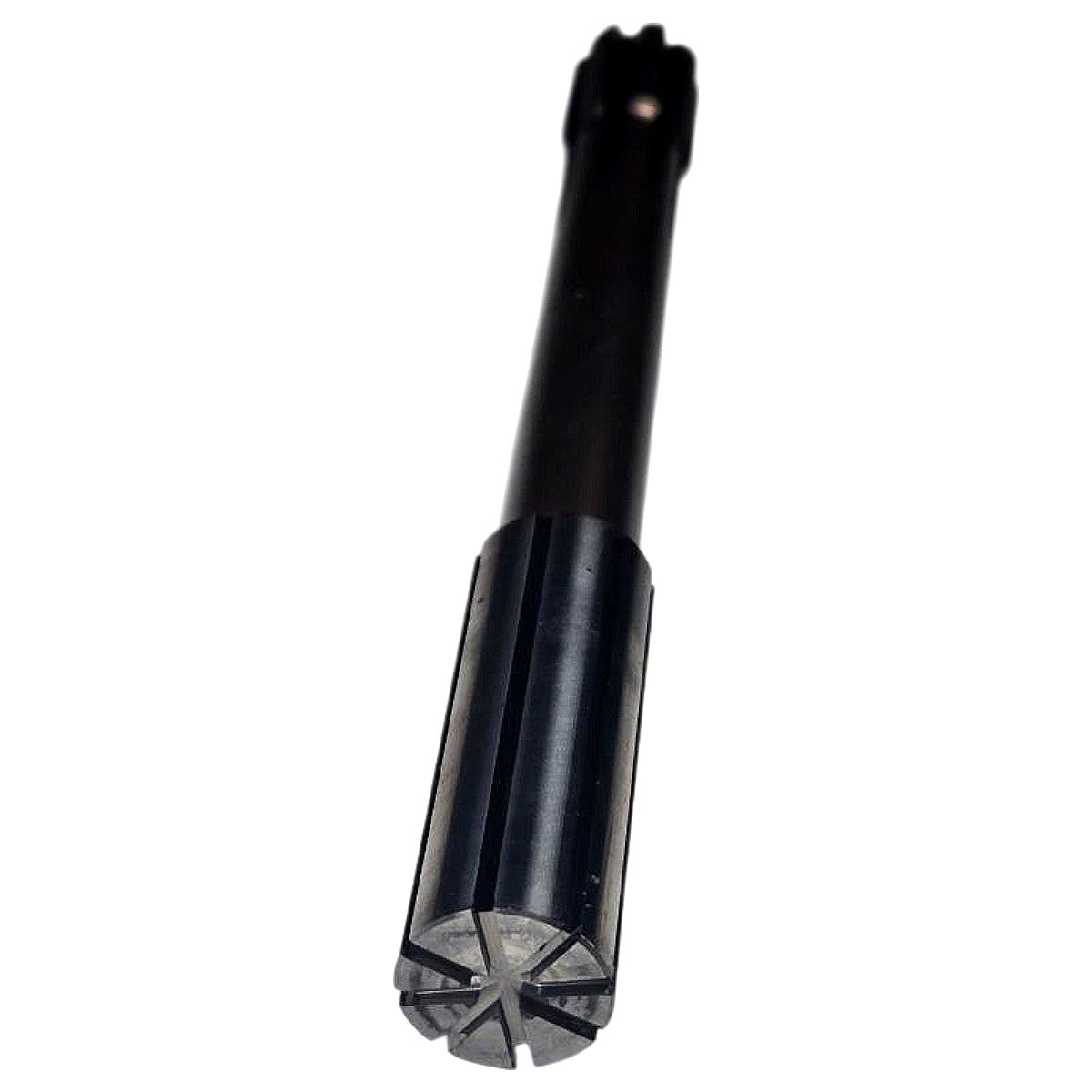

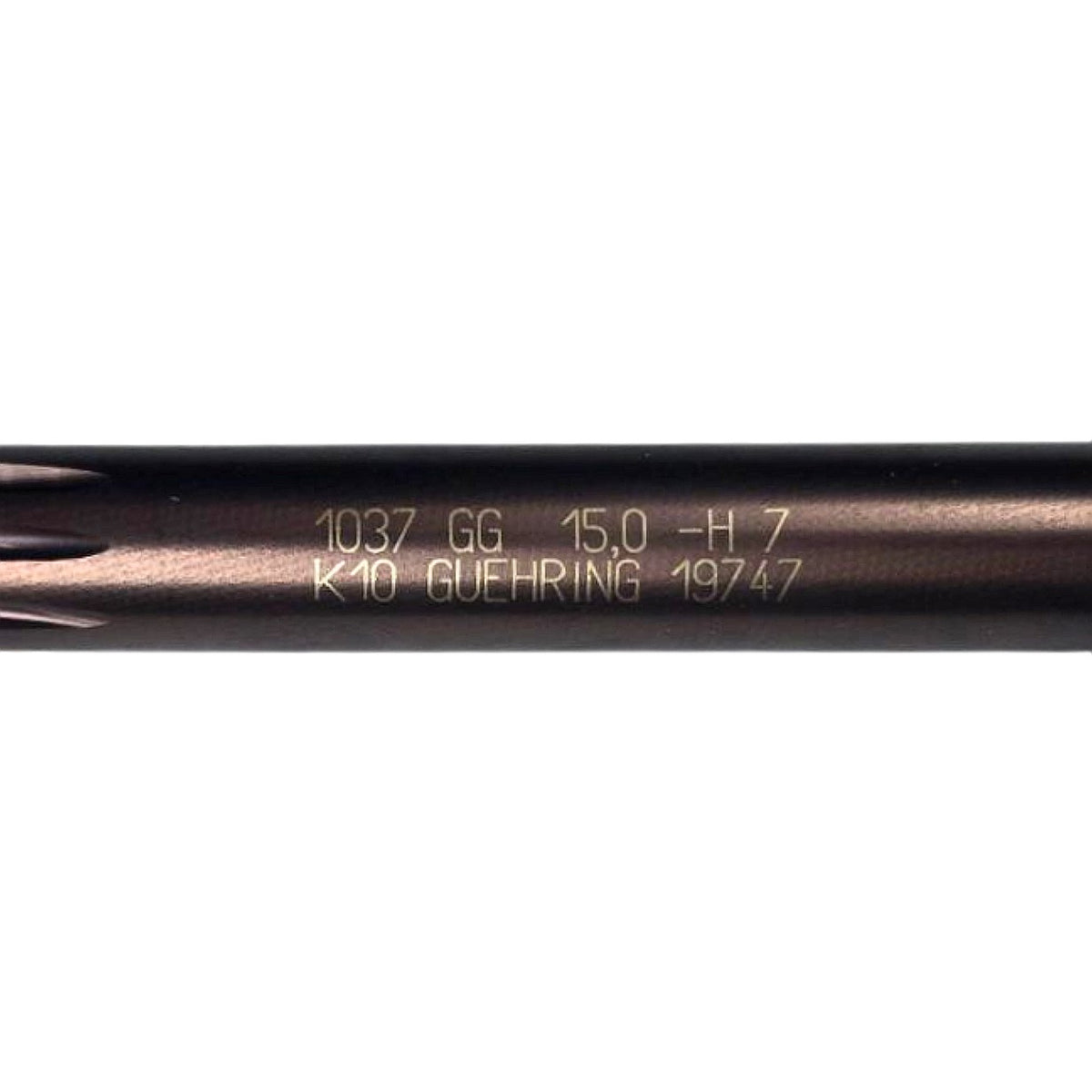

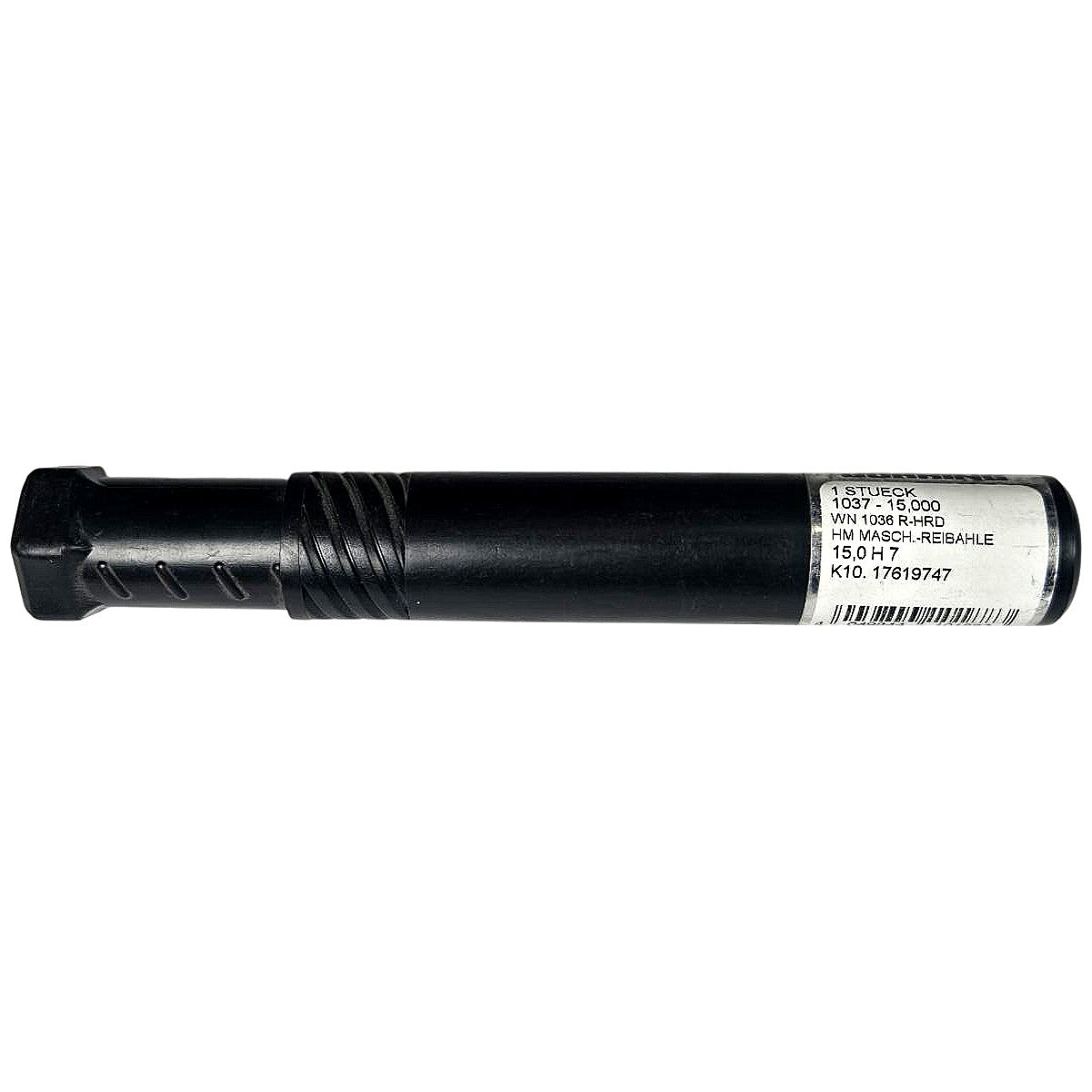

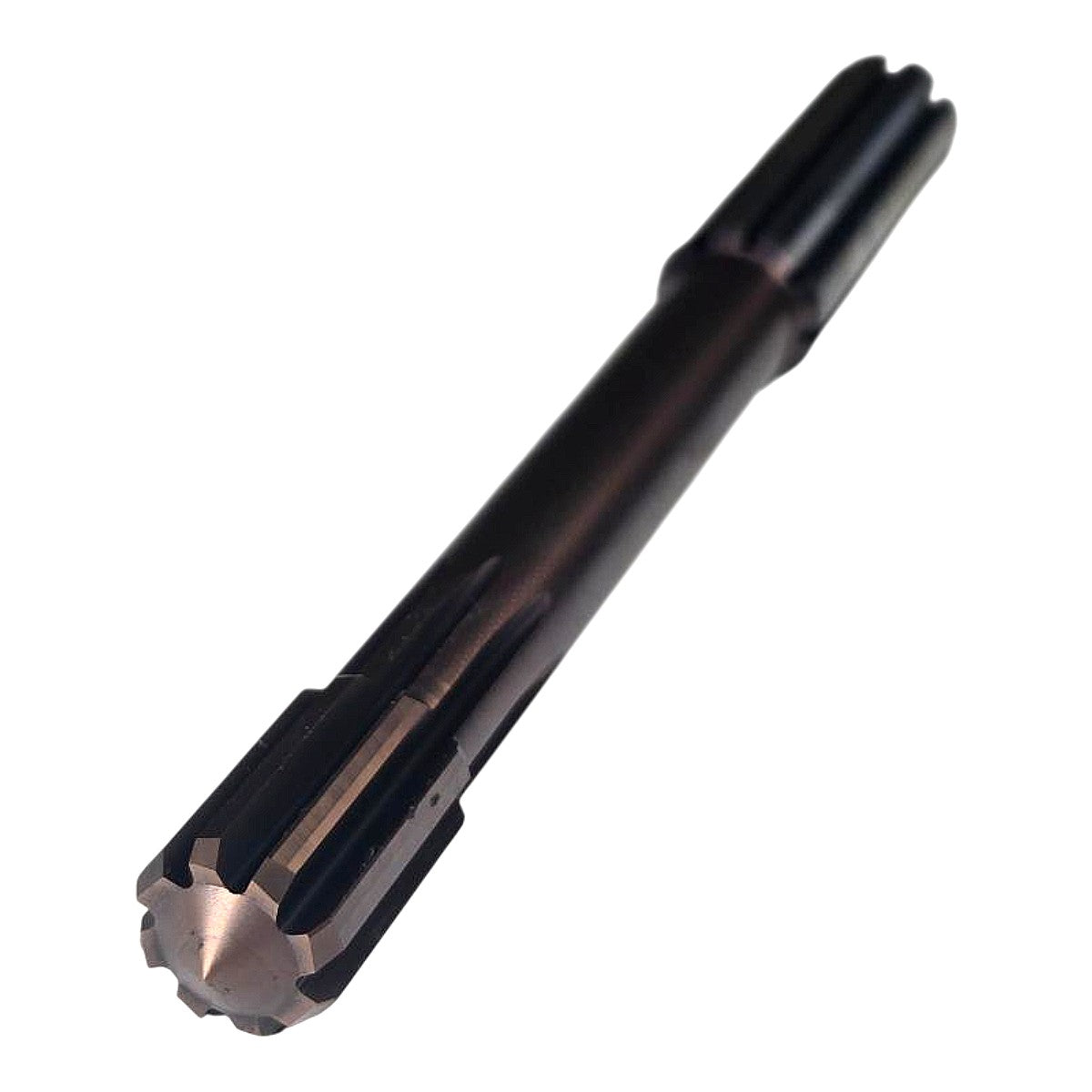

The Guhring No. 1037-15.000 is a solid carbide machine reamer (HM Masch.-Reibahle) manufactured to DIN standard WN 1036 R-HRD, designed for finish reaming 15.0 mm H7 tolerance holes in production CNC machining environments. The cutting head is ground from K10 uncoated fine-grain carbide (ISO K10 grade), which provides excellent wear resistance and edge stability when reaming cast iron, aluminum, and non-ferrous materials; the black oxide finish on the shank is protective and not a functional cutting coating. The tool features right-hand cut, straight or slightly helical flutes visible in the photos, a cylindrical shank compatible with collet chucks and hydraulic toolholders sized for the shank diameter, and delivers H7 tolerance bore quality directly from the reamer without further finishing. Item is new in original Guhring packaging (1 Stück / 1 piece) per the label, with Guhring internal stock number 19747 / full catalog reference 17619747.
Product Specifications
| Brand | Guhring (Guehring) |
| Part Number | 1037-15.000 |
| Catalog / Stock Number | 17619747 |
| DIN Standard | WN 1036 R-HRD |
| Tool Type | Solid Carbide Machine Reamer (HM Masch.-Reibahle) |
| Reaming Diameter | 15.0 mm |
| Tolerance | H7 |
| Carbide Grade | K10 (ISO K10 fine-grain solid carbide) |
| Cut Direction | Right-hand (R) |
| Coating | Uncoated (K10 carbide, black oxide shank finish) |
| Condition | New |
| Quantity | 1 piece (1 Stück) |
| Shank Type | Cylindrical |
| Number of Flutes | 8 (visible in photos) |
| Application | Cast iron, aluminum, non-ferrous materials |
