Guhring 3861 9.525mm 4-Flute AlTiN Carbide Ball Nose End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

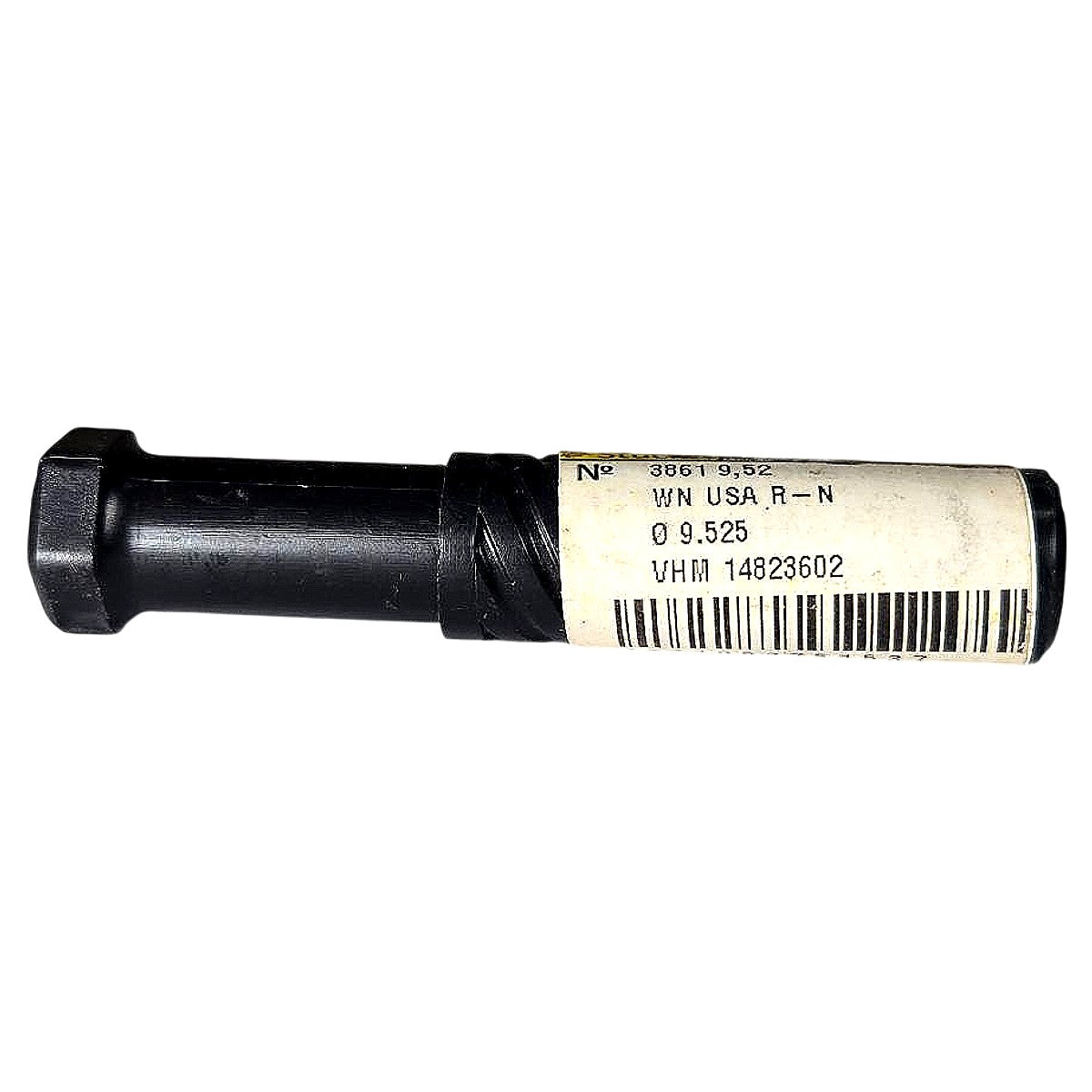

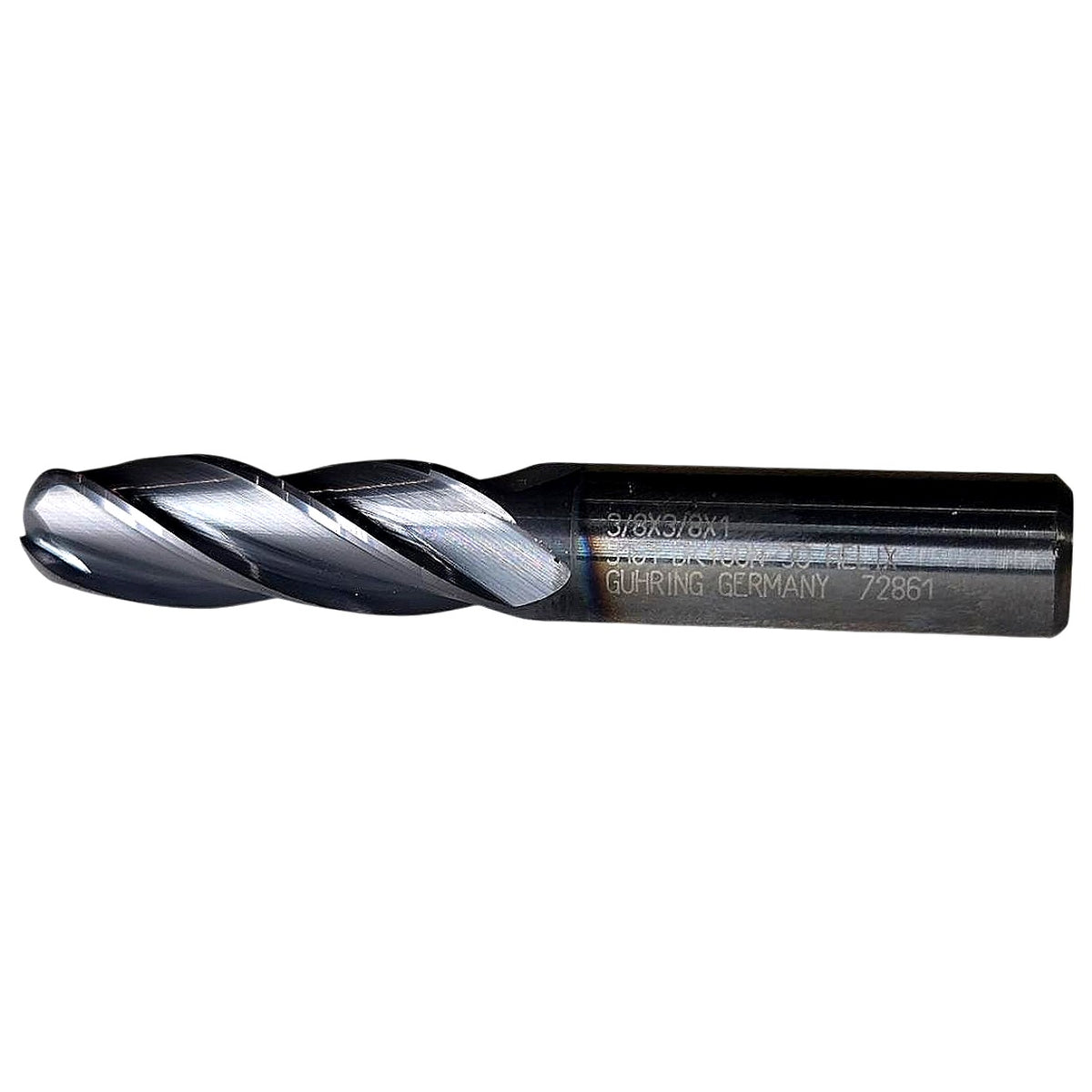

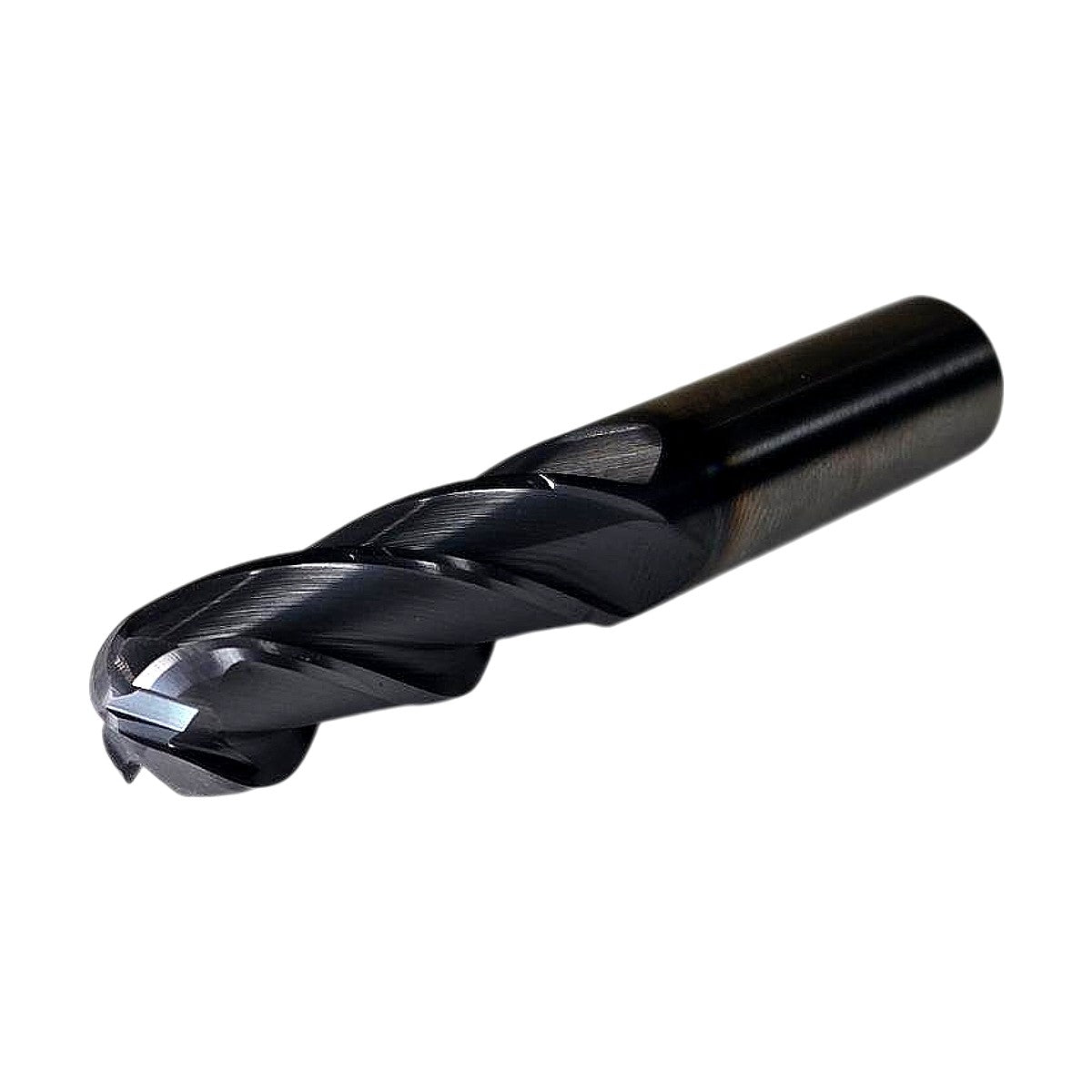

The Guhring RF 100 Ball (Series 3861) is a solid carbide (VHM / Vollhartmetall) 4-flute ball nose end mill in 3/8 in (9.525 mm) diameter with a 3/8 in shank, manufactured in Germany to Guhring's RF 100 Ball standard for hardened steel and difficult-to-machine alloys. The tool carries Guhring's nACRo (nano-crystalline AlTiN-based) coating — visible as the uniform deep black PVD finish across the flutes and shank — which provides oxidation resistance up to ~900 °C and is optimized for dry or near-dry machining of hardened steels, tool steels, stainless, and aerospace alloys. The 30° helix angle (confirmed from the second photo markings: "30° HELIX") promotes smooth chip evacuation and reduced cutting forces in 3D profiling, contouring, and die/mold finishing operations. The label on the third photo confirms: No. 3861 9,52 / WN USA R-N / Ø 9.525 / VHM / 14823602, establishing the item as new-old-stock (NOS) in unused condition. This end mill accepts standard ER or Weldon side-lock toolholders bored to 3/8 in and is well-suited for CNC machining centers requiring close-tolerance ball-end profiling.
Product Specifications
| Brand | Guhring |
| Series / Catalog No. | RF 100 Ball, Series 3861 |
| Item No. (VHM) | 14823602 |
| Cutting Diameter | 9.525 mm (3/8 in) |
| Shank Diameter | 9.525 mm (3/8 in) |
| Number of Flutes | 4 |
| End Geometry | Ball Nose (R-N = radius, no flat) |
| Corner Radius | 4.7625 mm (full ball, 3/8 in dia) |
| Helix Angle | 30° |
| Substrate | Solid Carbide (VHM) |
| Coating | nACRo AlTiN-based PVD (deep black) |
| Country of Manufacture | Germany |
| Cutting Length (LOC) | 1 in (25.4 mm) |
| Overall Length (OAL) | 2.5 in (63.5 mm) approx. |
| Shank Type | Straight (cylindrical) |
| Condition | New |
