Guhring 4106-19.000 WN 32 R-HTW 19mm Indexable Drill Body w/ T15 Key
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

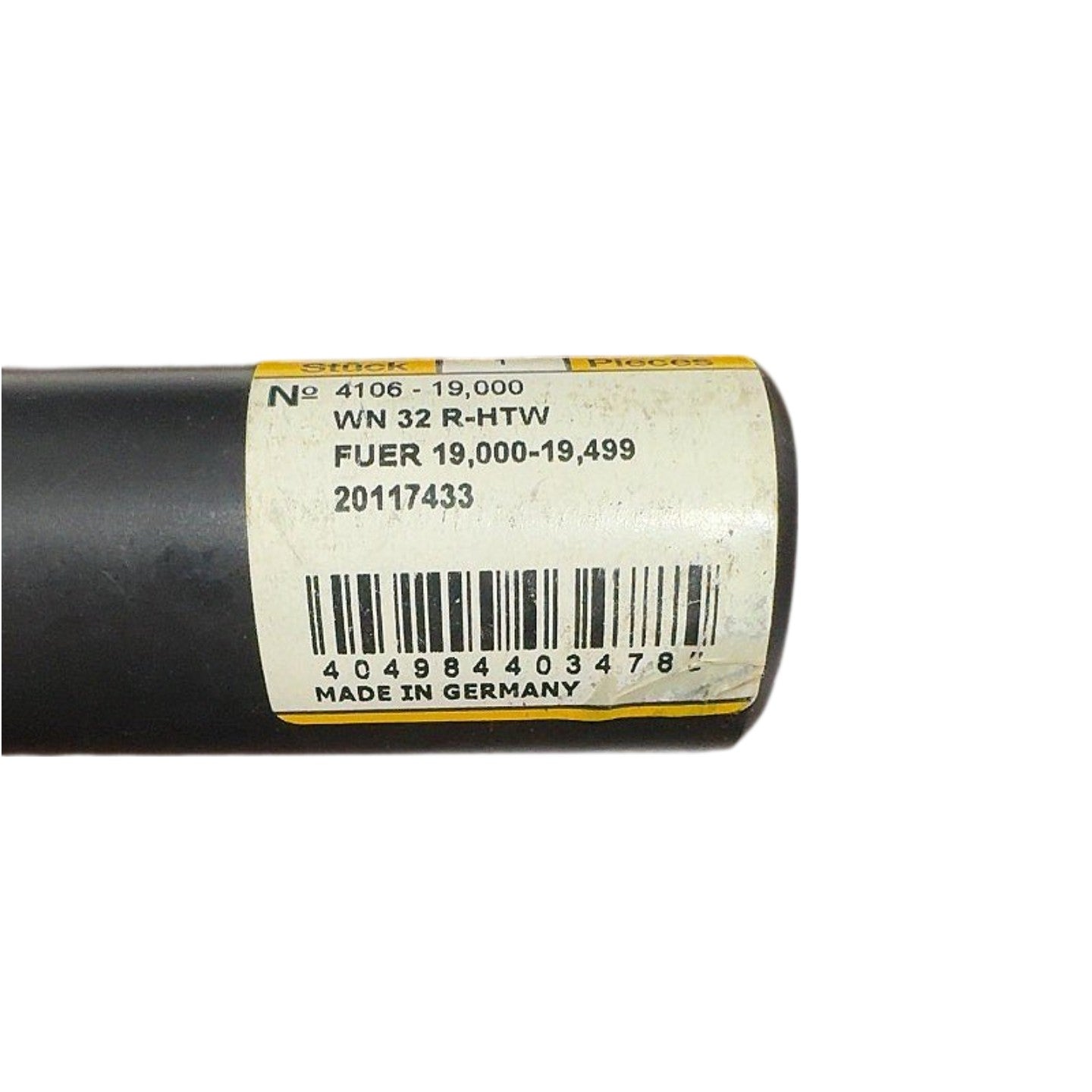

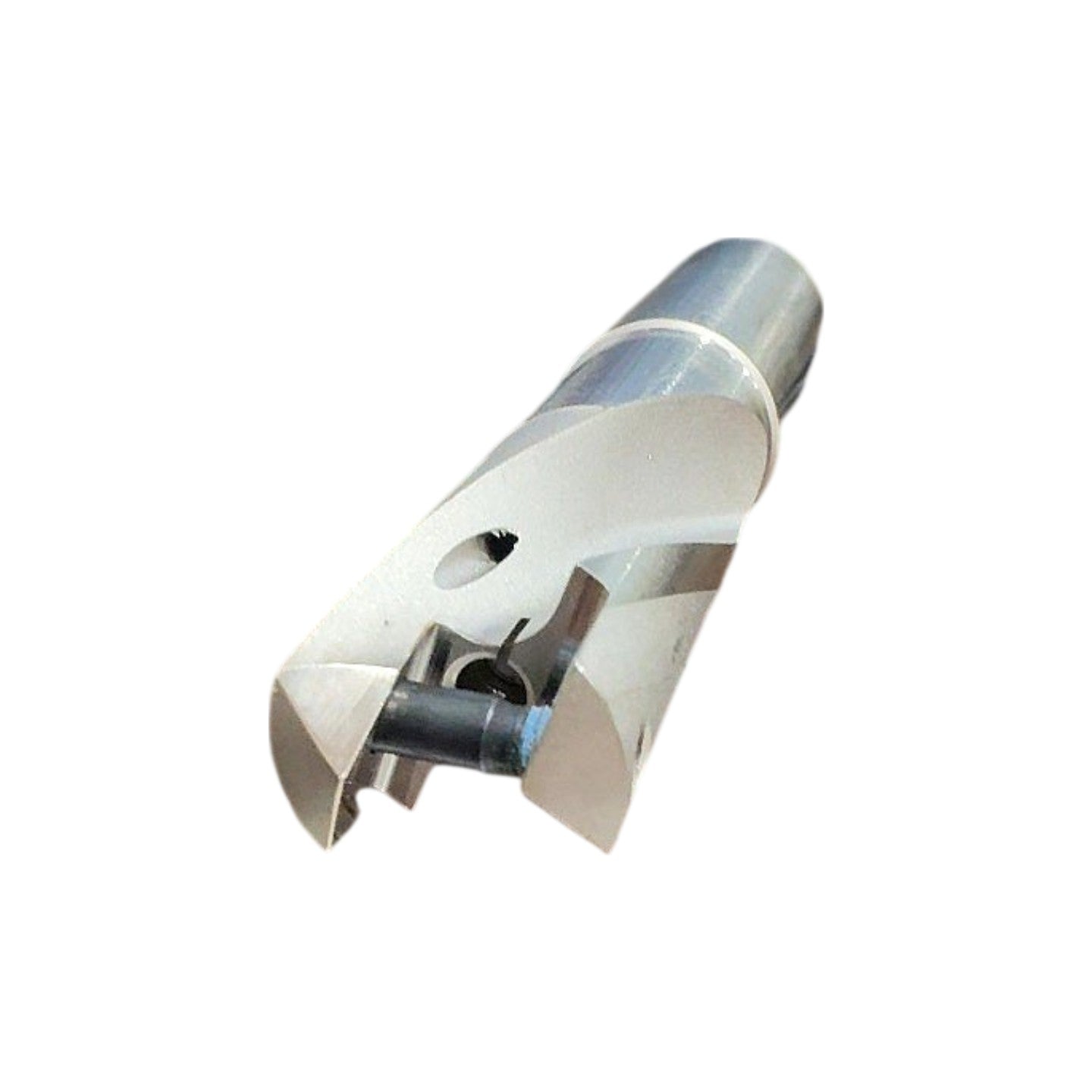

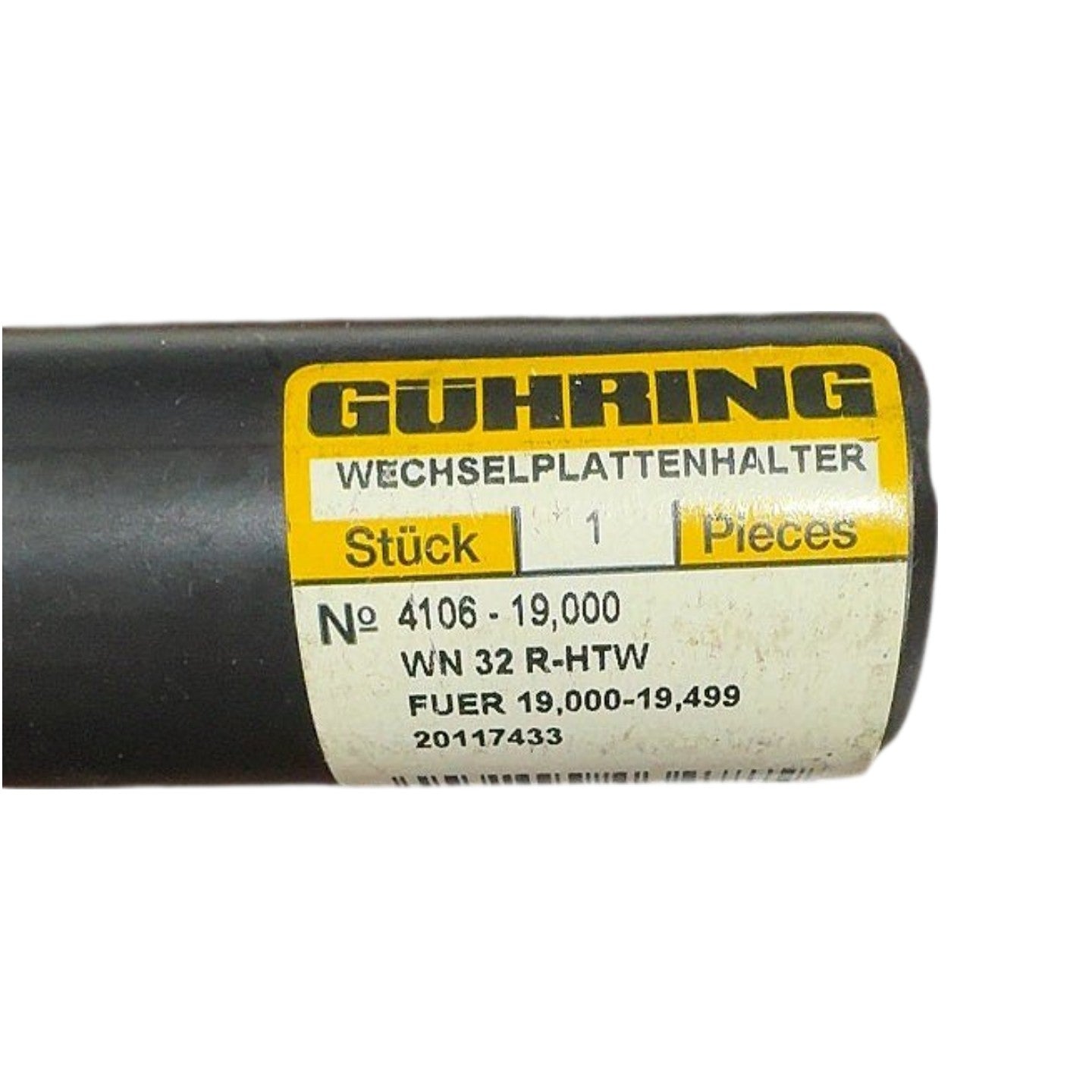

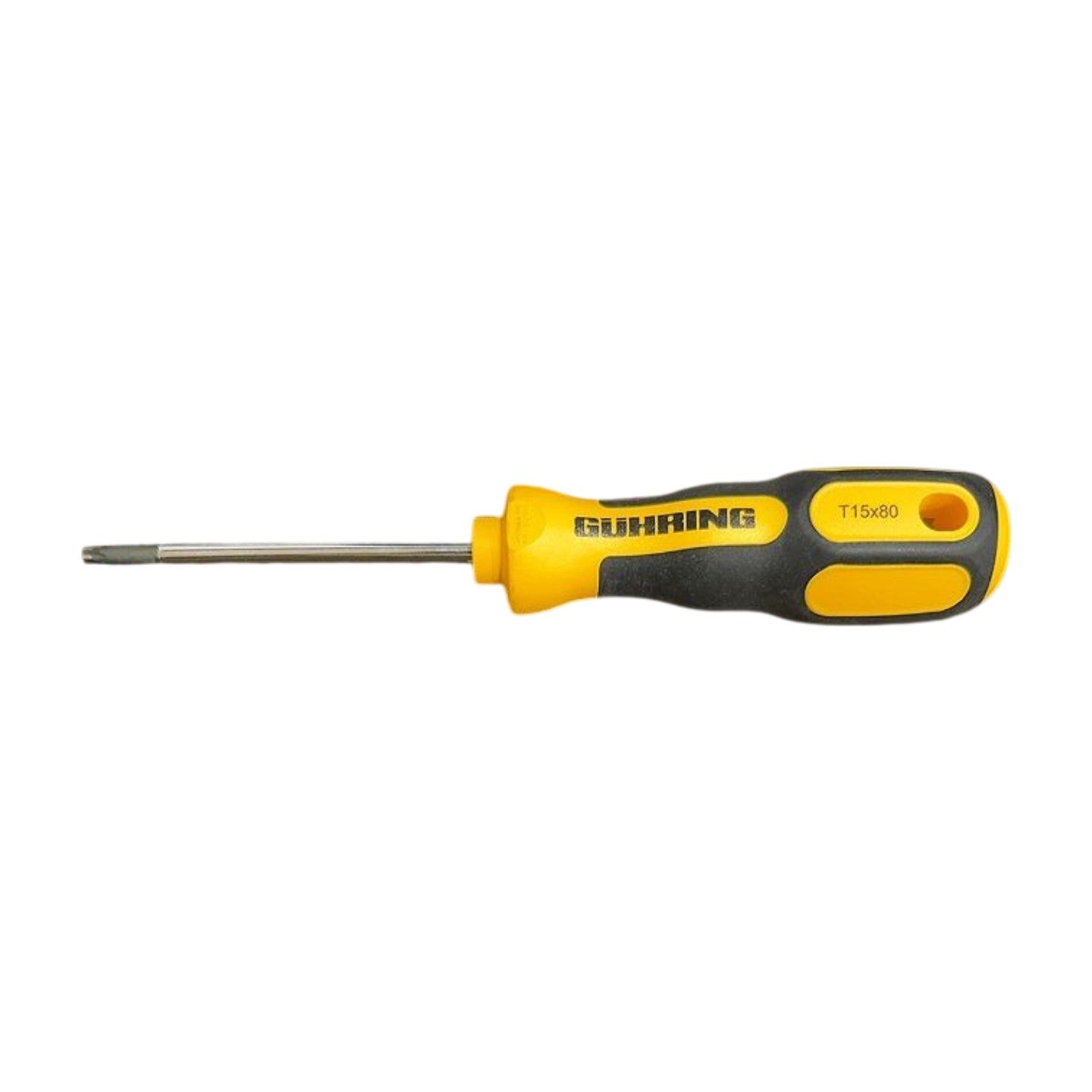

The Gühring No. 4106-19.000 is a new indexable insert drill body (Wechselplattenhalter) from the WN 32 R-HTW series, designed to accept replaceable carbide inserts for hole diameters in the range of 19.000–19.499 mm. The "WN 32" designation indicates a right-hand (R) drill body with a 32 mm shank diameter, and "HTW" identifies the Gühring indexable drill system using HTW-geometry replaceable inserts clamped via the visible Torx screw retained in the pocket. The body is machined from alloy tool steel with helical flutes and an internal coolant port visible at the cutting end, enabling through-spindle coolant delivery for chip evacuation and thermal management in deep-hole drilling operations on machining centers. Included in the package is a Gühring-branded T15×80 mm Torx screwdriver (EAN 4049844034782, made in Germany) used for insert clamping. This tool is suited for drilling steels, cast irons, and non-ferrous alloys on CNC machining centers using through-spindle or direct coolant supply.
Product Specifications
| Brand | Gühring |
| Item Number (No.) | 4106-19.000 |
| Series | WN 32 R-HTW |
| Internal Order No. | 20117433 |
| EAN / Barcode | 4049844034782 |
| Cutting Diameter Range | 19.000–19.499 mm |
| Nominal Diameter | 19.000 mm |
| Shank Diameter | 32 mm |
| Cut Direction | Right-Hand (R) |
| Insert System | HTW (Gühring indexable insert system) |
| Flute Style | Helical |
| Coolant | Through-tool internal coolant |
| Country of Origin | Germany |
| Quantity | 1 pc |
| Included Accessory | Gühring T15×80 Torx screwdriver |
