Guhring 4409 1/4-28 UNF H5 HSS-E Goldring Spiral Flute Machine Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

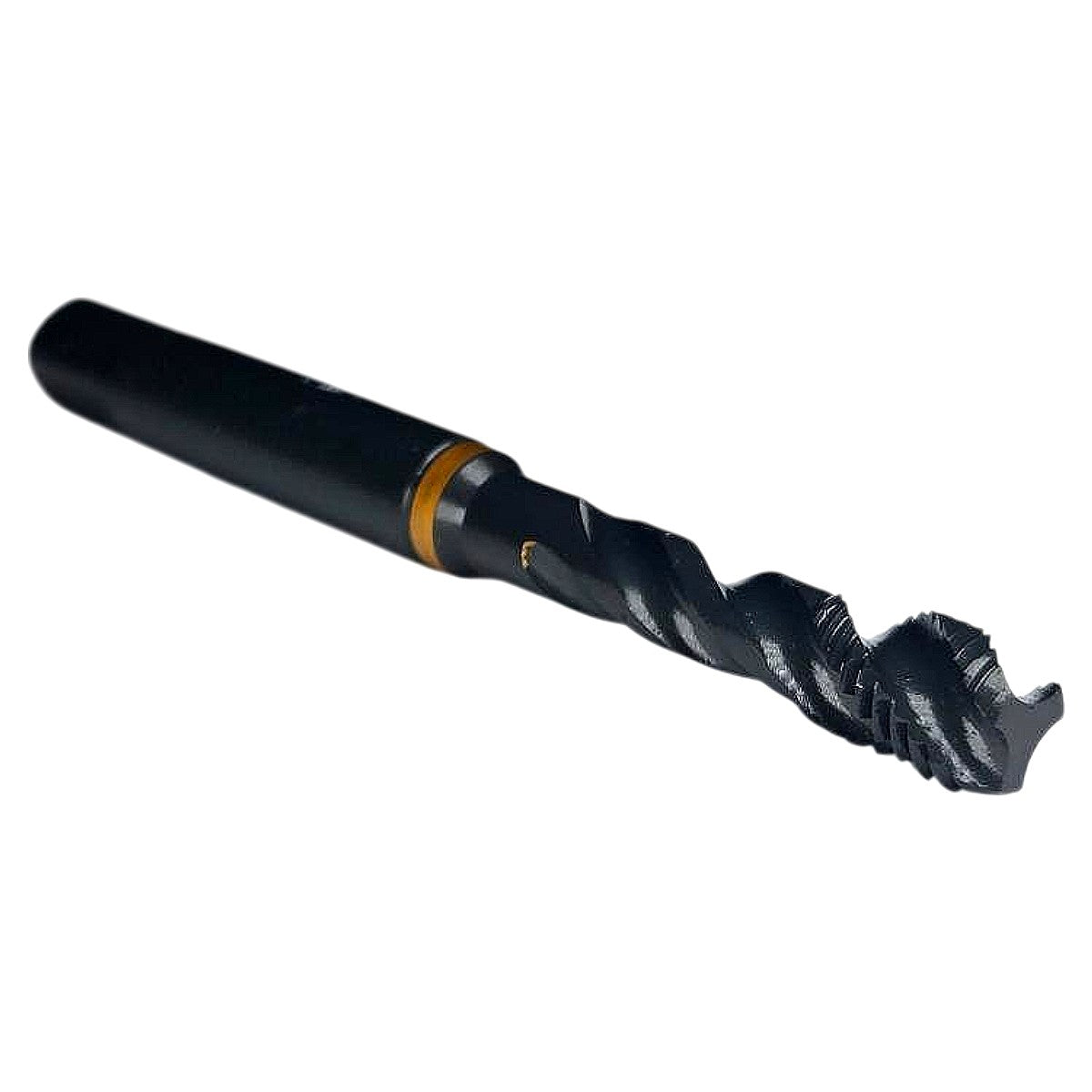

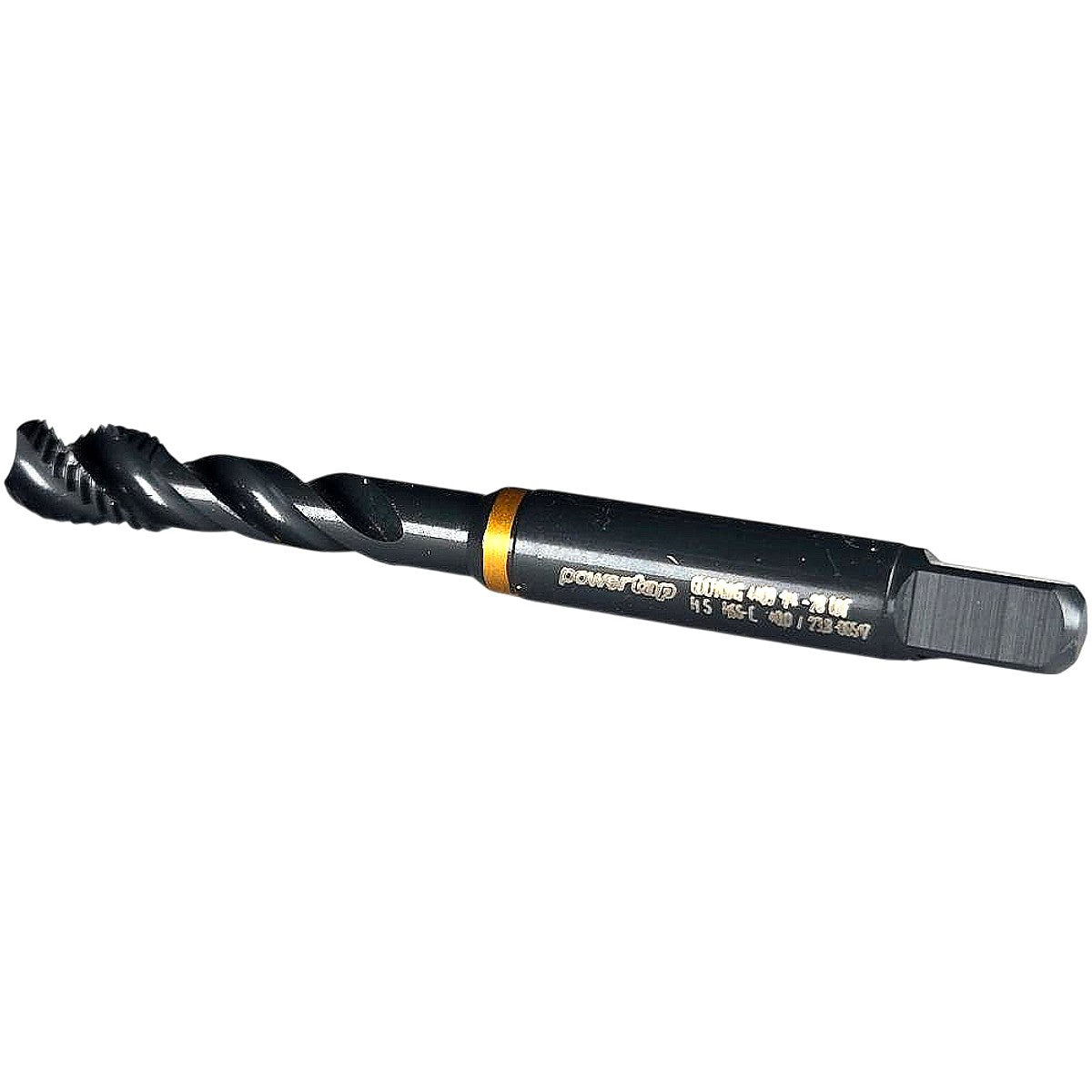

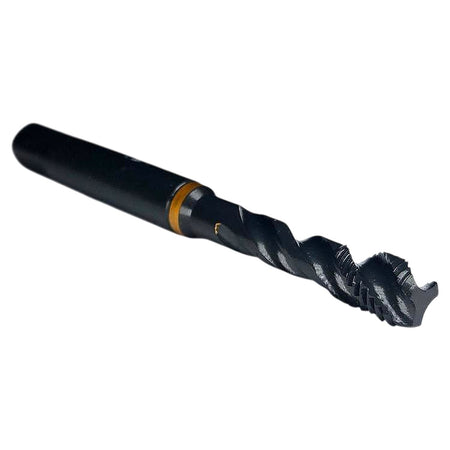

This is a new Guhring Powertap 4409 series spiral flute machine tap in 1/4-28 UNF, H5 tolerance class, manufactured from HSS-E (cobalt-alloyed high-speed steel, M35 grade) for enhanced wear resistance and heat resistance compared to standard HSS. The tap features Guhring's proprietary "Goldring" surface treatment — a gold-colored oxide ring at the shank/flute transition that serves as a brand identification mark — combined with a black oxide (steam-tempered) finish on the body, which improves lubrication retention and corrosion resistance. The spiral flute geometry (right-hand helix) is designed for through-hole tapping, pulling chips up and out of the hole; it is suited for use in CNC machining centers, tapping machines, and drill presses on materials including steel, stainless steel, and aluminum. The H5 tolerance class produces a 3B-class thread fit (pitch diameter limits correspond to H5 limits per ASME/ANSI), and the reduced-shank hex drive end is compatible with standard quick-change tap holders and collet chucks. Guhring item number 0014506517 corresponds to catalog series 4409 with a nominal shank diameter of 6.35 mm (1/4 in), WN 374 referencing the DIN standard geometry.
Product Specifications
| Brand | Guhring |
| Series / MPN | 4409 / 0014506517 |

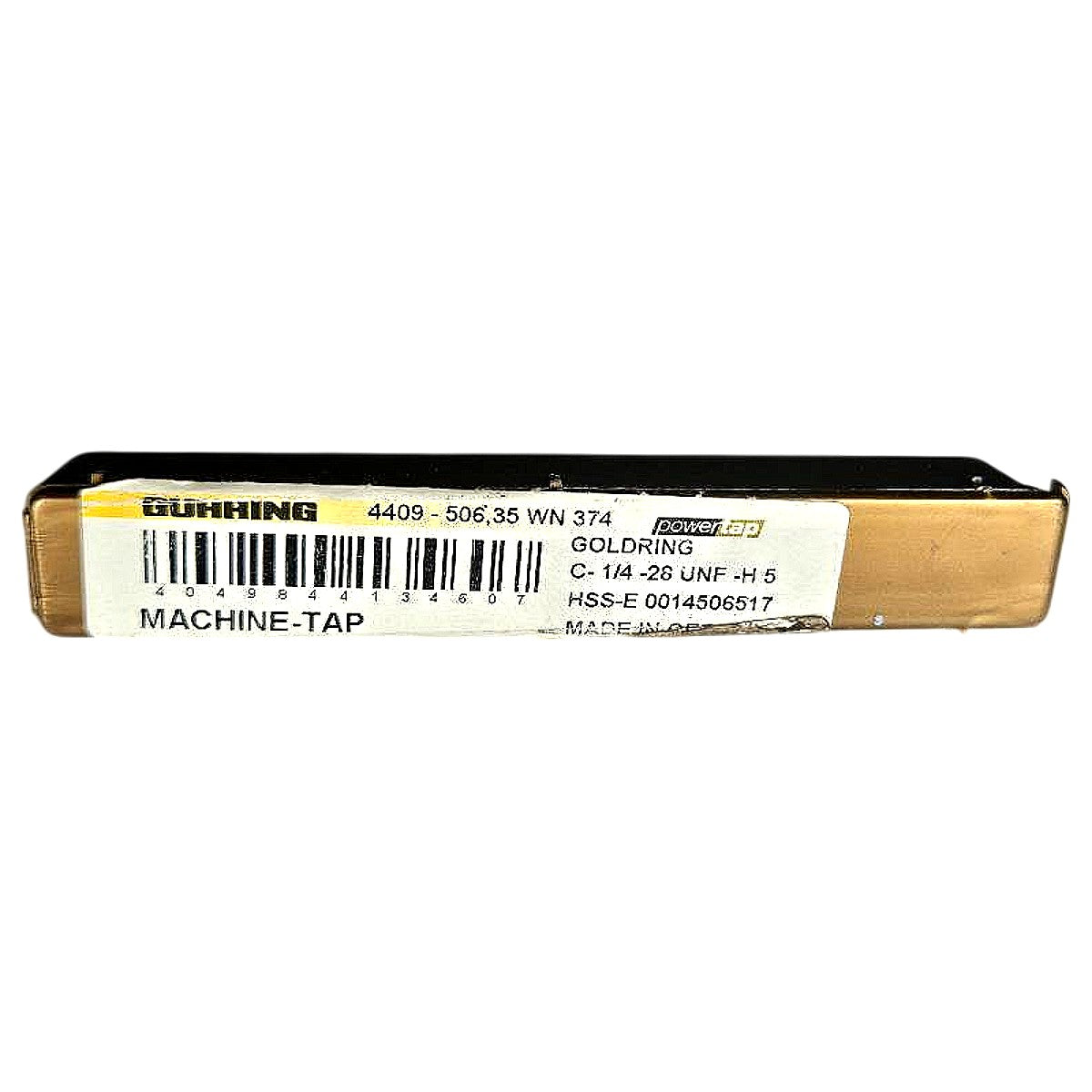

| Catalog Reference | 4409-506,35 WN 374 |
| Thread Size | 1/4-28 UNF |
| Thread Form | UNF (Unified National Fine) |
| Tolerance Class | H5 |
| Material | HSS-E (M35 Cobalt High-Speed Steel) |
| Tap Style | Spiral Flute (Right-Hand Helix) |
| Application | Through-hole tapping |
| Coating / Finish | Black oxide body; Goldring gold oxide ID ring |
| Shank Diameter | 6.35 mm (0.250 in) |
| Shank Type | Hex / reduced shank for quick-change holders |
| Hand of Cut | Right-Hand |
| Condition | New |
| Country of Origin | Germany |
