Guhring 6068-3,800 WN R-RTG 3.8mm Carbide Ratiodrill Twist Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

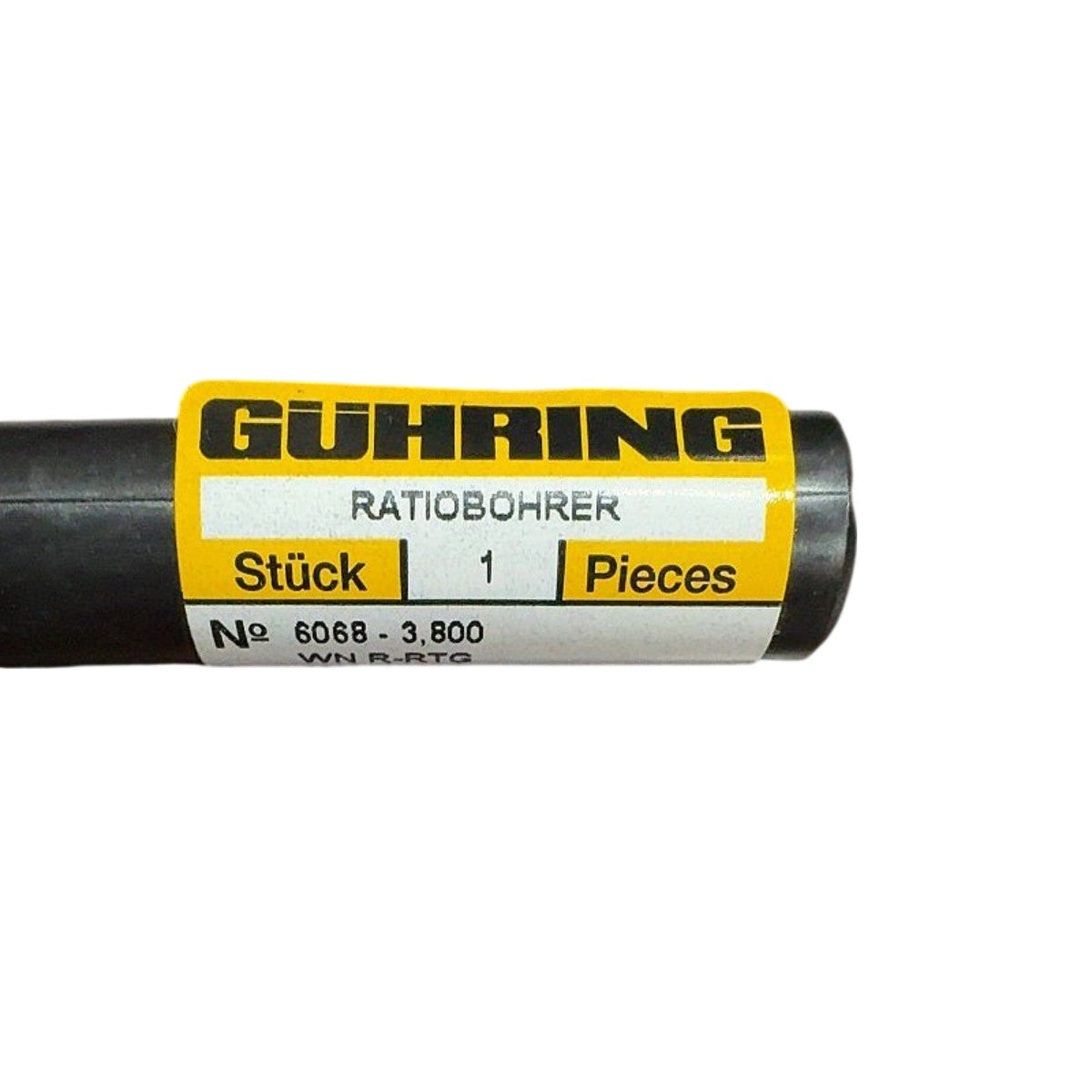

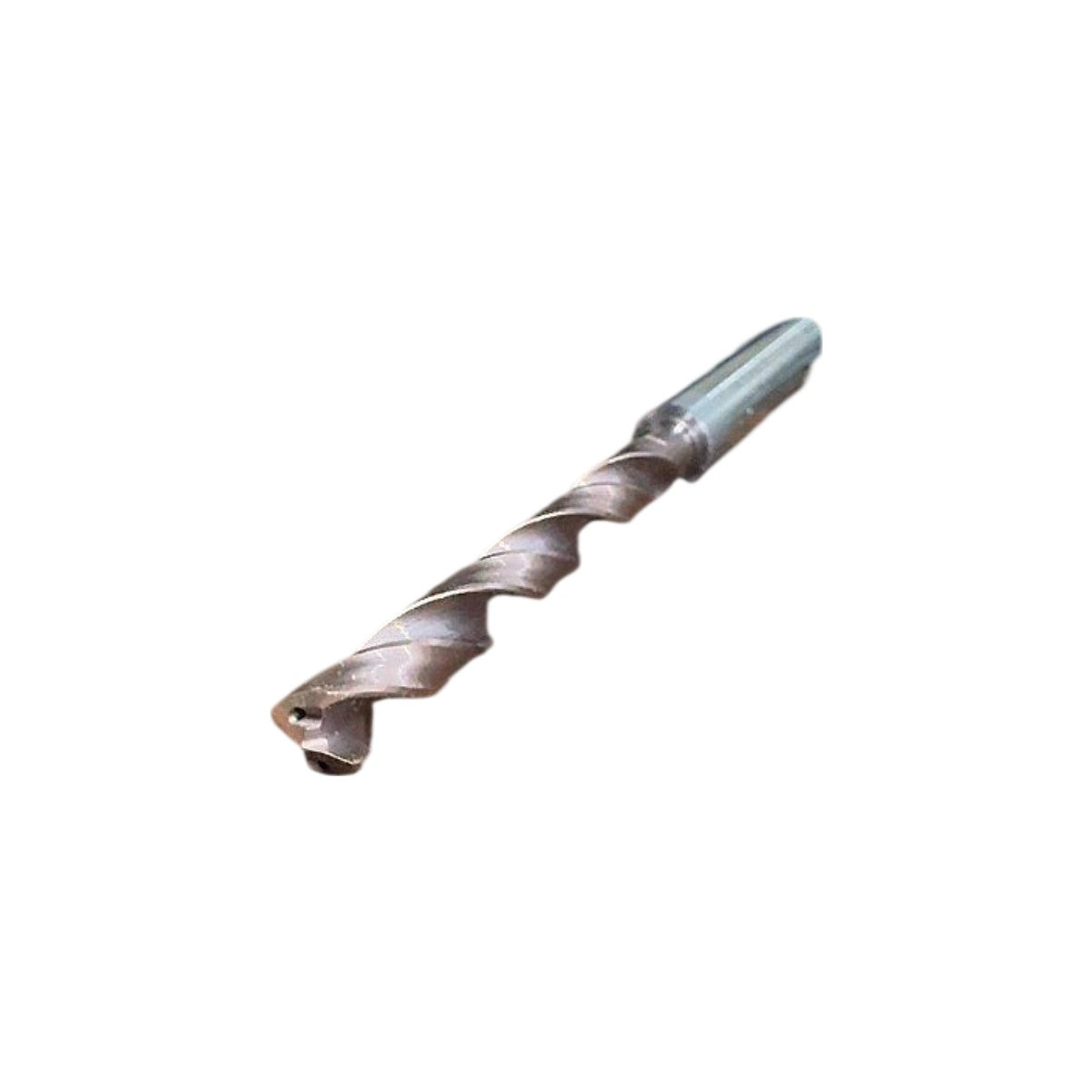

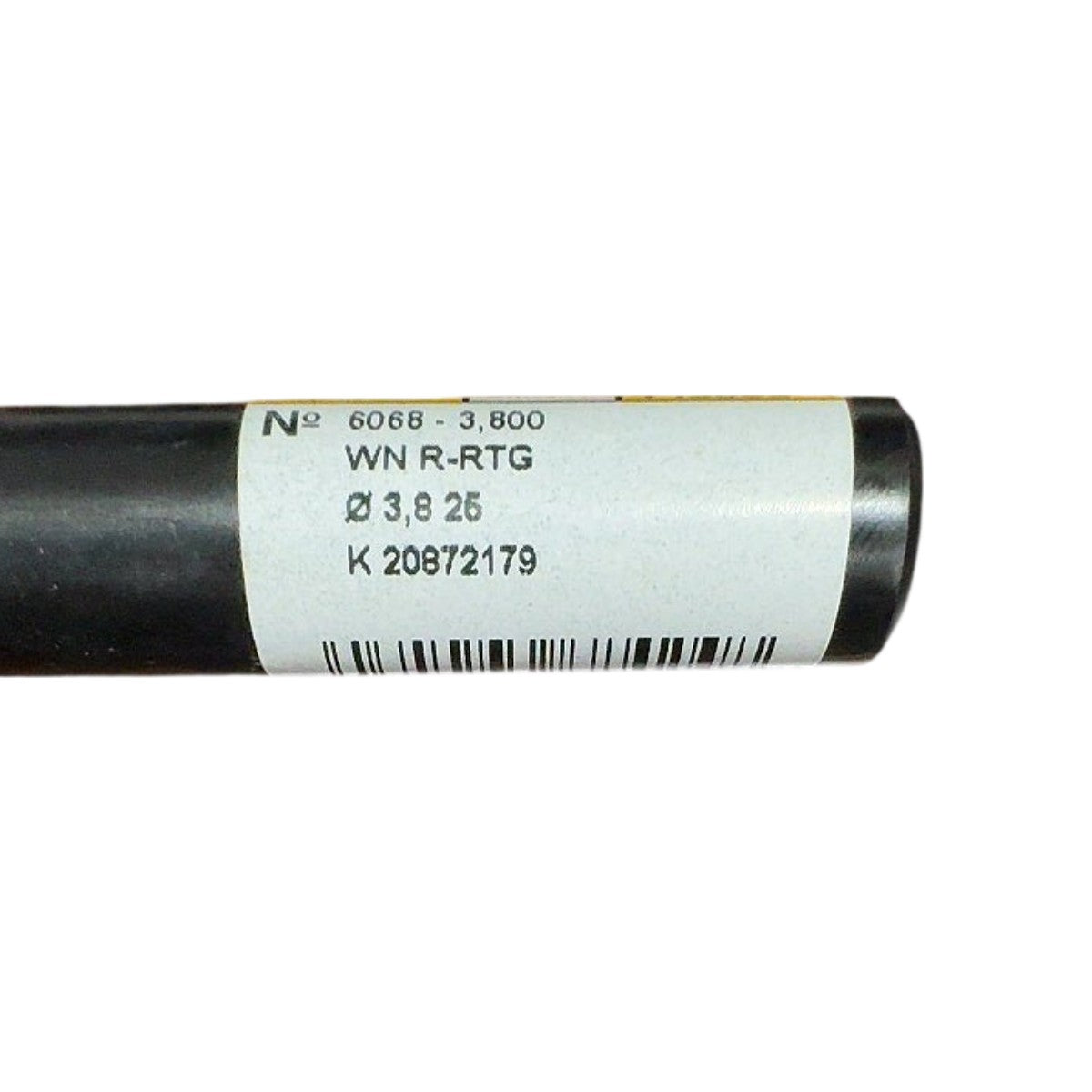

This is a new Gühring No. 6068 "Ratiobohrer" (Ratiodrill) solid carbide twist drill in Ø 3.8 mm with a cylindrical shank diameter of 4 mm (per the "Ø 3,8 25" label notation indicating the 25 mm shank designation class). The tool code "WN R-RTG" denotes the Werk Norm (Gühring internal standard), right-hand cut (R), and RTG (Richtungsgebundene Titan-Gold) coating — Gühring's proprietary TiN-based gold-tone PVD coating optimized for drilling steel, cast iron, and non-ferrous materials. The Ratiodrill series features a self-centering split point geometry with through-coolant capability (visible coolant hole at the drill tip in the photos), wide polished flutes for excellent chip evacuation, and a web-thinned point for reduced thrust force. Designed for use in CNC machining centers and drill presses with collet or hydraulic toolholders; suited for drilling structural steels, alloy steels, and aluminum alloys in production environments.
Product Specifications
| Brand | Gühring |
| Part Number (No.) | 6068-3,800 |
| Series | Ratiobohrer (Ratiodrill) |
| Work Norm Code | WN R-RTG |
| Cutting Diameter | 3.8 mm |
| Shank Type | Cylindrical (plain round) |
| Shank Diameter | 4 mm |
| Hand of Cut | Right-hand (R) |
| Coating | RTG (TiN-based PVD, gold-tone) |
| Material | Solid Carbide |
| Coolant | Through-coolant (coolant hole visible) |
| Point Type | Split point, self-centering, web-thinned |
| Condition | New |
