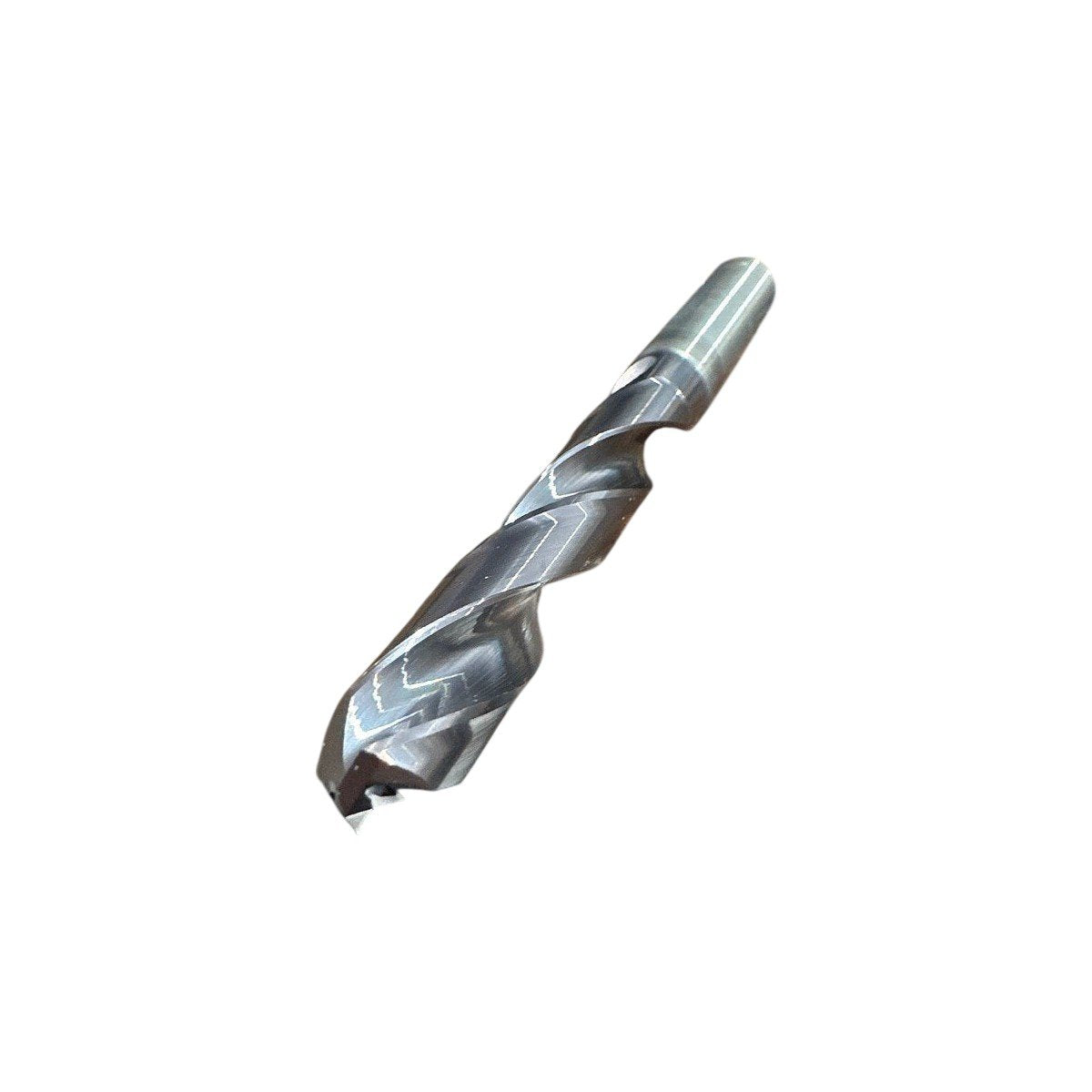

Guhring 8511-11.400 11.4mm TiAlN-NANO DIN 6537L RT1 Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This is a new Guhring No. 8511 RatioBo VA solid carbide twist drill in 11.4 mm diameter, conforming to DIN 6537L (long series, right-hand cut), coated with Guhring's TiAlN-NANO (NANO-A) PVD coating specifically engineered for dry and MQL machining of stainless steel (VA/V2A/V4A austenitic grades) and other difficult-to-cut materials. The RT1 point geometry features a 140° split point for self-centering entry, reduced thrust, and excellent chip evacuation, with a cylindrical shank sized for standard ER collet chucks and precision drill chucks. DIN 6537L specifies an extra-long flute length relative to diameter, extending reach for deeper-hole applications typical in stainless steel fabrication, medical device manufacturing, and aerospace component drilling. The TiAlN-NANO multilayer PVD coating delivers elevated hot hardness and oxidation resistance above 900 °C, enabling higher cutting speeds and longer tool life compared to standard TiAlN mono-layer coatings.
Product Specifications
| Brand | Guhring |
| MPN | 8511-11,400 |
| Series | RatioBo VA (No. 8511) |
| Drill Diameter | 11.4 mm |
| Shank Diameter | 10 mm (reduced/stepped shank) |
| Standard | DIN 6537L |
| Series Length | Long (L) |
| Cut Direction | Right-hand (R) |
| Point Geometry | RT1 (140° split point) |
| Coating | TiAlN-NANO (NANO-A) PVD |
| Substrate | Solid carbide |
| Primary Application | Stainless steel (VA/austenitic grades) |
| Coolant Type | Dry / MQL |
| Point Angle | 140° |
| Shank Type | Cylindrical (DIN 6535 HA) |
| Condition | New |
