Guhring 9085110085000 8.5mm 5xD TiAlN Nano-A Coolant Solid Carbide Drill

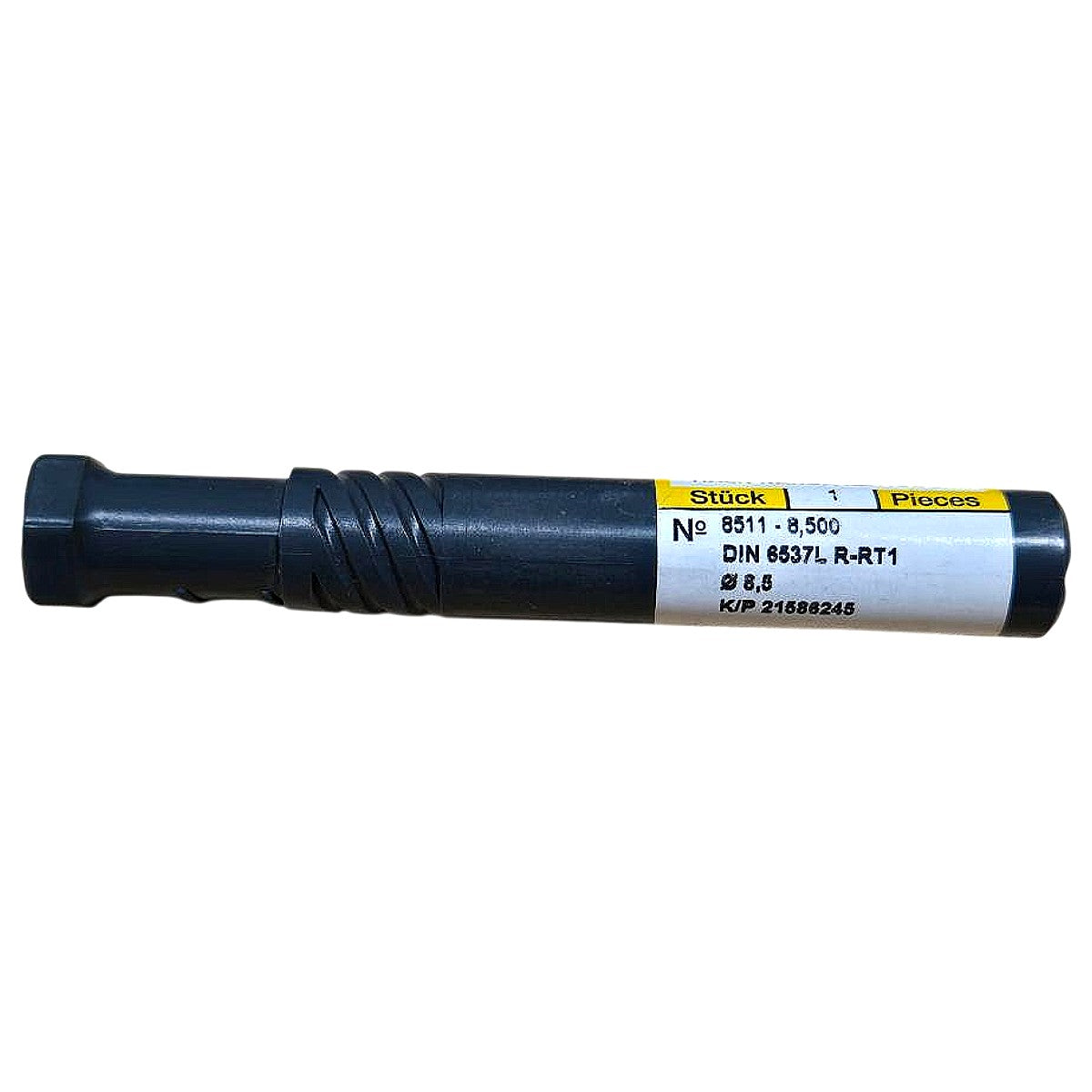

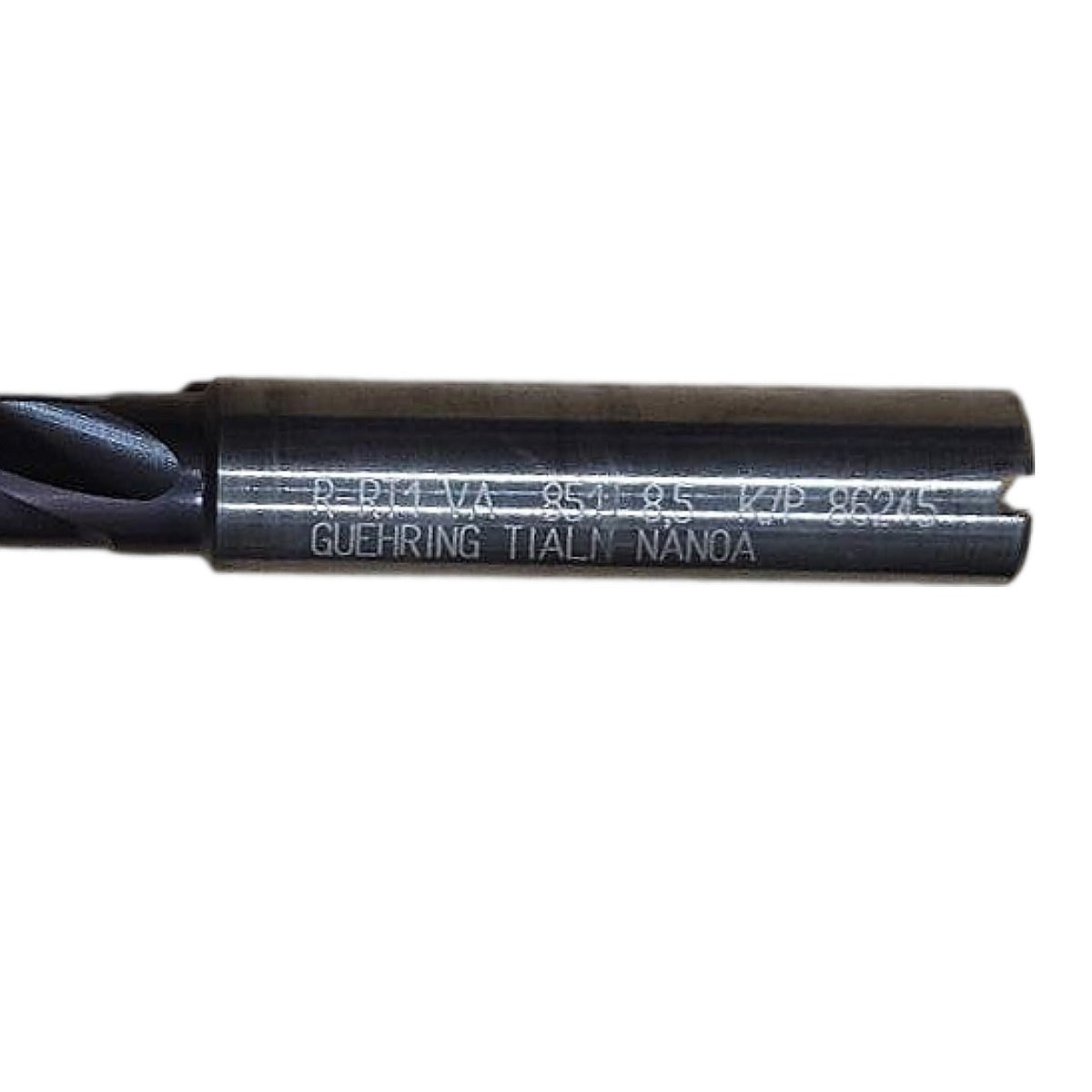

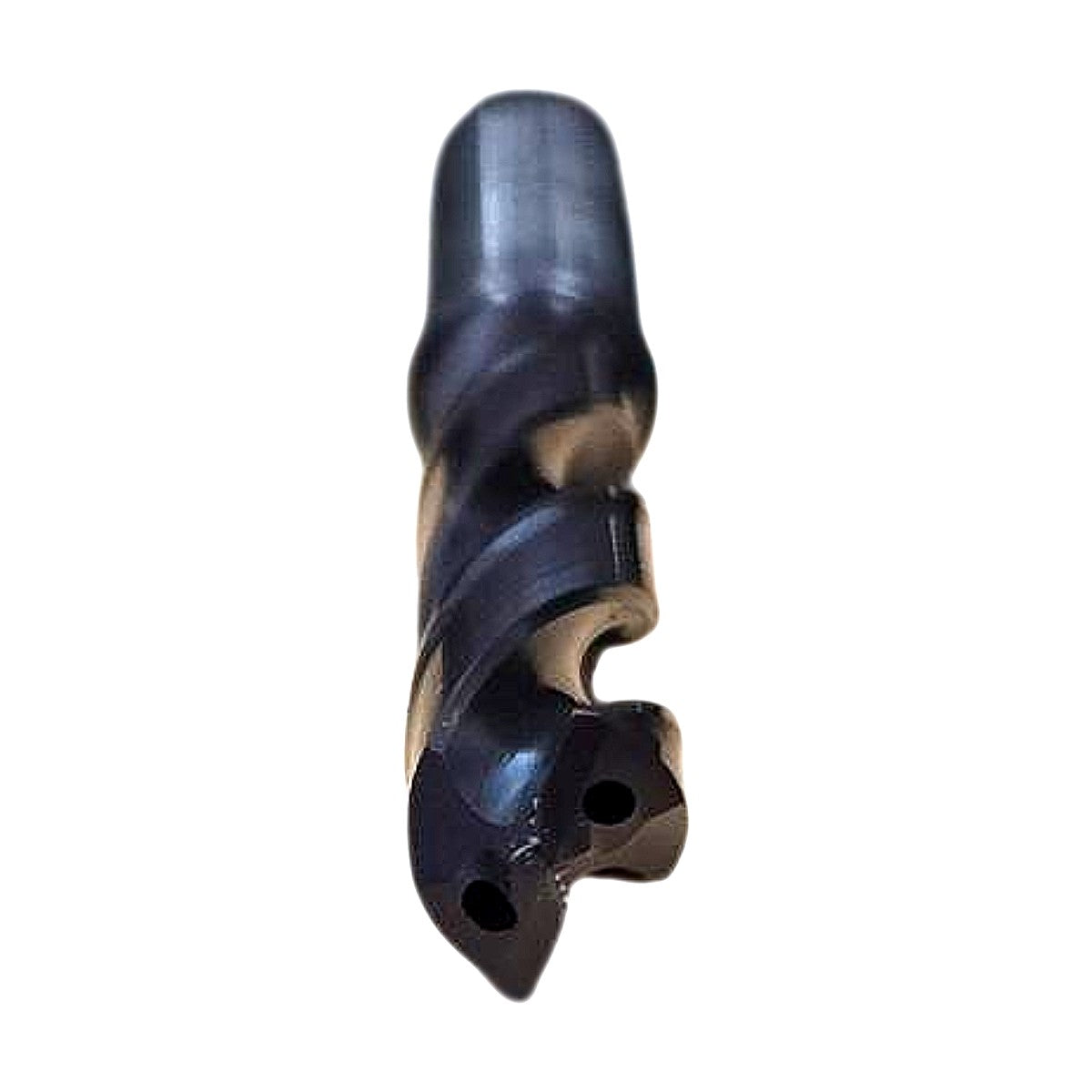

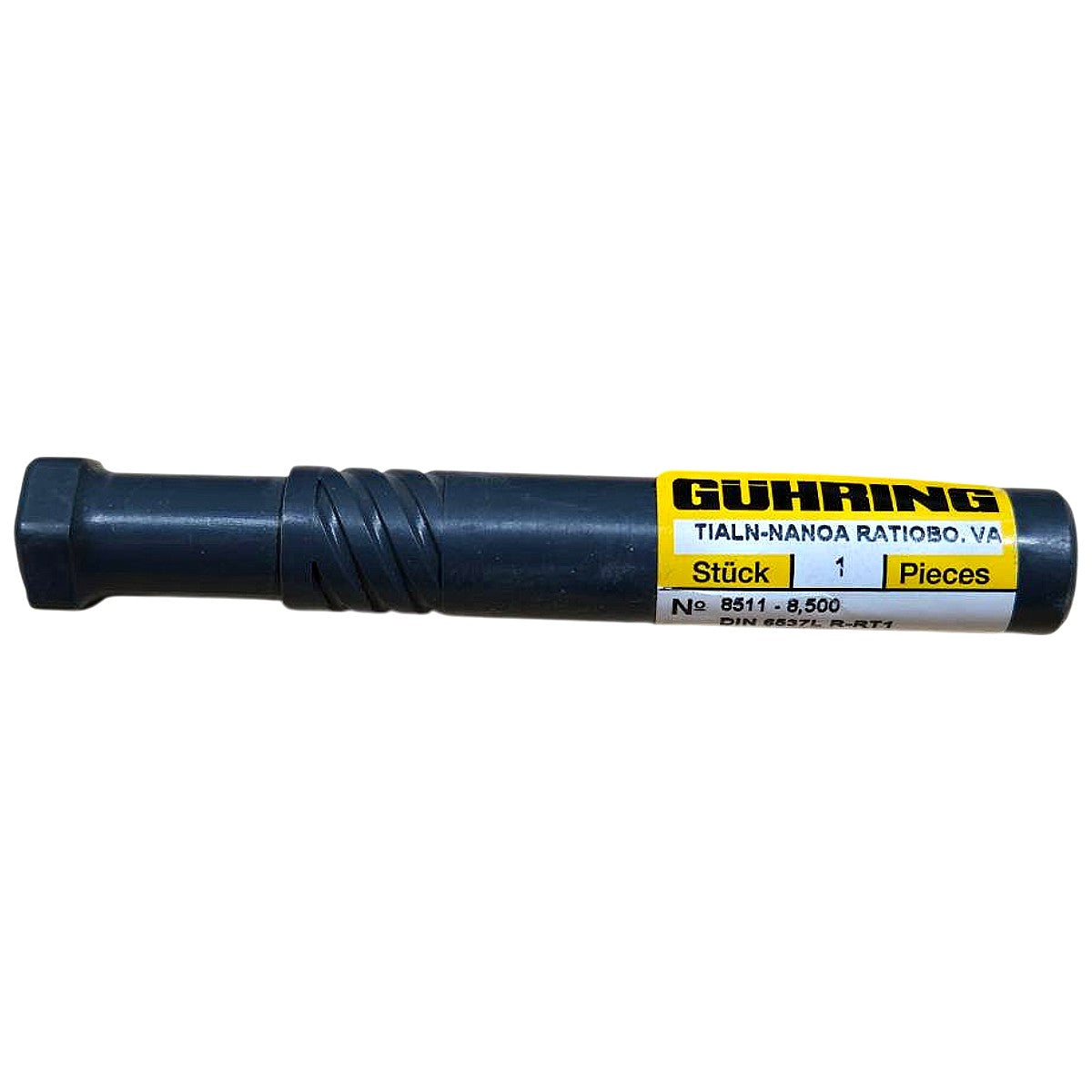

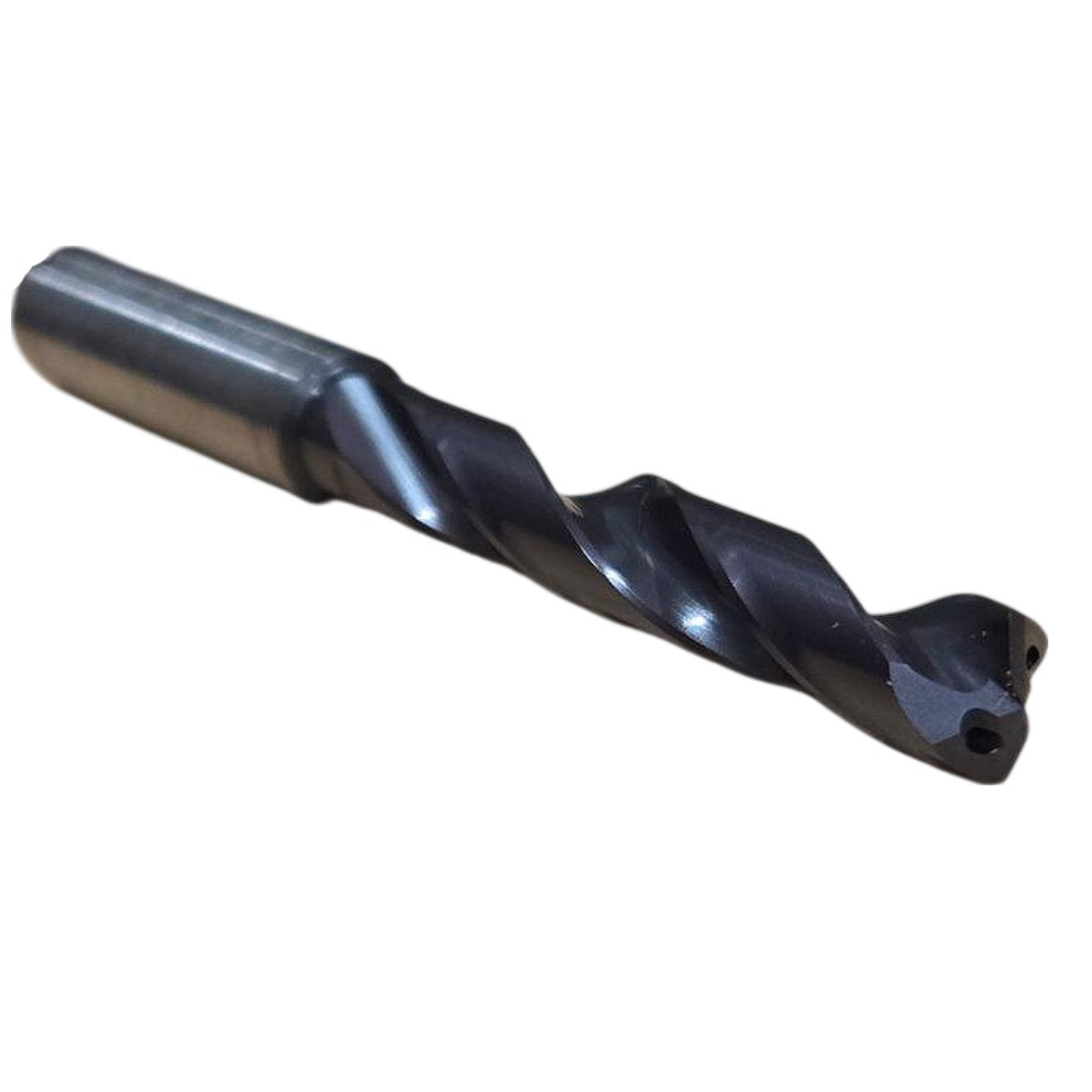

The Gühring No. 8511-8.500 (catalog/order number 9085110085000) is a new solid carbide twist drill from the RT 100 VA series, purpose-engineered for drilling stainless steel, high-alloy steels, duplex, and other difficult-to-machine materials. It is produced to DIN 6537L (long flute, 5×D cutting depth), features a right-hand cut (R), RT1 point geometry for improved centering and chip control, and is coated with Gühring's proprietary TiAlN nano-A (NANOA) multilayer nanostructured coating, which delivers outstanding hot hardness and oxidation resistance up to approximately 900 °C for extended tool life in tough alloys. The 8.5 mm diameter drill has through-coolant capability — visible as two internal coolant exit holes at the tip in the photos — enabling high-pressure coolant delivery directly to the cutting zone for heat evacuation and chip flushing when used in CNC machining centers with through-spindle coolant. The cylindrical shank is designed for use in ER collet chucks, hydraulic chucks, or shrink-fit holders suitable for the 8.5 mm diameter; the shank label also shows K/P 21586245, confirming the production batch/catalog reference consistent with Gühring's published data for this tool.

Product Specifications
