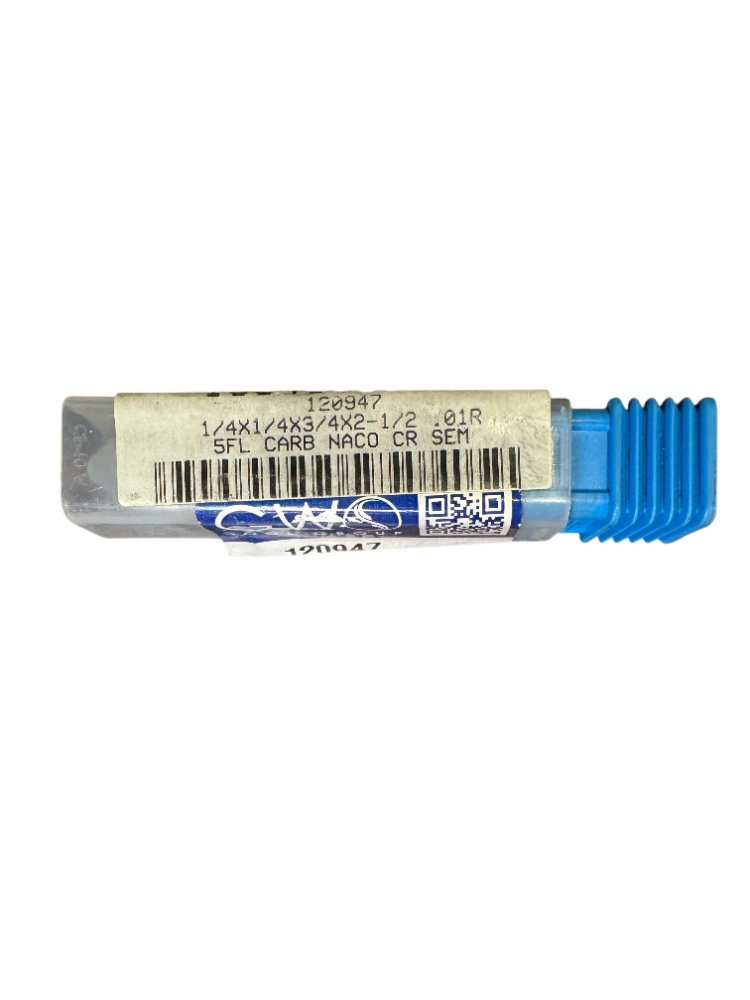

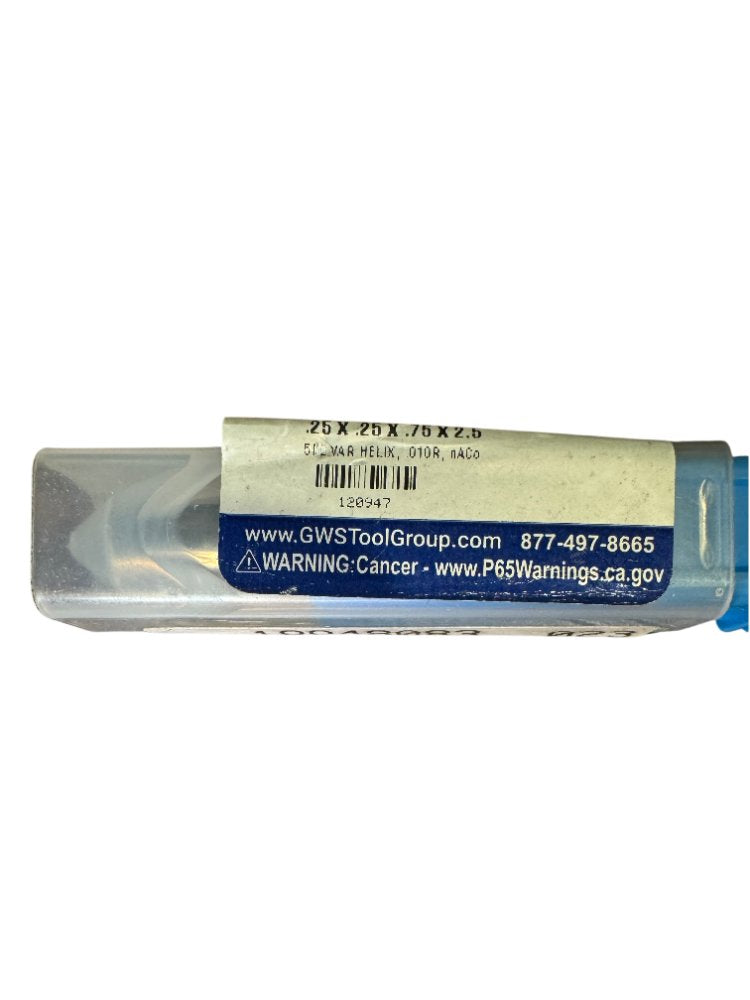

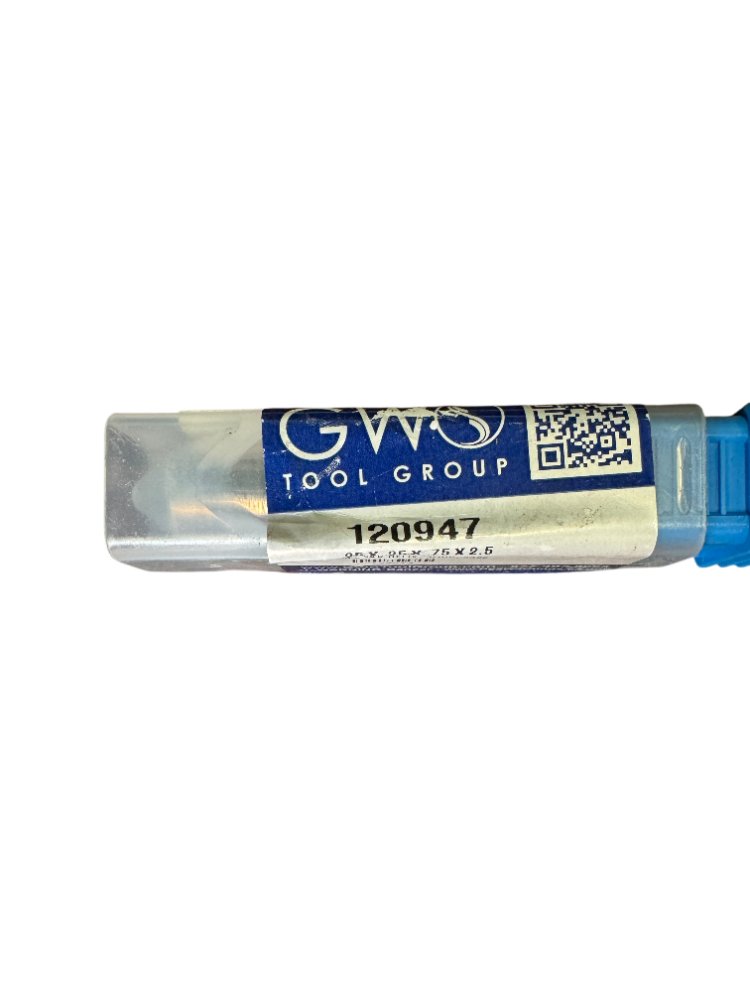

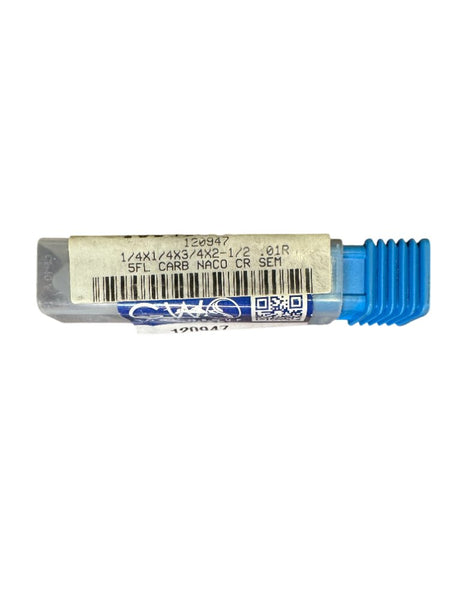

GWS 120947 1/4x1/4x3/4x2-1/2 5FL NACo CR Carbide Roughing End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

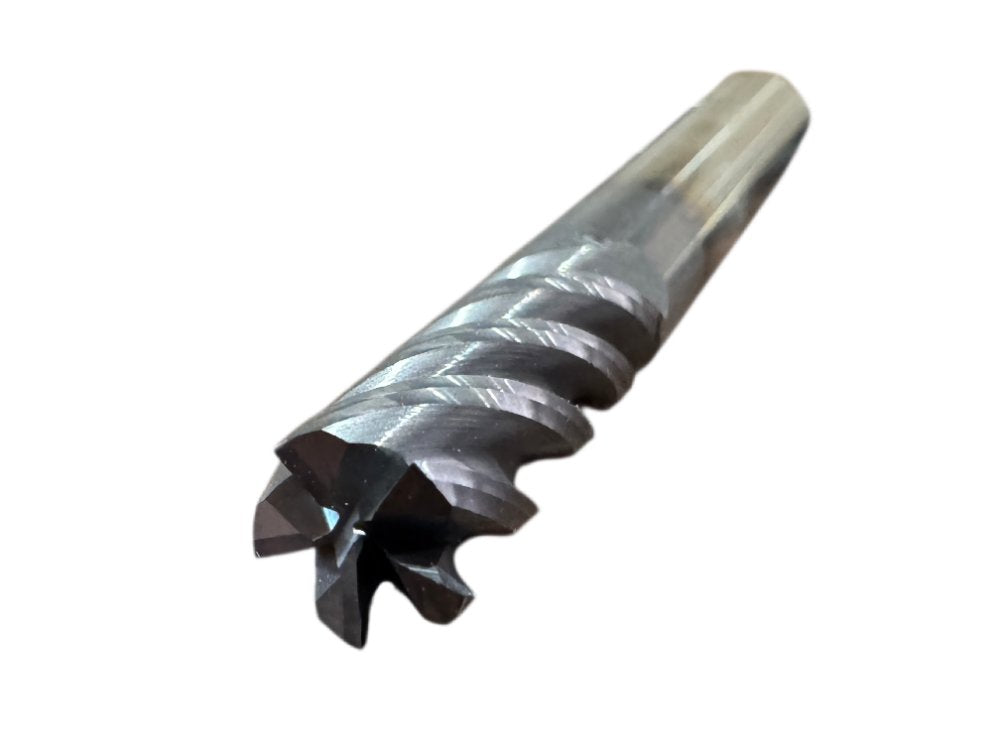

The GWS Tool Group 120947 is a new solid carbide 5-flute roughing end mill measuring 1/4 in cutting diameter x 1/4 in shank diameter x 3/4 in length of cut x 2-1/2 in overall length, with a 0.010 in corner radius and a variable helix design (nominally 50°) to suppress chatter and improve chip evacuation during aggressive material removal. The tool features a NACo (nanocomposite aluminum-chromium nitride) coating, which provides elevated hardness, oxidation resistance up to approximately 900°C, and reduced friction, making it well-suited for ferrous materials including alloy steels, tool steels, and hardened steels. The center-cutting end geometry and chip-breaker style flute form on a rougher profile allow high metal removal rates while controlling cutting forces; the 1/4 in straight shank is compatible with standard ER11, ER16, or ER20 collet chucks and equivalent 1/4 in end mill holders.
Product Specifications
| Brand | GWS Tool Group |
| Manufacturer Part Number (MPN) | 120947 |

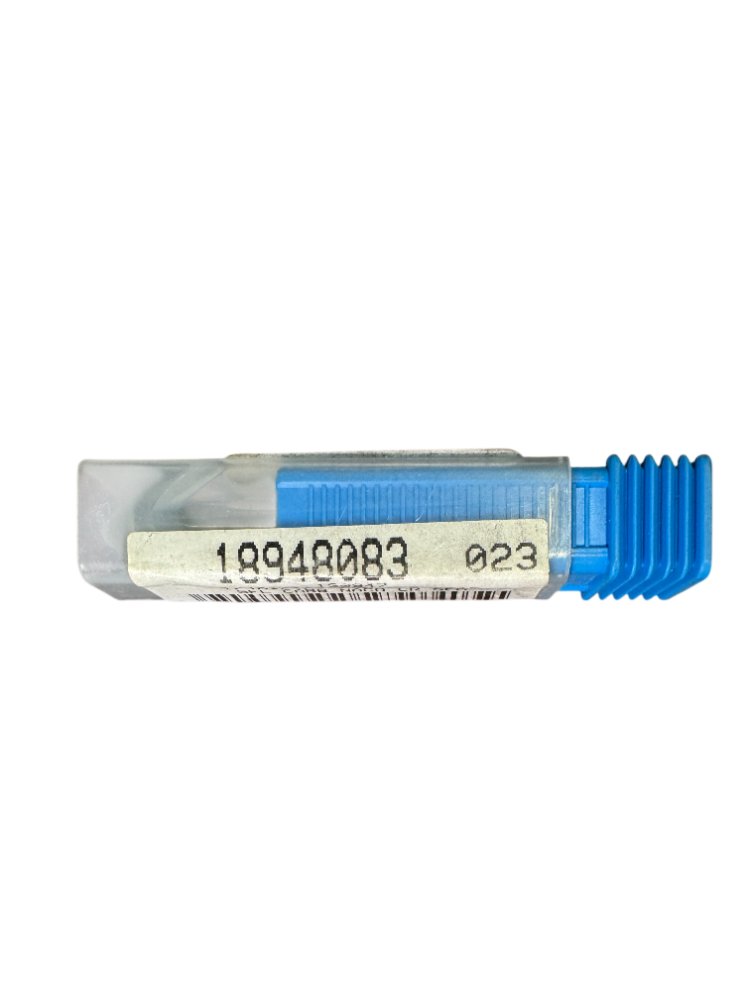

| Internal/Distributor PN | 18948083 |
| Tool Type | Solid Carbide Roughing End Mill |
| Number of Flutes | 5 |
| Cutting Diameter | 1/4 in (0.2500 in) |
| Shank Diameter | 1/4 in (0.2500 in) |
| Length of Cut (Flute Length) | 3/4 in (0.7500 in) |
| Overall Length | 2-1/2 in (2.5000 in) |
| Corner Radius | 0.010 in |
| Helix Angle | Variable, ~50° |
| Coating | NACo (Nano AlCrN) |
| Substrate | Solid Carbide |
| Shank Type | Straight (Cylindrical) |
| End Style | Corner Radius (Rougher/Chipbreaker) |
| Series/Style | CR SEM (Semi-Rougher) |
| Condition | New |
