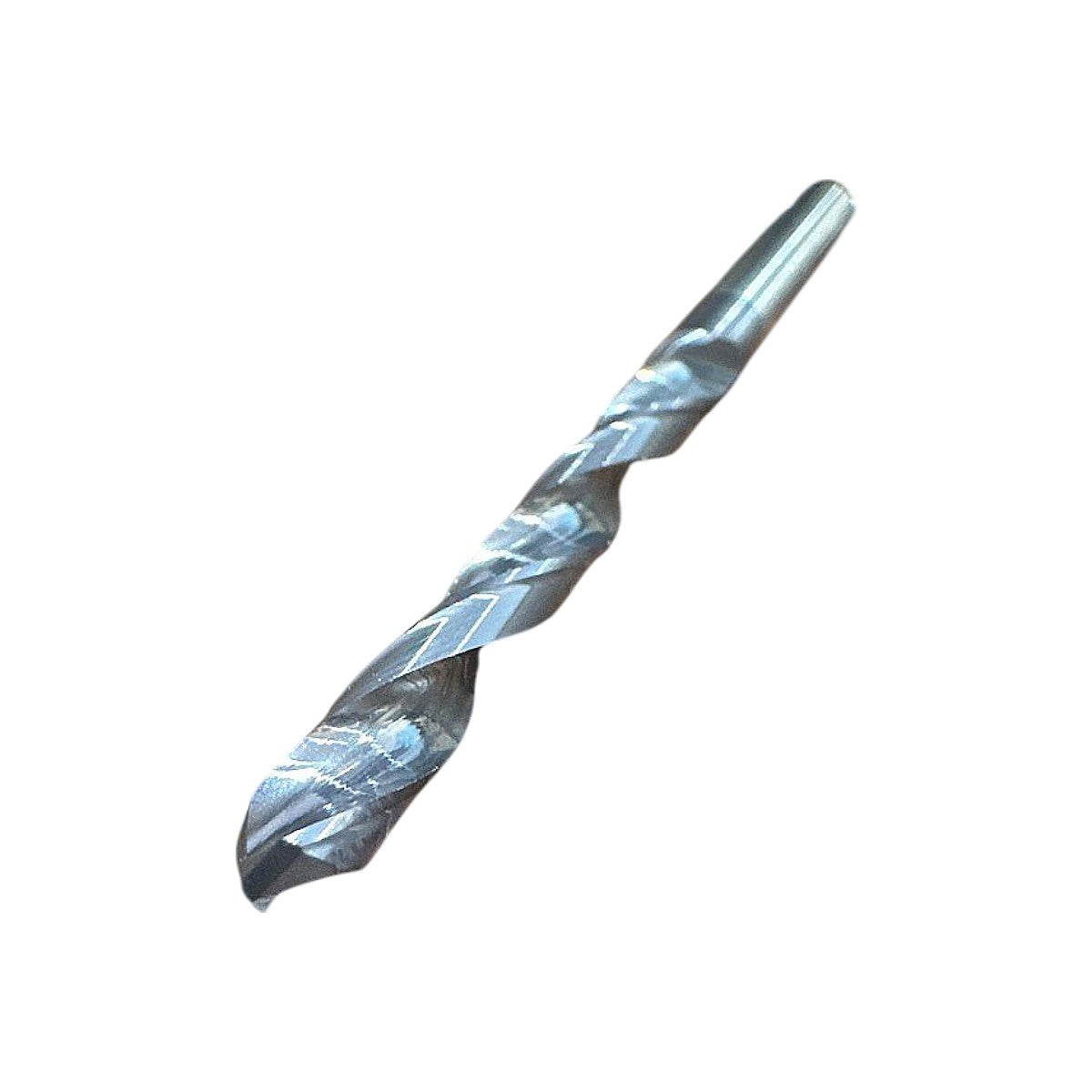

GWS 3/16 in AlTiN Carbide Twist Drill Bit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

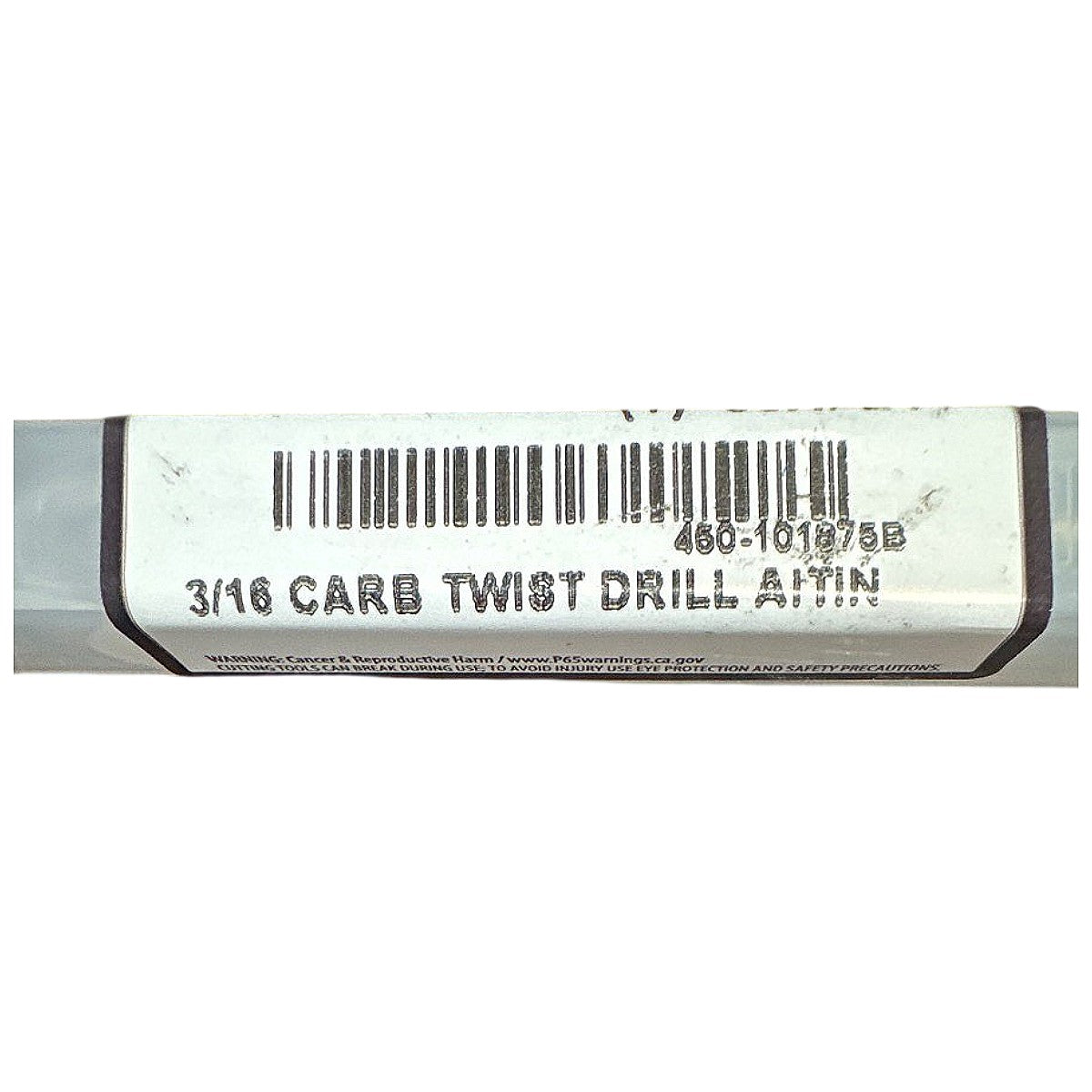

This is a new GWS Tool Group solid carbide twist drill in 3/16 in (0.1875 in) diameter, finished with an AlTiN (Aluminum Titanium Nitride) coating as confirmed directly on the label (part number 460-101875B, designation "3/16 CARB TWIST DRILL AlTiN"). AlTiN coating provides a hardness of approximately 3,500 HV and excellent oxidation resistance up to ~1,650°F, making this drill well-suited for dry or minimum-quantity lubrication (MQL) machining of hardened steels, stainless steels, cast iron, and high-temperature alloys. The drill features a standard 118° or 135° split-point geometry typical of GWS carbide jobber-length drills and is compatible with any 3/16 in collet, chuck, or toolholder accepting a straight shank. GWS Tool Group manufactures solid carbide round tools to exacting tolerances and this drill is offered in new, unused condition.
Product Specifications
| Brand | GWS Tool Group |
| Part Number | 460-101875B |
| Drill Diameter | 3/16 in (0.1875 in) |
| Material | Solid Carbide |
| Coating | AlTiN (Aluminum Titanium Nitride) |
| Shank Type | Straight Shank |
| Shank Diameter | 3/16 in |
| Drill Style | Jobber-Length Twist Drill |
| Number of Flutes | 2 |
| Condition | New |
