GWS 36XF04 3/32 in Solid Carbide Twist Drill Bit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

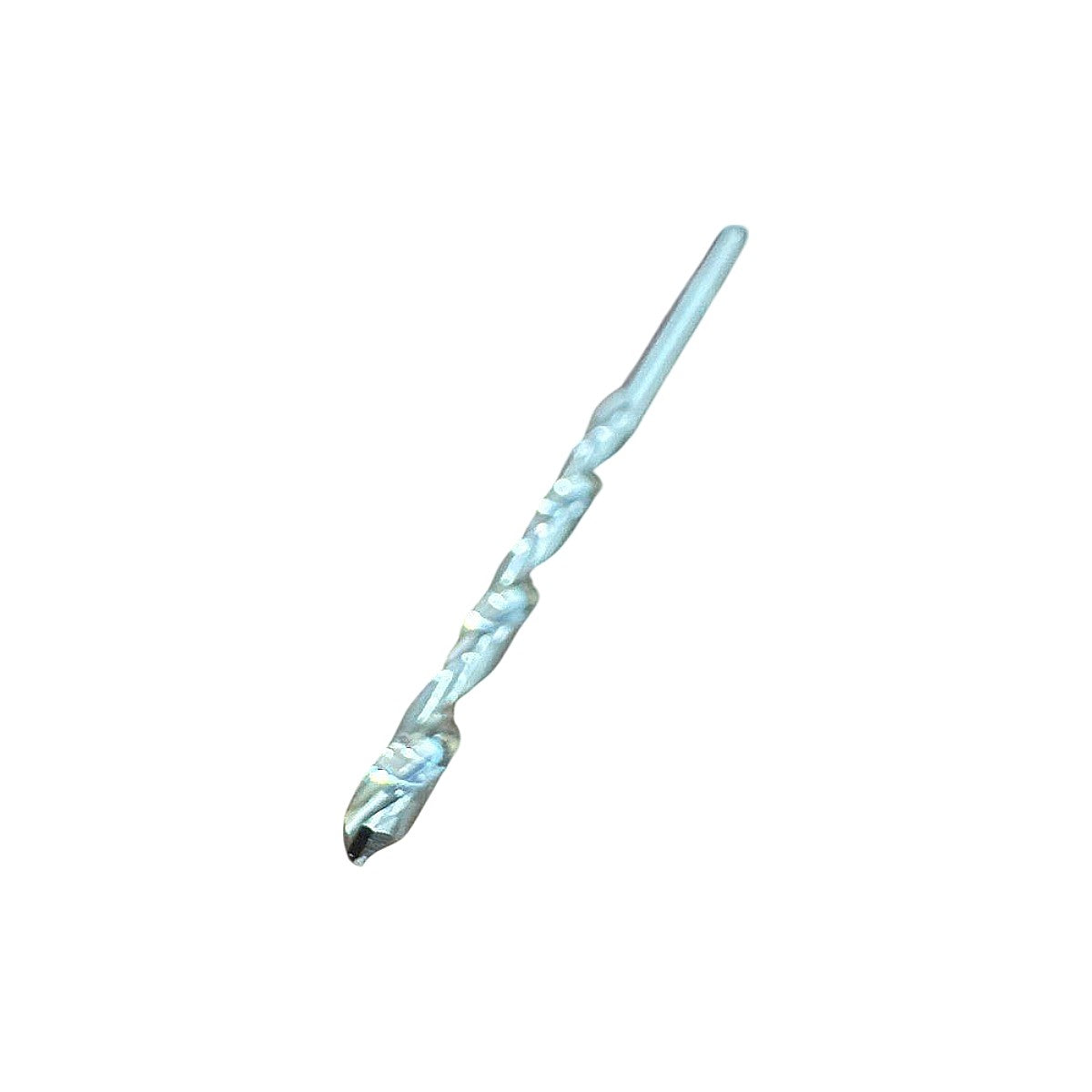

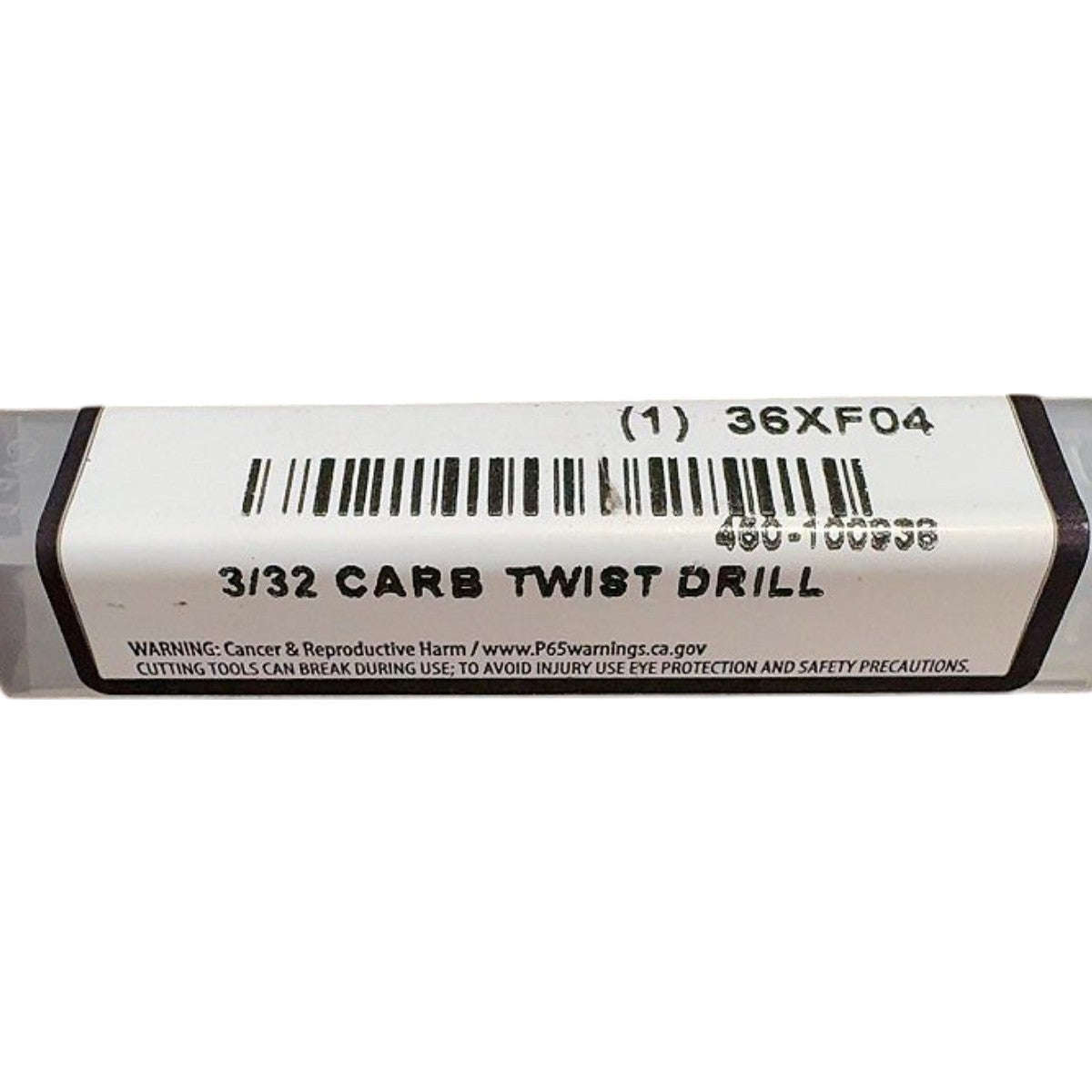

The GWS Tool Group 36XF04 is a new, solid carbide twist drill bit with a 3/32 in (0.09375 in / 2.381 mm) diameter, as confirmed by the label text "3/32 CARB TWIST DRILL." GWS's 36XF series carbide drills are manufactured from submicron-grain tungsten carbide and feature a 135° split-point geometry that enables self-centering penetration without a pilot hole, making them well-suited for drilling hardened steels, stainless steel, cast iron, and non-ferrous alloys. The straight round shank is compatible with standard 3-jaw drill chucks and collet systems sized for 3/32 in shanks, including ER collets. This small-diameter carbide drill delivers the rigidity and wear resistance required for precision hole-making in CNC machining centers and drill presses where HSS tooling would deflect or prematurely dull.
Product Specifications
| Brand | GWS Tool Group |
| MPN | 36XF04 |
| Drill Diameter | 3/32 in (0.09375 in / 2.381 mm) |
| Material | Solid Carbide |
| Drill Style | Twist Drill |
| Shank Type | Straight Round Shank |
| Shank Diameter | 3/32 in |
| Point Angle | 135° |
| Point Type | Split Point |
| Condition | New |
