GWS 36XF22 3/16 in Solid Carbide Twist Drill Bit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

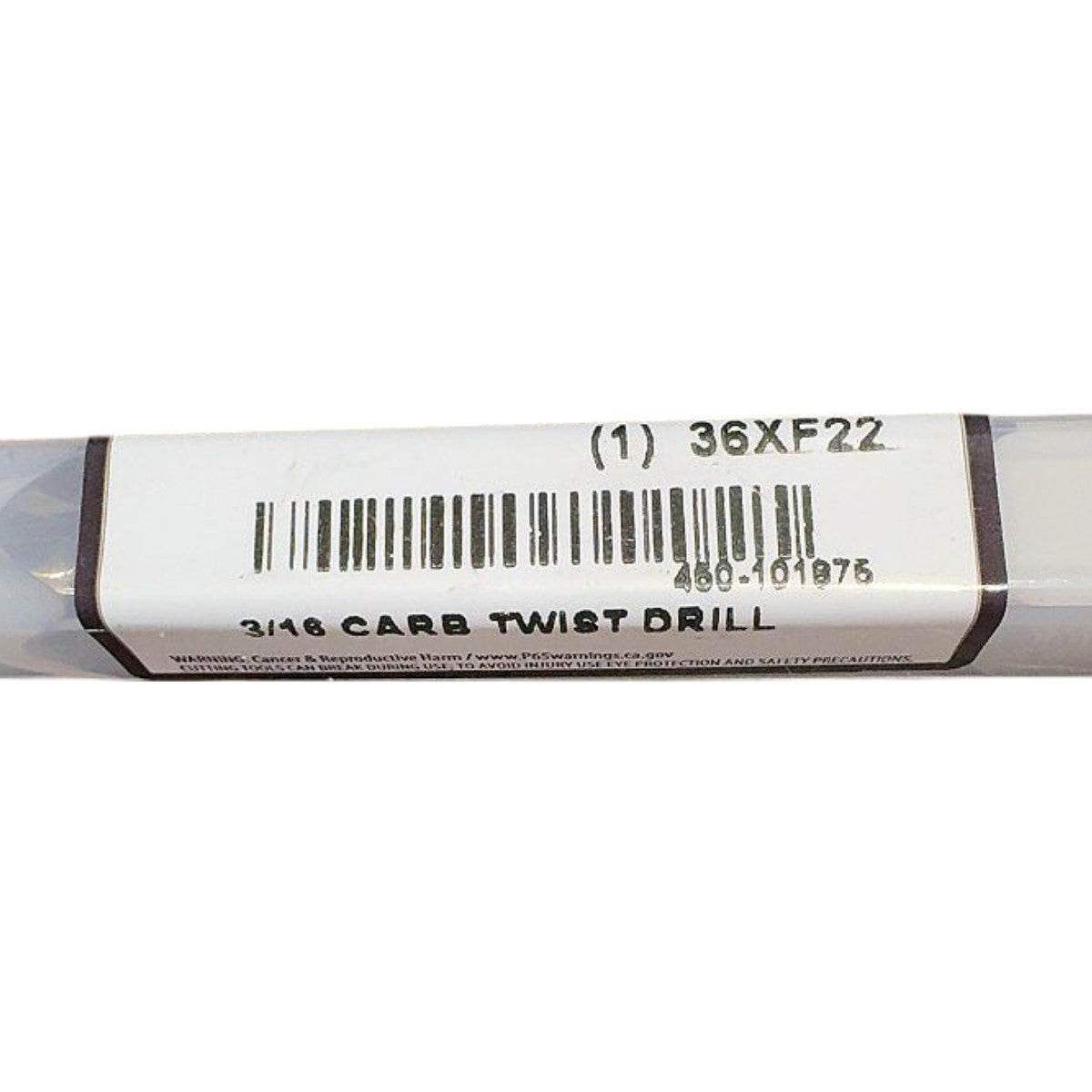

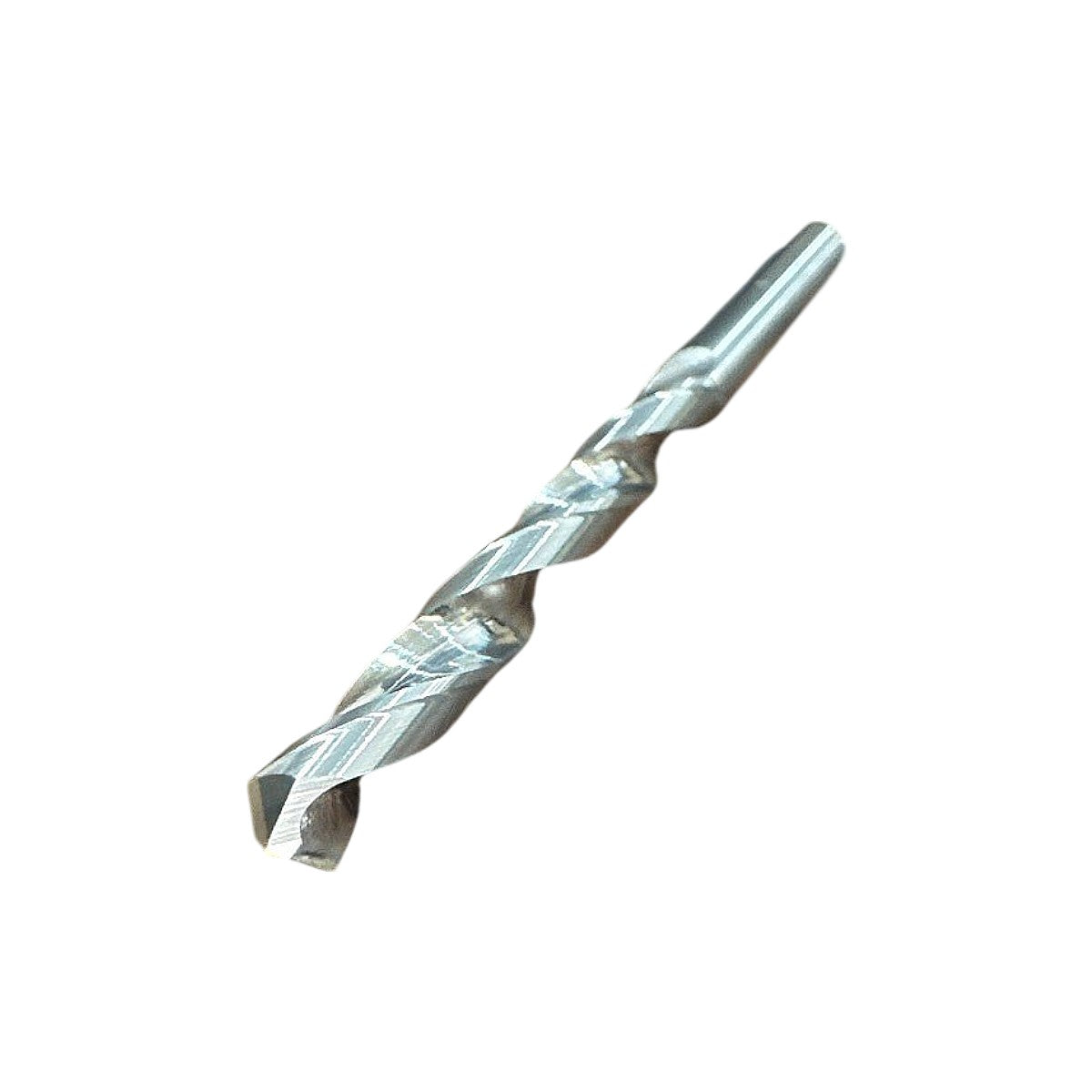

The GWS Tool Group 36XF22 is a new, solid carbide twist drill bit with a 3/16 in (0.1875 in) diameter, as confirmed by the label text "3/16 CARB TWIST DRILL" and the MPN 36XF22 visible on the packaging. GWS's 36XF series designates a standard-length (jobber-style) solid carbide drill with a 118° conventional split point geometry and a bright (uncoated) finish, intended for drilling ferrous and non-ferrous materials where carbide's superior hardness and wear resistance over HSS is required — including cast iron, hardened steels, aluminum, and composites. The round shank is sized to match the drill diameter and is compatible with standard 3-jaw drill chucks and collet systems accepting 3/16 in shanks.
Product Specifications
| Brand | GWS Tool Group |
| MPN | 36XF22 |
| Drill Diameter | 3/16 in (0.1875 in) |
| Material | Solid Carbide |
| Drill Style | Jobber Length Twist Drill |
| Shank Type | Round Straight Shank |
| Shank Diameter | 3/16 in |
| Point Angle | 118° |
| Coating / Finish | Bright (Uncoated) |
| Flute Type | 2-Flute Right-Hand Spiral |
| Condition | New |
| Quantity | 1 pc |
