GWS 36XF28 7/32 in Solid Carbide Twist Drill Bit

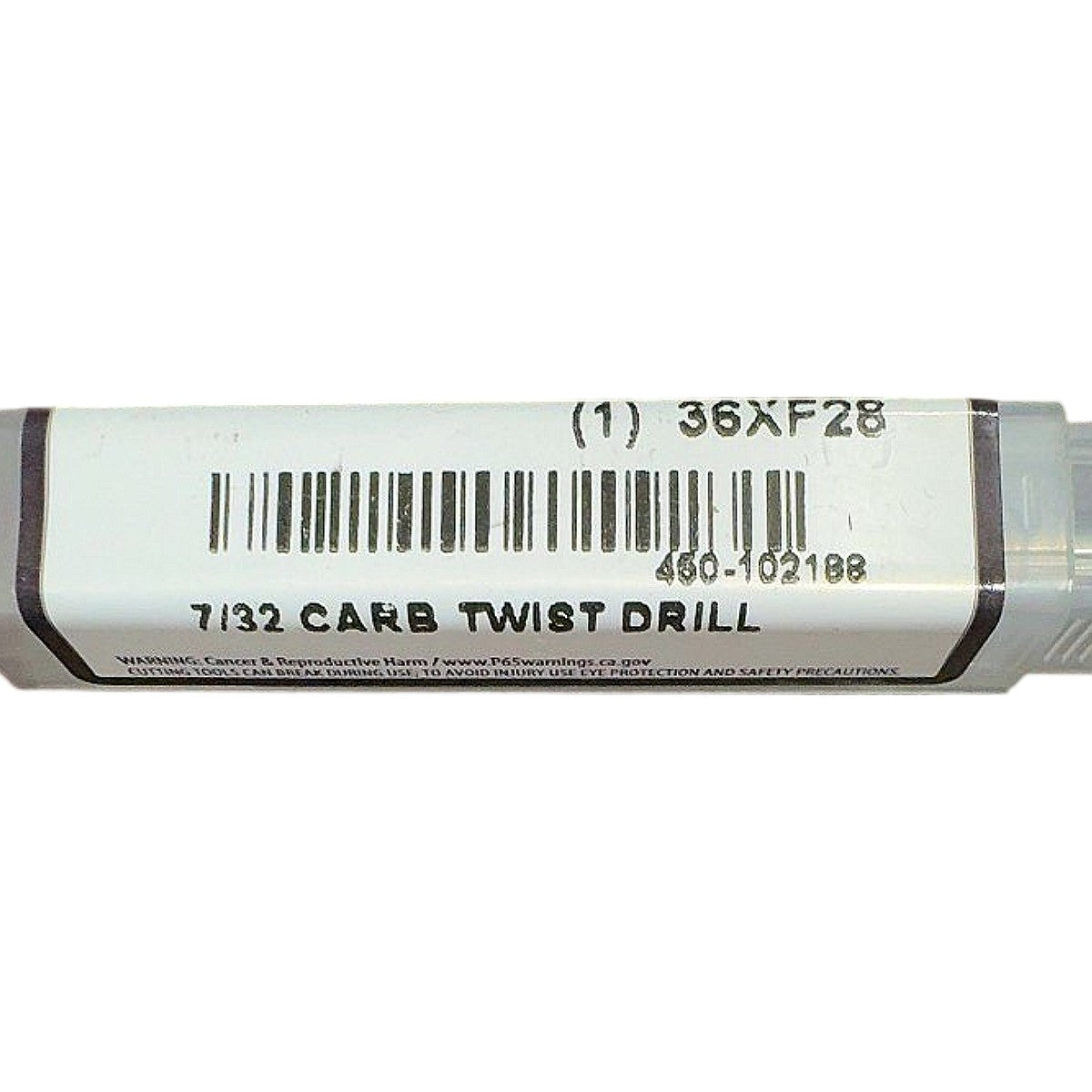

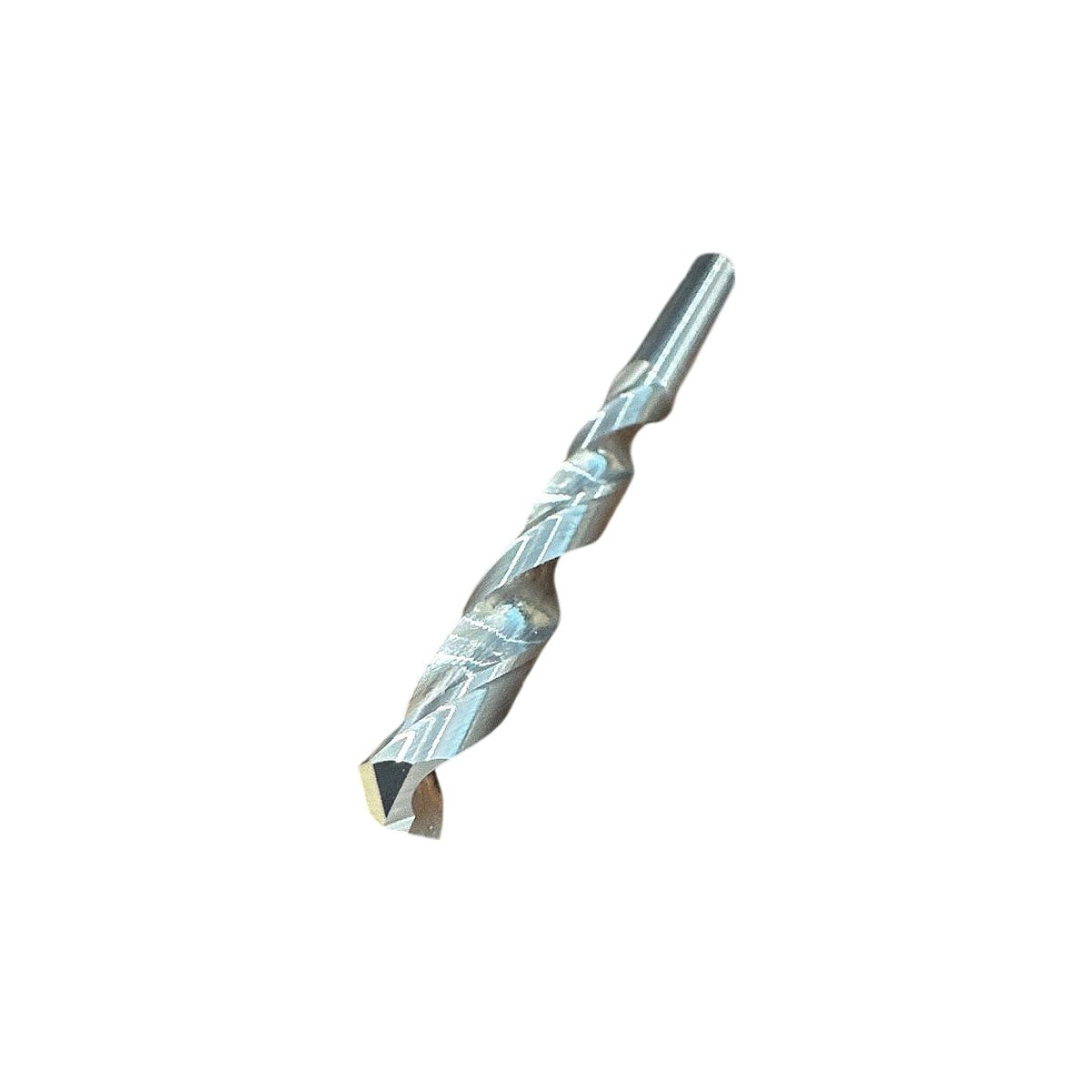

The GWS Tool Group 36XF28 is a new, solid carbide twist drill bit in 7/32 in (0.21875 in / 5.556 mm) diameter, as read directly from the product label (MPN 36XF28, barcode 460-102188). GWS designates the "36" prefix in their carbide drill series to indicate a jobber-length, straight-shank solid carbide construction — ground from submicron carbide blanks for superior hardness and wear resistance compared to HSS or cobalt alternatives. The "XF" designator in GWS nomenclature denotes an uncoated (bright) finish with a split-point geometry (135° point angle), which provides self-centering entry and reduces thrust force, making it well suited for drilling hardened steels, cast iron, composites, and abrasive non-ferrous materials in CNC machining centers or drill presses with a standard 3-jaw chuck or collet accepting a 7/32 in round shank.

Product Specifications
