GWS 36XF34 1/4 in Solid Carbide Twist Drill Bit

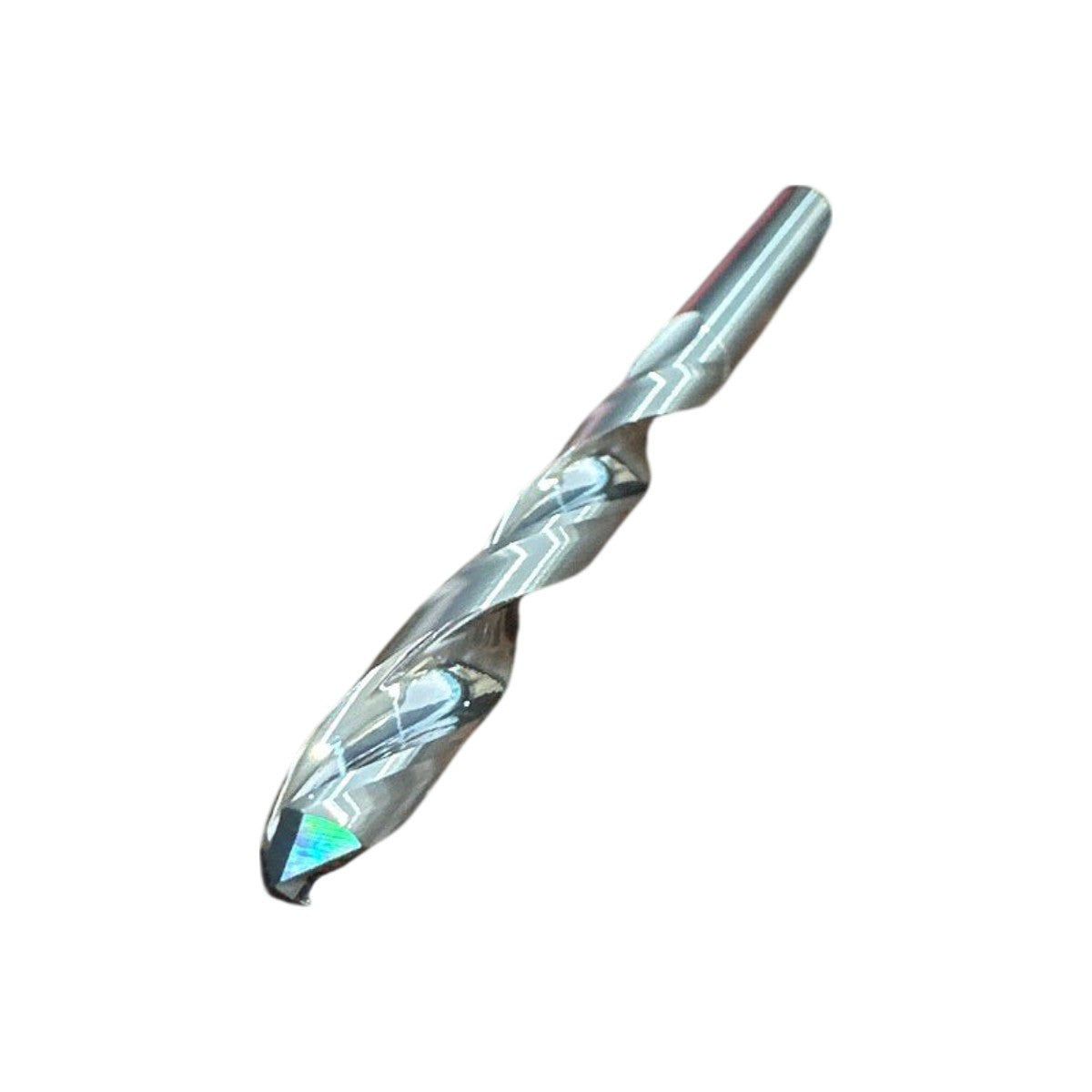

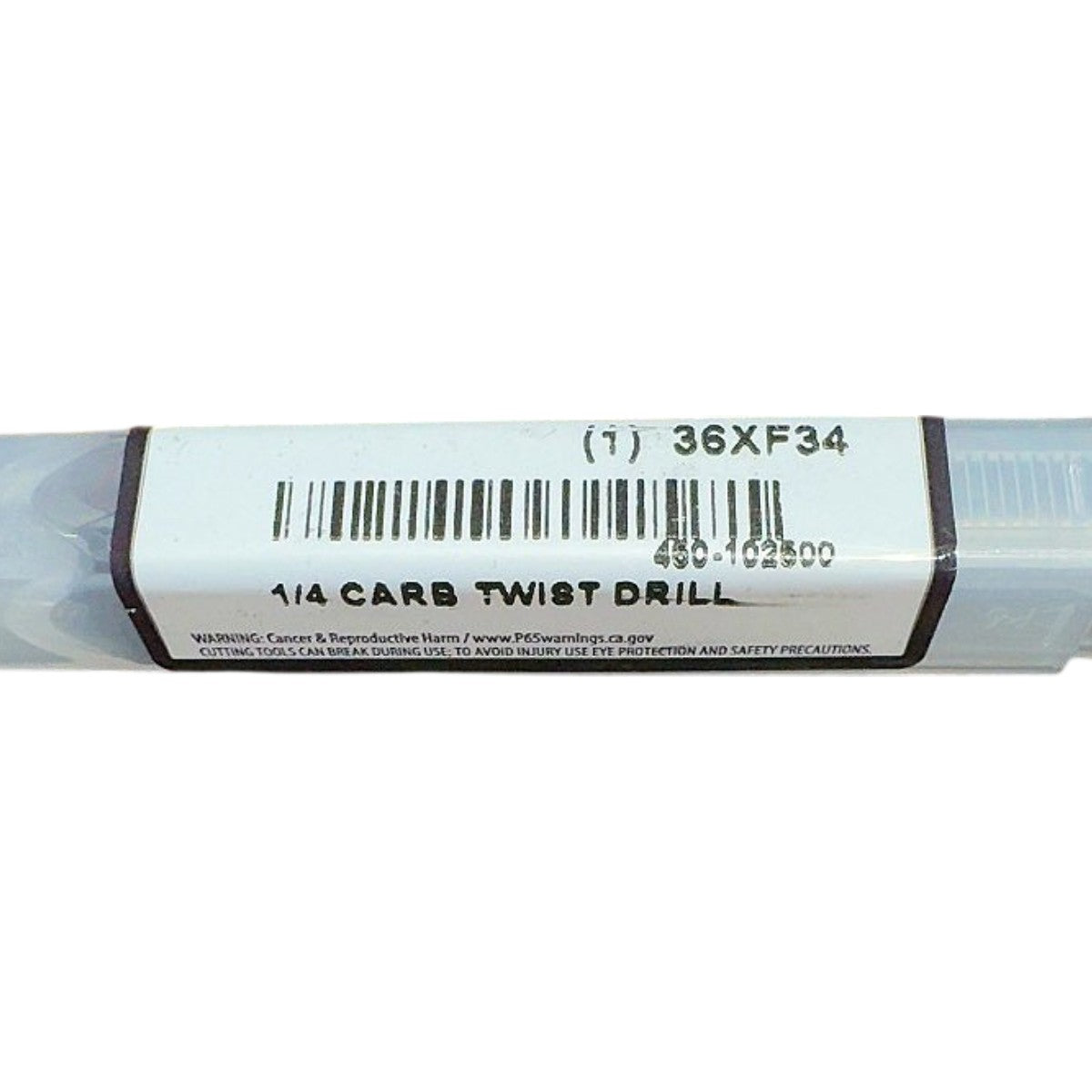

The GWS Tool Group 36XF34 is a new, solid carbide twist drill in 1/4 in (0.2500 in) diameter, as confirmed by both the label text "1/4 CARB TWIST DRILL" and the decoded MPN. The "36" series prefix in GWS nomenclature denotes a jobber-length solid carbide drill, and the "XF" designation indicates an extra-fine (high-polish) uncoated carbide substrate optimized for non-ferrous and composite materials — consistent with the bright, uncoated finish visible in the photos. The "34" suffix encodes the 1/4 in diameter in hundredths-of-an-inch notation (0.2500 in ≈ size code 34 in GWS's numbering convention). Solid carbide construction provides significantly higher rigidity and wear resistance compared to HSS drills, enabling higher cutting speeds and improved hole quality in aluminum, plastics, composites, and other non-ferrous workpiece materials. The straight shank is compatible with standard 1/4 in collets, drill chucks, and CNC machining centers.

Product Specifications
