GWS 36XF52 11/32 in Solid Carbide Twist Drill Bit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

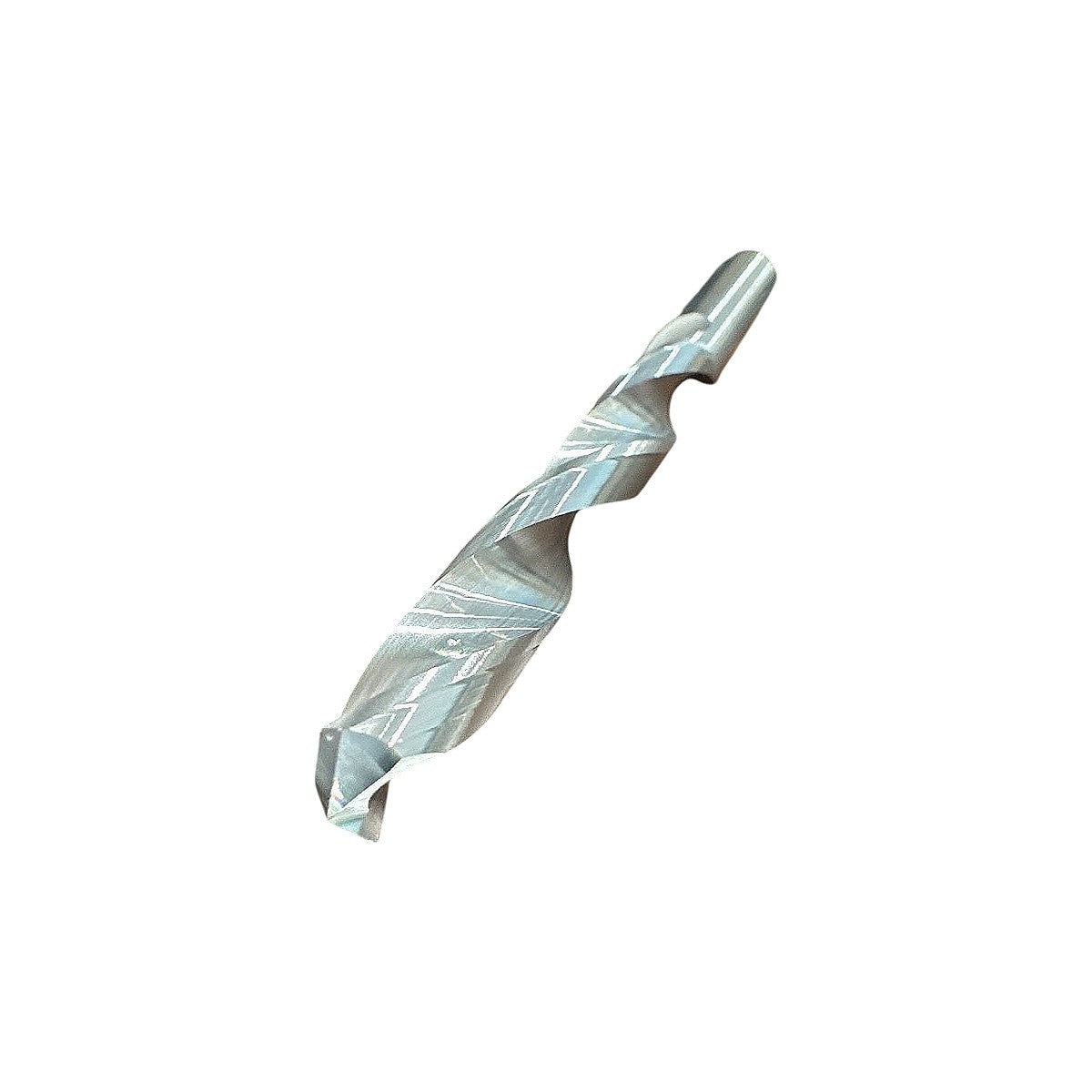

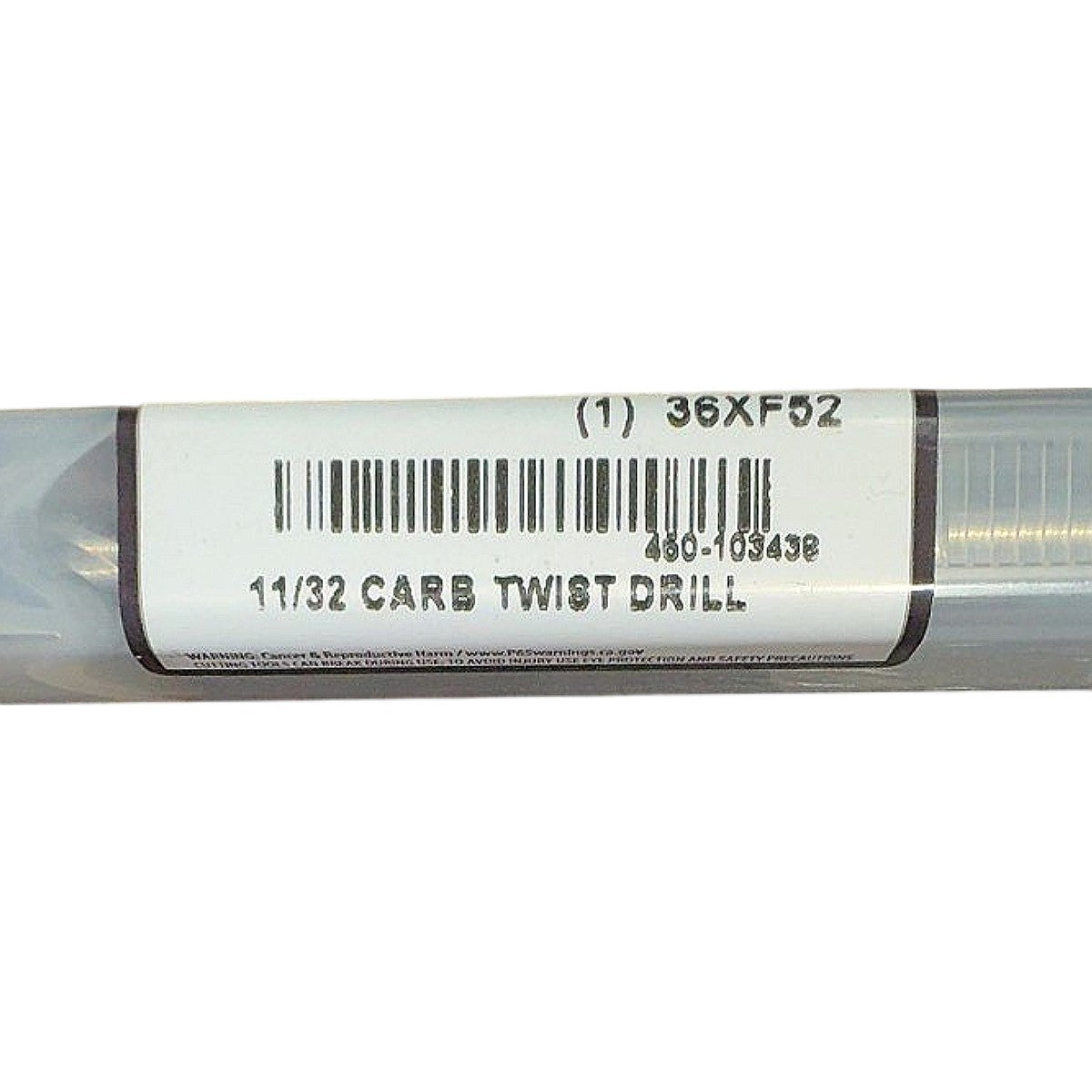

The GWS Tool Group 36XF52 is a new, solid carbide twist drill bit in 11/32 in (0.34375 in) diameter, as confirmed by the package label reading "11/32 CARB TWIST DRILL" with MPN 36XF52. GWS's 36-series carbide drills are manufactured from submicron-grain solid carbide, offering significantly greater hardness and wear resistance than high-speed steel for drilling hardened steels, cast iron, aluminum, composites, and other abrasive materials. The bright/uncoated finish visible in the product photo is consistent with GWS's standard carbide drill configuration for this series, featuring a 118° split-point geometry for self-centering entry and reduced thrust. This drill accepts standard 3-jaw chucks or collets sized for the appropriate shank diameter and is suited for CNC machining centers and drill presses requiring tight-tolerance, consistent-diameter holes.
Product Specifications
| Brand | GWS Tool Group |
| MPN | 36XF52 |
| Drill Diameter | 11/32 in (0.34375 in) |
| Material | Solid Carbide |
| Drill Style | Twist Drill |
| Condition | New |
| Point Angle | 118° |
| Shank Type | Straight Shank |
| Shank Diameter | 11/32 in |
| Coating | Uncoated (Bright) |
| Flute Type | Right Hand Spiral |
| Cut Direction | Right Hand Cut |
