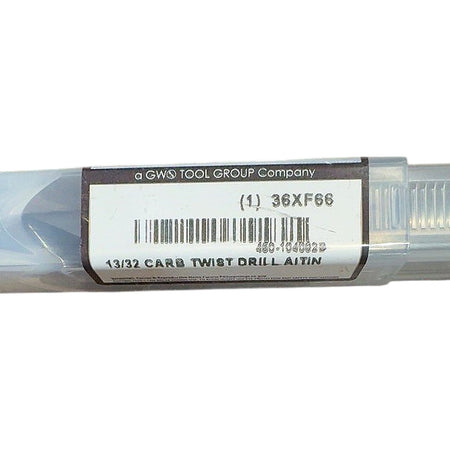

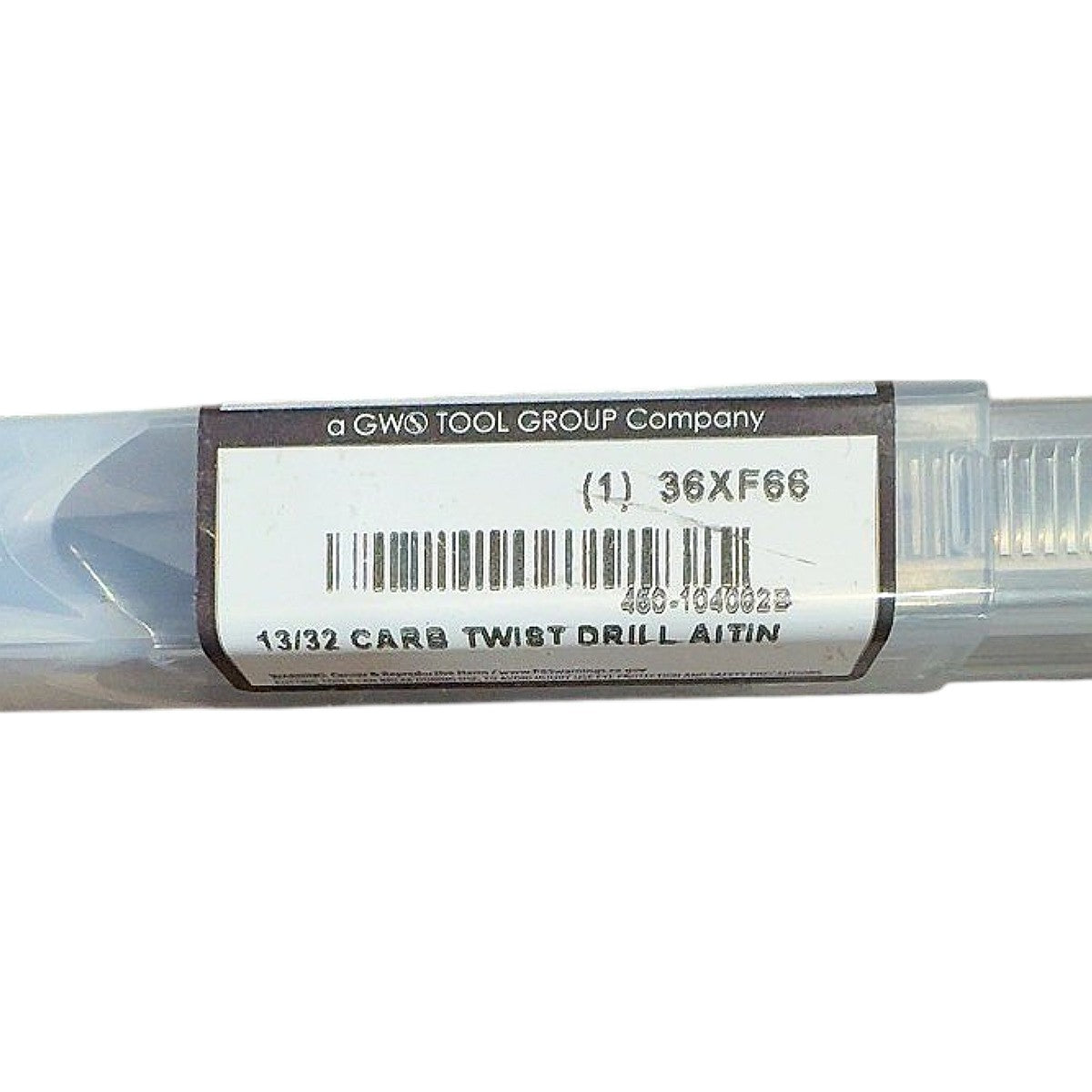

The GWS Tool Group 36XF66 is a new, solid carbide jobber-length twist drill in 13/32 in (0.40625 in) diameter with an AlTiN (aluminum titanium nitride) coating, as confirmed by the product label. AlTiN coating delivers hardness up to approximately 3,300 HV and excellent thermal stability, making this drill well-suited for dry or near-dry machining of hardened steels, stainless steels, cast iron, and heat-resistant alloys at elevated cutting speeds. GWS Tool Group is a U.S.-based manufacturer of precision round cutting tools, and their XF-series solid carbide drills feature a 135° split-point geometry for self-centering, reduced thrust, and clean entry without a center punch. The straight shank is compatible with standard drill chucks and precision collet chucks used in CNC machining centers, drill presses, and lathes.
Product Specifications
| Brand | GWS Tool Group |
| MPN | 36XF66 |
| Drill Diameter | 13/32 in (0.40625 in) |
| Material | Solid Carbide |
| Coating | AlTiN (Aluminum Titanium Nitride) |
| Drill Type | Twist Drill |
| Point Angle | 135° |
| Point Type | Split Point |
| Shank Type | Straight Shank |
| Shank Diameter | 13/32 in |
| Series | XF |
| Condition | New |
| Quantity | 1 |
