GWS 62725346 3/16in 3FL 3° Taper ZrN Carbide Tapered End Mill
Regular price
$298.30
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

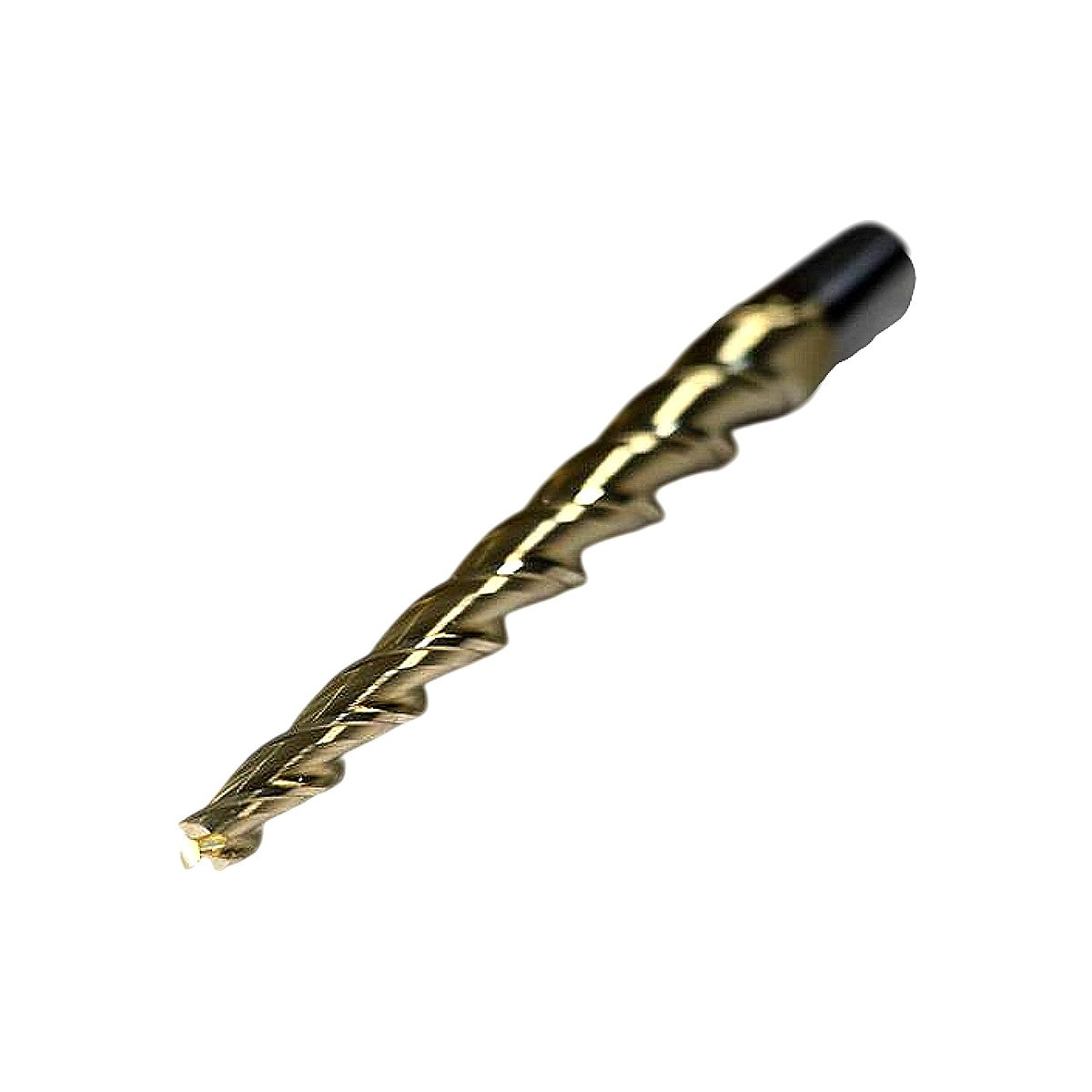

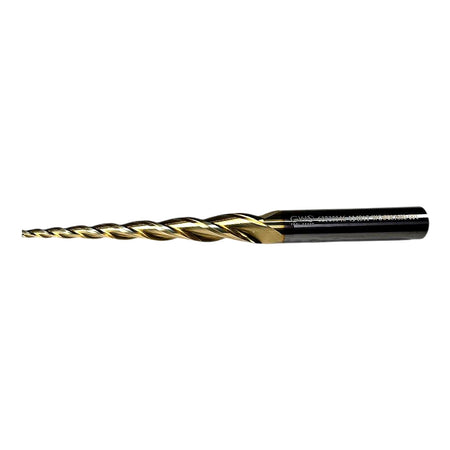

This GWS Tool Group 62725346 (EDP 114817) is a 3-flute tapered end mill with a 3/16 in tip diameter and a 3.0° taper per side. It has a 5.3666 in length of cut, 9.0 in overall length and a 3/4 in shank. The tool is solid carbide with a gold zirconium nitride (ZrN) coating, a combination suited to milling non-ferrous materials and other applications where ZrN is preferred. The long, slender tapered flute form is made for deep-reach milling of tapered walls and cavities. This item is new.
Product Specifications
| Brand | GWS Tool Group |
| MPN | 62725346 |
| EDP Number | 114817 |
| Number of Flutes | 3 |
| Tip Diameter | 3/16 in |
| Length of Cut | 5.3666 in |
| Overall Length | 9.0 in |
| Shank Diameter | 3/4 in |
| Taper Angle | 3.0° per side |
| Coating | ZrN (Zirconium Nitride) |
| Material | Solid Carbide |
| Shank Type | Straight |
| Operation | Milling |
| Cutter Type | Tapered End Mill |
