GWS BND200314DZ 0.8mm 2 Flute FX2 Coated Ball Nose Carbide Die Mill
Regular price
$11.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

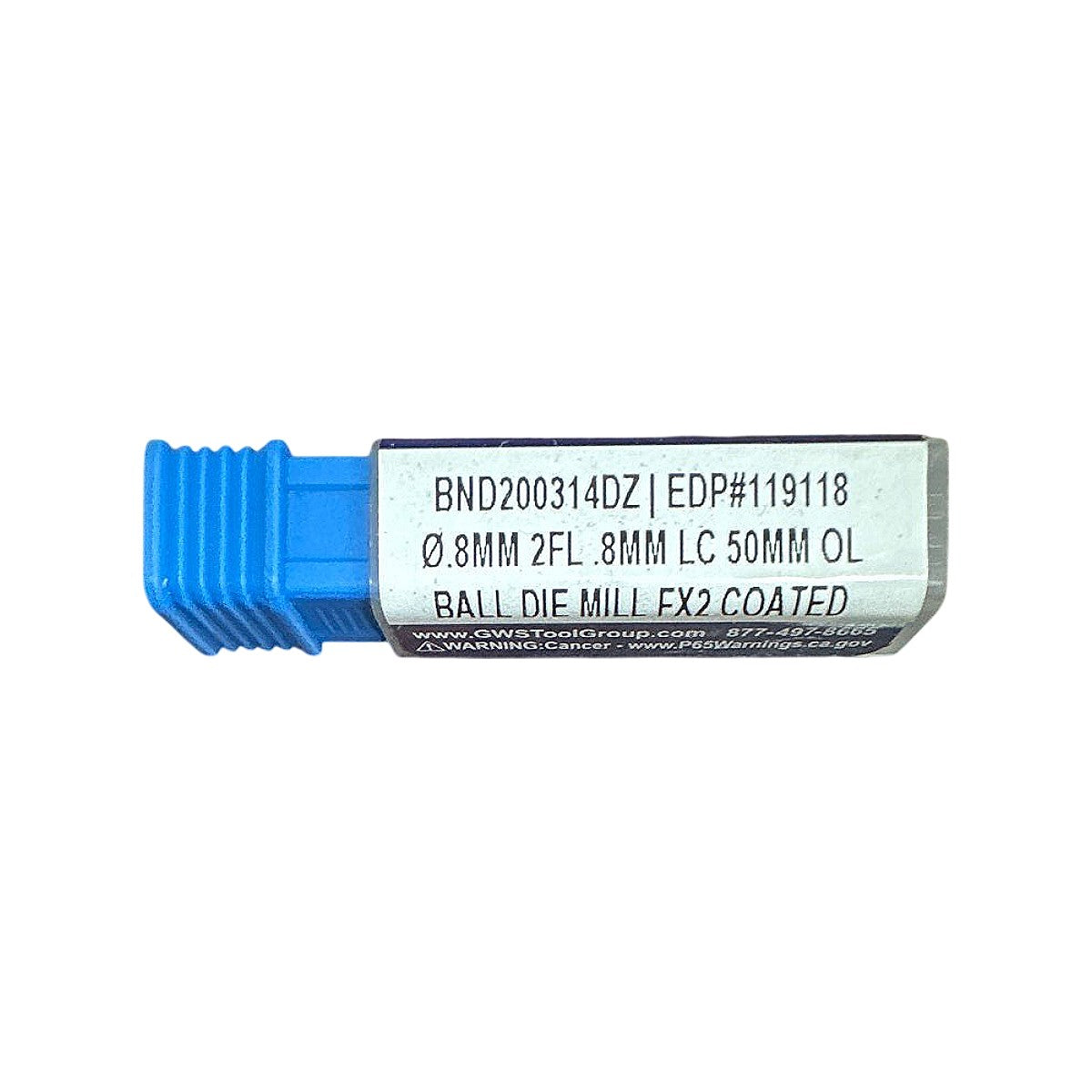

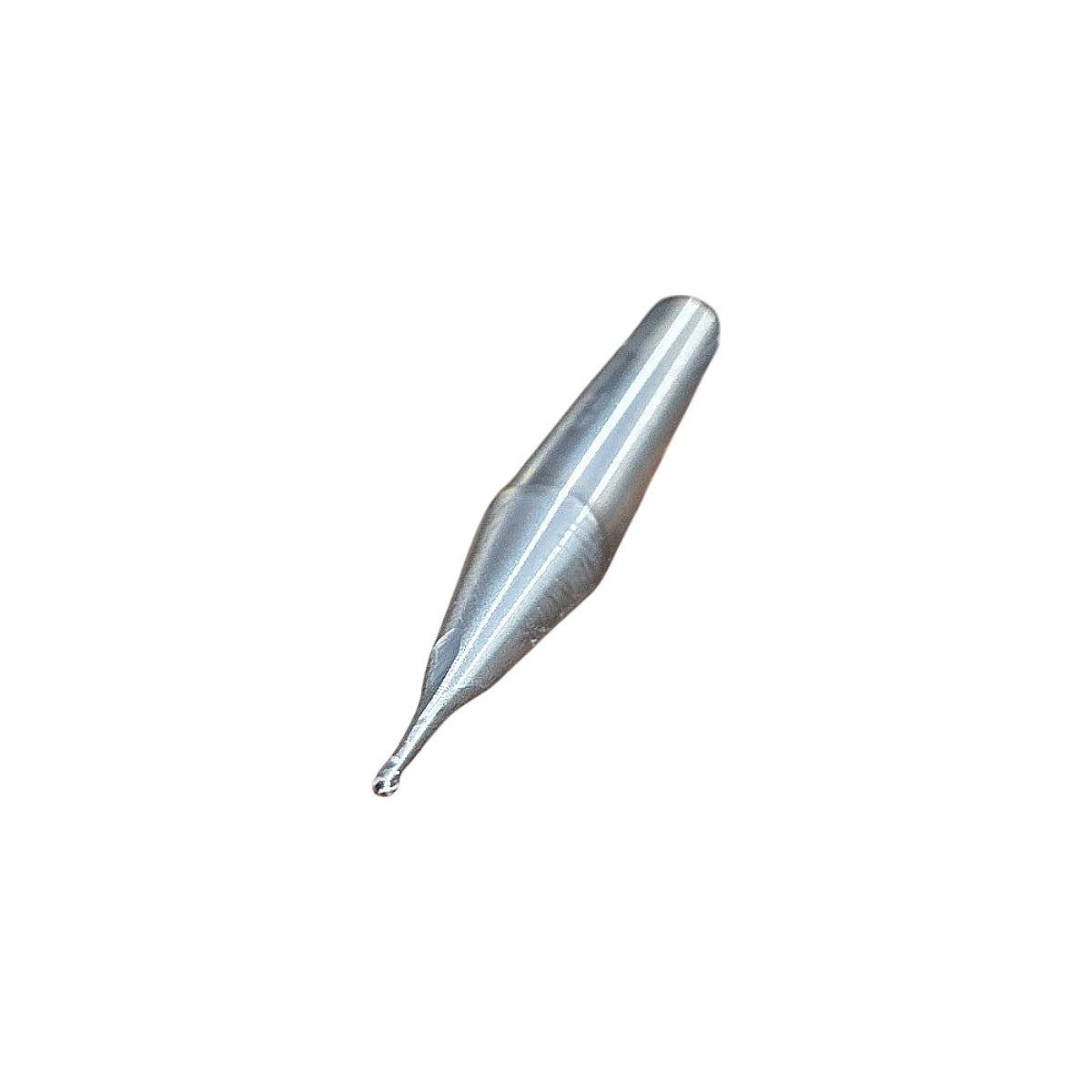

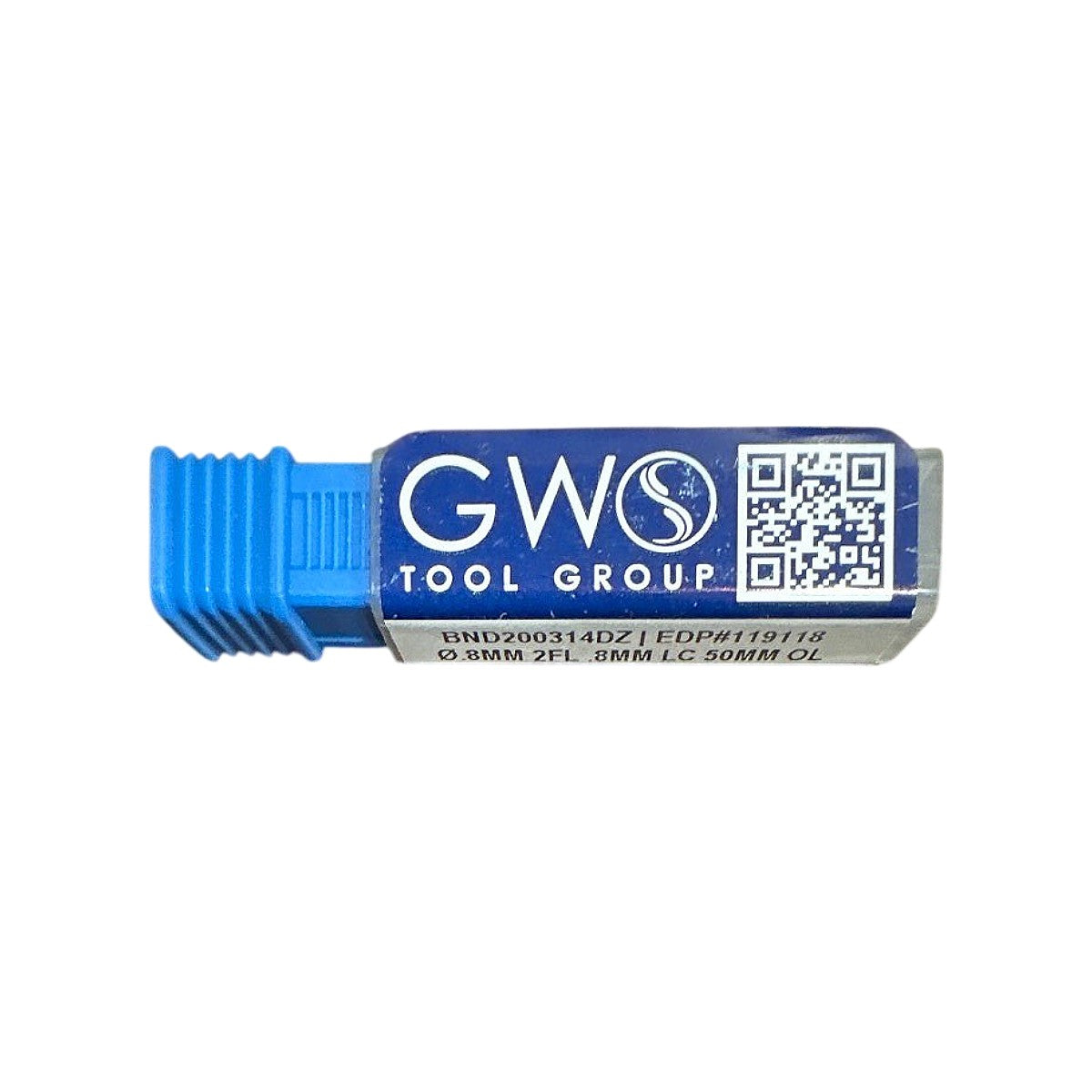

The GWS Tool Group BND200314DZ (EDP# 119118) is a 2-flute ball nose die mill with a 0.8mm cutting diameter, 0.8mm length of cut and 50mm overall length. It carries the FX2 coating and has a necked, reduced-diameter tip for reaching into deep, narrow cavities in 3D contouring and die and mold finishing. The ball nose profile produces a full-radius form for profiling, contouring and 3D surface finishing. This item is new.
Product Specifications
| Brand | GWS Tool Group |
| MPN | BND200314DZ |
| EDP # | 119118 |
| Cutting Diameter | 0.8 mm |
| Number of Flutes | 2 |
| Length of Cut | 0.8 mm |
| Overall Length | 50 mm |
| Coating | FX2 |
| End Type | Ball Nose |
| Tool Type | Ball Die Mill |
| Operation | 3D Contouring, Die/Mold Finishing |
| Neck Style | Necked/Reduced Neck |
| Material | Solid Carbide |
