GWS HGW5M08-.5 8mm 5FL 0.5mm CR NACO Carbide Corner Radius End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

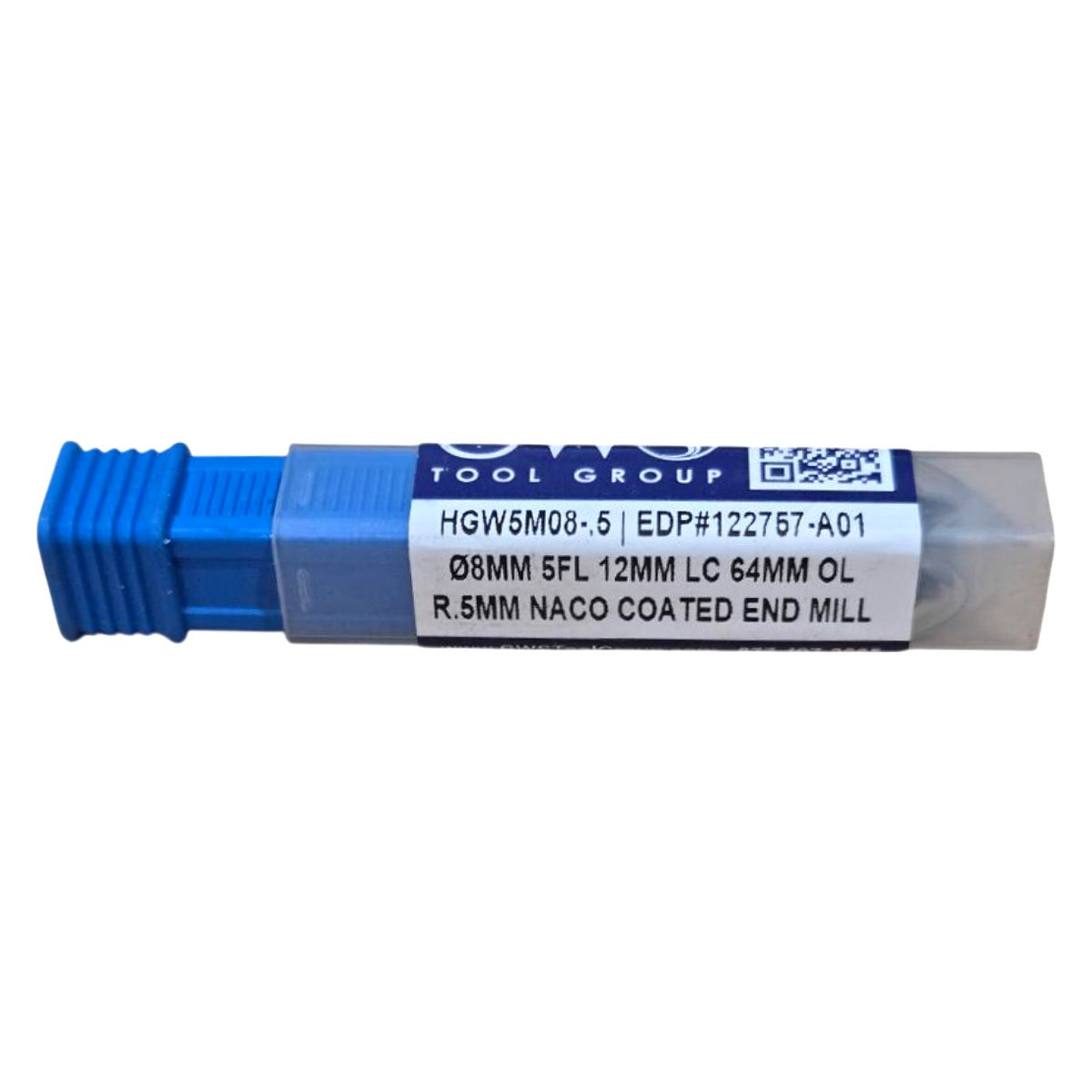

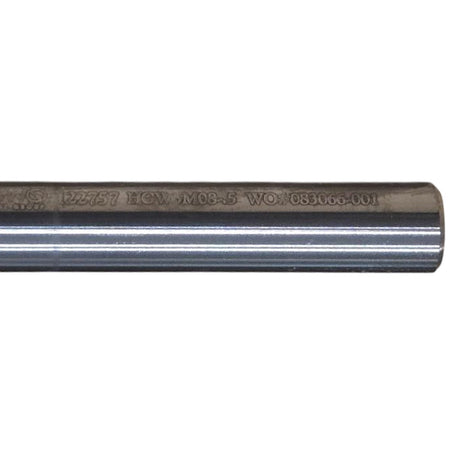

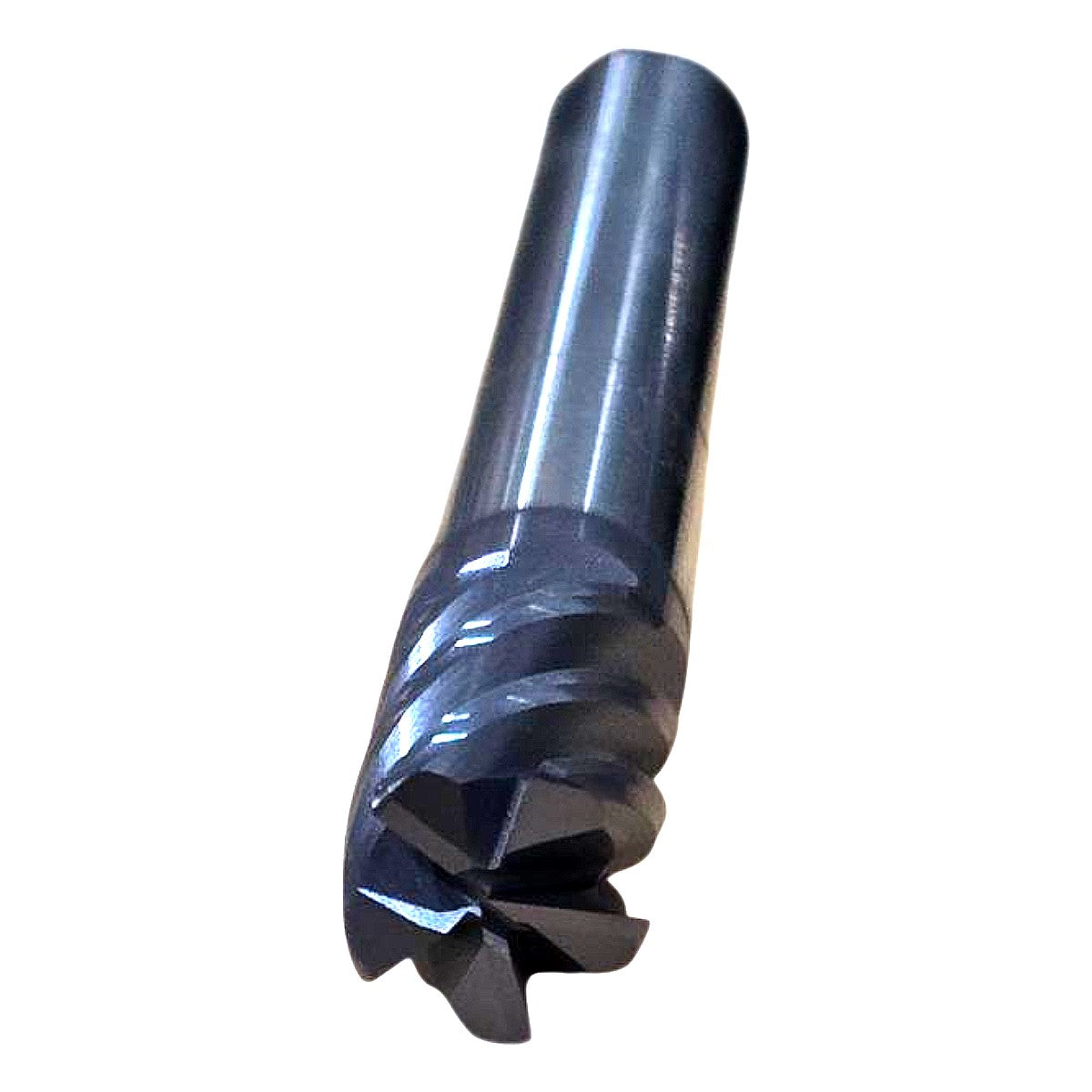

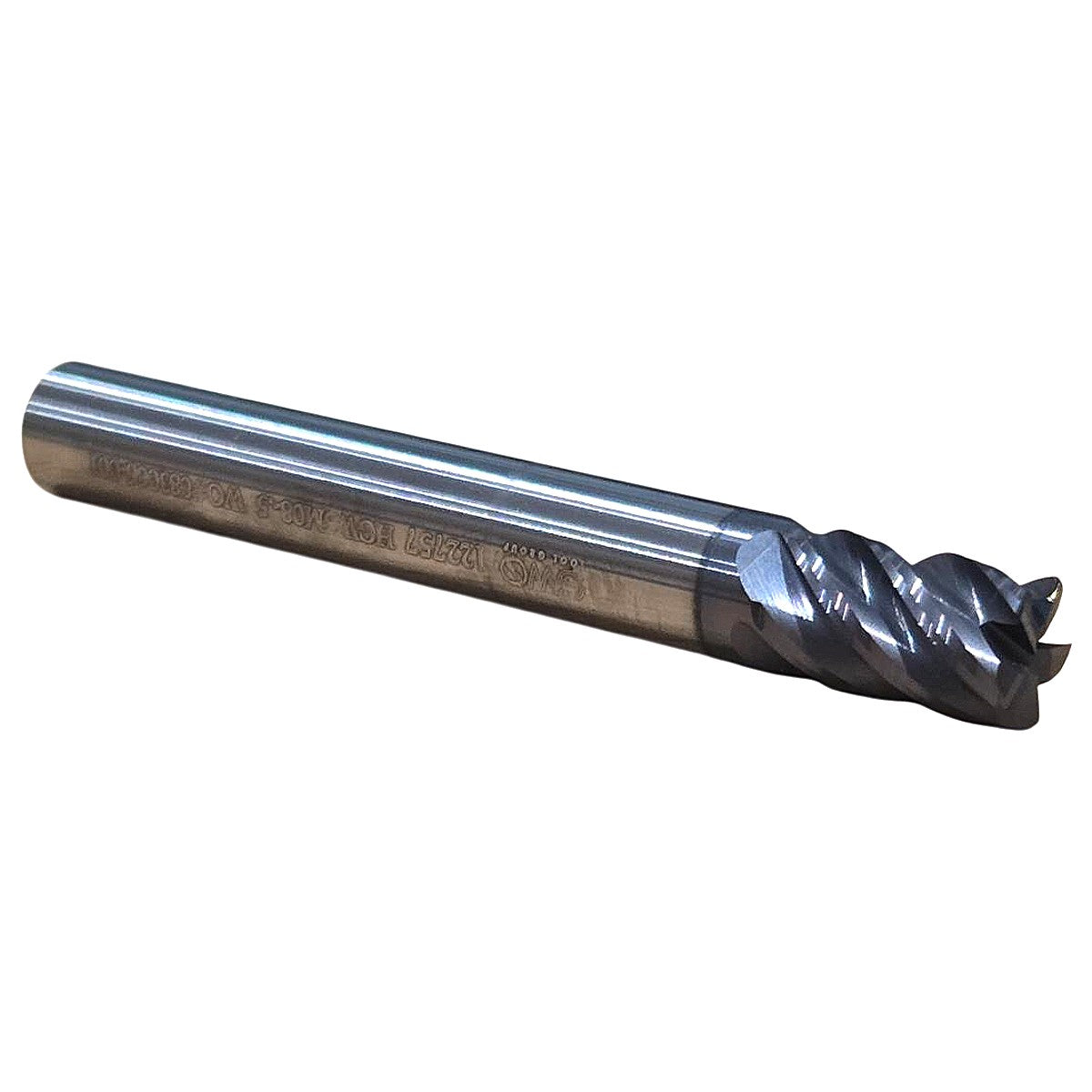

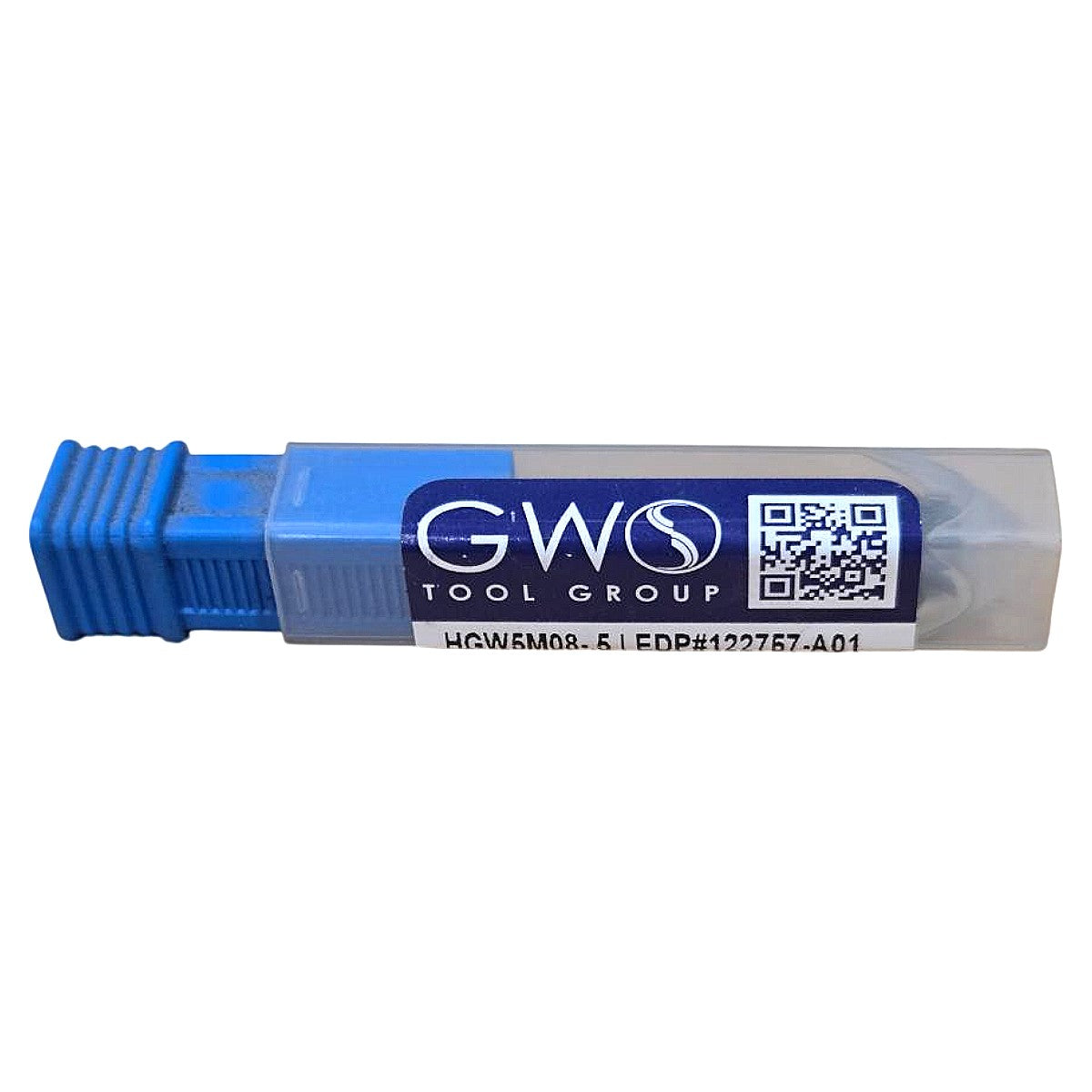

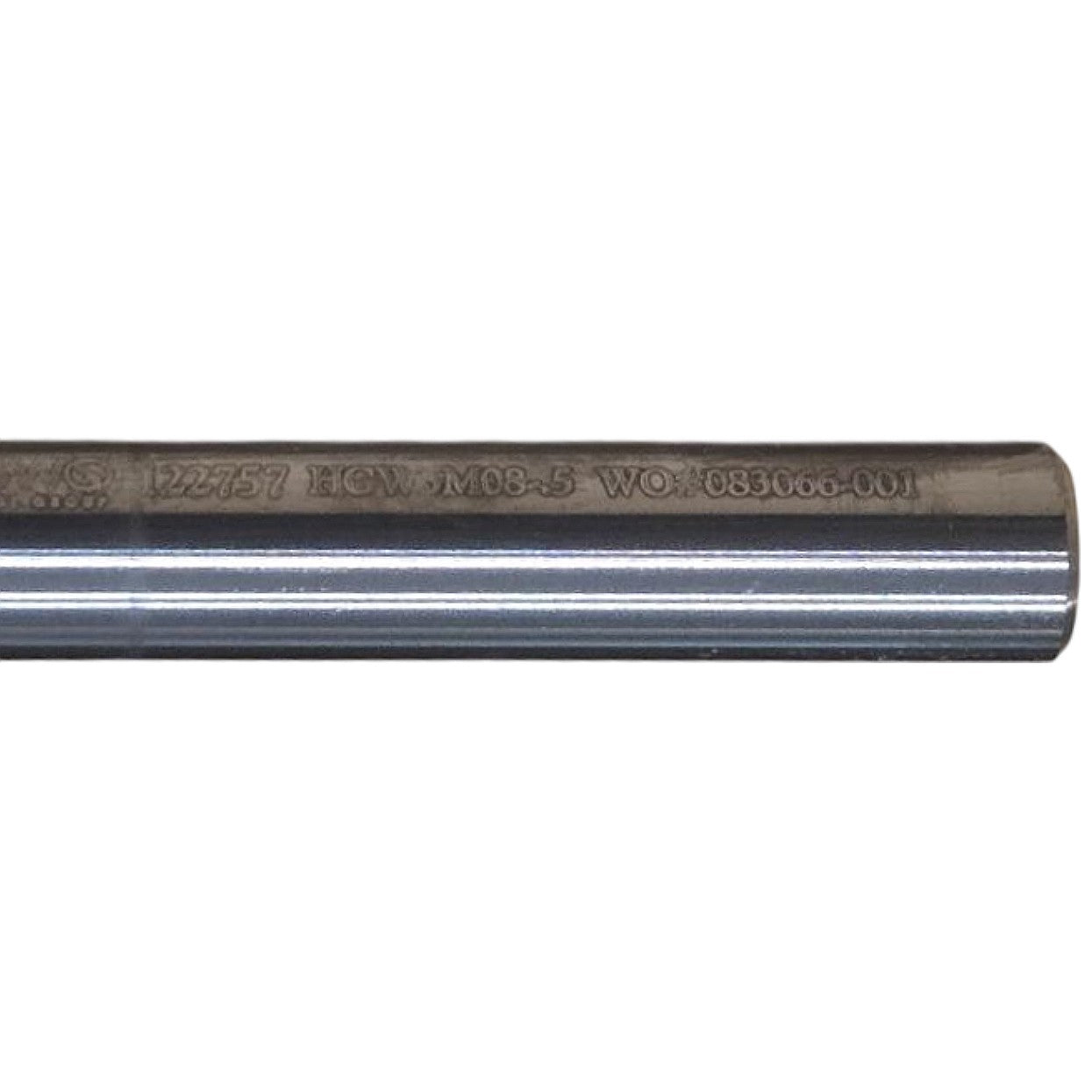

The GWS Tool Group HGW5M08-.5 (EDP# 122757-A01) is a new solid carbide, 5-flute corner radius end mill with an 8 mm cutting diameter, 0.5 mm corner radius, 12 mm length of cut, and 64 mm overall length — all confirmed directly from the packaging label and shank engraving. The tool is coated with GWS's NACO (Nanocomposite AlTiN/Si3N4) coating, a high-performance PVD nanocomposite coating that delivers elevated hardness (≈ 38 GPa), excellent oxidation resistance up to approximately 1,100 °C, and low friction, making it well-suited for high-speed machining of hardened steels, stainless steels, titanium alloys, and superalloys in demanding aerospace and die/mold applications. The 5-flute geometry increases chip load per tooth and core strength relative to a 4-flute design, enabling higher feed rates and improved surface finish in semi-finishing and finishing operations. The 8 mm shank diameter matches the cutting diameter for direct collet clamping in ER11, ER16, or ER20 collet chucks, shrink-fit holders, or hydraulic chucks with appropriate bore sizes.
Product Specifications
| Brand | GWS Tool Group |
| Model / MPN | HGW5M08-.5 |
| EDP# | 122757-A01 |
| Product Type | Corner Radius End Mill |
| Cutting Diameter | 8 mm |
| Number of Flutes | 5 |
| Corner Radius | 0.5 mm |
| Length of Cut (LOC) | 12 mm |
| Overall Length (OAL) | 64 mm |
| Shank Diameter | 8 mm |
| Shank Type | Straight / Cylindrical |
| Substrate | Solid Carbide |
| Coating | NACO (Nanocomposite AlTiN/Si3N4) |
| End Type | Corner Radius (Bull Nose) |
| Helix Angle | 45° |
| Condition | New |
