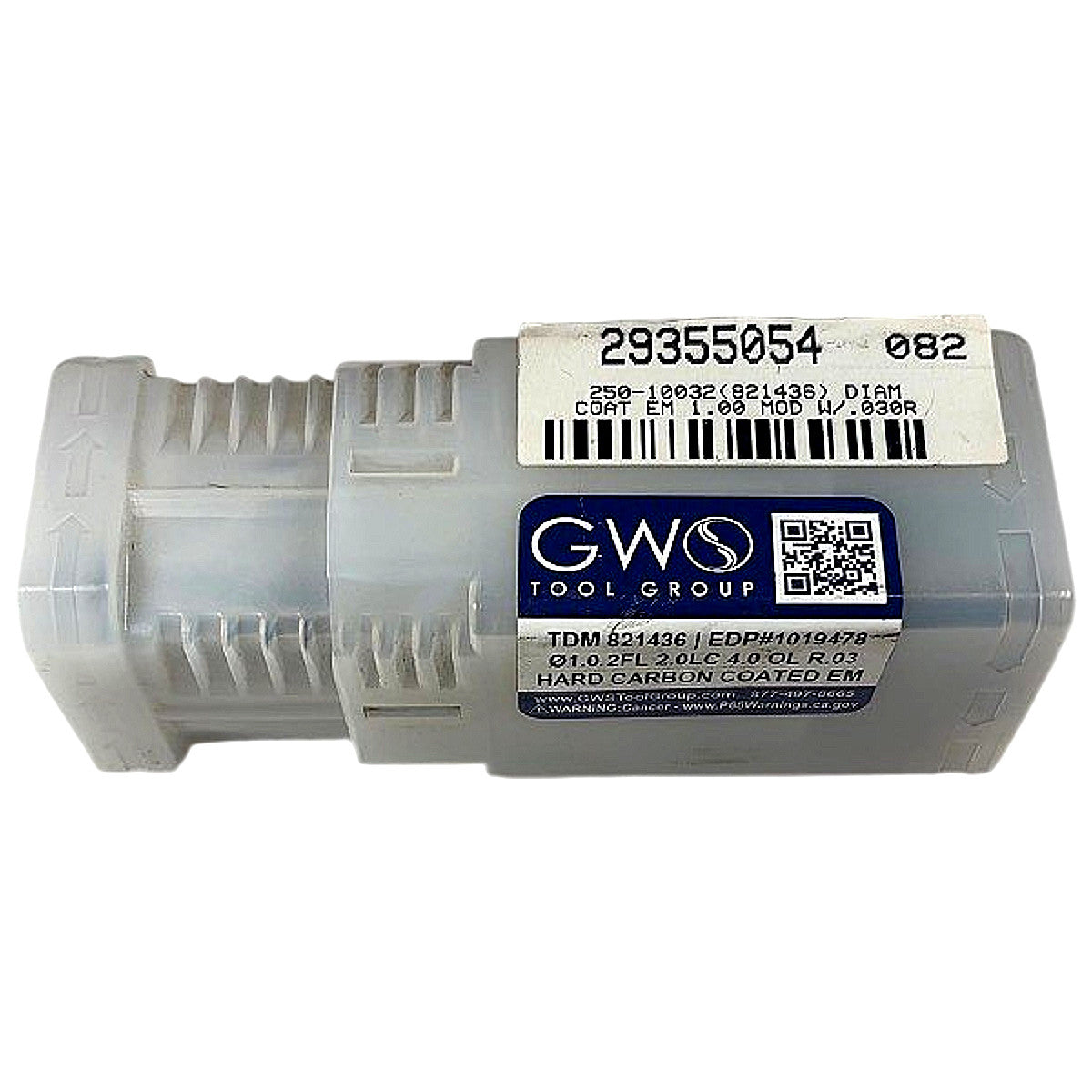

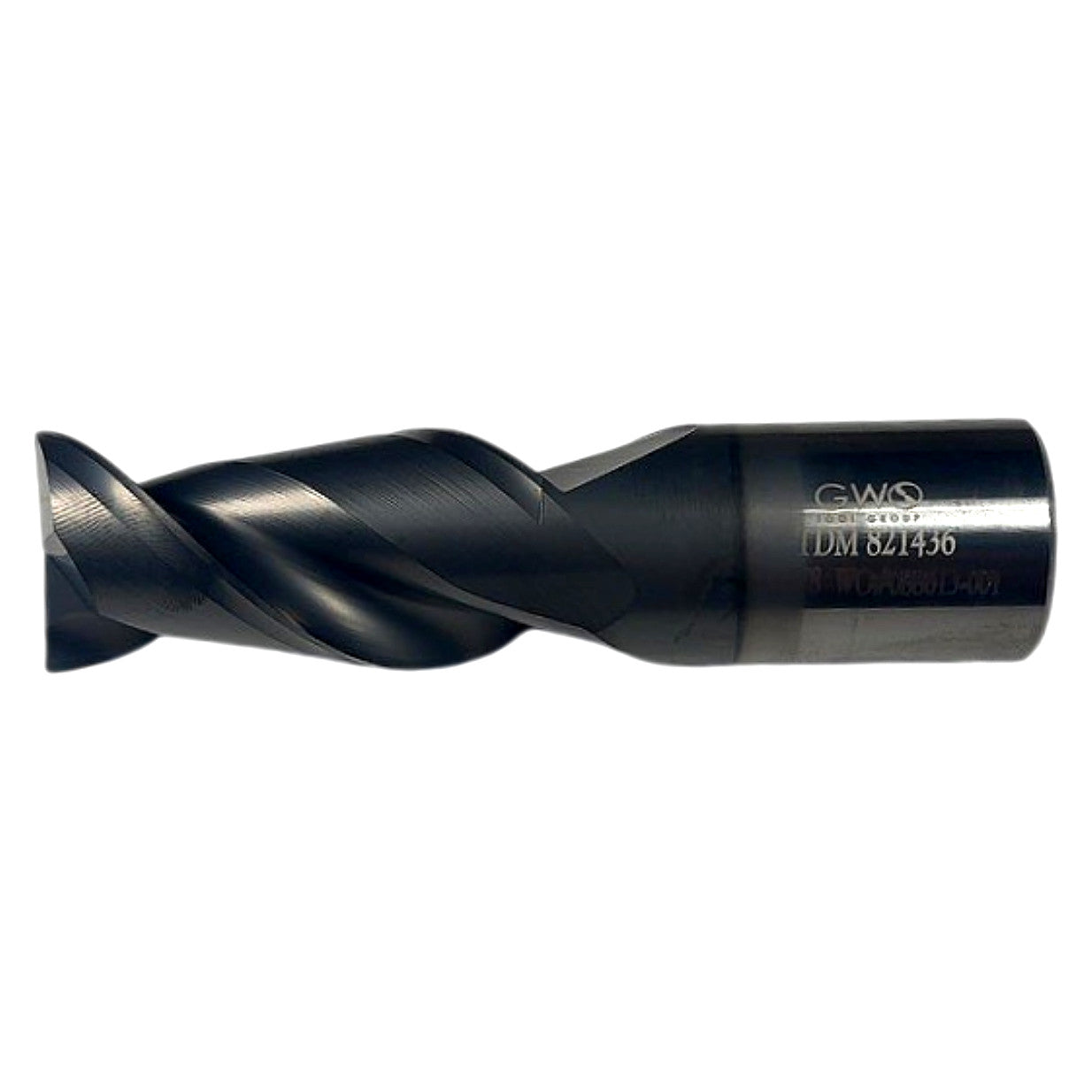

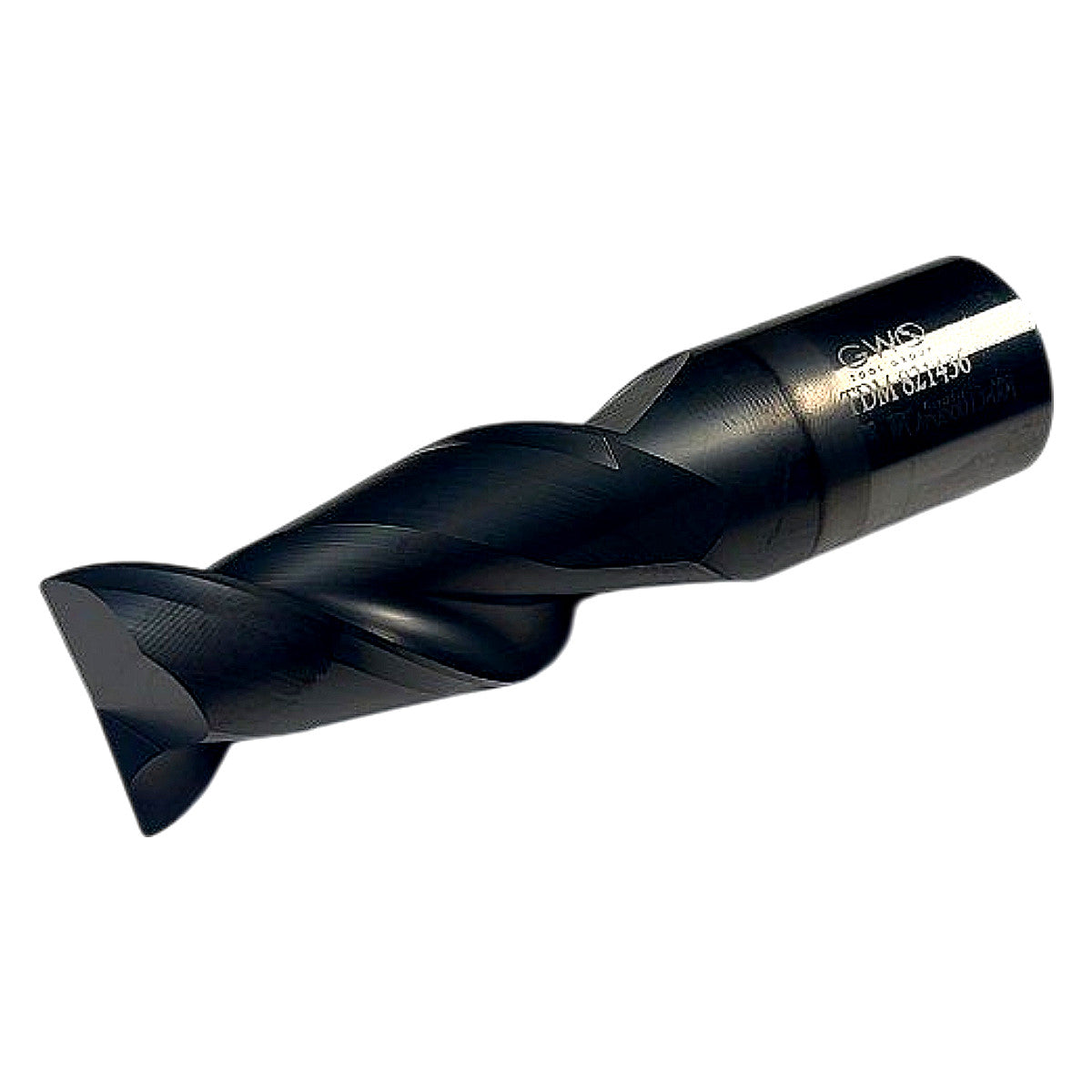

The GWS Tool Group TDM 821436 (EDP# 1019478) is a new, solid carbide end mill with a 1.0 in cutting diameter, 2-flute configuration, 2.0 in length of cut, 4.0 in overall length, and a 0.030 in corner radius, making it a corner-radius (bull-nose) style end mill rather than a sharp-cornered flat end mill. The tool carries GWS's "Hard Carbon" coating — a DLC-family (diamond-like carbon) hard coating optimized for non-ferrous and high-silicon aluminum alloys, composite materials, graphite, and other abrasive, adhesive workpiece materials where conventional AlTiN or TiN coatings would load up; the black, low-friction surface finish is clearly visible in the photos. The 1.0 in shank diameter matches the cutting diameter (confirmed on the box label: "250-10032(821436) DIAM COAT EM 1.00 MOD W/.030R"), indicating a straight shank suited for standard end mill holders, Weldon-flat holders, or hydraulic/shrink-fit chucks with a 1 in bore.
Product Specifications
| Brand | GWS Tool Group |
| Model / TDM # | TDM 821436 |
| EDP # | 1019478 |
| Cutting Diameter | 1.0 in |
| Number of Flutes | 2 |
| Length of Cut (LOC) | 2.0 in |
| Overall Length (OAL) | 4.0 in |
| Corner Radius | 0.030 in |
| End Type | Corner Radius (Bull Nose) |
| Shank Diameter | 1.0 in |
| Shank Type | Straight |
| Coating | Hard Carbon (DLC-type) |
| Substrate | Solid Carbide |
| Condition | New |
