GWS TDM820096 1" 2FL 0.5 LC 7.0 OL ZRN Coated Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

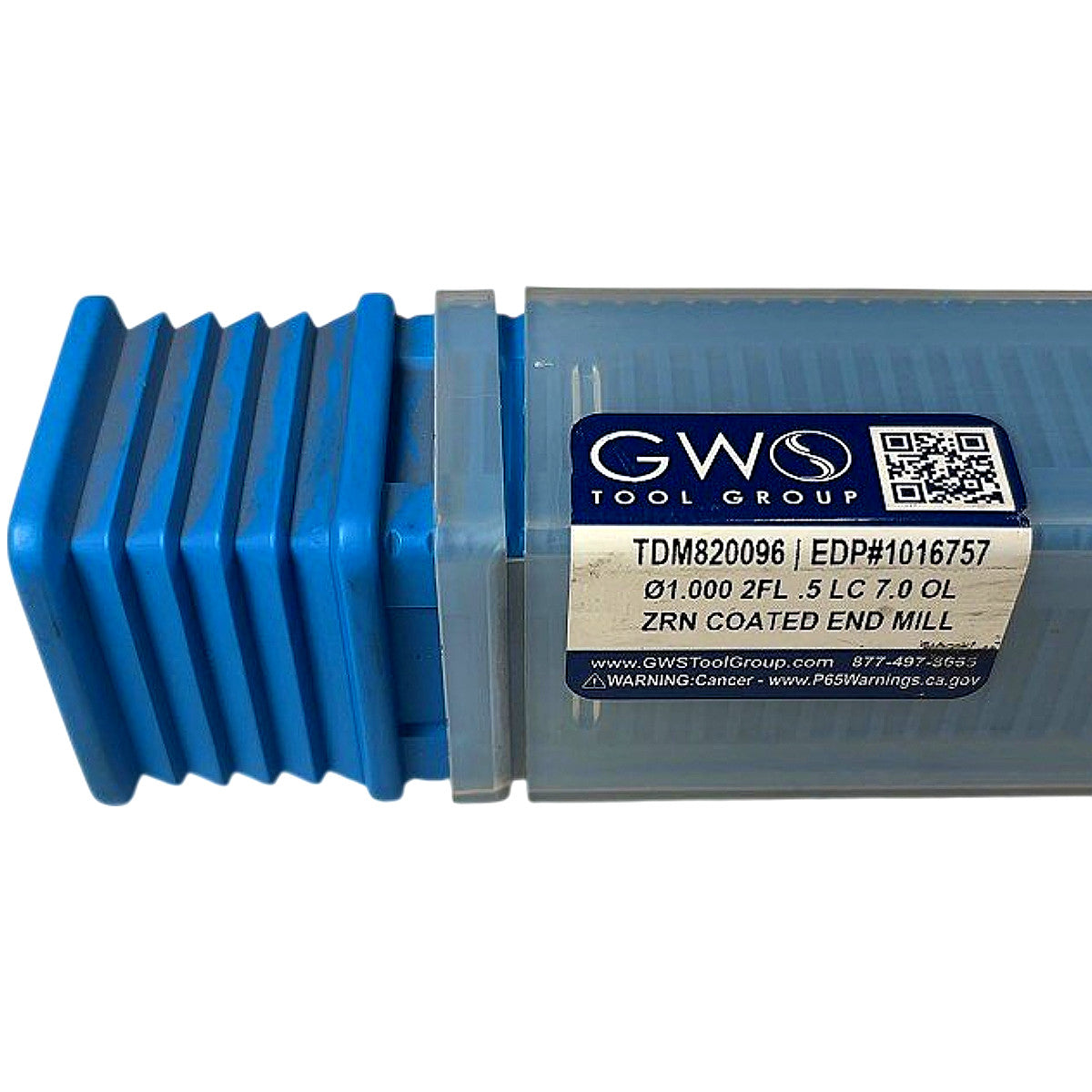

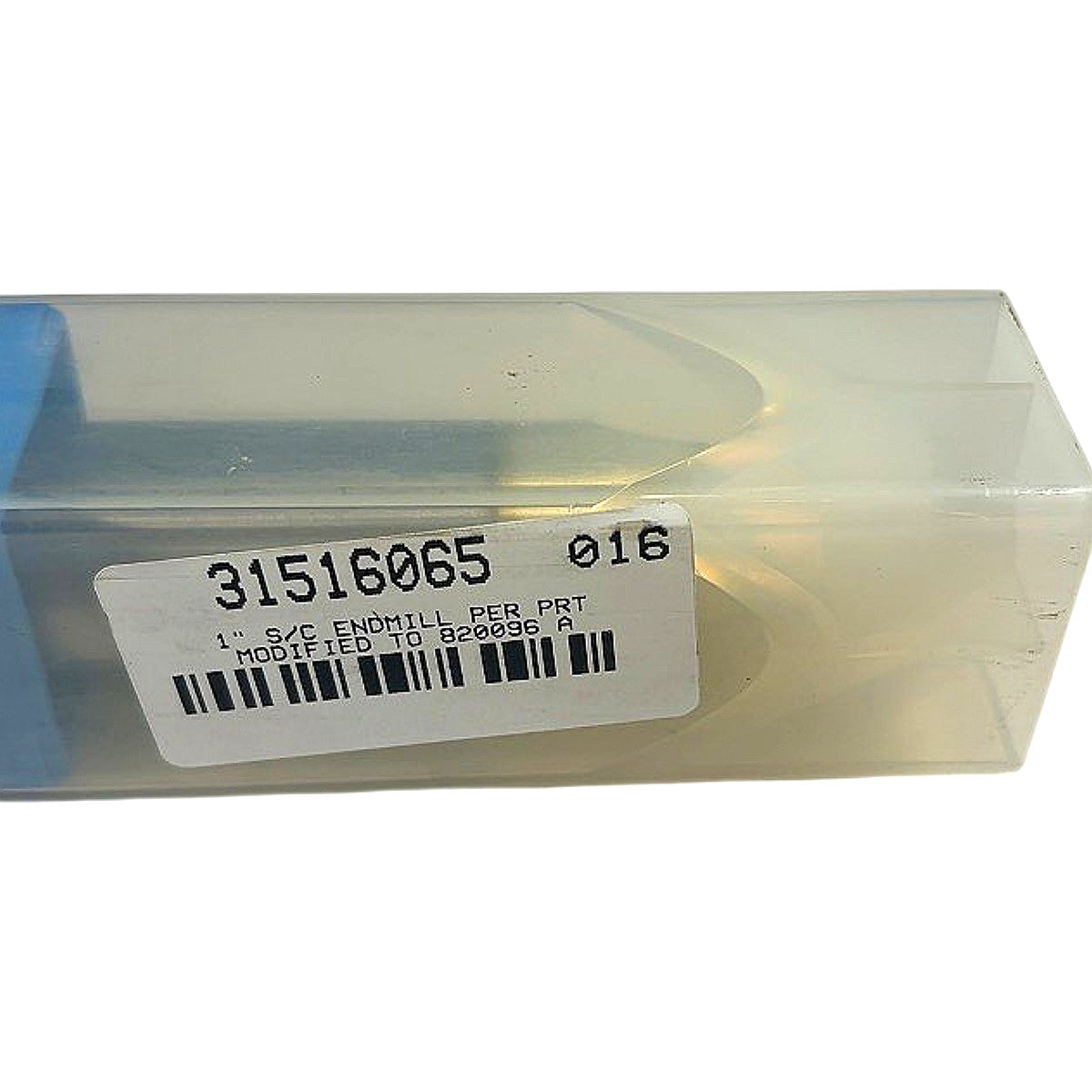

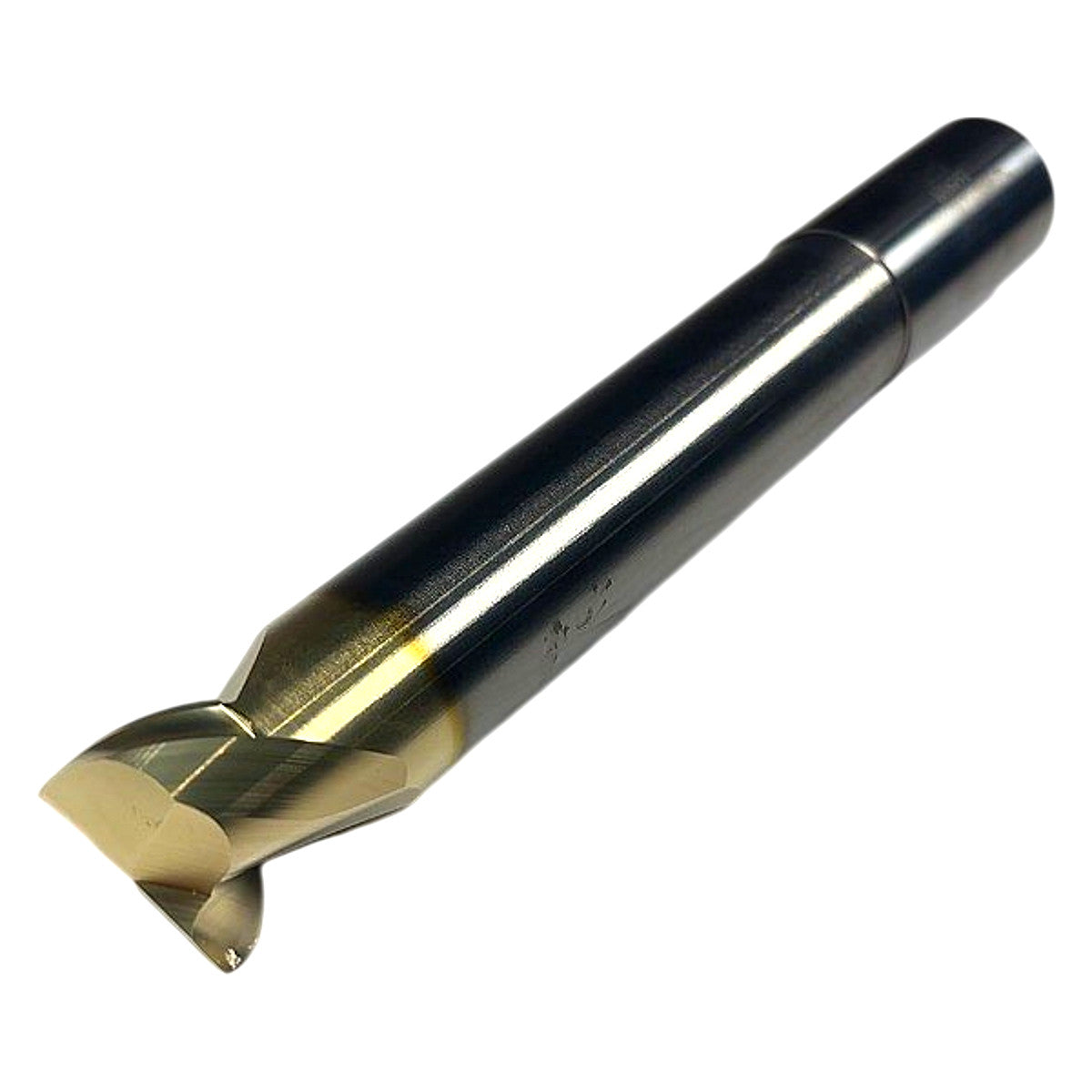

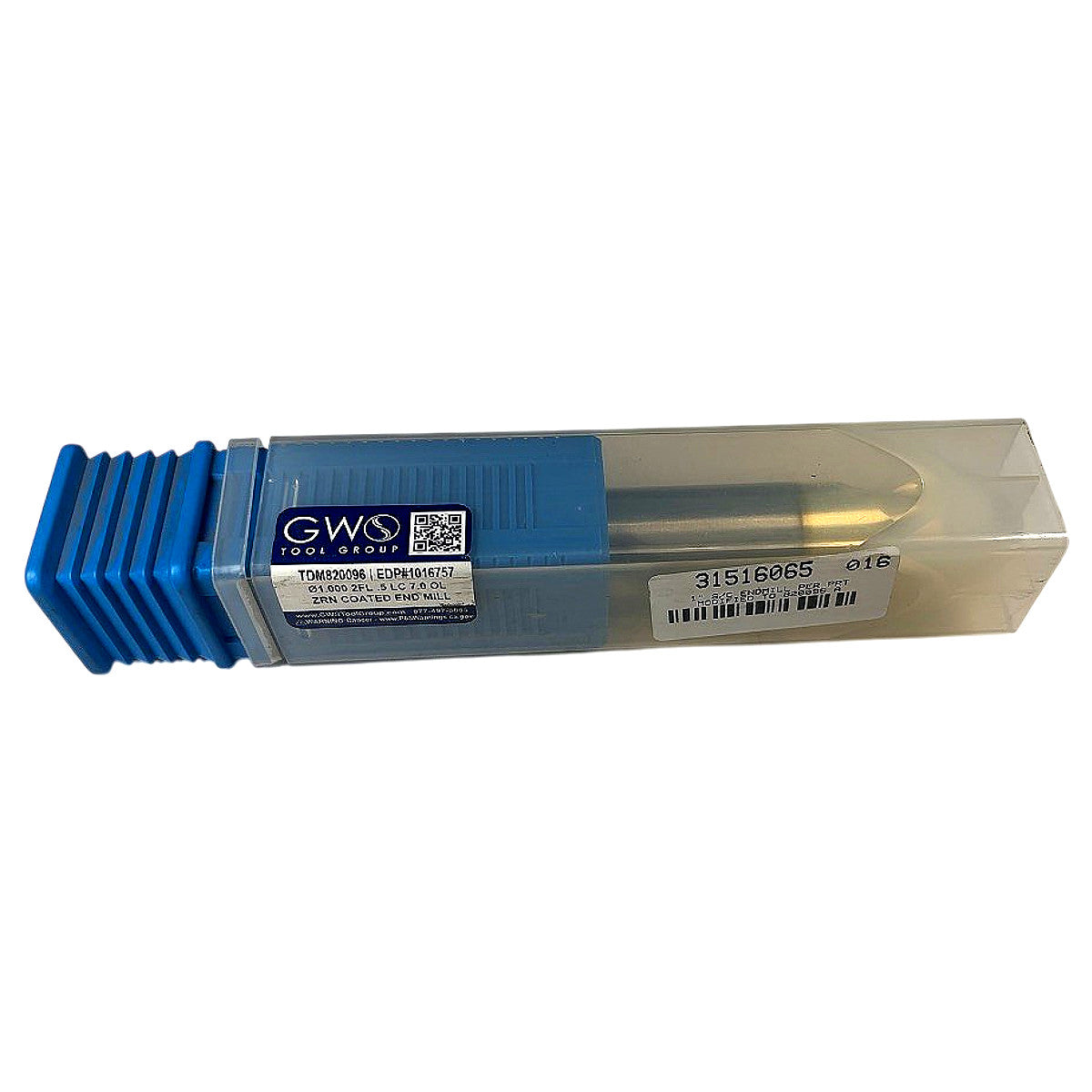

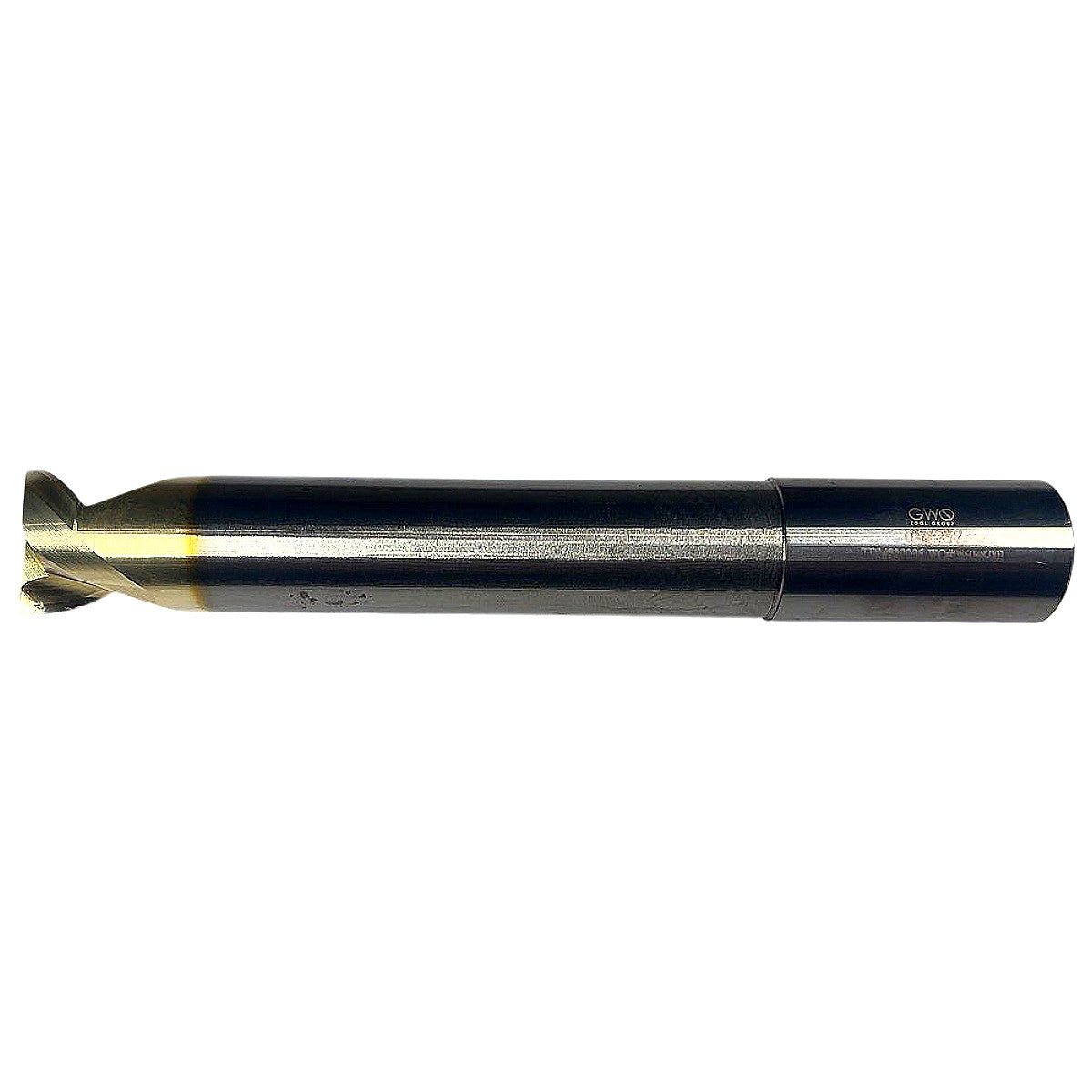

The GWS Tool Group TDM820096 (EDP# 1016757) is a new solid carbide square-end end mill ground to a modified specification per the label notation "Modified to 820096 A," indicating a custom or contract-ground geometry deviation from the standard catalog profile. The tool is 1.000 in. diameter with 2 flutes, a 0.500 in. length of cut, and a 7.000 in. overall length, providing an extended-reach configuration suited for deep-pocket and slotting operations where clearance is required. The cutting end and flutes are coated in ZrN (Zirconium Nitride), identifiable by the characteristic gold/brass color visible on the cutting end, which provides low friction, high surface hardness, and excellent performance in non-ferrous materials such as aluminum, copper, brass, and plastics. The 1 in. straight shank is compatible with standard 1 in. ER collet chucks, hydraulic holders, and Weldon flat-style end mill holders. This tool is supplied new in the original GWS Tool Group plastic storage tube.
Product Specifications
| Brand | GWS Tool Group |
| MPN | TDM820096 |
| EDP# | 1016757 |
| Cutting Diameter | 1.000 in |
| Number of Flutes | 2 |
| Length of Cut (LC) | 0.500 in |
| Overall Length (OL) | 7.000 in |
| Shank Diameter | 1.000 in |
| Coating | ZrN (Zirconium Nitride) |
| End Geometry | Square (Flat) End |
| Material | Solid Carbide |
| Condition | New |
| Modification Note | Modified to 820096 A per part label |
