GWS Tool Group CNMG 432 CG9435P-D Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

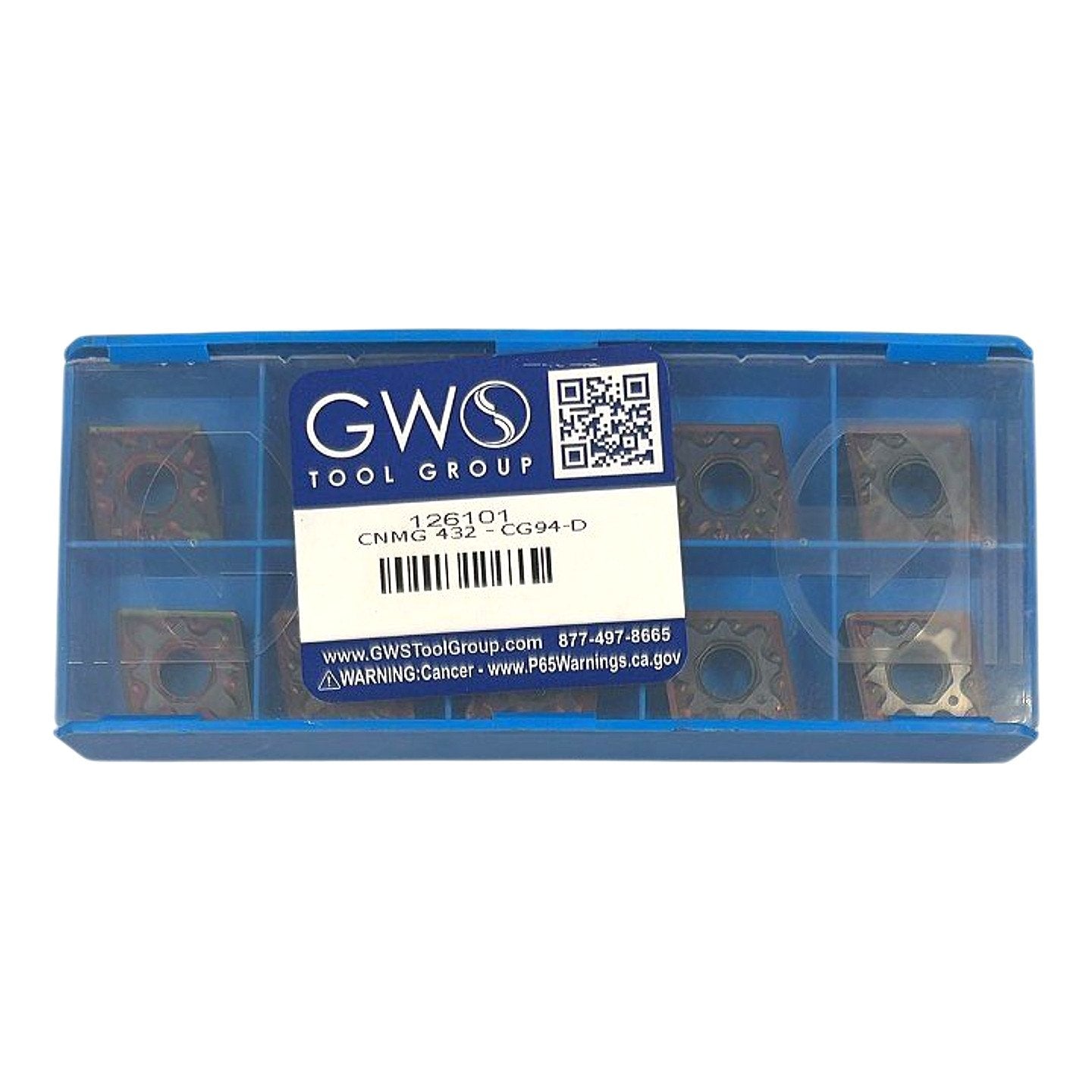

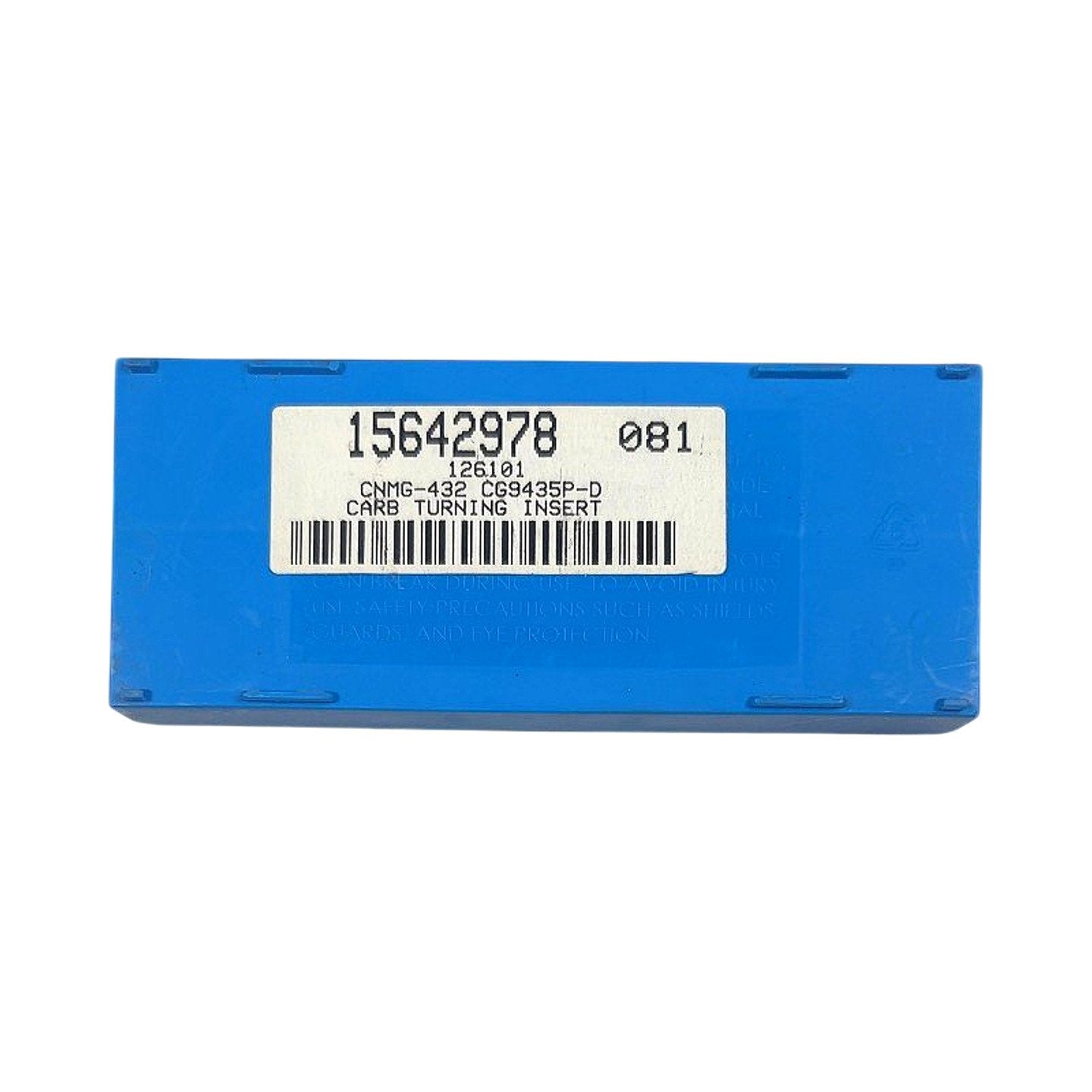

These are new GWS Tool Group CNMG 432 carbide turning inserts in grade CG9435P-D, sold as a 10-piece box (GWS part number 126101, distributor stock number 15642978). The CNMG designation decodes as: 80° diamond shape (C), 0° clearance angle (N), M-tolerance, G-type chipbreaker (double-sided, with hole and countersink), 4 = 1/2 in (12.7 mm) inscribed circle, 3 = 3/16 in (4.76 mm) thickness, 2 = 1/32 in (0.794 mm) nose radius. The CG9435P-D grade is a CVD-coated cemented carbide substrate developed by GWS Tool Group for steel turning (ISO P application), with the deep burgundy/violet PVD or CVD coating visible in the photos indicating a TiAlN or Al2O3-based multilayer stack optimized for wear resistance at elevated temperatures. The double-sided chipbreaker geometry supports interrupted and continuous cuts in low-to-medium alloy steels on CNC lathes using CNMG-compatible toolholders (e.g., PCLNR/L, MCLNR/L style shanks).
Product Specifications
| Brand | GWS Tool Group |
| MPN | CNMG 432-CG94-D / 126101 |
| Distributor Stock # | 15642978 |
| Insert Designation | CNMG 432 |
| Insert Shape | 80° Diamond (C) |
| Clearance Angle | 0° (N) |
| Tolerance Class | M |
| Chipbreaker Type | G – double-sided, hole w/ countersink |
| Inscribed Circle (IC) | 1/2 in (12.7 mm) |
| Insert Thickness | 3/16 in (4.76 mm) |
| Nose Radius | 1/32 in (0.794 mm) |
| Grade | CG9435P-D |
| Substrate | Cemented carbide |
| Coating | CVD multilayer (Al2O3/TiCN-based) |
| ISO Application | P (steel turning) |
| Cutting Edges per Insert | 4 (double-sided, 2 per face) |
| Quantity per Box | 10 |
| Condition | New |
| Compatible Toolholder Style | PCLNR/L, MCLNR/L (CNMG pocket) |
