Hakko FM2022-02 24V 140W ESD Safe Parallel Remover Handpiece
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

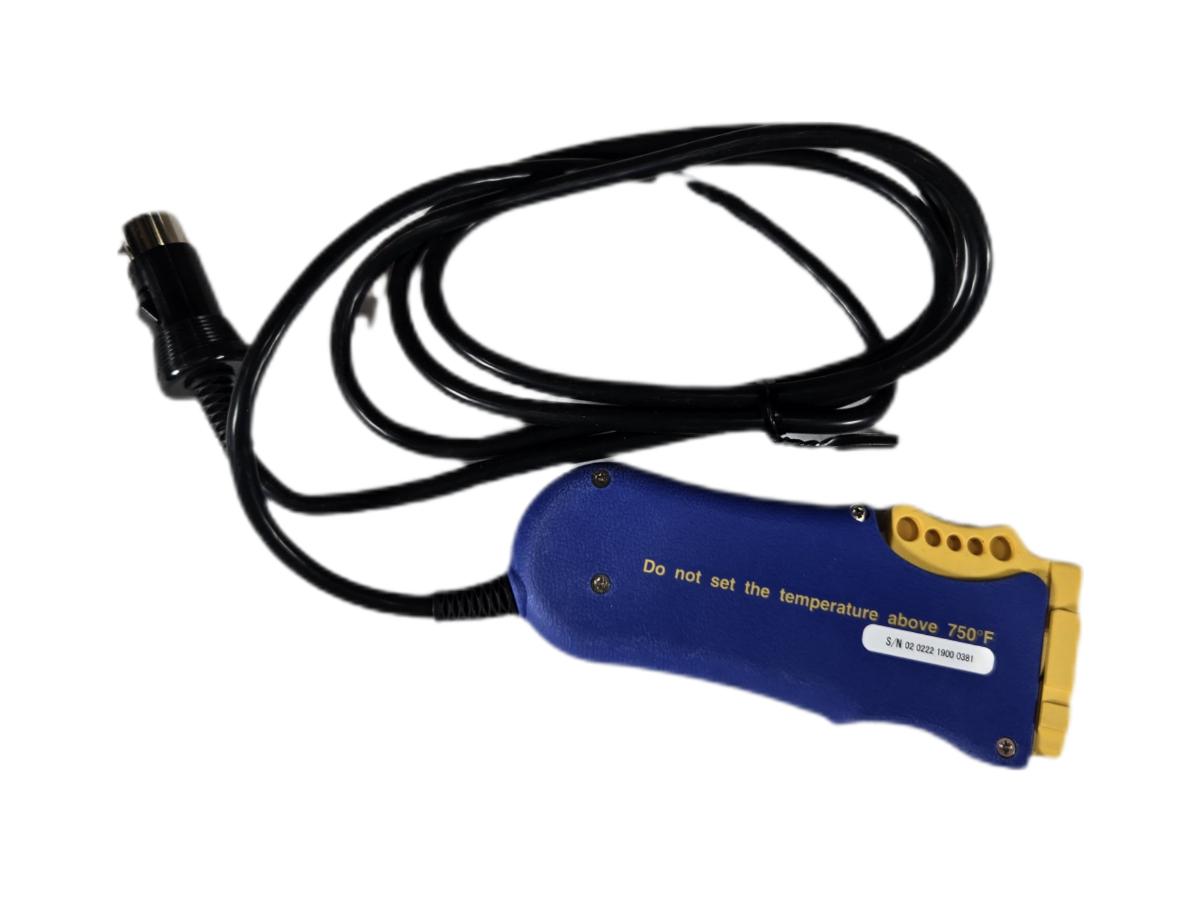

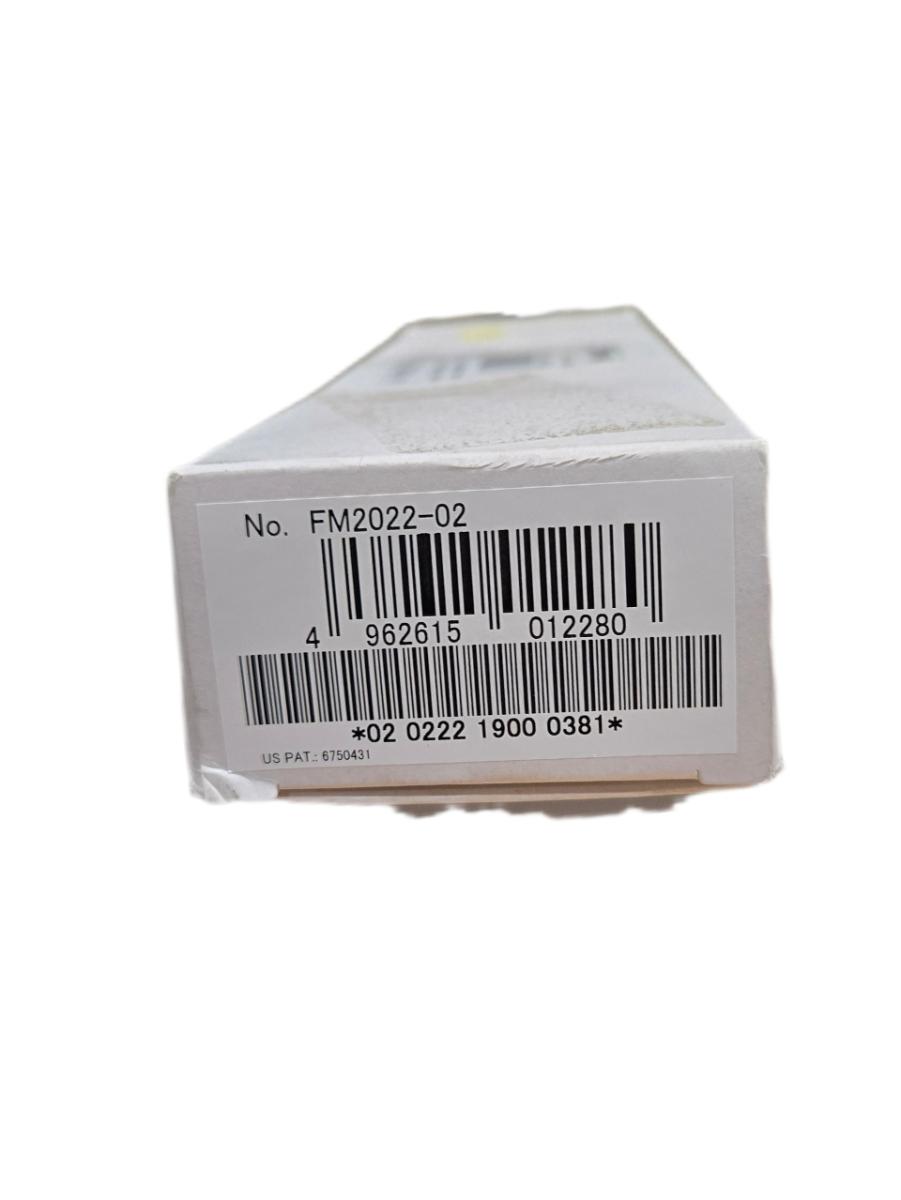

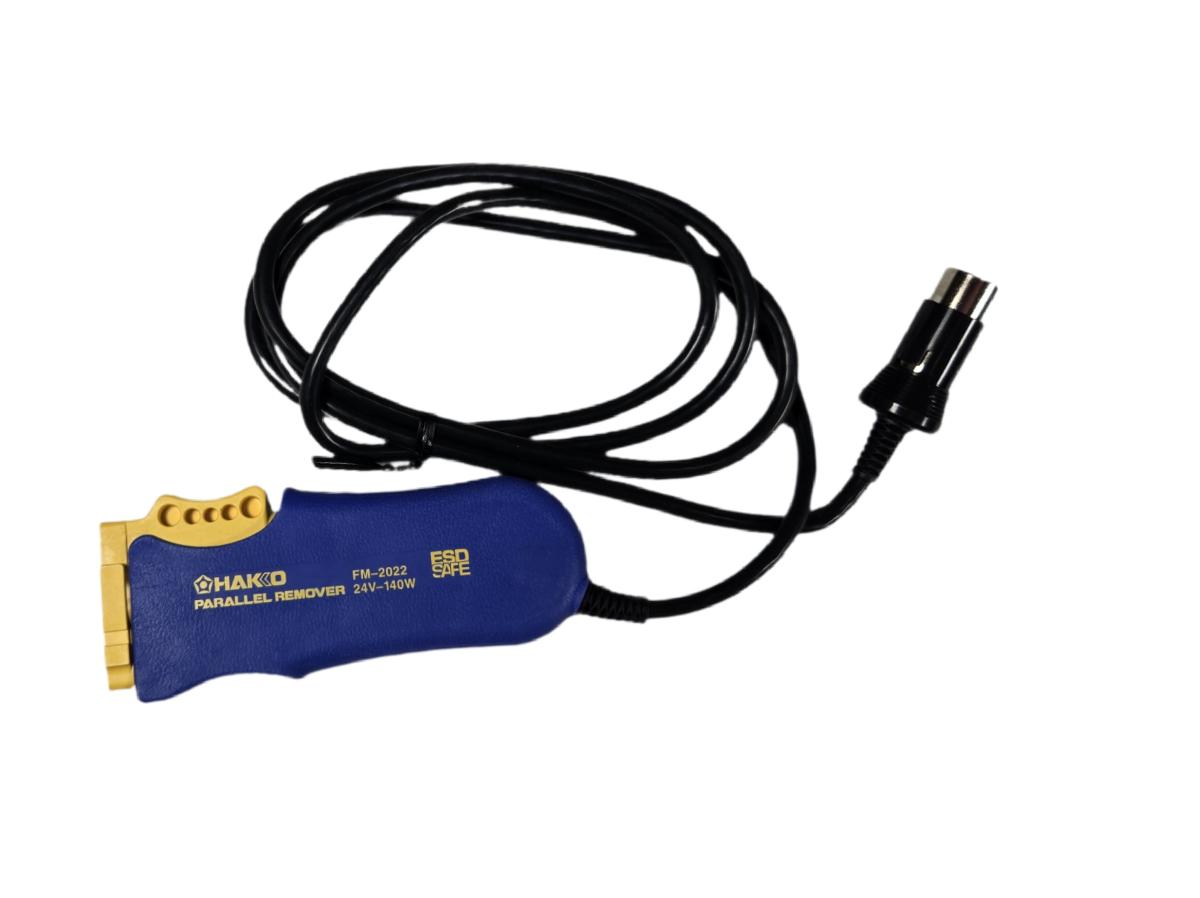

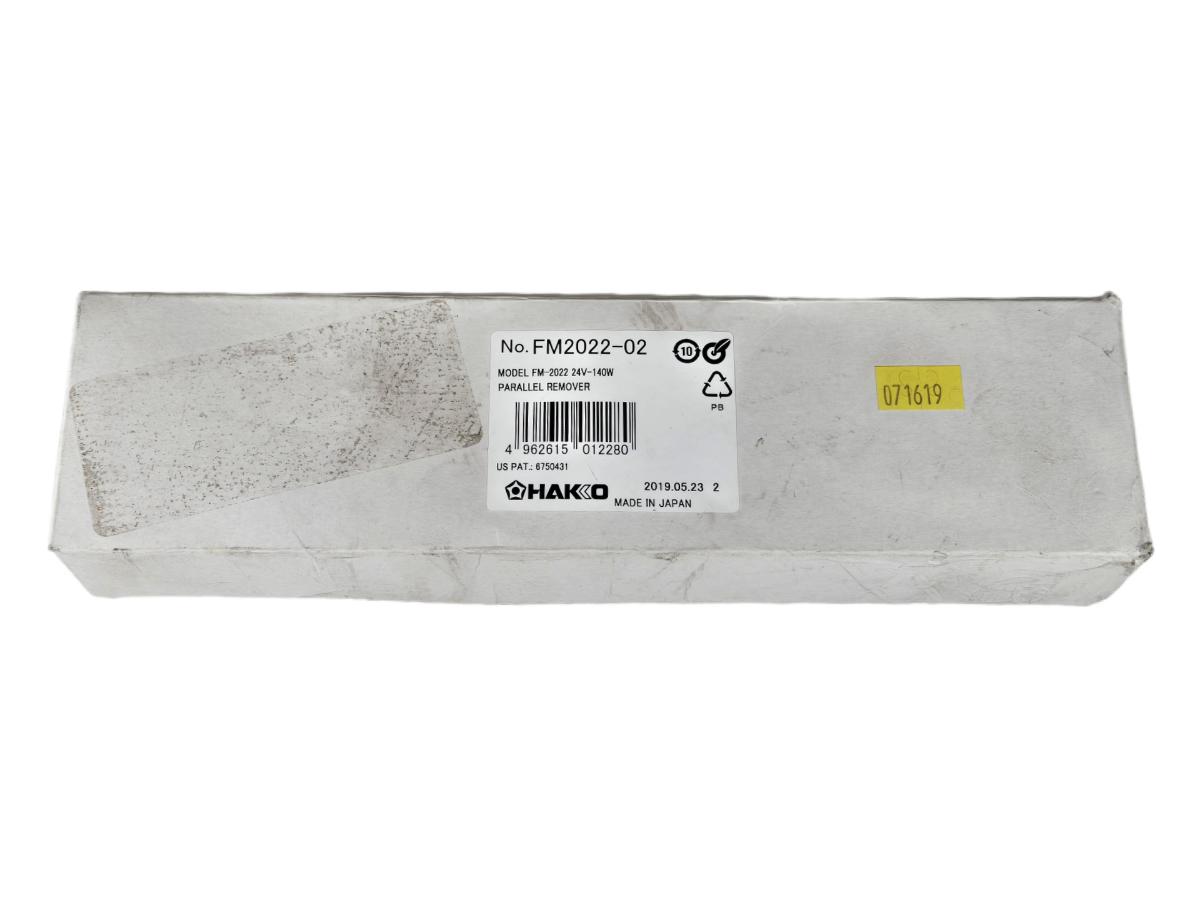

The Hakko FM2022-02 is a new, genuine Hakko FM-2022 Parallel Remover handpiece rated at 24V / 140W, designed for removing flat-pack SMD components such as SOIC, SOP, QFP, and similar parallel-lead ICs by simultaneously heating all leads in a single pass. The handpiece is ESD-safe, features a blue rubberized ergonomic grip with a gold-anodized aluminum heat block at the tip, and connects to a compatible Hakko station via a multi-pin DIN-style connector on the approximately 1.5-meter cable. The label on the handpiece explicitly cautions against exceeding 750°F (399°C) set temperature, and the unit carries US Patent 6750431. Part number FM2022-02 denotes the FM-2022 model handpiece with the -02 suffix indicating the standard cable/connector configuration; it is manufactured in Japan and dated 2019-05-23 per box labeling. This handpiece is compatible with Hakko FM-203, FM-204, FM-206, and other Hakko soldering/rework stations equipped with the corresponding FM-series port.
Product Specifications
| Manufacturer | Hakko |
| Model Number | FM-2022 |
| Part Number | FM2022-02 |
| Voltage | 24V |
| Power Rating | 140W |
| Maximum Set Temperature | 750°F (399°C) |
| ESD Safe | Yes |
| Connector Type | Multi-pin DIN (FM-series station connector) |
| Country of Origin | Japan |
| Manufacture Date | 2019-05-23 |
| US Patent | 6750431 |
| Condition | New |
| Serial Number | 02 0222 1900 0381 |
