Harrington NTH010 NTH4-9776 1-Ton Navy Hand Chain Hoist with Trolley

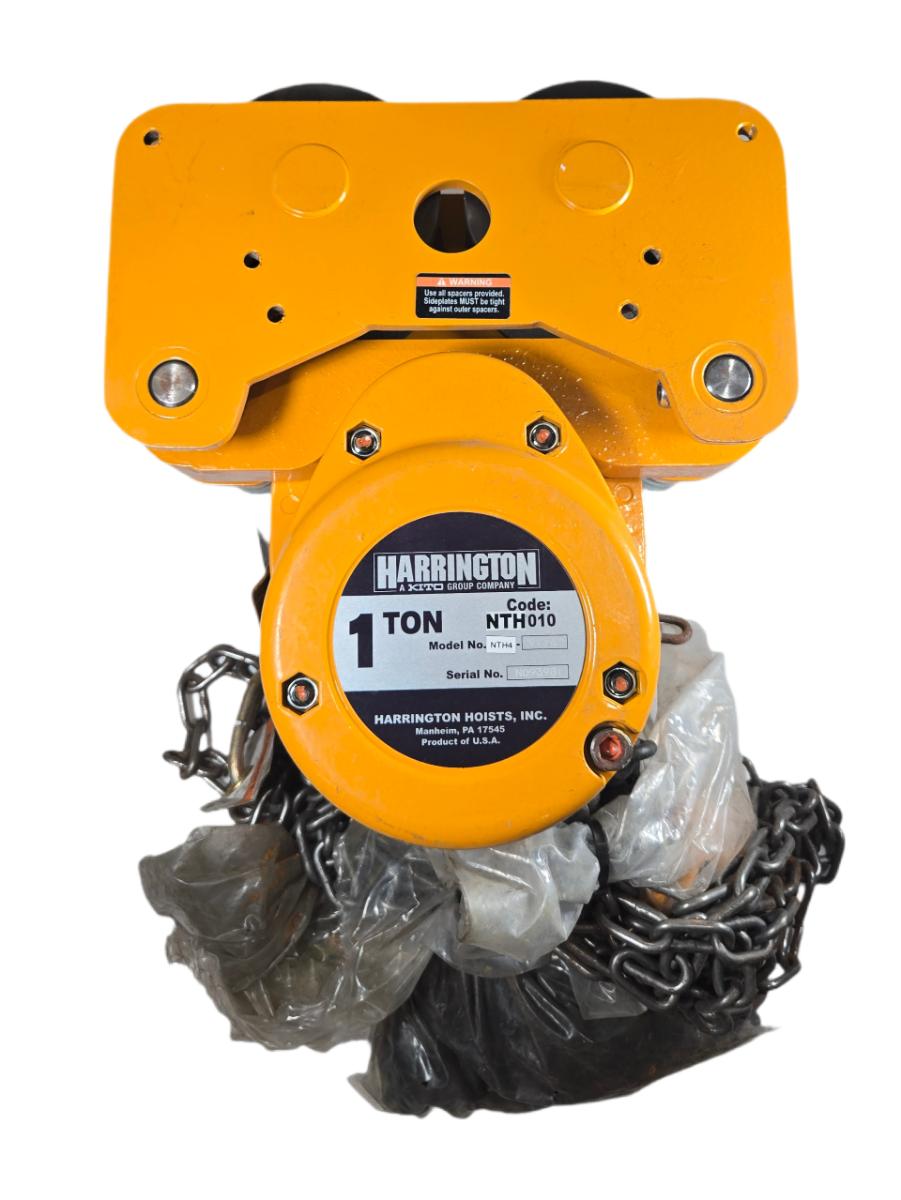

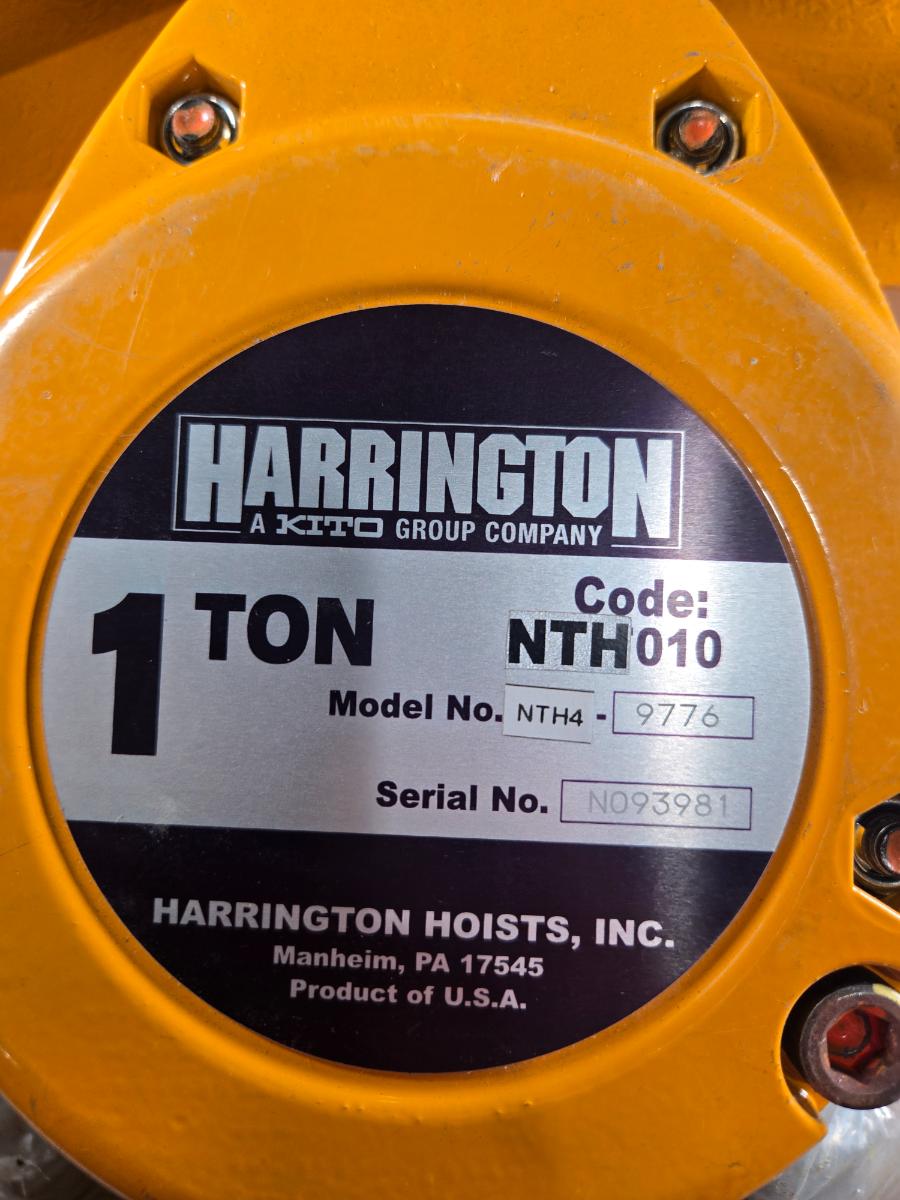

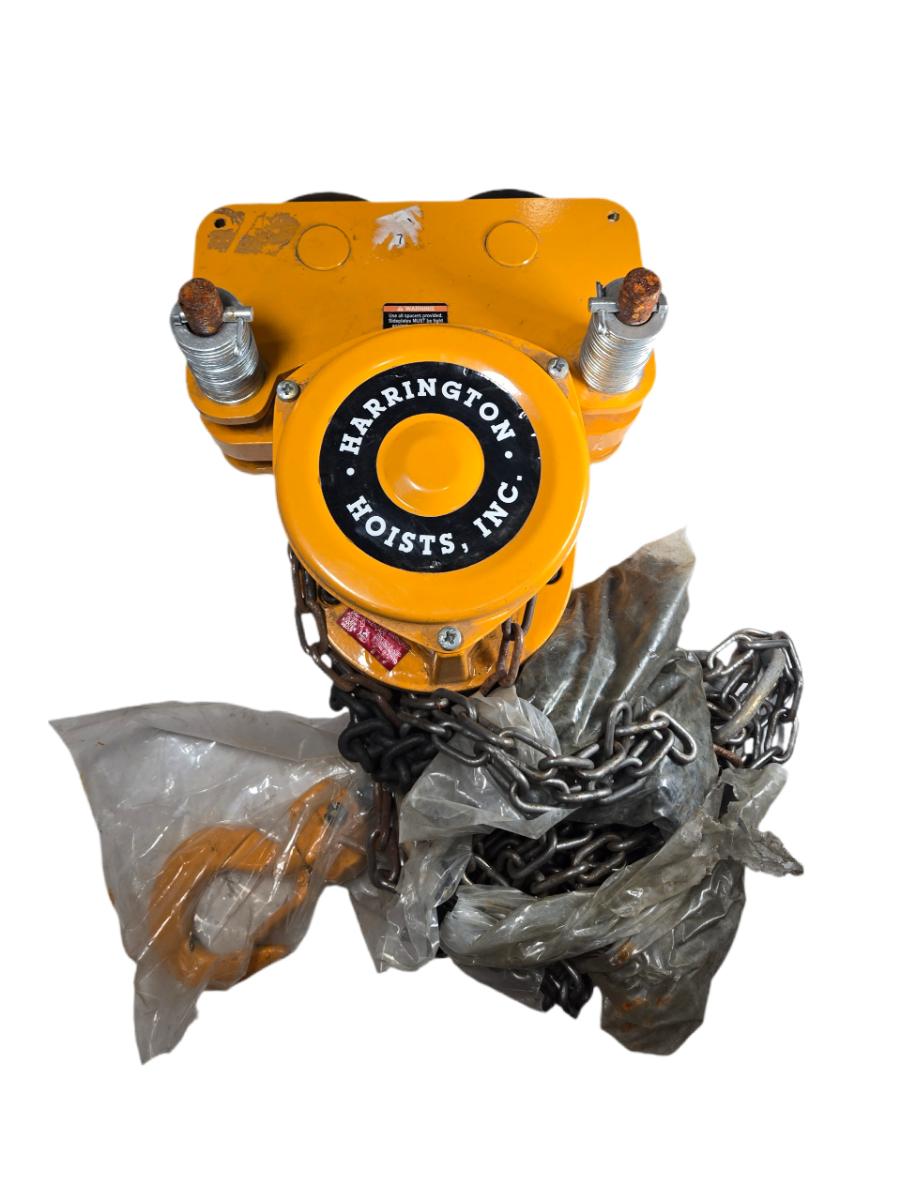

The Harrington NTH010 is a new, USA-made 1-ton (2,000 lb) capacity hand chain hoist with integral push-type trolley, manufactured by Harrington Hoists, Inc. of Manheim, PA — a Kito Group Company. The product code NTH010 designates the NT (Navy-type) hand chain hoist series at 1-ton capacity; the model number NTH4-9776 encodes the NT hoist frame with a 4-fall load chain reeving configuration and a 9-ft 9-in (approx.) lift (the 9776 suffix encodes lift height per Harrington's internal model coding). The unit features a steel load chain with welded bottom hook assembly, a dual-pawl mechanical brake system for load holding, and an adjustable push trolley designed to ride standard I-beam flanges with flange width adjustment via the visible spacer/bolt assemblies on the trolley top plate — the warning label visible in the photos specifically states all spacers must be used and sideplates must be tight against outer spacers. The yellow powder-coat finish, Grade 80 load chain, and ASME B30.16 compliance are standard for this NT series; the hoist and trolley ship as a combined assembly with the hook, chain, and hardware still in factory packaging as shown.

Product Specifications
