Harrington NTH020 2-Ton 10 ft Push Trolley Manual Chain Hoist Lift

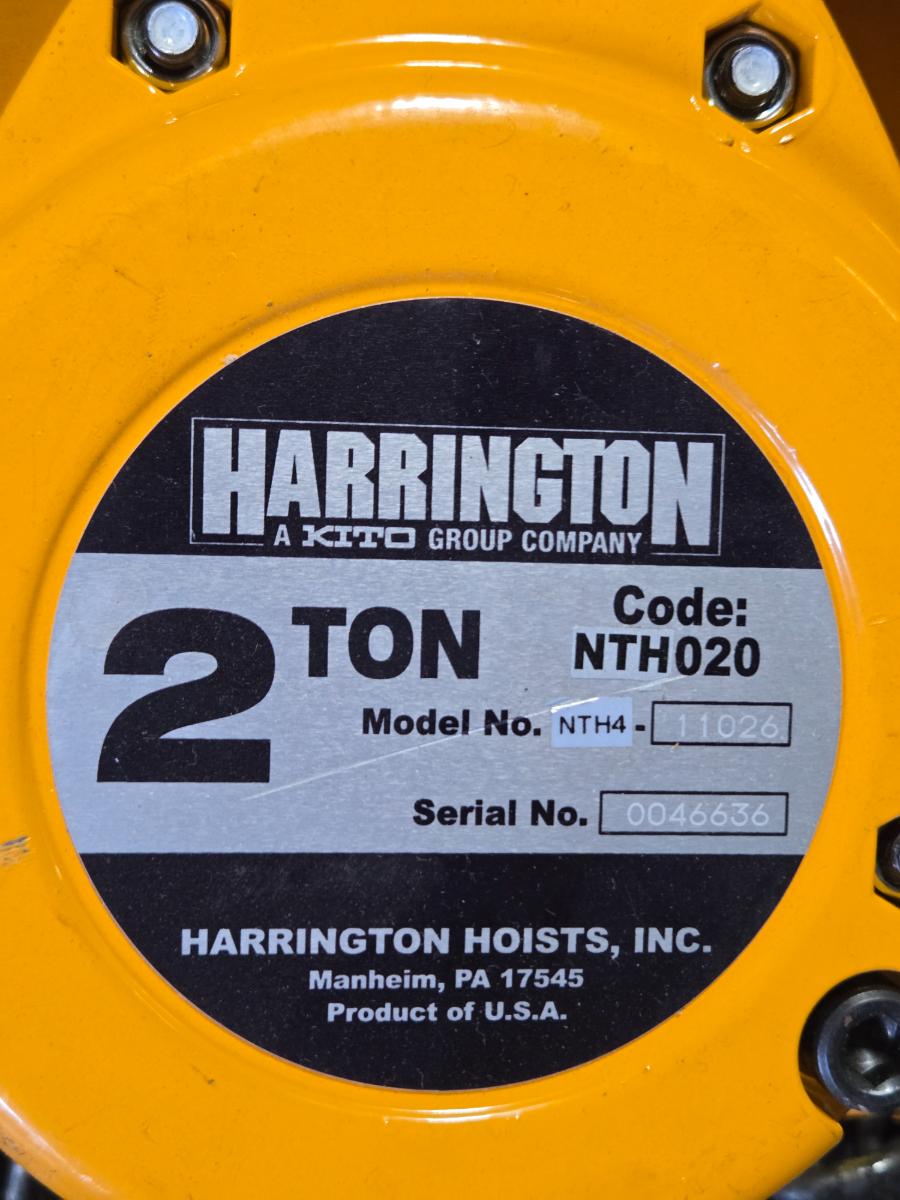

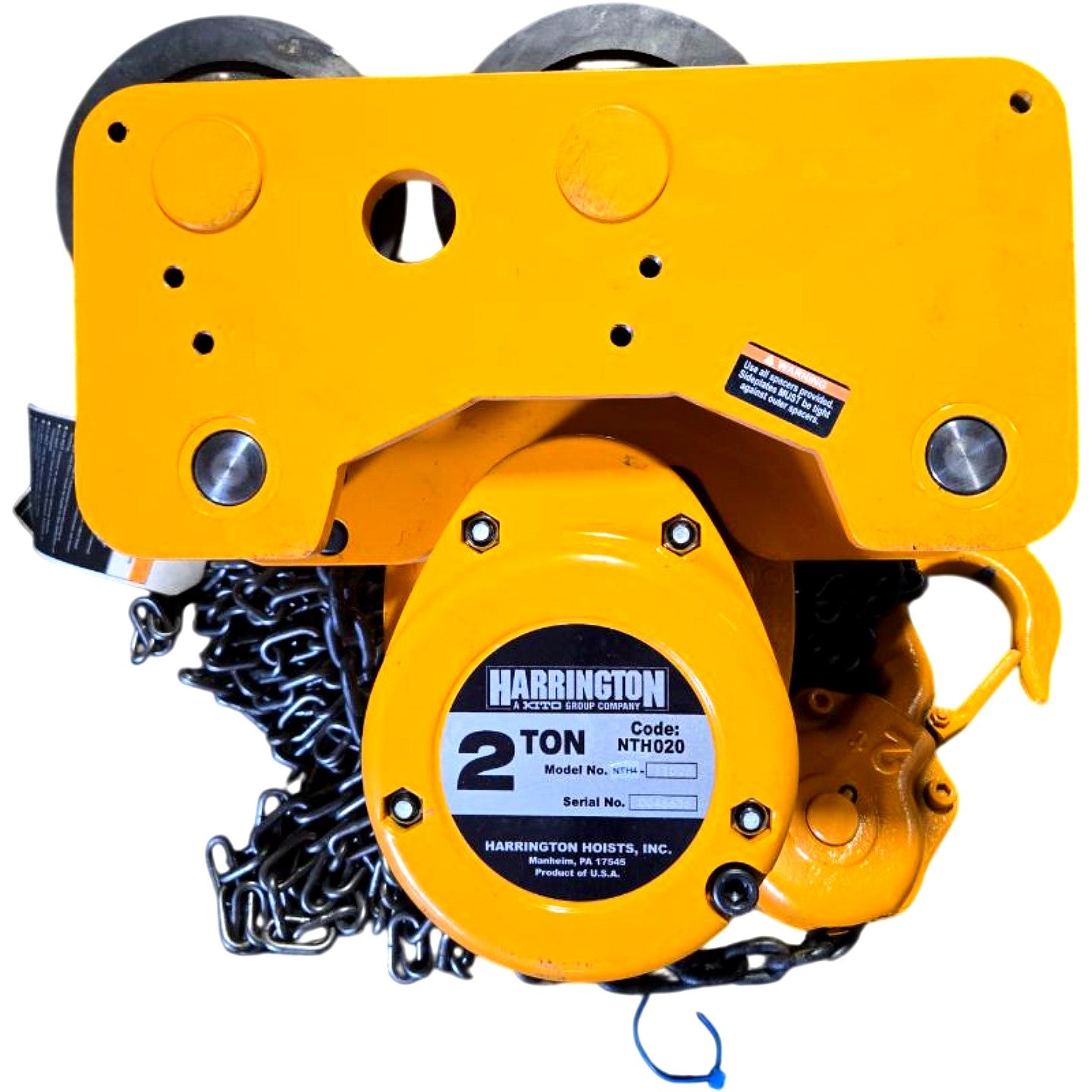

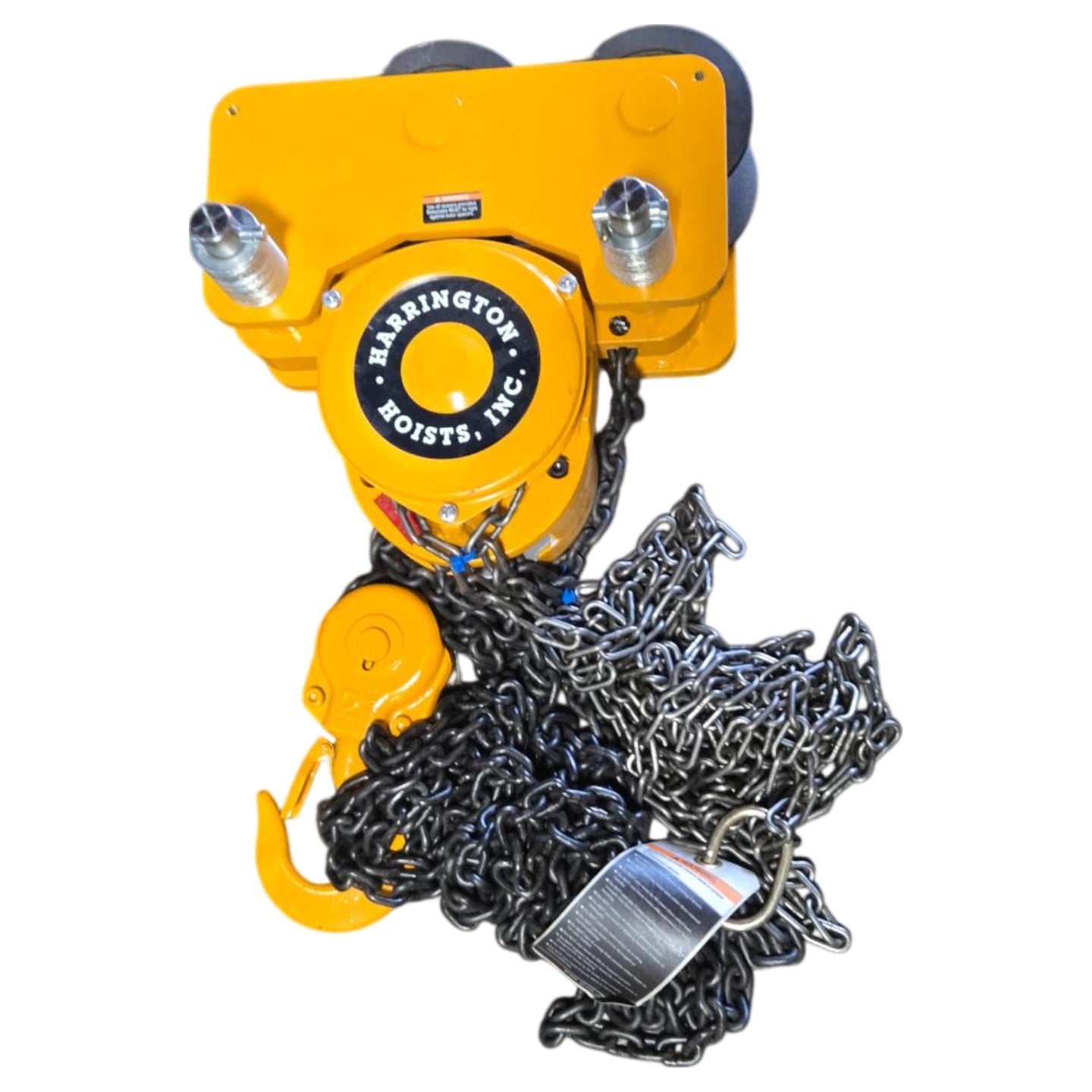

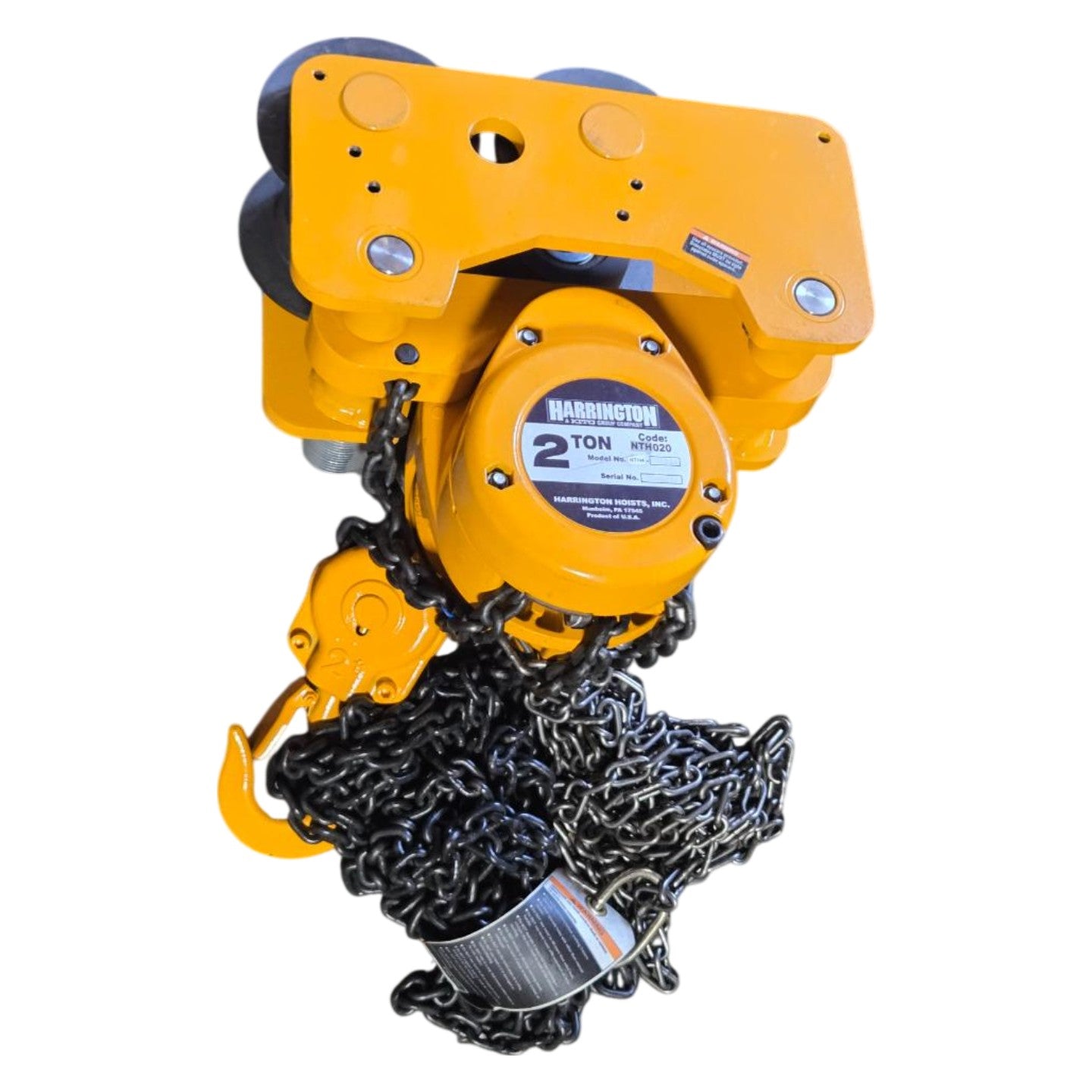

The Harrington NTH020 is a new, USA-made manual hand chain hoist with integrated push trolley, rated for 2 tons (4,000 lb) capacity with a 10 ft lift, as confirmed by the nameplate label visible in the photos (Code: NTH020, Model No. NTH4-11026, Serial No. 0046636). The NTH series combines a hand chain hoist with a manually-operated push trolley in a single unit, eliminating the need for a separate trolley and hoist assembly; the trolley rides on the bottom flange of an I-beam or monorail and is hand-pushed laterally while the hoist lifts the load vertically via a Grade 80 alloy steel load chain. The unit features an all-steel yellow powder-coated body, a Weston-style mechanical load brake for automatic load holding without operator effort, a swivel-mounted safety latch hook for load attachment, and a dead-end chain collector bag visible in the photos. Manufactured by Harrington Hoists, Inc. (a Kito Group Company) in Manheim, PA, the NTH series is designed for overhead monorail systems and is compatible with standard S-beam and W-beam I-beam flanges within the trolley's adjustable beam range.

Product Specifications
