Harvey Tool 13920-C3 0.0156in 2FL AlTiN Miniature Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

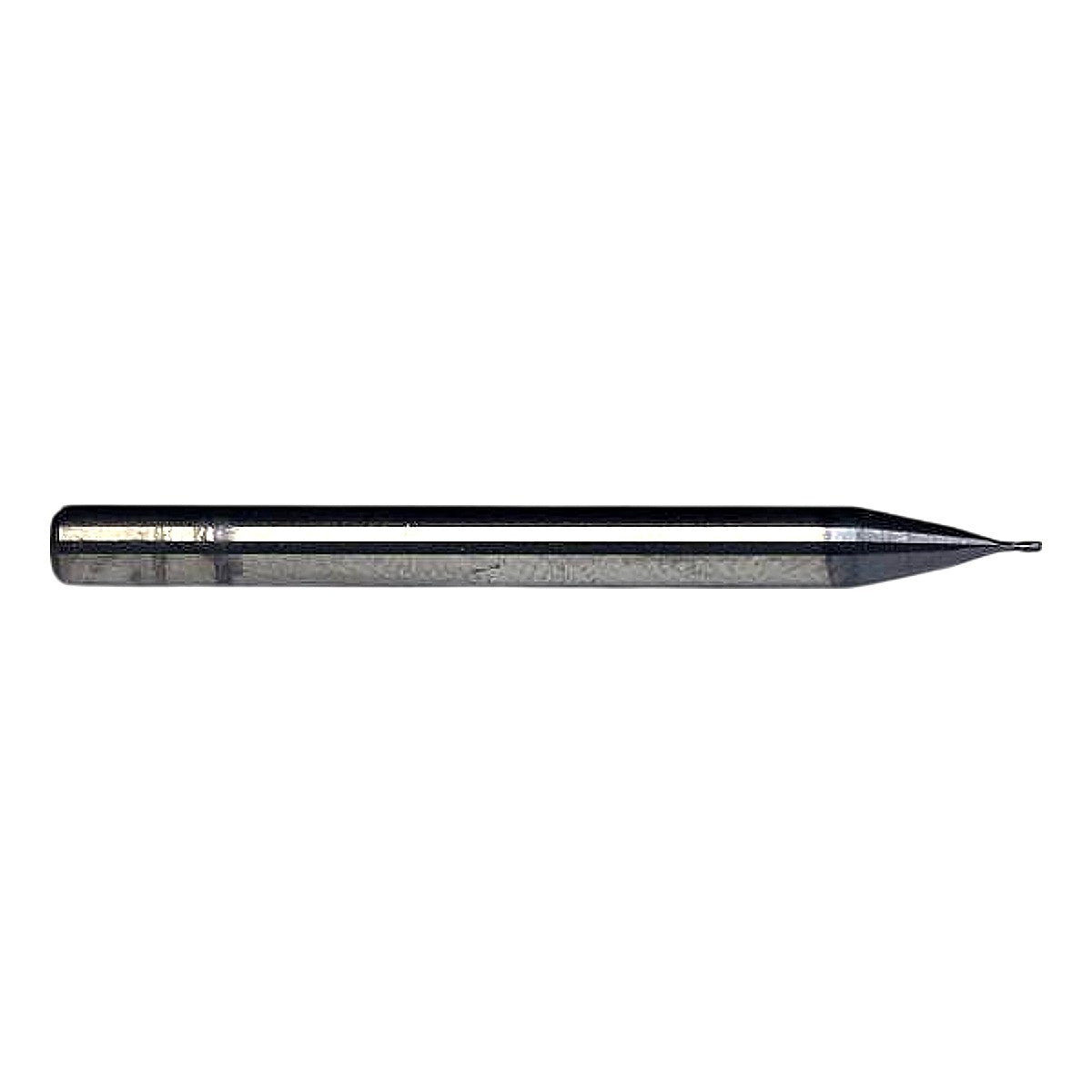

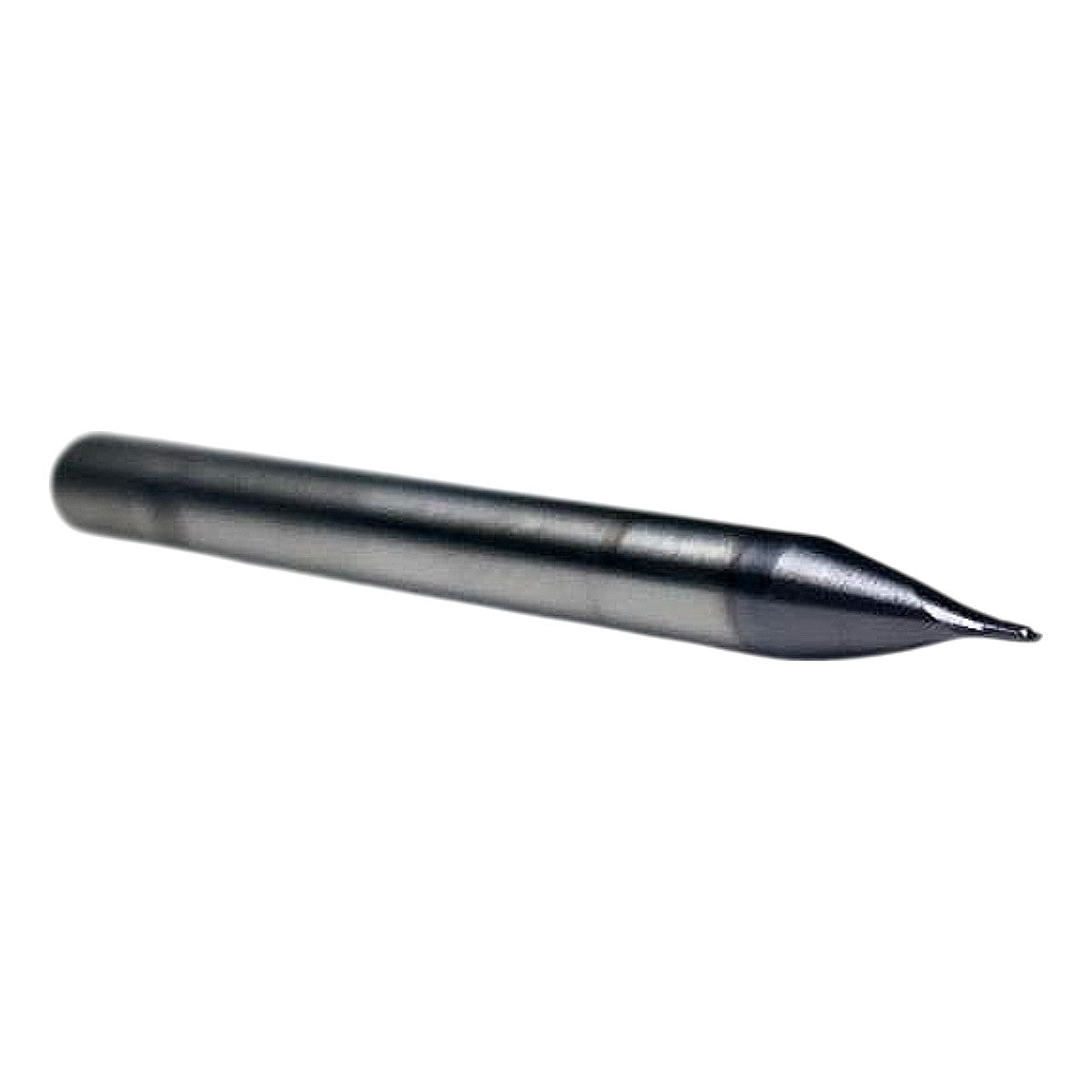

The Harvey Tool 13920-C3 is a new, solid submicron carbide miniature square end mill with a 1/64 in (0.0156 in / ~0.396 mm) cutter diameter and a 1/32 in (0.030 in) length of cut, designed for high-precision micro-machining in CNC machining centers and micro-milling applications. The tool features 2 flutes and carries an AlTiN (Aluminum Titanium Nitride) coating, which provides elevated hardness, oxidation resistance up to approximately 800 °C, and reduced friction for improved tool life in ferrous and hardened steel materials. The 1/8 in shank diameter and 1-1/2 in overall length make it compatible with standard 1/8 in collet chucks and ER8/ER11 collet systems commonly used in micro-machining setups. The tapered reach profile visible in the photos provides added rigidity along the long reach while keeping the small-diameter cutting tip accessible for deep, narrow features. The -C3 suffix in the Harvey Tool designation indicates the AlTiN coating variant within their miniature square end mill series.
Product Specifications
| Brand | Harvey Tool |
| MPN | 13920-C3 |
| Cutter Diameter | 0.0156 in (1/64 in) |
| Length of Cut (LOC) | 0.030 in (1/32 in) |
| Shank Diameter | 1/8 in (0.125 in) |
| Overall Length (OAL) | 1-1/2 in |
| Number of Flutes | 2 |
| End Geometry | Square (Flat) |
| Coating | AlTiN (Aluminum Titanium Nitride) |
| Substrate | Solid Carbide |
| Shank Type | Straight |
| Condition | New |
| Compatible Collet Size | 1/8 in (ER8, ER11) |
| Series | Miniature Square End Mill |
