Harvey Tool 923532 1/2in 90° 6FL Uncoated Double Angle Shank Cutter

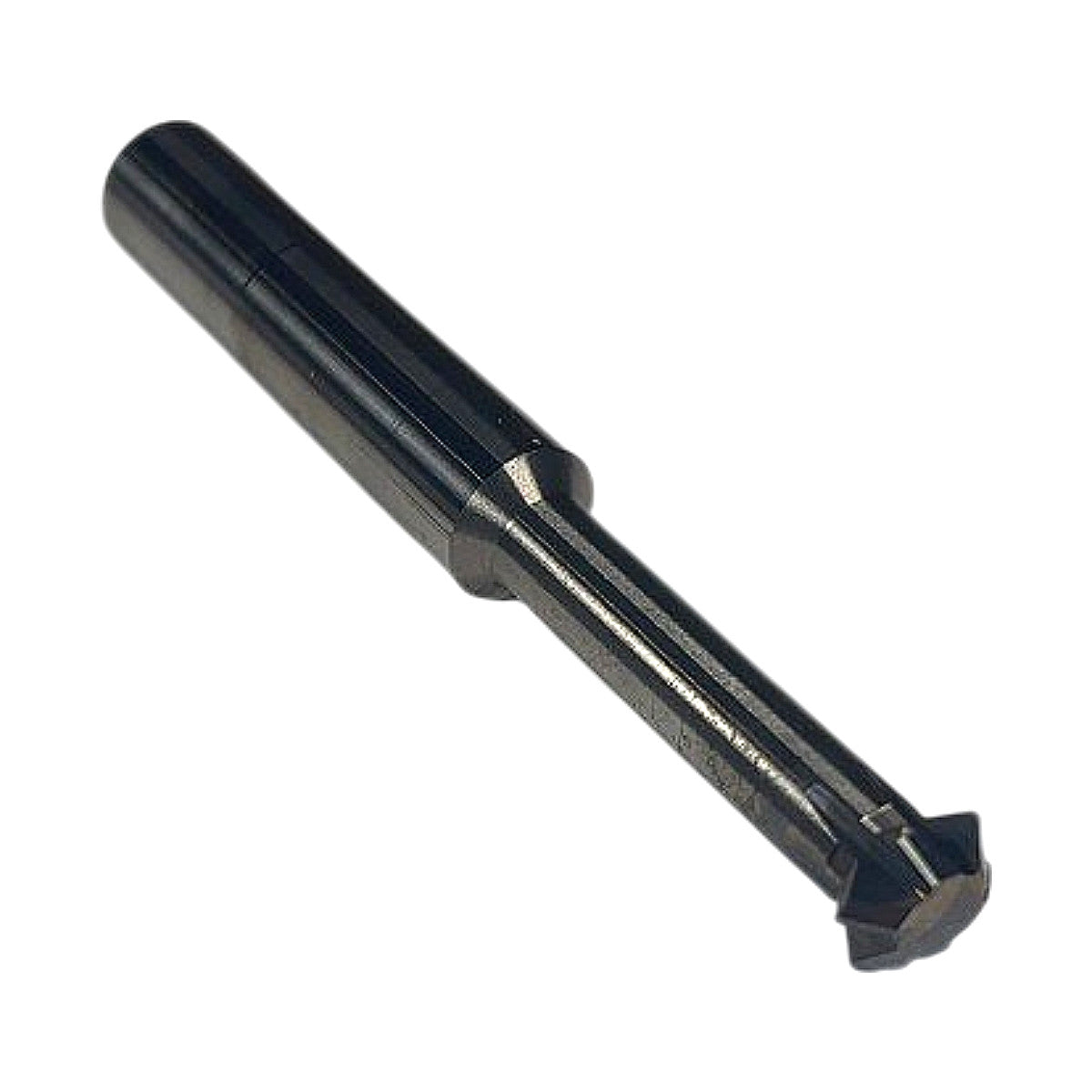

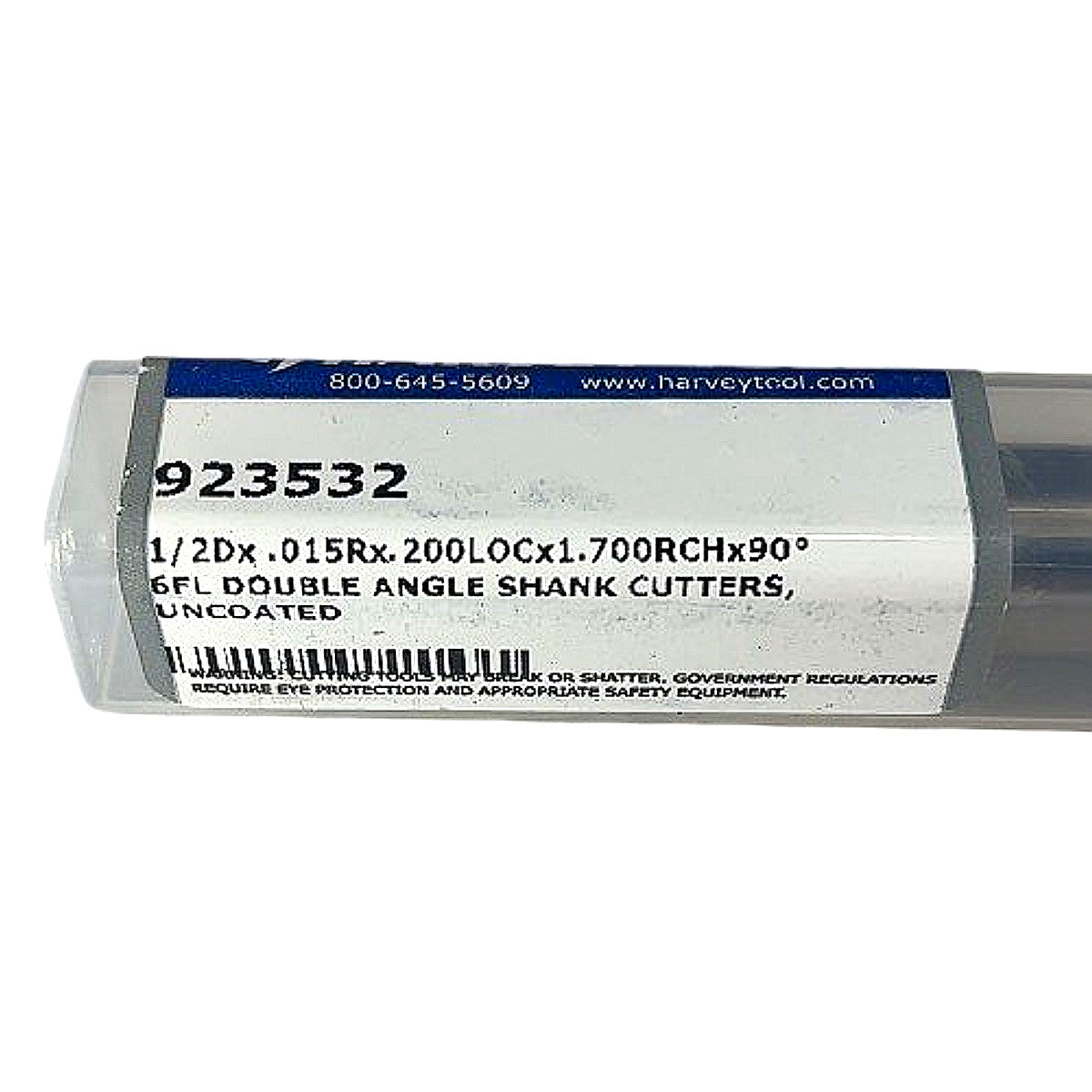

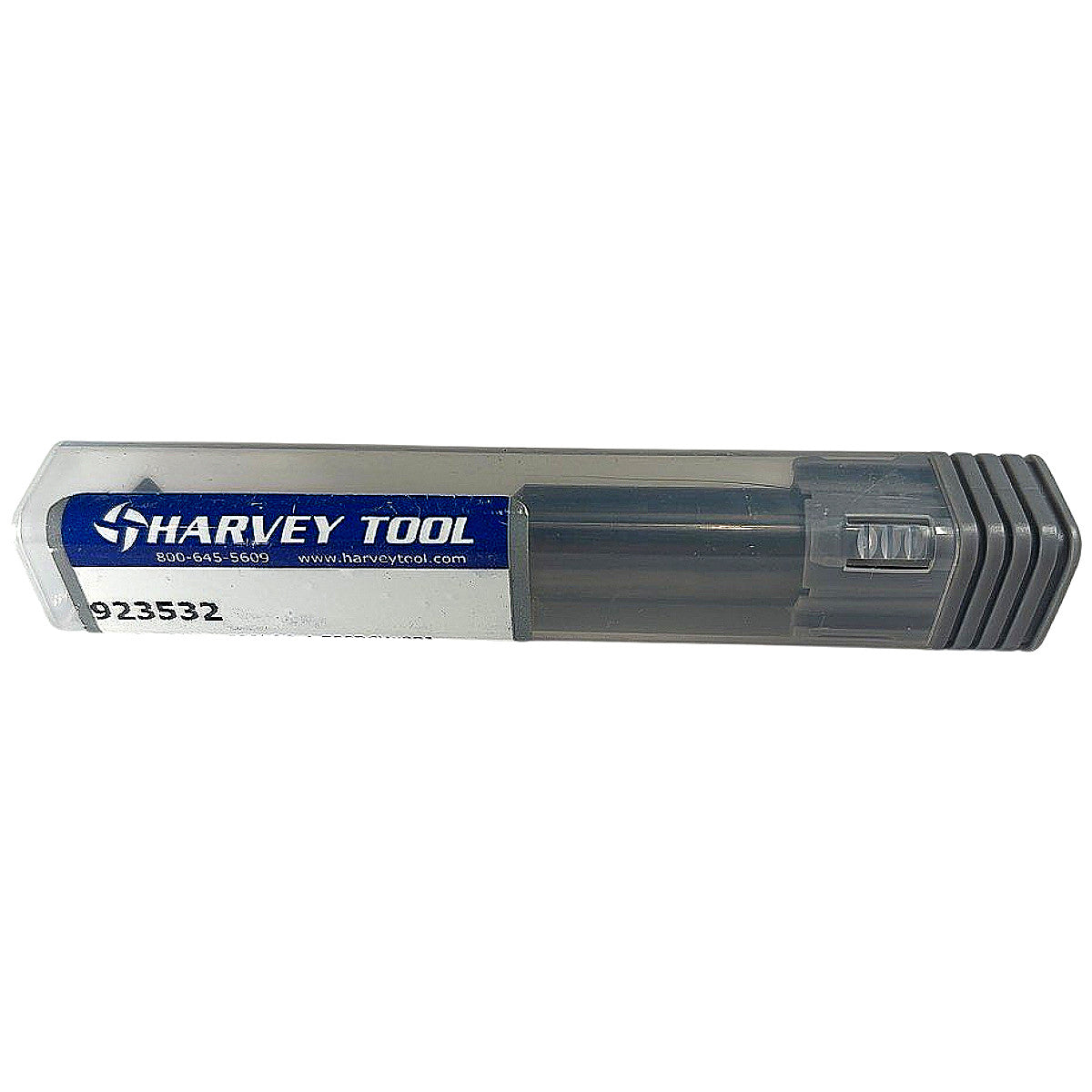

The Harvey Tool 923532 is a new, uncoated solid carbide double angle shank cutter with a 1/2 in cutting diameter, 90° included angle, 0.015 in corner radius, 0.200 in length of cut, 1.700 in reach below holder, and 6 flutes — all confirmed directly from the label. Double angle shank cutters are designed to mill dovetail-style undercuts, chamfers, and angular slots that cannot be reached with standard end mills; the symmetric double-angle geometry cuts on both faces simultaneously, reducing cutting forces and improving finish in slotting and grooving operations. The 1/2 in cylindrical shank is compatible with standard ER collet chucks and milling tool holders; the uncoated carbide substrate is well-suited for non-ferrous materials, plastics, and general-purpose machining where coating adhesion or heat buildup is not a primary concern.

Product Specifications
