Hayward SPX0715BA3 SP0715 Multiport Valve Key Cover & Handle Assembly
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

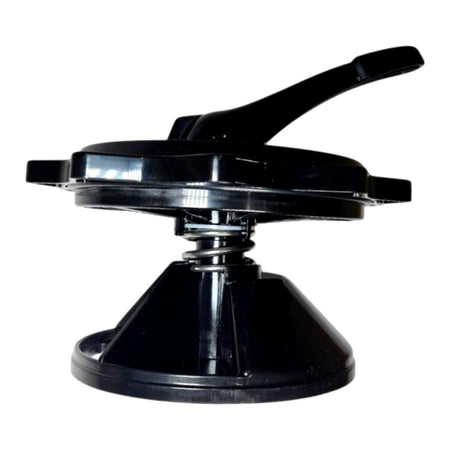

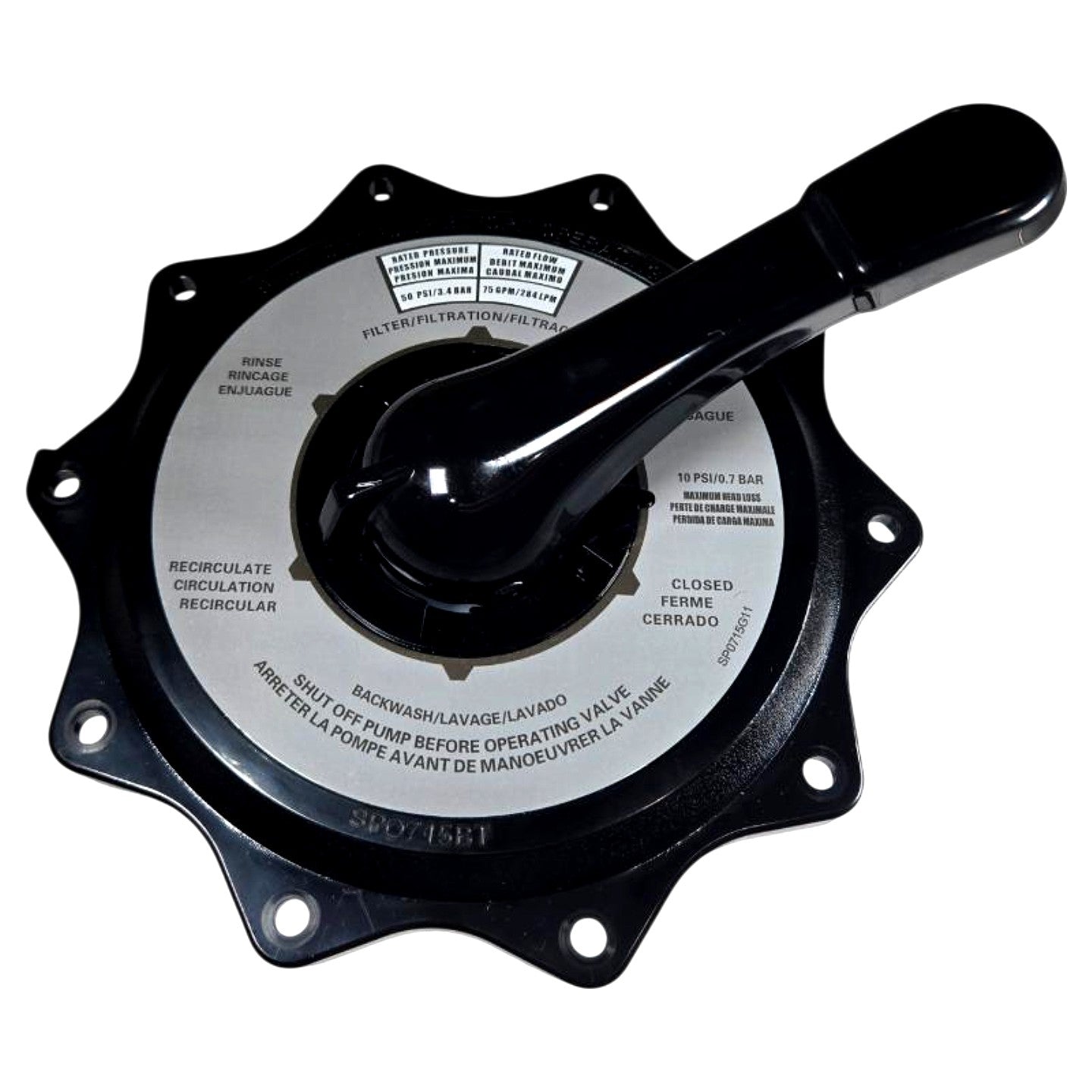

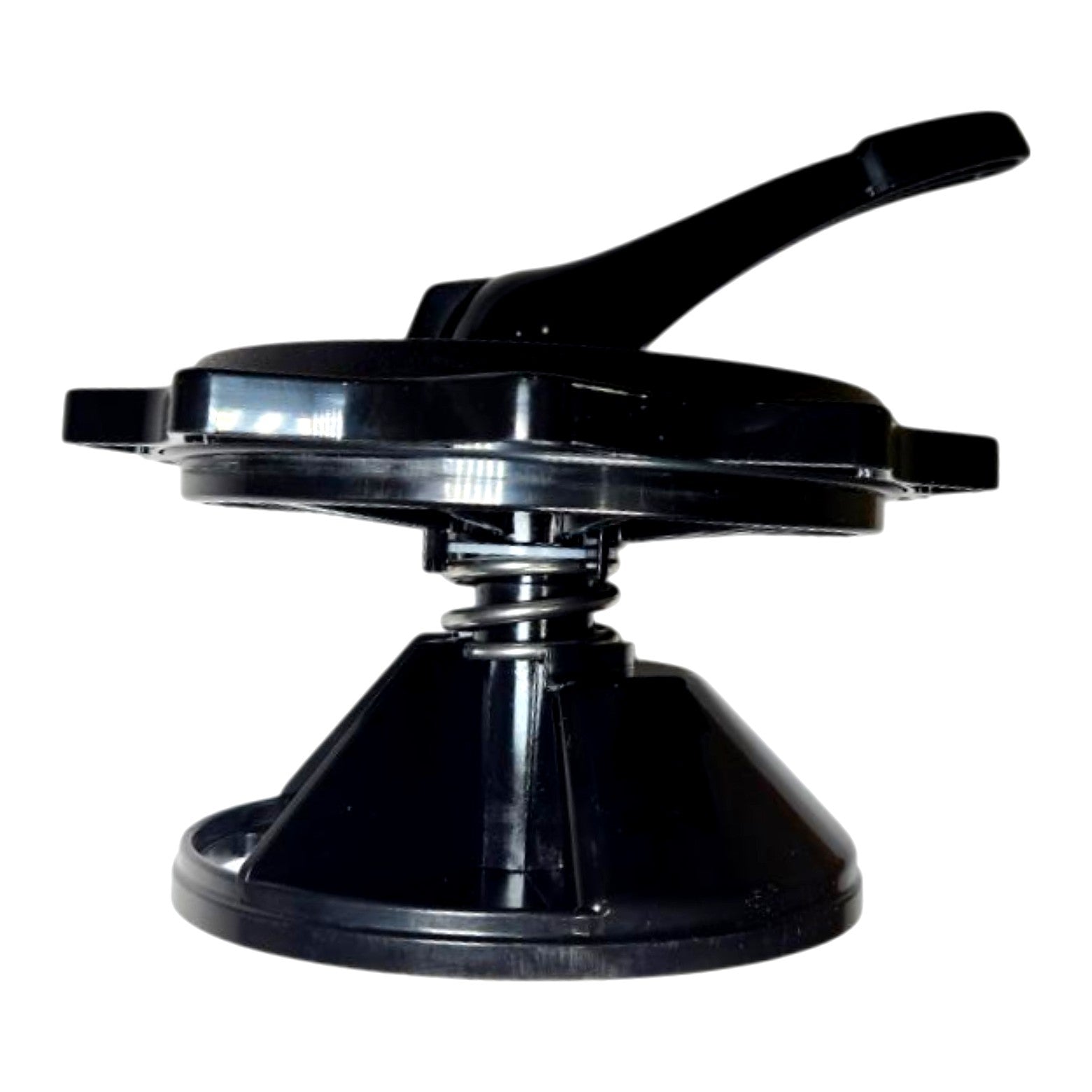

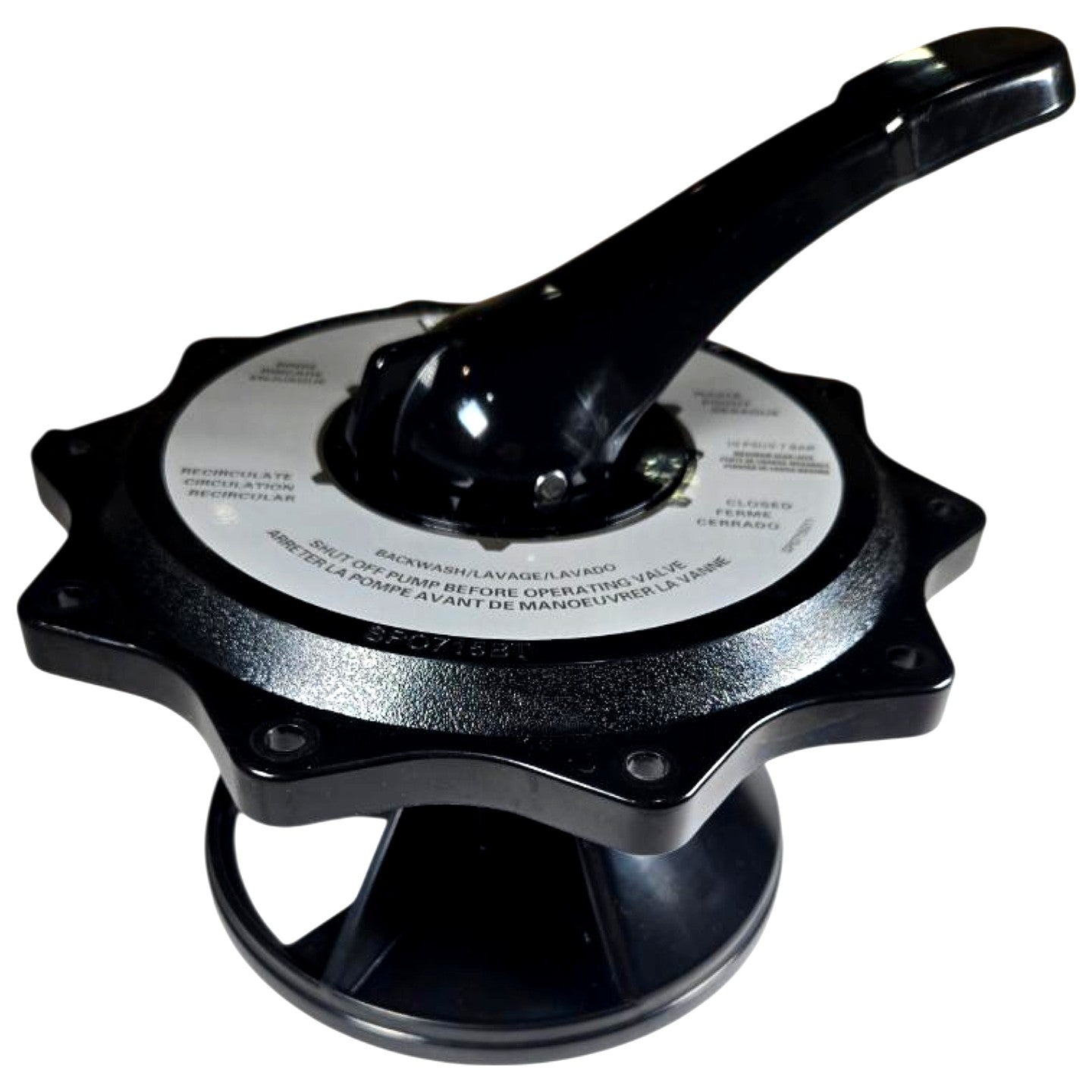

The Hayward SPX0715BA3 is a new OEM black key cover and handle assembly designed as a direct replacement for Hayward SP0715 series multiport valves used on sand and DE pool filter systems. The assembly includes the rotor handle, spider gasket cover plate, and spring-loaded rotor base, providing six switching positions: Filter, Backwash, Rinse, Recirculate, Closed, and Waste/Drain. Rated at 50 PSI (3.4 bar) maximum operating pressure and 75 GPM (284 LPM) maximum flow rate, with a maximum head loss of 10 PSI (0.7 bar), as confirmed by the label visible on the valve face in the product photos. The part number SPX0715BA3 denotes the SPX (spare parts) prefix, 0715 valve series, B (black color), A (assembly designation), and 3 (variant/revision). This assembly mounts via an 8-bolt star-flange pattern and is compatible with Hayward SP0715, SP0715X, and related multiport valve bodies commonly found on Hayward Pro Series and similar sand filter systems; the pump must be shut off before operating the valve.
Product Specifications
| Brand | Hayward |
| Manufacturer Part Number | SPX0715BA3 |
| Compatible Valve Series | Hayward SP0715 |
| Max Operating Pressure | 50 PSI / 3.4 bar |
| Max Flow Rate | 75 GPM / 284 LPM |
| Max Head Loss | 10 PSI / 0.7 bar |
| Number of Valve Positions | 6 |
| Valve Positions | Filter, Backwash, Rinse, Recirculate, Closed, Waste |
| Mounting Pattern | 8-bolt star flange |
| Color | Black |
| Material | ABS plastic |
| Application | Pool sand / DE filter multiport valve |
| Condition | New |
| Label Part Number (rotor) | SP0715G11 |
| Label Part Number (base) | SP0715B1 |
