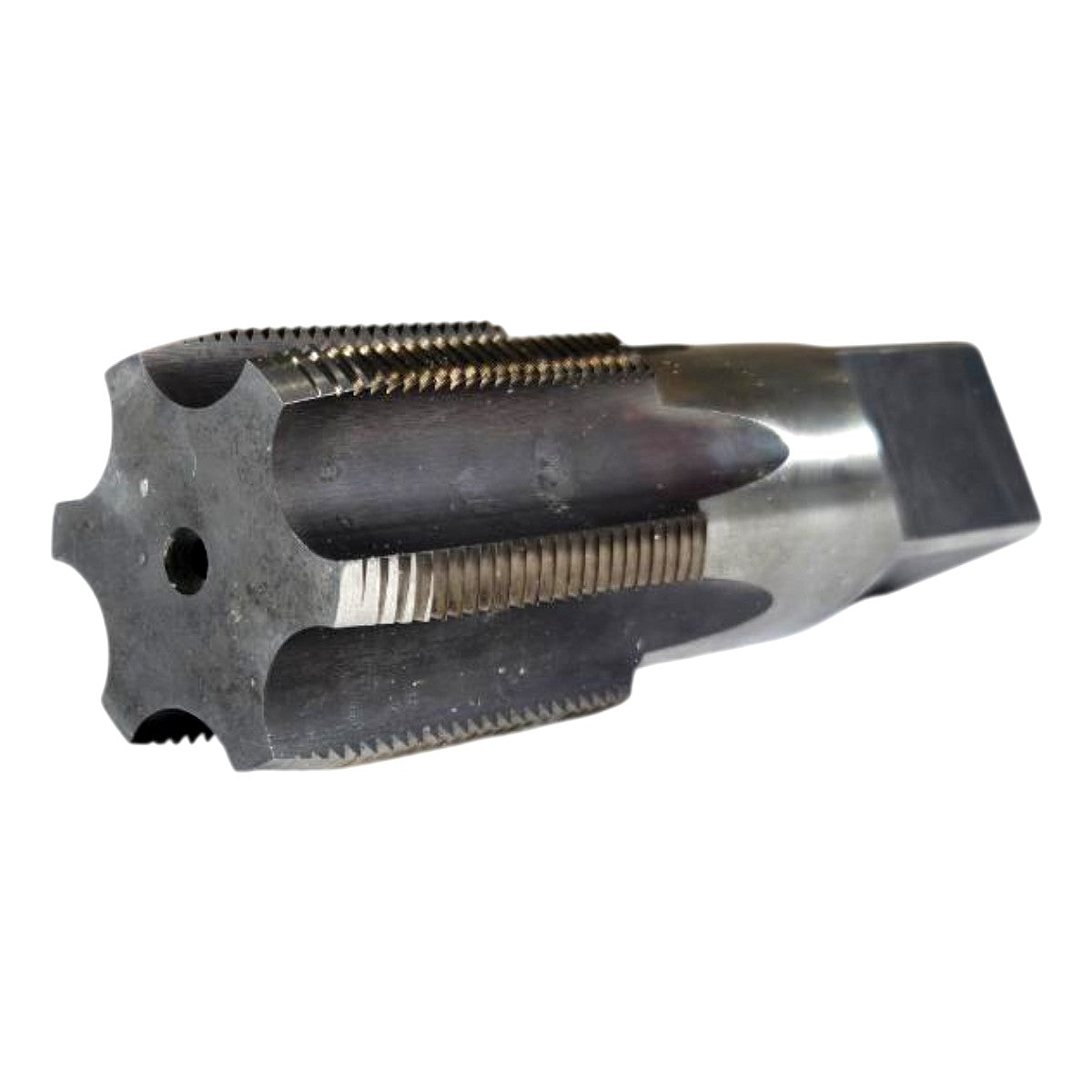

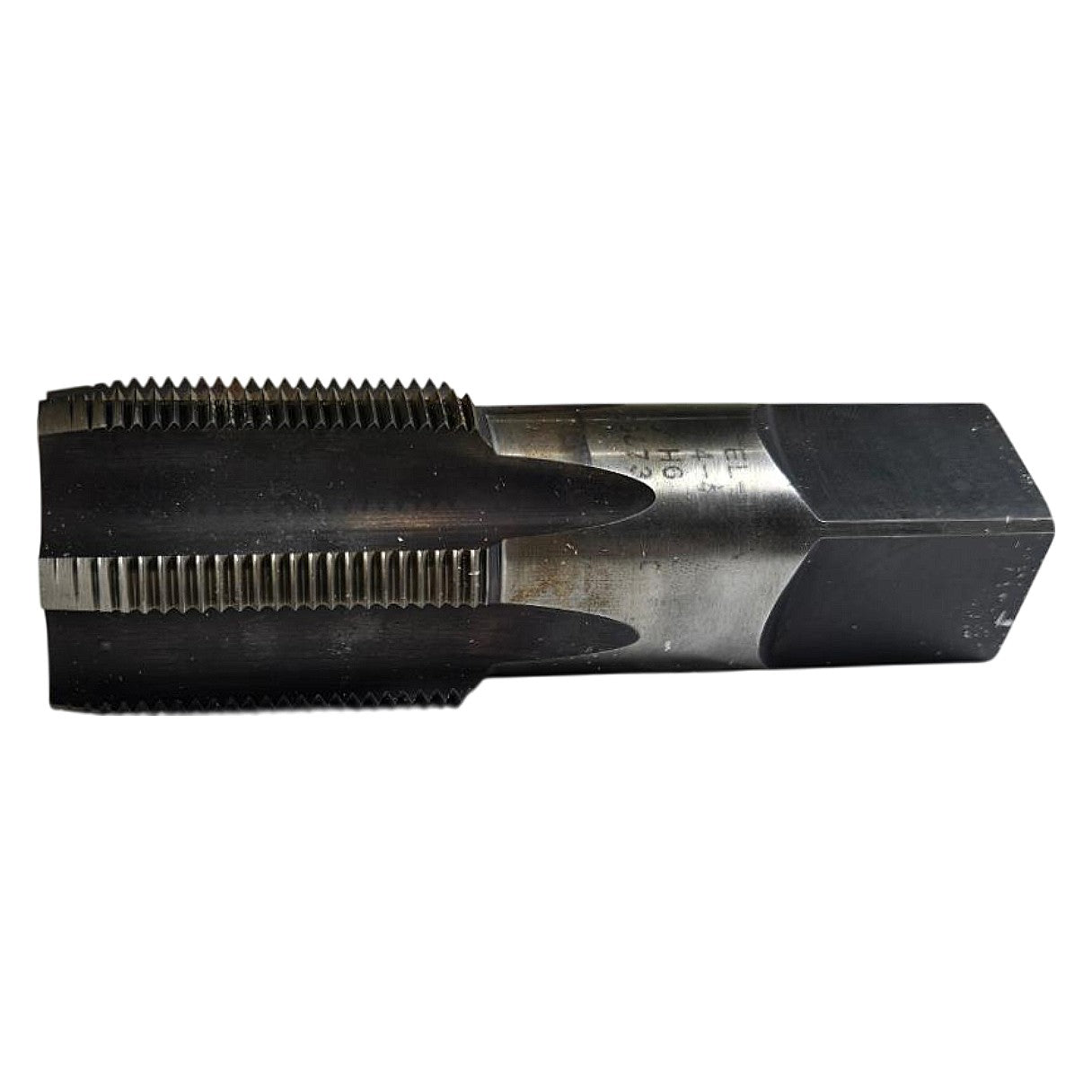

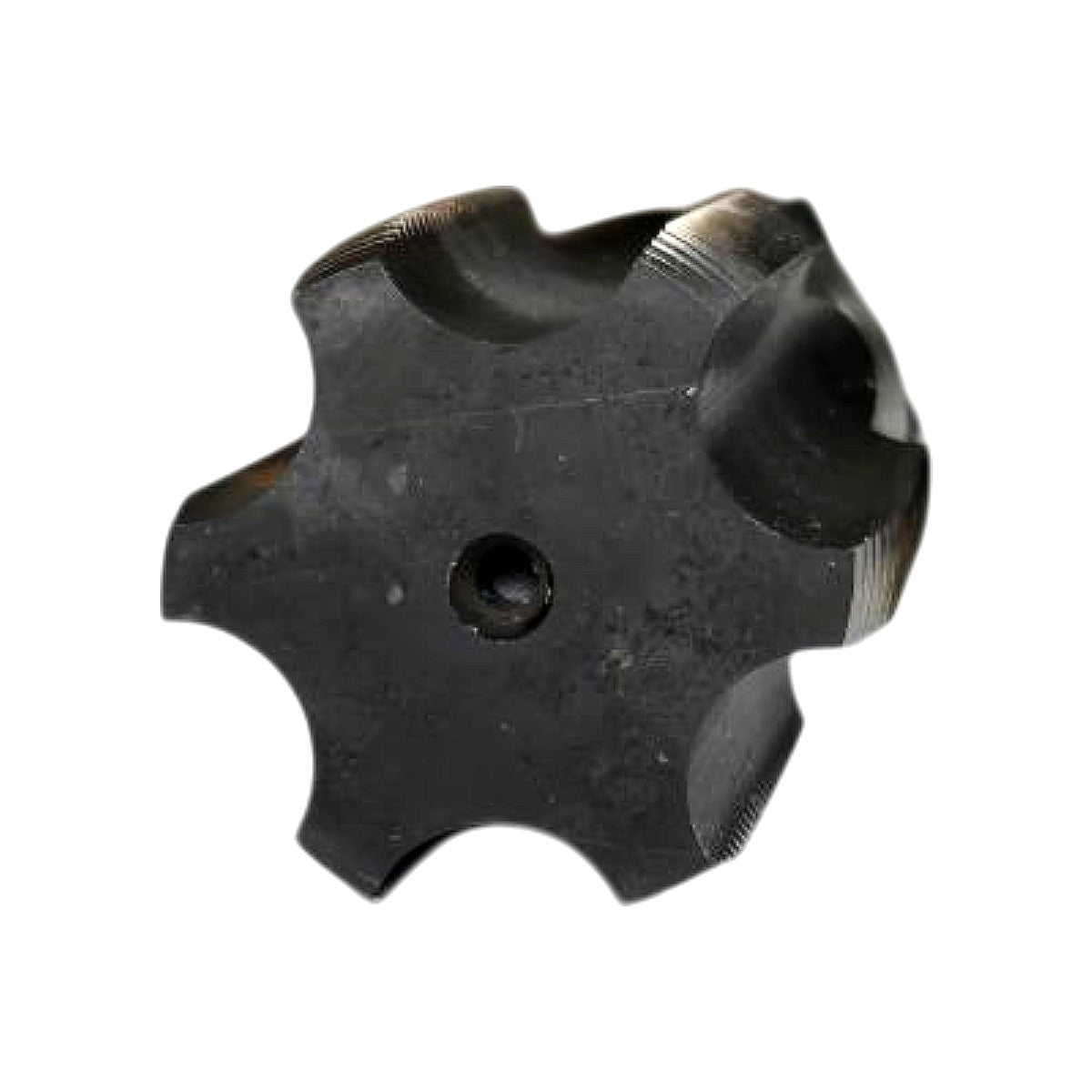

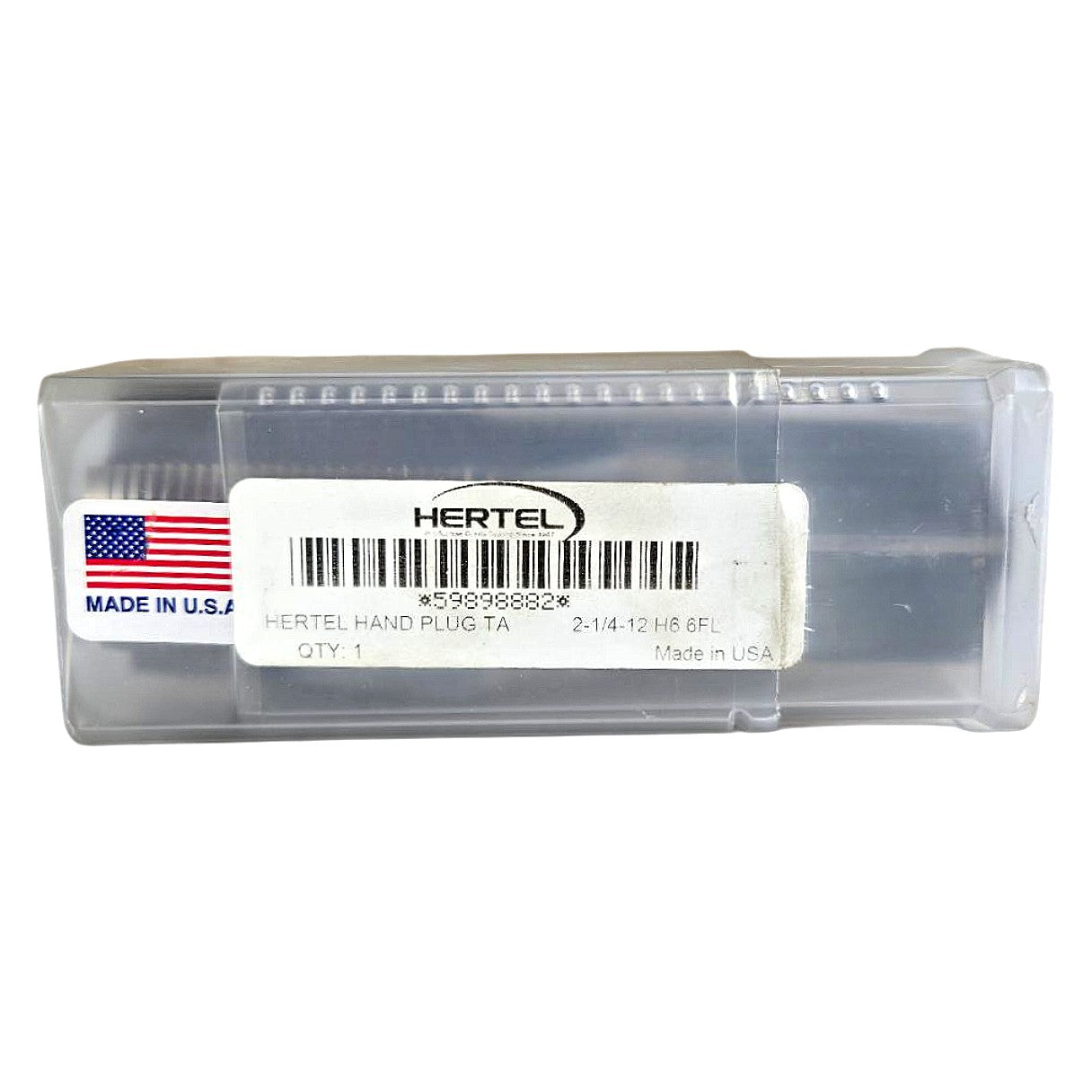

This is a new Hertel 59898882 hand plug tap in 2-1/4–12 UNC, manufactured in the USA from M2 high-speed steel with a bright (uncoated) finish and 6 straight flutes. The H6 tolerance class indicates a pitch diameter limit range of +0.0005 to +0.0060 in. above basic, producing a 3B class-of-fit thread — appropriate for general-purpose through-hole and blind-hole hand-tapping applications in steel, cast iron, aluminum, and similar materials. The plug chamfer (3–5 threads of lead) provides a balance between starting ease and bottoming capability, and the 6-flute straight-flute design distributes cutting forces evenly around the large 2-1/4 in. diameter, reducing chatter and deflection. The large square shank is sized per ASME B94.9 standards for use in standard tap wrenches and machine holders capable of accepting the shank of a 2-1/4 in. tap. The item is new and ships in its original Hertel plastic case.
Product Specifications
| Brand | Hertel |
| Part Number (MPN) | 59898882 |
| Thread Size | 2-1/4 in - 12 |
| Thread Standard | UNC (Unified National Coarse) |
| Threads Per Inch (TPI) | 12 |
| Tap Type | Hand Plug Tap |
| Chamfer Type | Plug (3-5 thread lead) |
| Number of Flutes | 6 |
| Flute Style | Straight Flute |
| Tolerance Class | H6 |
| Pitch Diameter Limit | H6 (+0.0005 to +0.0060 in. above basic) |
| Thread Class Produced | 3B |
| Material | M2 High Speed Steel (HSS) |
| Coating / Finish | Bright (uncoated) |
| Hand of Cut | Right Hand |
| Country of Origin | USA |
| Condition | New |
| Standard | ASME B94.9 |
