Hertel 59919803 4-Flute 5/16in AlTiN Solid Carbide Square End Mill 3in OAL
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

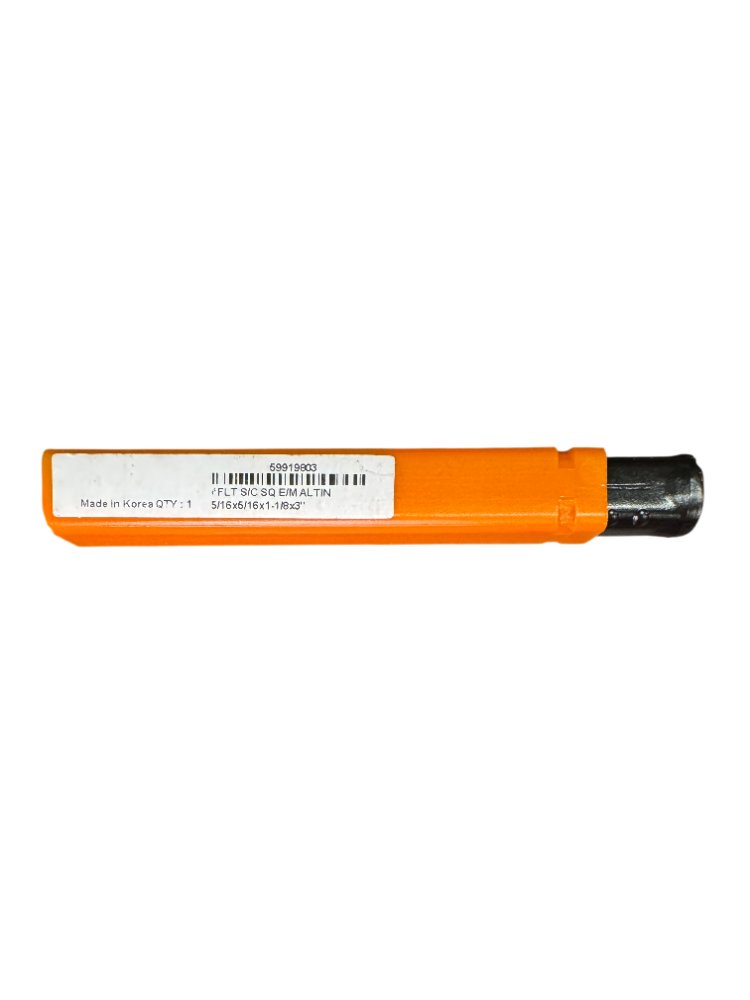

This is a new Hertel solid carbide 4-flute square end mill with AlTiN (Aluminum Titanium Nitride) coating, as confirmed by the label reading '4FLT S/C SQ E/M ALTIN' on the orange plastic case. The label specifies dimensions of 5/16 x 5/16 x 1-1/8 x 3 inches, indicating a 5/16 in cutting diameter, 5/16 in shank diameter, 1-1/8 in length of cut, and 3 in overall length. AlTiN coating provides excellent hardness and oxidation resistance at elevated temperatures, making this end mill well-suited for dry or semi-dry cutting of steels, stainless steels, cast iron, and high-temp alloys. The dark near-black coating visible in the photo is consistent with AlTiN. Manufactured in Korea and packaged in a standard orange Hertel protective case, this tool is compatible with 5/16 in collets (ER-style, TG, or similar) and 5/16 in end mill holders.
Product Specifications
| Brand | Hertel |
| Country of Origin | Korea |
| Condition | New |
| Tool Type | Square End Mill |
| Material / Substrate | Solid Carbide |
| Coating | AlTiN (Aluminum Titanium Nitride) |
| Number of Flutes | 4 |
| Cutting Diameter | 5/16 in (0.3125 in) |
| Shank Diameter | 5/16 in (0.3125 in) |
| Length of Cut (LOC) | 1-1/8 in (1.125 in) |
| Overall Length (OAL) | 3 in |
| End Style | Square (Flat) |
| Shank Style | Straight Shank |
| Helix Angle Type | Variable / High Helix |
| Part Number (Label) | 59919803 |
