Hertel 74453473 5/16 in 4-Flute TiCN Coated Carbide Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

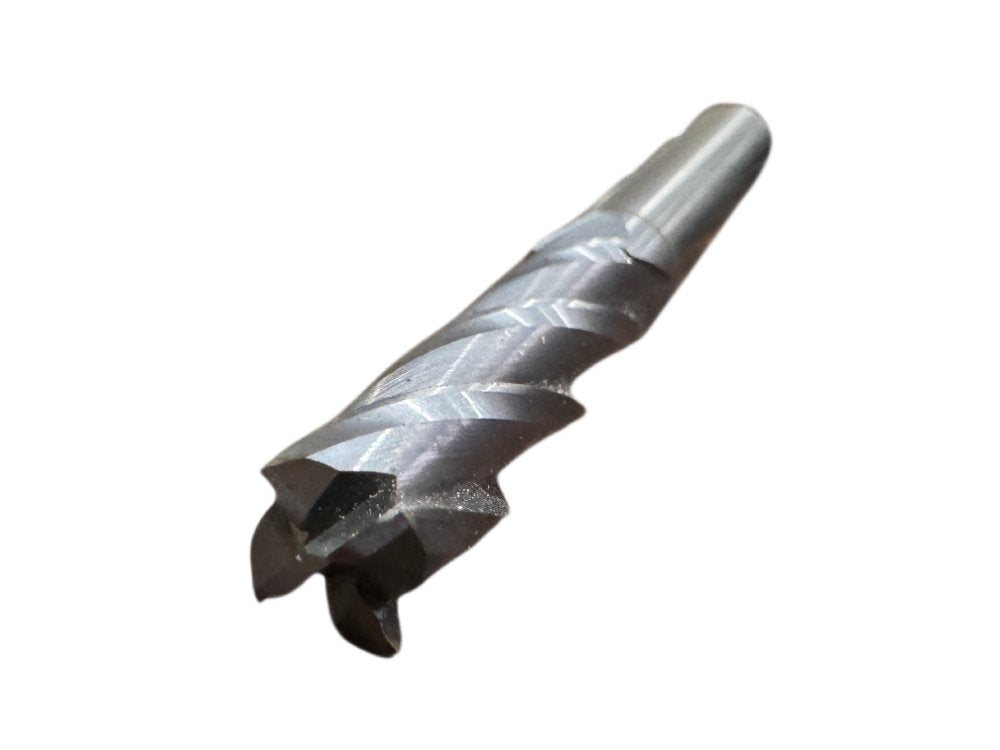

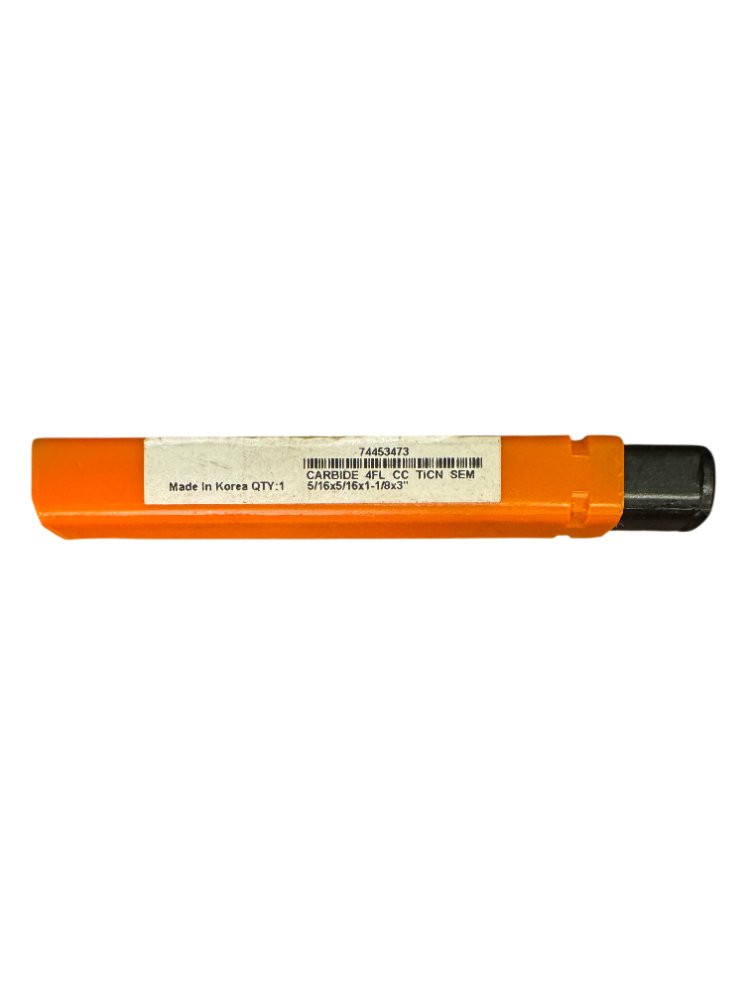

This is a new Hertel solid carbide 4-flute square end mill with TiCN (Titanium Carbonitride) coating, measuring 5/16 in cutting diameter with a 5/16 in shank diameter, 1-1/8 in length of cut, and 3 in overall length. The tool is manufactured in Korea and features a center-cutting (CC) geometry, allowing plunge entry in addition to peripheral and slot milling operations. TiCN coating provides higher hardness and lower coefficient of friction than TiN, making it well-suited for machining steels, stainless steels, and cast iron at elevated surface speeds. The SEM designation on the label indicates a square end mill profile with standard helix flutes visible in the product photo. Compatible with standard 5/16 in collets, end mill holders, and Weldon-style side-lock holders.
Product Specifications
| Brand | Hertel |
| Cutting Diameter | 5/16 in (0.3125 in) |
| Shank Diameter | 5/16 in (0.3125 in) |
| Length of Cut (LOC) | 1-1/8 in (1.125 in) |
| Overall Length (OAL) | 3 in |
| Number of Flutes | 4 |
| End Type | Square (Flat) |
| Center Cutting | Yes |
| Material | Solid Carbide |
| Coating | TiCN (Titanium Carbonitride) |
| Country of Manufacture | South Korea |
| Condition | New |
| Quantity | 1 |
