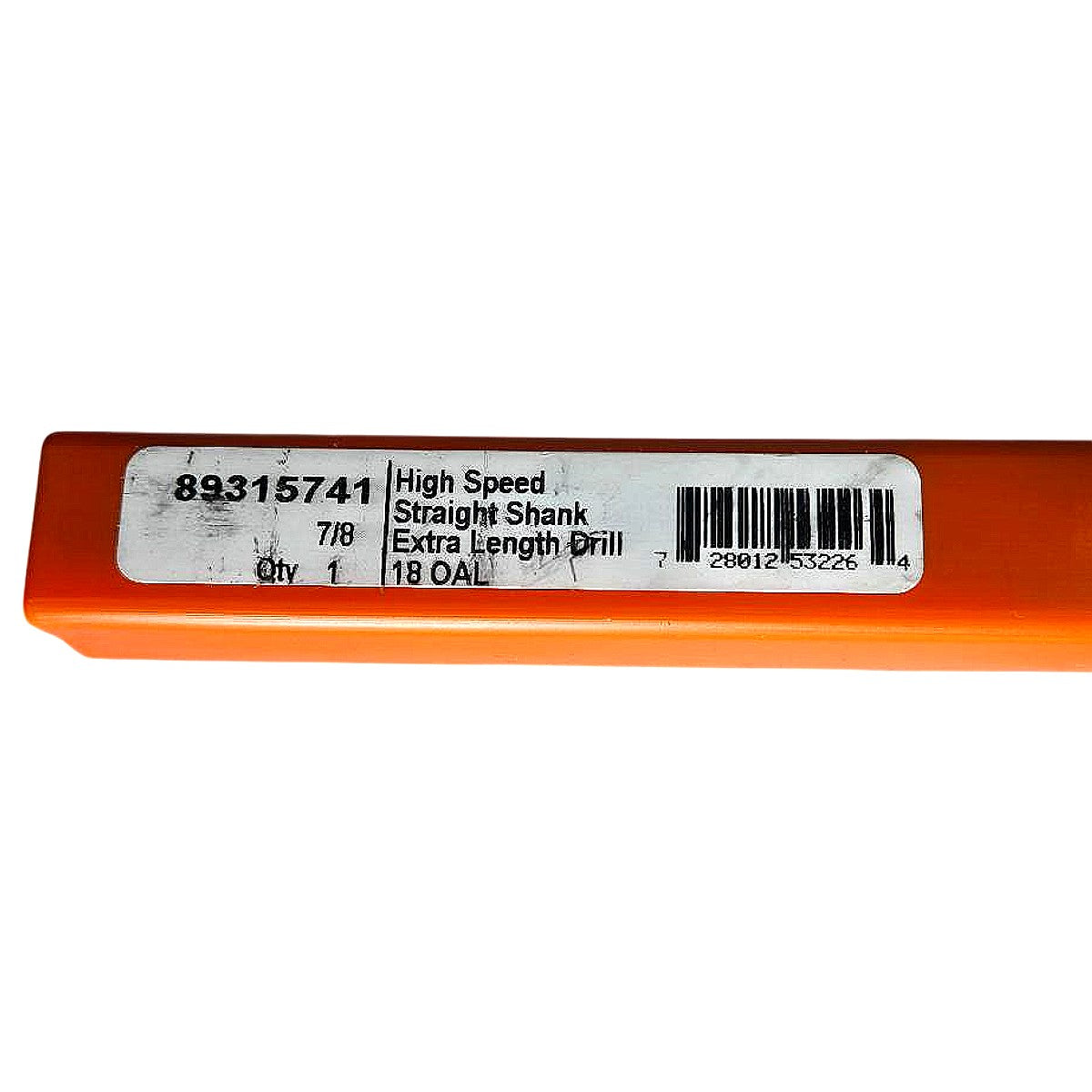

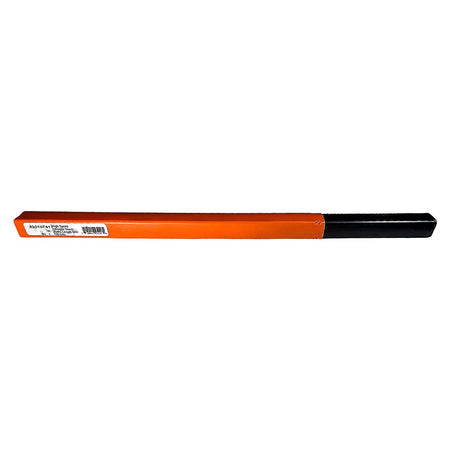

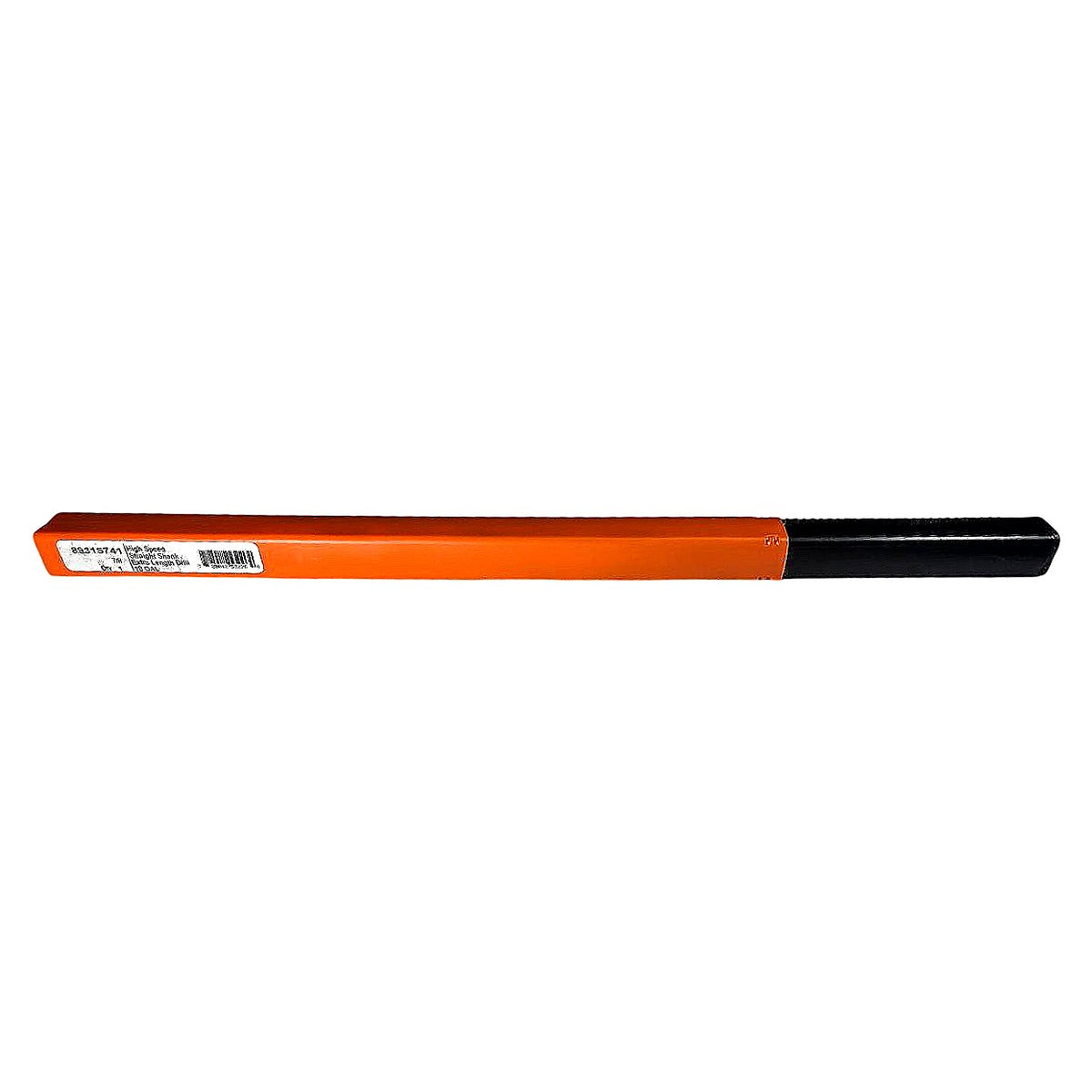

Hertel 89315741 7/8" HSS Oxide 18" OAL Extra Length Straight Shank Drill Bit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

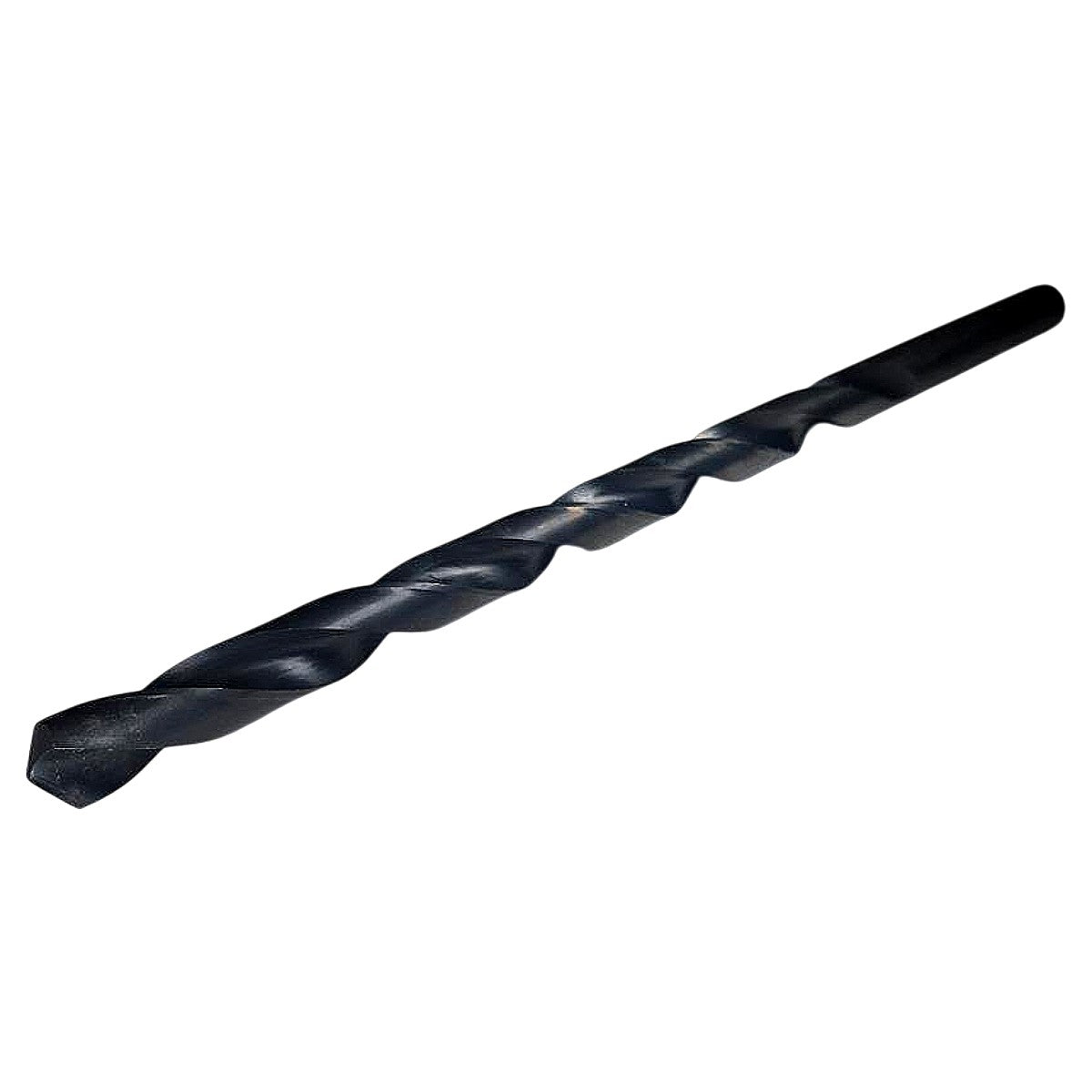

The Hertel 89315741 is a new 7/8" (0.8750") diameter high-speed steel (HSS) extra-length twist drill bit with a straight shank, 18" overall length, and 12" flute length, conforming to ANSI B94.11 extra-long series standards. The drill features a conventional 118° point angle with a black oxide surface treatment, which provides mild corrosion resistance and improved lubricity during cutting. Designed for deep-hole drilling applications in steel, cast iron, aluminum, and other ferrous and non-ferrous materials, this drill requires a drill press, lathe, or milling machine with a minimum 7/8" chuck or collet capacity. The extended flute length enables chip evacuation from deep bores that standard jobber-length drills cannot reach, and the straight shank allows direct clamping in standard drill chucks without an adapter.
Product Specifications
| Drill Diameter | 7/8 in (0.8750 in) |
| Overall Length (OAL) | 18 in |
| Flute Length | 12 in |
| Shank Type | Straight |
| Shank Diameter | 7/8 in (0.8750 in) |
| Point Angle | 118° |
| Material | High Speed Steel (HSS) |
| Coating / Finish | Black Oxide |
| Series | Extra Length |
| Number of Flutes | 2 |
| Flute Direction | Right Hand (RH) |
| Cut Direction | Right Hand (RH) |
| Manufacturer Part Number (MPN) | 89315741 |
| Brand | Hertel |
| Condition | New |
