Hertel MSRNR 24-8E 75° Right Hand SNMG Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

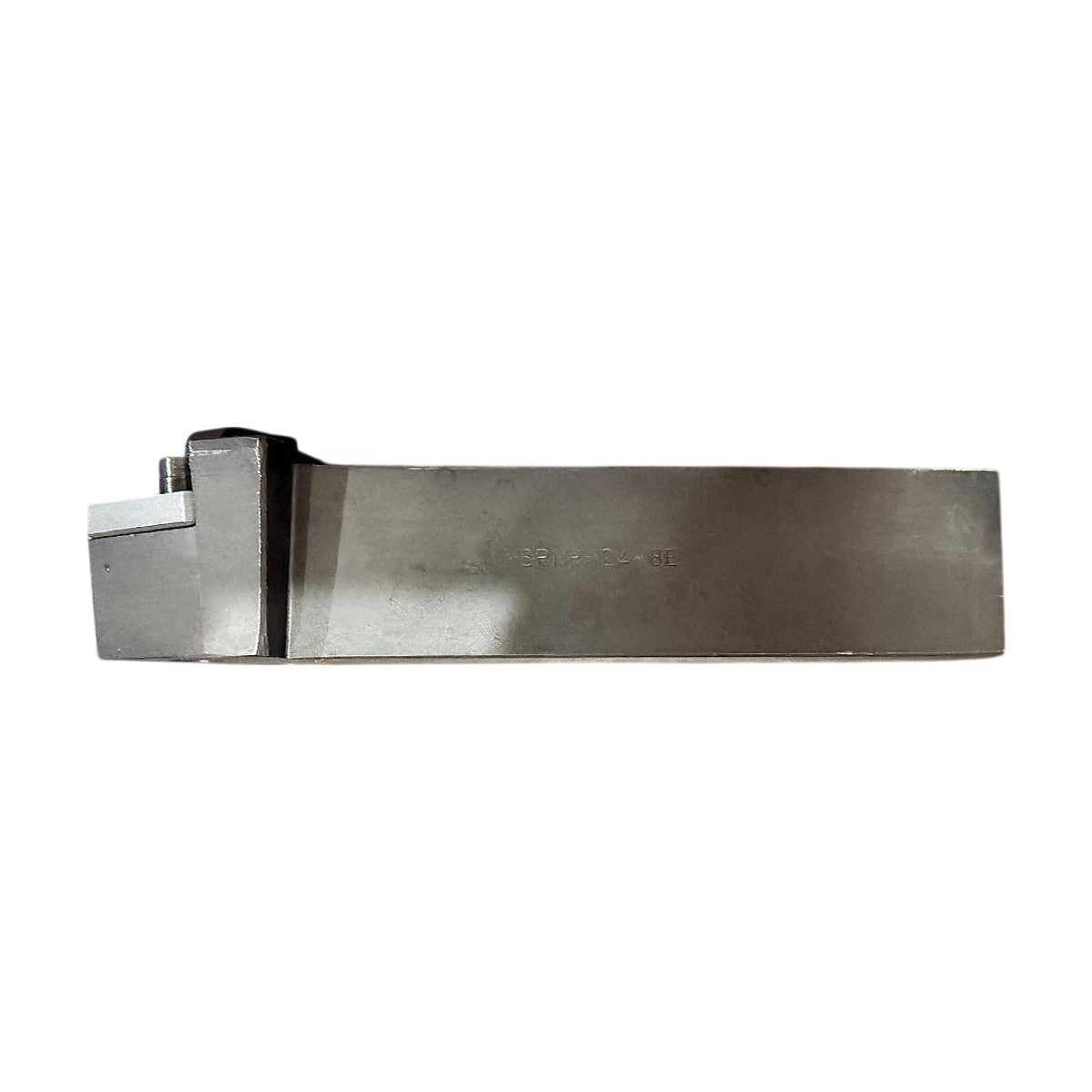

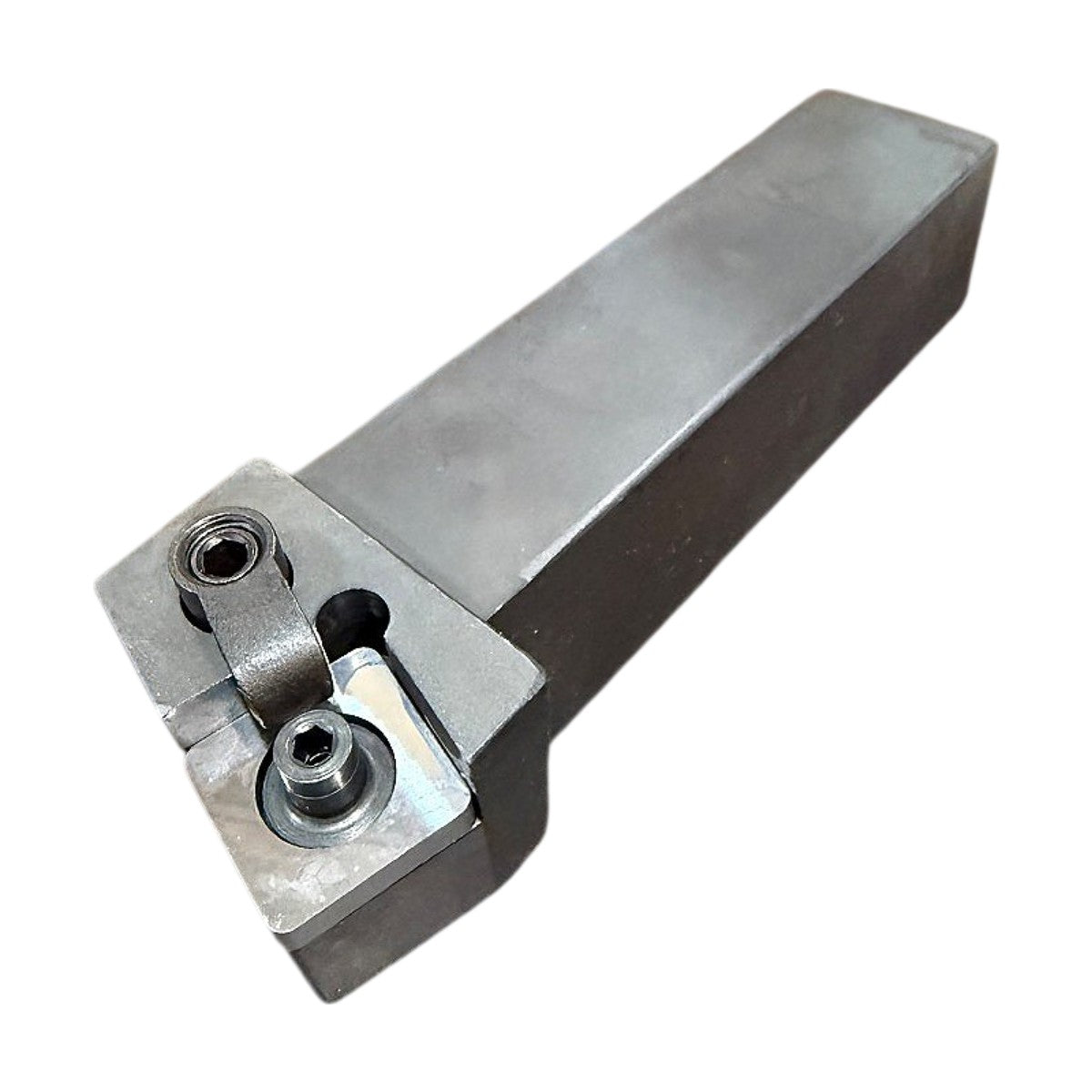

This Hertel MSRNR 24-8E is a new external turning toolholder, right hand, with a square insert pocket and a 75 degree lead angle. The ISO-style designation indicates top clamp plus center-hole screw clamping (M style), a square insert (S), 0 degree insert clearance (N), and right-hand cutting (R). It is designed for external turning and facing with negative-rake square inserts. The 24 in the part number points to a 1-1/2 in square shank, and the 8 to an insert size of 1 in IC under the ANSI size convention; verify these dimensions against the holder before ordering inserts. The body is steel, with a clamp and a locking screw holding the insert.
Product Specifications
| Brand | Hertel |
| MPN | MSRNR 24-8E |

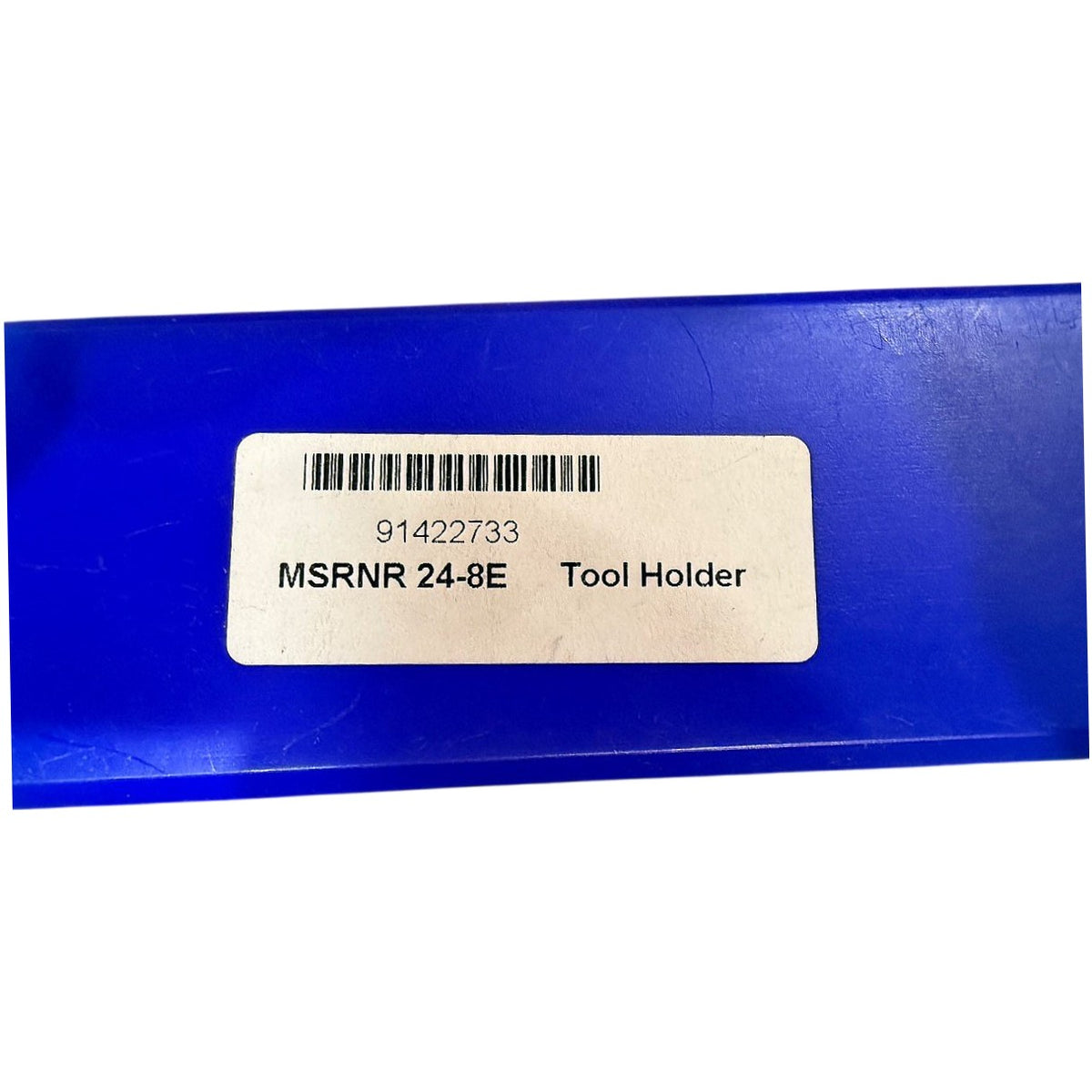

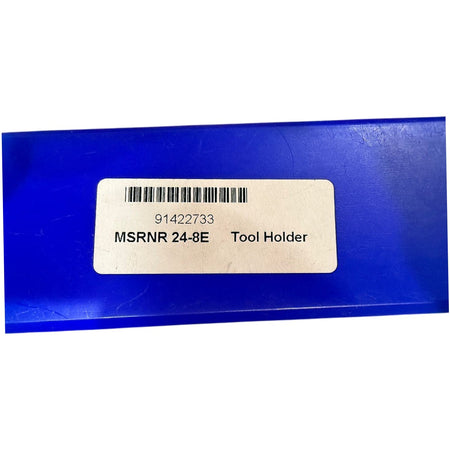

| Item Number | 91422733 |
| Hand of Cut | Right Hand |
| Insert Shape | Square |
| Lead Angle | 75 deg |
| Insert Clearance Angle | 0 deg (N, negative insert) |
| Clamping Style | M Style, Top Clamp + Center Hole Screw |
| Operation | External Turning, Facing |
| Holder Style | External Turning Toolholder |
| Shank Size | 1-1/2 in square |
| Insert Size | 8 (1 in IC) |
| Material | Steel |
